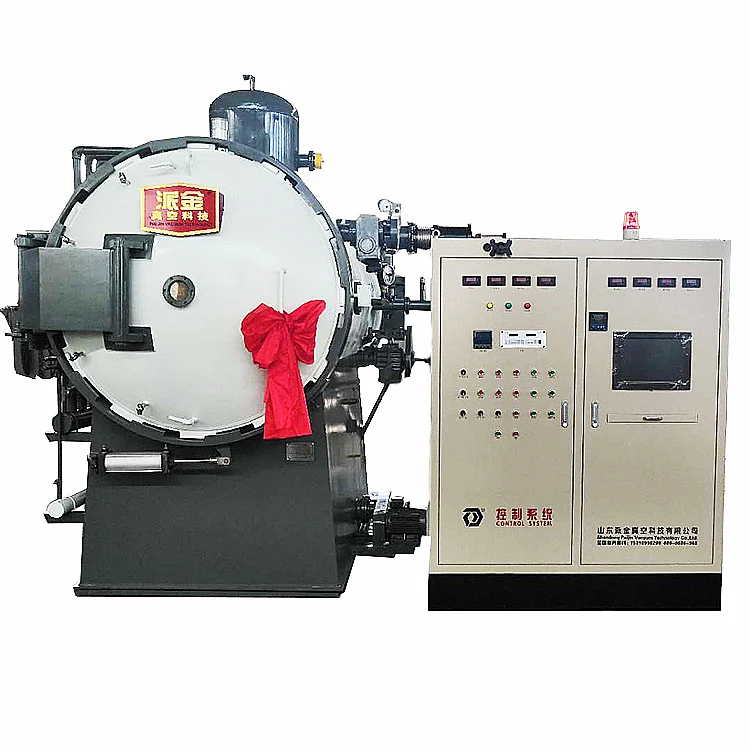

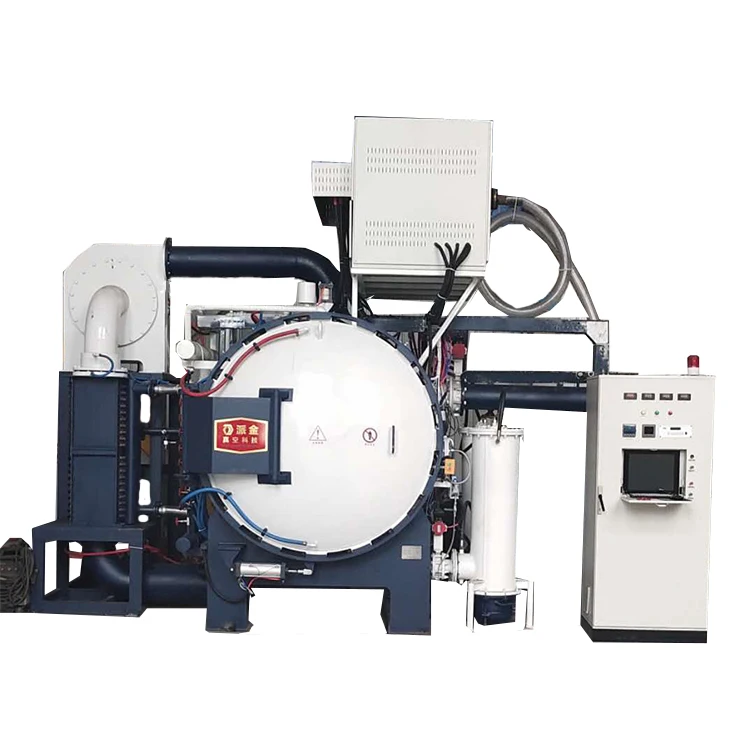

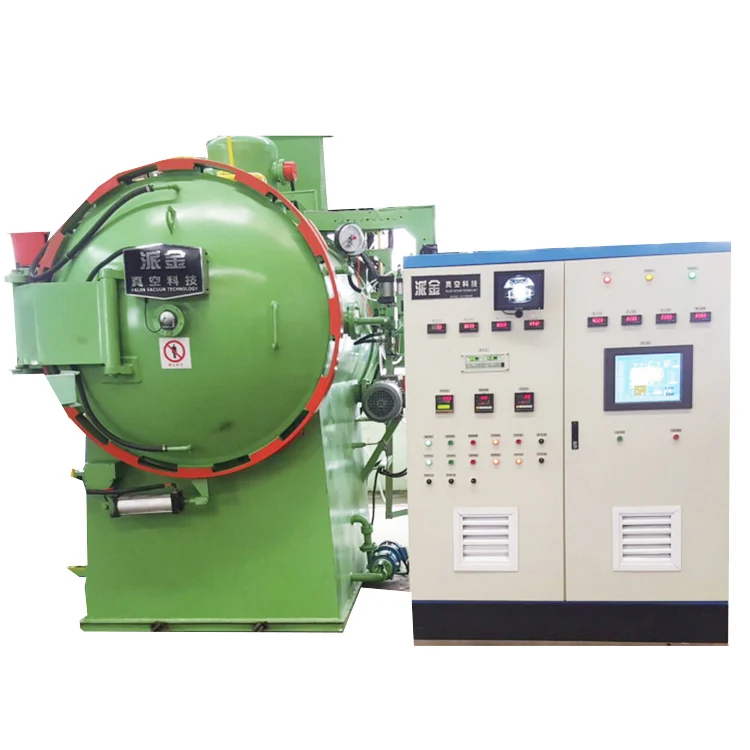

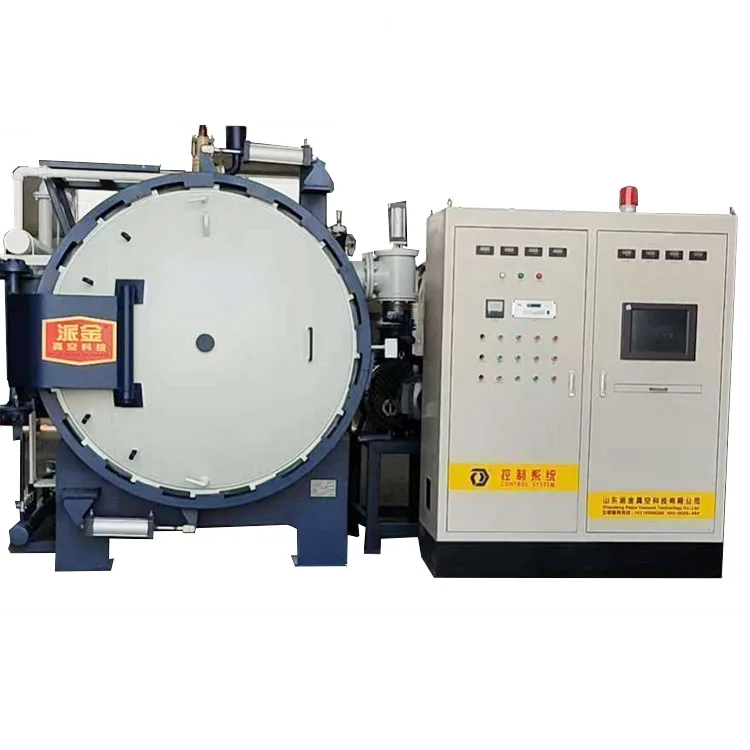

Автоматическая вакуумная быстроохлаждающая спекающая печь PAIJIN с управлением

Автоматическая вакуумная быстроохлаждающая спекающая печь PAIJIN с управлением

Категория: Industrial Furnace >>>
Поставщик: Shandong,Paijin,Intelligent,Equipment,Co.,Ltd.

Цена:30 000,00 $ - 100 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	35700.84 $*	37485.15 $*
Aug-16-2025	35400.29 $*	37170.97 $*
Jul-16-2025	29700.68 $*	31185.45 $*
Jun-16-2025	34800.14 $*	36540.23 $*
May-16-2025	30300.78 $*	31815.96 $*
Apr-16-2025	34200.9 $*	35910.83 $*
Mar-16-2025	33900.61 $*	35595.12 $*
Feb-16-2025	33600.3 $*	35280.54 $*
Jan-16-2025	33300.56 $*	34965.84 $*

Характеристики

vacuum quick-cooling sintering furnace

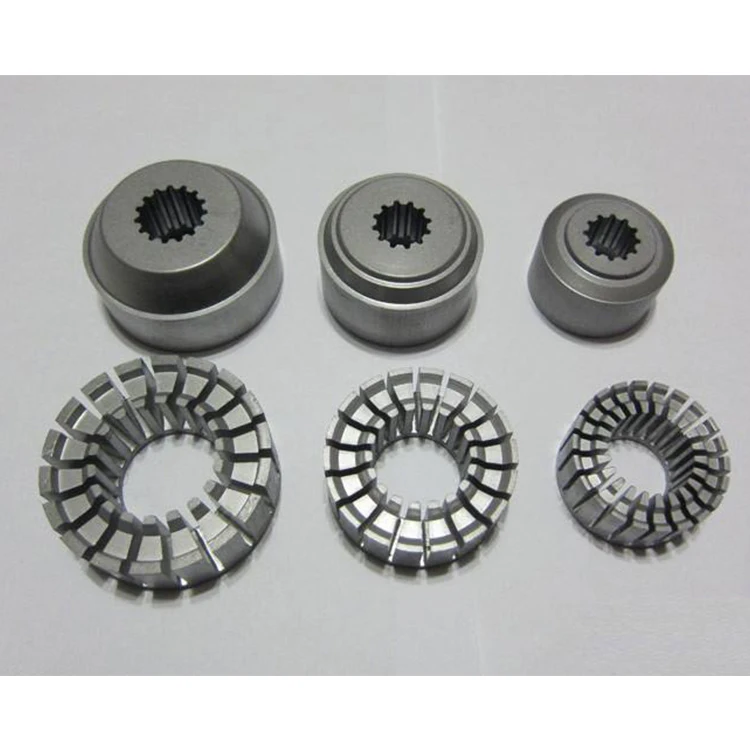

Vacuum sintering furnace is mainly used in vacuum sintering of powder metallurgy products, metal forming products, stainless steel base, hard alloy, superalloy, high specific gravity alloy, ceramic materials, Nd-Fe-B, etc.

Technical parameter	PJSJ-gr-30-1600	PJSJ-gr-60-1600	PJSJ-gr-100-1600	PJSJ-gr-200-1600	PJSJ-gr-450-1600
Useful space(mm)	200200300	300300600	300300900	4004001200	5005001800
Charging weight (KG)	100	200	400	600	1000
Pumping rate	10min to 5Pa	10min to 5Pa	10min to 5Pa	10min to 5Pa	10min to 5Pa
Cooling-down method	inert gases	inert gases	inert gases	inert gases	inert gases
Temperature homogeneity	±3℃	±3℃	±3℃	±3℃	±3℃
Design Pressure	1MPa, 6MPa,12MPa (or customized)					≤0.5	≤0.5	≤0.5	≤0.5
Leak(age) rate	0.5pa/h					Nitrogen/Argon	Nitrogen/Argon	Nitrogen/Argon	Nitrogen/Argon
Final vacuum	4.0*10-1рa					≤2	≤2	≤2	≤2
Max. working temperature	1600 ℃ (or customized)
Final vacuum	4.0*10-1рa (or customized)
Wax collection rate	97.50% (optional)
Gas introduction allowed	N2, H2, ar (optional gas) (optional)
Sintering process	Vacuum, partial pressure sintering, pressure sintering
Degreasing process	N2 negative pressure, H2 atmospheric pressure (option)
Cooling process	Vacuum, forced

Parameter/Model	PJ-SJ336	PJ-SJ447	PJ-SJ449	PJ-SJ4411	PJ-SJ5518	PJ-SJ7720
Effective hot zone (WHL)	300300600	400400700	400400900	4004001100	5005001800	7007003000
Load weight (KG)	120	200	300	400	800	2000
Max. Temperature (℃)	2800	2800	2800	2800	2800	2800
Furnace Temperature Uniformity (℃)	±5-20	±5-20	±5-20	±5-20	±5-20	±5-20
Vacuum degree (Pa)	4.0E-1/6.7E-3	4.0E-1/6.7E-3	4.0E-1/6.7E-3	4.0E-1/6.7E-3	4.0E-1/6.7E-3	4.0E-1/6.7E-3
Pressure Rise Rate (Pa)	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
Cooling velocity(min)	adjustable	adjustable	adjustable	adjustable	adjustable	adjustable
Cooling medium	Nitrogen/Argon	Nitrogen/Argon	Nitrogen/Argon	Nitrogen/Argon	Nitrogen/Argon	Nitrogen/Argon
Degreasing process	N2 negative pressure /H2 atmospheric pressure
Sintering process	Vacuum/pressure sinterina (partial pressure / micro pressure / positive pressure)
Cooling process	Vacuum/closed(pressunzed), forced(pressunized)

characteristic

1. It will significantly reduce cycle running time through automatic degreasing technology and innovative pump
cleaning systems.
2. Application of large amount Metal injection Molding (MIM) and Powder Metallurgy (PM)；
3. Graphite insulation screen / metal screen optional, heating element 360 degree surround radiation heating,
reliable insulation design.
4. Sealed degreasing box and vacuum condenser to reduce pollution of heating chamber and unit
5. Vacuum partial pressure function
6. Excellent process reproducibility
7. Controllable cooling process, minimum workpiece deformation in cooling period
8. Closed circulating water cooling system.
