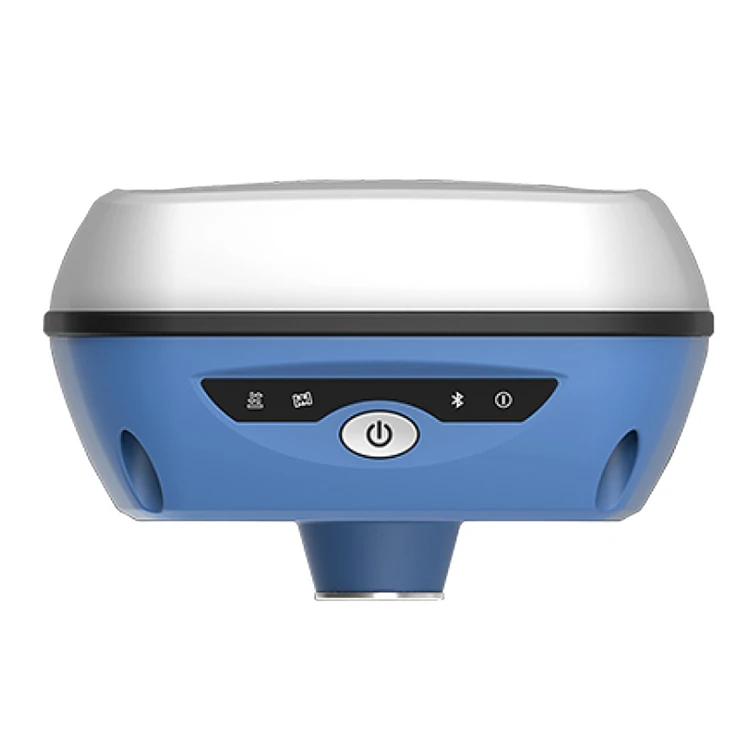

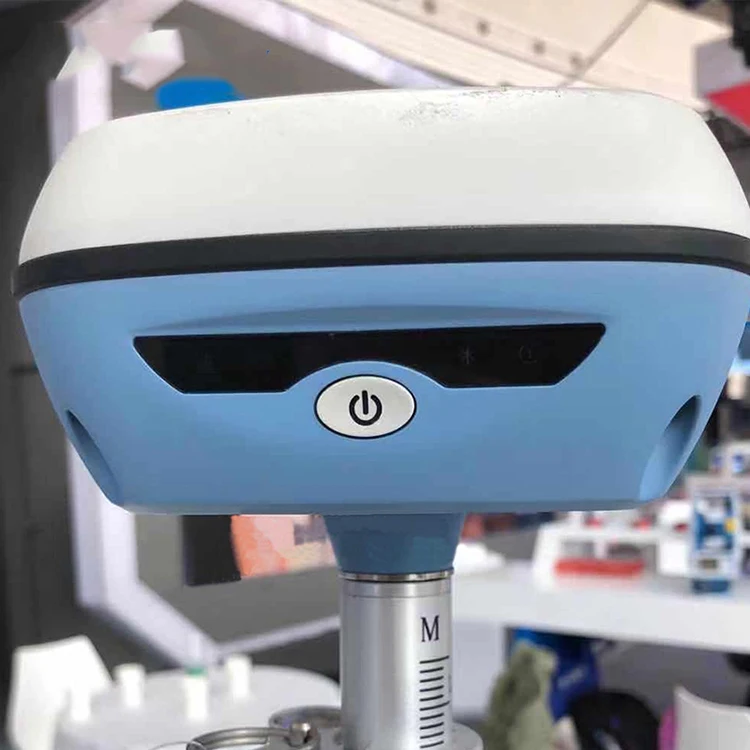

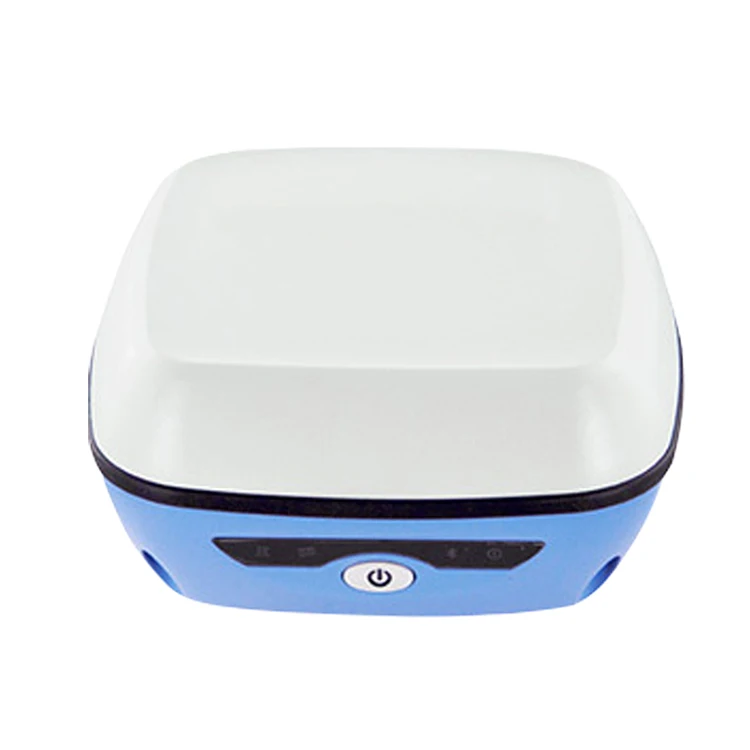

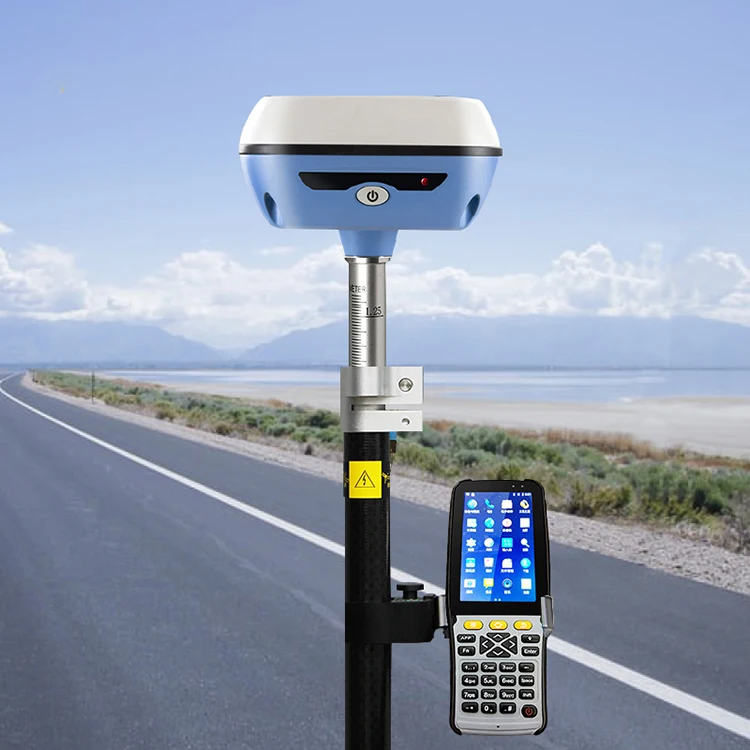

Ruide Gps Gnss приемник 965 каналов R93i дешевый база и Rover съемное
- Категория: Other Test Instruments >>>
- Поставщик: Shangrao,Haodi,Imp&Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 4998.88 $* | 5248.51 $* |
| Aug-18-2025 | 4956.38 $* | 5204.3 $* |
| Jul-18-2025 | 4158.29 $* | 4366.1 $* |
| Jun-18-2025 | 4872.82 $* | 5116.83 $* |
| May-18-2025 | 4242.29 $* | 4454.11 $* |
| Apr-18-2025 | 4788.95 $* | 5027.84 $* |
| Mar-18-2025 | 4746.92 $* | 4983.44 $* |
| Feb-18-2025 | 4704.87 $* | 4939.48 $* |
| Jan-18-2025 | 4662.91 $* | 4895.37 $* |
Характеристики
Company Information
Specifications
| Items | Specification | |
| GNSS | Signal Tracking | 965 Channels |
| BDS:B1,B2,B3 | ||
| GPS: L1,L2C,L2P,L5 | ||
| GLONASS: L1 C/A, L1P, L2C/A, L2P | ||
| Galileo: E1C,E5A,E5B | ||
| SBAS,QZSS: support | ||
| L-Band :support | ||
| GNSS Features | Positioning output rate 1Hz~20Hz | |
| Initialization time : <10s | ||
| Initialization reliability : >99.99% | ||
| All-Constellation receiving Technology that supports all existing and planned GNSS constellation signals | ||
| Positioning Precision | Code Differential GNSS Positioning | Horizontal:0.25 m + 1 ppm RMS |
| Vertical:0.50 m + 1 ppm RMS | ||
| SBAS positioning accuracy: typically <5m 3DRMS | ||
| Static GNSS Surveying | Horizontal:(2.5mm+0.510-6D) | |
| Vertical:(5mm+0.510-6D) | ||
| RTK Surveying | Horizontal:(8mm+110-6D) | |
| Vertical:(15mm+110-6D) | ||
| Operating system / user interaction | Operating system | Linux |
| buttons | Single button operation, convenient and quick | |
| indicator | Four indicator lights | |
| Web interaction | Built-in WebUI management background, support WiFi and USB mode access WebUI page, real-time monitoring of receiver status, set any configuration of the receiver. | |
| voice | Intelligent voice technology, support for Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish; support for voice customization | |
| Data cloud service | Support register online, remote upgrade and etc. | |
| Electrical | Power | 9-28V wide voltage DC design with overvoltage protection |
| Battery | High capacity built-in battery 6800mAh 7.4V | |
| Power solution | Routine operations meet the endurance of more than 8 hours | |
| (Provide 7*24h continuous working power solution) | ||

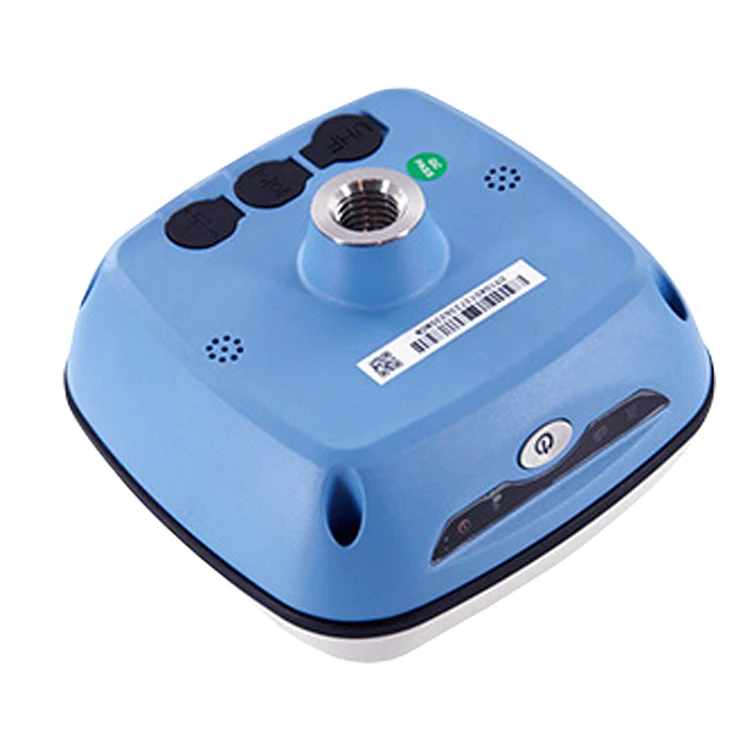

| Communications | I/O Port | 5 PIN LEMO External power interface +RS232 |
| 7 PIN LEMO with USB(OTG) | ||
| Radio, Network Antenna Interface (shared) | ||
| Radio modem | Built-in high performance radio, | |
| operating frequency 410-470MHz, | ||
| External radio: 5W/25W/35w | ||
| protocol: TrimTalk450S,TrimMark3, SOUTH, CHC,SATEL,HI-TARGET | ||
| Blue tooth | BLE blue tooth 4.0;blue tooth 2.1 + EDR standard | |
| NFCwireless communication | Using NFC wireless communication technology, the controller can be automatically paired with the receiver.( controller needs have NFC wireless communication module) | |
| WIFI | standard | 802.11b/g/n |
| WIFI hot spot | WIFI hot spot function: intelligent terminal can connect to the receiver to do personalization custom; | |
| Data transmission supported between the receiver and the controller | ||
| WIFI data chaining | Receiver can access WIFI, to broadcast or receive differential data via WIFI | |
| Data storage / transmission | Data storage | 8G solid state memory, supporting 32GB external extension, Automatic cyclic storage, |
| Supporting external USB memory for data storage; | ||
| transmission | One key Smart copy directly exports host static data via external USB memory; plug and play USB for data transfer; FTP download, HTTP download. | |
| data format | Static: SOUTH, Rinex2.01, Rinex3.02 and etc. | |
| Differential data format: RTCM 2.1,RTCM 2.3,RTCM 3.0,RTCM 3.1,RTCM 3.2 Input and output; | ||
| GPS output data format: NMEA 0183, PJK plane coordinates, binary code, | ||
| IMU/Sensor | Electron bubble | Built-in sensors, data collector software can display electronic bubbles, real-time check the alignment of the surveying pole leveling situation |
| Shake and shake tilt measurement (optional) | The built-in IMU sensor supports the tilt measurement function of shaking and shaking, and automatically corrects the coordinates according to the tilt direction and angle of the centering rod. | |
| temperature sensor | Built-in temperature sensor, real-time monitoring and adjusting host temperature | |
| Physical | Size | 135*135*84.75mm |
| Weight | 0.97KG with battery | |
| Material | aluminium magnesium alloy | |
| Temperature | Operating:0 to +65 | |
| Storage:0C to +80 C | ||
| Humidity | Resistance to 95% condensation | |
| Waterproof/ Dustproof | Waterproof:1m immersion,IP68 | |
| Dustproof: Completely prevent dust from entering,IP68 | ||
| shockproof | Resistance to 2-meter drop with rod | |
