Новое поступление 2021 настольная раздельная цветная лазерная маркировочная машина JPT Mopa
- Категория: Laser Marking Machines >>>
- Поставщик: Jinan,Zhancheng,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.27 $* | 0.13 $* |
| Aug-20-2025 | 0.53 $* | 0.51 $* |
| Jul-20-2025 | 0.85 $* | 0.17 $* |
| Jun-20-2025 | 0.0 $* | 0.52 $* |
| May-20-2025 | 0.92 $* | 0.16 $* |
| Apr-20-2025 | 0.50 $* | 0.8 $* |
| Mar-20-2025 | 0.49 $* | 0.65 $* |
| Feb-20-2025 | 0.92 $* | 0.50 $* |
| Jan-20-2025 | 0.56 $* | 0.59 $* |
Характеристики

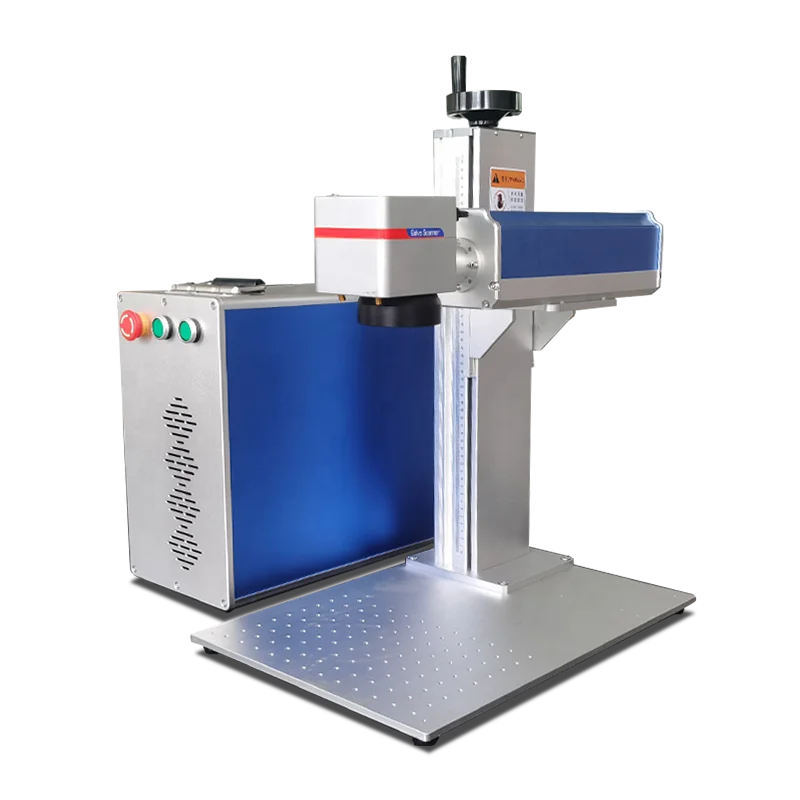

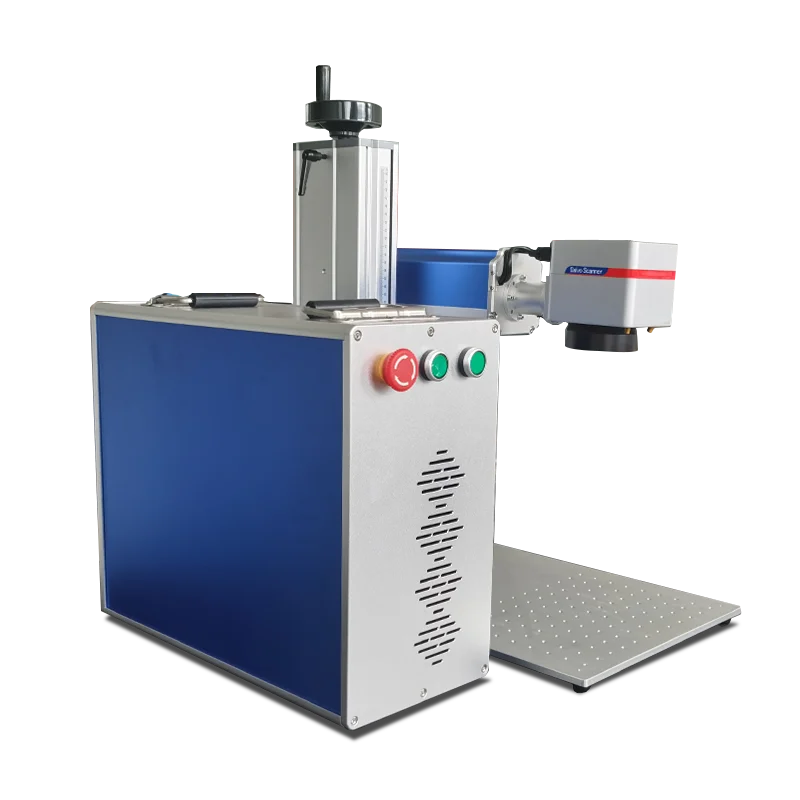

2021 New Arrival Desk Split JPT Mopa M7 Colorful Laser Marking Fiber Laser Marking Machine Mopa Laser
Product Description
Specification
Specification | Parameter | ||||||||
Laser Source | JPT Mopa M7 Laser Source | Laser Power | 20W 30W 60W | ||||||
Laser Head | Sino-Galvo Scanning Head | Marking Speed | 7000mm/s | ||||||
Main Board | JCZ Control Card | Min Line Width | 0.012mm | ||||||
Laser Wavelength | Wavelength Lens | Laser Wavelength | 1064nm | ||||||
Software | EZCAD Software | Working Area | 110*110 /150*150/175*175/ 200*200/300*300mm | ||||||
Power Supply | Taiwan MeanWell | Power Supply | AC220V/50Hz | ||||||
Packed Size | 0.78m*0.48m*0.61m | Cooling System | Air cooling | ||||||
Packed Weight | 62Kg | Marking depth | ≤0.4mm(By materials) | ||||||
Details
Sino Galvo Scanning Head
Marking Speed: 7000mm/s
Positioning Speed: 10000mm/s
Tracking Error: ≤180us
Tracking Error: ≤180us
Small step response time: ≤0.4ms
Wavelength F-Theta Lens
1.High processing precision, high uniformity.
2. Optional marking area: 110*110mm/150*150mm/175*175mm/220*220mm/330*330mm.
2. Optional marking area: 110*110mm/150*150mm/175*175mm/220*220mm/330*330mm.
Raycus Laser Source
High peak power, high single pulse energy, and optional spot diameter. They can be widely used in non-metallic materials, such as gold, silver, copper, aluminum and non-high reflective materials such as stainless steel. In the fields of marking, precision machining, graphic engraving, etc., its marking application process is cheaper than traditional lasers and has more stable performance.
BJJCZ Control Card
2021 BJJCZ main board, control system with EZCAD software, stable performance, high reliability, complete functions, to ensure long time work, compatible with Win7 / Win10 32 bit / 64 bit.
EZCAD2 Software
(3D will configure EZCAD3)
Control Button
(Power, Red light,Scan,Laser)
Optional Parts
Rotary(50/65/80/100/160mm)
Optional rotary axis:Can be used for different cylindrical,spherical objects to rotate the marker axis.The stepping motor is used for digital control, and the speed can be controlled by computer.
2D Table
The workbench can be adjusted up and forward and backward.We’re moving in six directions.Users can adjust the direction according to actual needs.
Plate Holder
The maximum width of this equipment can cut and mark gold foil is 124mm.The small cylinder on both sides is used to press the gold foil, and then the marking machine is used to cut or mark the pattern.
Application&Advantage
Same Application With Normal Fiber Laser :
Print marks on a variety of metals, such as stainless steel, carbon steel, various alloy steels, tool steels, hard alloys, aluminum alloys, chrome plating, nickel plating, zinc plating, various grinding, polishing metal surfaces, etc. It is suitable for marking logos, product names, technical indicators, manufacturer names, safety matters, as well as making high-grade stainless steel signs, marking on shells, etc.
*Special Application:
MOPA fiber laser has a wide parameter adjustment range. Therefore, in addition to covering the processing applications of conventional nanosecond lasers, it can also use its unique narrow pulse width, high repetition frequency, and high peak power to achieve some unique precision processing applications. such as:
(1)Application of surface stripping of Aluminum oxide sheet
When using a Q-switched laser to mark conductive positions on a thin aluminum plate, it is easy to cause deformation of the material and produce "convex hull" on the back, which directly affects the aesthetics of the appearance. The use of the MOPA laser's smaller pulse width parameters can make the material not easy to deform, and the shading is more delicate and brighter.
(2)Application of color laser marking
For this technology, only MOPA lasers can mark color patterns on stainless steel, chromium, titanium and other metal materials. When coloring stainless steel materials, the color of the surface layer of the material can be changed by adjusting the laser beam to obtain decorative effects with different colors.
(3)Application of Anodized aluminum black
Use Mopa laser to mark black trademarks, models, texts, etc. on the surface of anodized aluminum materials. This application has gradually been widely used in the shells of electronic products by Apple, Huawei, and other electronic manufacturers in the recent years.
(2)Application of color laser marking
For this technology, only MOPA lasers can mark color patterns on stainless steel, chromium, titanium and other metal materials. When coloring stainless steel materials, the color of the surface layer of the material can be changed by adjusting the laser beam to obtain decorative effects with different colors.
(3)Application of Anodized aluminum black
Use Mopa laser to mark black trademarks, models, texts, etc. on the surface of anodized aluminum materials. This application has gradually been widely used in the shells of electronic products by Apple, Huawei, and other electronic manufacturers in the recent years.
Recommended Products
Shipping And Packing
1.Machine cleaning
2.Protective film wrapping
3.Wooden box sealing
4.Box nailing
5.Wooden box delivery
6.Container loading
7.Container sealing
8.Transportation
Company Profile
Jinan Zhancheng Automation Equipment co., LTD. is a professional research and development, production and sales of laser equipment enterprises. Companies and many large well-known enterprises at home and abroad to establish long-term stability of the interactive relations of cooperation, for most users to provide perfect laser processing solutions and the corresponding supporting facilities, widely used in auto parts, instruments, measuring tool cutting tools, electronic communications, aerospace, petrochemical, military products, medicine, food packaging, etc.
Patent and CE Certification
Our company has obtained a number of qualification certifications, which makes our product quality, delivery and purchase more complete and guaranteed.
Our Service
Pre-sale Service
1. Free sample marking
For free sample testing, please send us your file, we will do test.
2. here and make video to show you the effect,or send sample to you for checking quality.
3. Customized machine design
According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.
For free sample testing, please send us your file, we will do test.
2. here and make video to show you the effect,or send sample to you for checking quality.
3. Customized machine design
According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.
After-sale Service
1. Before delivering the machine, we will test and adjust it many times, guarantee that every machine work and high quality, so you can use it directly when you get it.
2. If you have problems while using, 24 hours online professional advice available.
3. The machine warranty for 1 year, laser source warranty for 3 years.
2. If you have problems while using, 24 hours online professional advice available.
3. The machine warranty for 1 year, laser source warranty for 3 years.
FAQ
Q1 :How about warranty?
A1:3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2 :I don’t know which one is suitable for me ?
A2:Please tell me your
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness::choose most suitable power.
Q3 :Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q4 :Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5 :I don’t know how to use after i receive Or i have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and vedio,you can learn step by step.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q6 :Delivery time
A6:General configuration:7 days. Customized:7-10 working days.
Q2 :I don’t know which one is suitable for me ?
A2:Please tell me your
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness::choose most suitable power.
Q3 :Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q4 :Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5 :I don’t know how to use after i receive Or i have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and vedio,you can learn step by step.
2) If have any problem during use,you need our technician to judge the problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q6 :Delivery time
A6:General configuration:7 days. Customized:7-10 working days.
