MS2115A DC AC мультиметр измерительный инструмент ABS Тестер Напряжения тока ампер цифровой клещи истинный Rms домашний дисплей
- Категория: Other Test Instruments >>>
- Поставщик: Shenyang,Dawan,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 71.24 $* | 75.15 $* |
| Aug-20-2025 | 71.46 $* | 75.77 $* |
| Jul-20-2025 | 59.65 $* | 62.71 $* |
| Jun-20-2025 | 70.37 $* | 74.77 $* |
| May-20-2025 | 61.69 $* | 64.5 $* |
| Apr-20-2025 | 68.48 $* | 71.90 $* |
| Mar-20-2025 | 68.74 $* | 71.18 $* |
| Feb-20-2025 | 67.85 $* | 70.6 $* |
| Jan-20-2025 | 67.41 $* | 70.2 $* |
Характеристики
Products Description

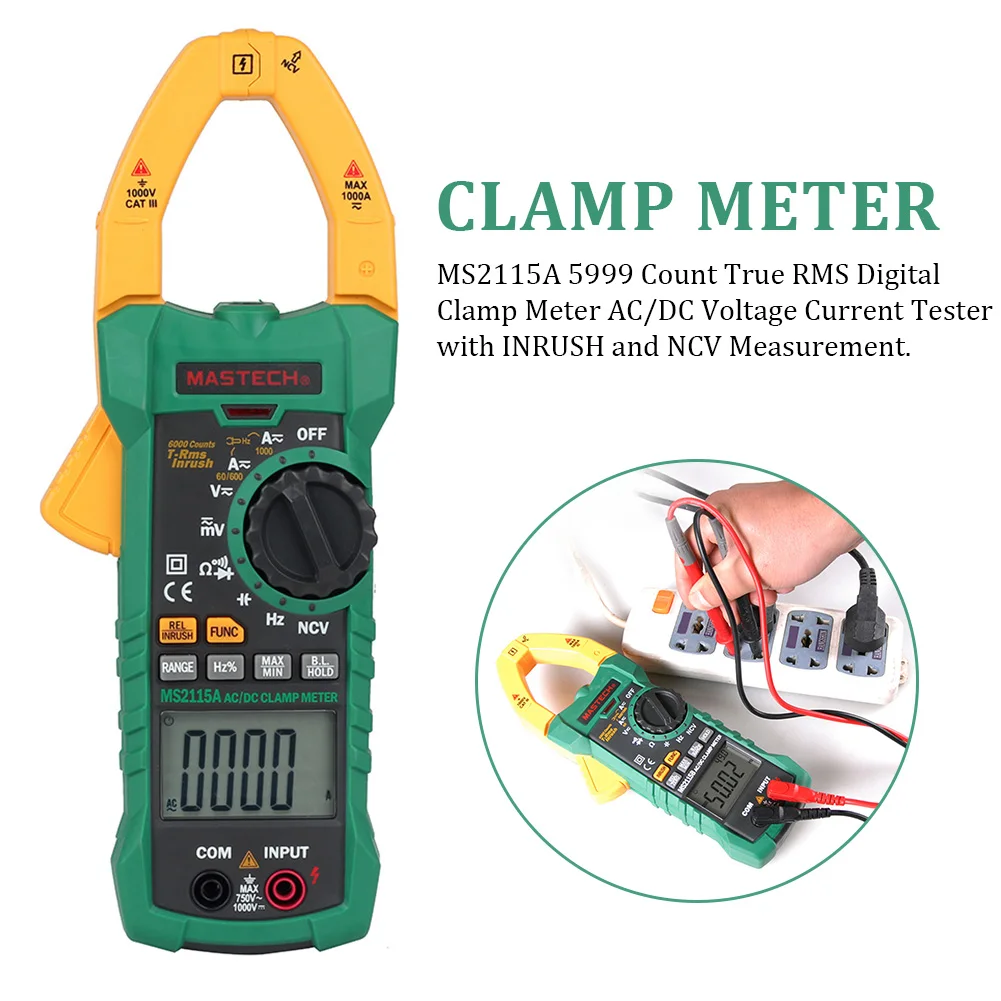

MS2115A 5999 Count True RMS Digital Clamp Meter
AC/DC Voltage Current Tester with INRUSH and NCV Measurement.
AC voltage, current measurement True RMS; Data Hold; MAX/MIN value measurement; REL Test;Non-contact voltage detector function; Display Backlight, Flashlight, Work Light function; Low Battery Display;
AC voltage, current measurement True RMS; Data Hold; MAX/MIN value measurement; REL Test;Non-contact voltage detector function; Display Backlight, Flashlight, Work Light function; Low Battery Display;
Product Paramenters
Specification | Range | Accuracy | ||||
MS2115A | MS2115B | |||||
DC Voltage | 60mV/600mV/6V/60V/600V | +-(0.7% +3) | ||||
600mV/6.6V/66V/660V | +-(0.5% +3) | |||||
1000V | +-(0.8% +2) | +-(0.8% +2) | ||||
AC Voltage | 60mV/600mV/6V/60V/600V | +-(0.8% +3) | ||||
600mV/6.6V/66V/660V | +-(0.8% +3) | |||||
750V | +-(1% +4) | +-(1% +4) | ||||
DC Current | 60A/600A/1000A | +-(2.5% +6) | ||||
66A/660A/1000A | +-3.0% +3) | |||||
AC Current | 60A/600A/1000A | +-(2.5% +6) | ||||
66A/660A/1000A | +-(2.5% +3) | |||||
Resistance | 600ohm/6kohm/60kohm/600kohm/6Mohm | +-(0.8% +3) | ||||
60Mohm | +-(1.2% +3) | |||||
660ohm/6.6kohm/66kohm/660kohm/6.6Mohm | +-(1.0% +3) | |||||
66Mohm | +-(1.5% +3) | |||||
Capacitance | 10nF/100nF/1000nF/10uF/100uF/1000uF/10mF/100mF | +-(4.0% +5) | ||||
6.6nF/66nF/660nF/6.6µF/66µF/660µF/6.6mF/66mF | +-(4.0% +3) | |||||
Frequency (From Clamp) | 0- 10KHz | +-(1.5% +5) | +-(1.5% +5) | |||
Logic Frequency | 0-60MHz | +-(0.5% +3) | ||||
0-66MHz | +-(0.5% +3) | |||||
Duty Cycle | 10%- 90% | +-3.0% | +-3.0% | |||
Feature | ||||||
Display | counts | 6000 | 6600 | |||
Jaw Opening | 40mm/1.6 | 40mm/1.6 | ||||
Auto Ranging | Yes | Yes | ||||
Manual Ranging | Yes | Yes | ||||
Auto Power Off | Yes | Yes | ||||
REL | Relative measurement | Yes | Yes | |||
Diode | 2.7V | Yes | Yes | |||
Continuity Buzzer | <50ohm | Yes | Yes | |||
MAX/MIN | Yes | Yes | ||||
Data Hold | Yes | Yes | ||||
Display Backlight | Yes | Yes | ||||
Low Battery Display | Yes | Yes | ||||

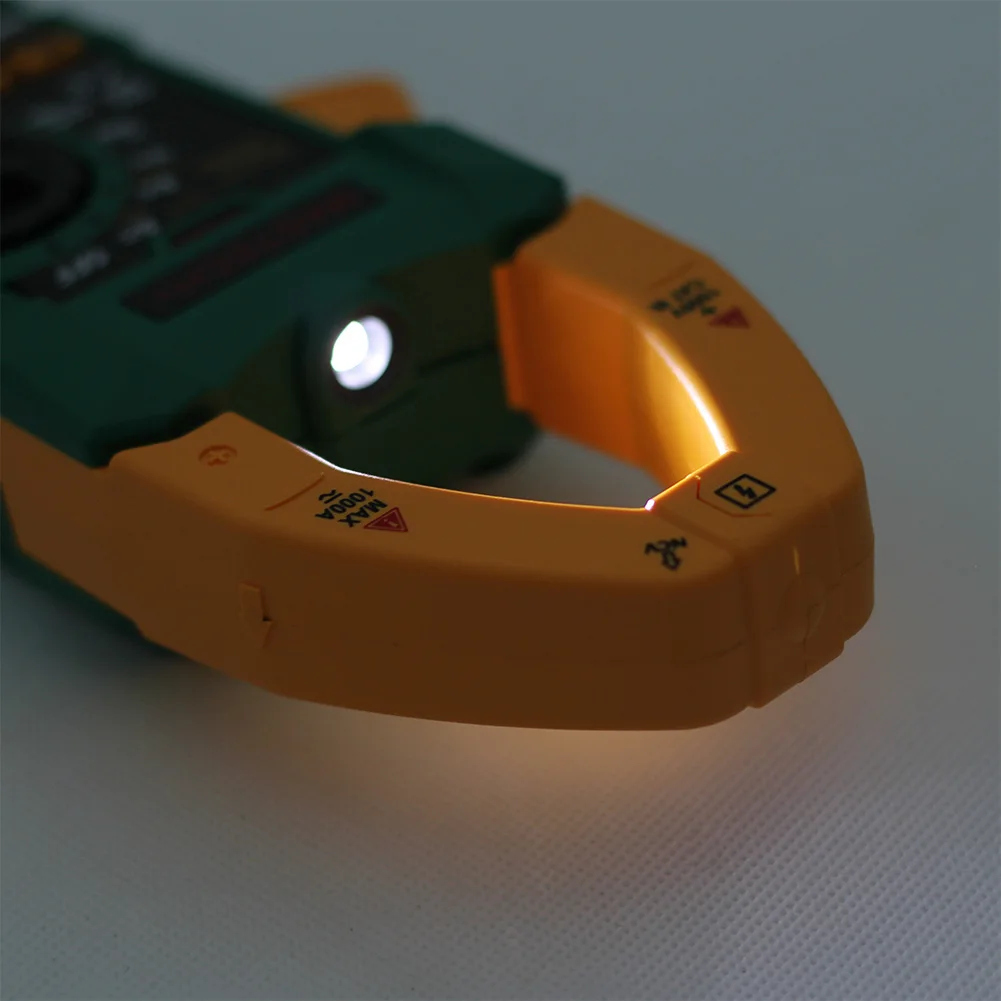

Flash Light | Yes | Yes | ||||
True RMS | True root mean square measurement | Yes | Yes | |||
NCV | Non-contact voltage detector | Yes | Yes | |||
Inrush | Inrush current measurement | Yes | Yes | |||
USB interface | Windows OS | Yes | ||||
General | ||||||
Power Supply | 1x9V 6F22 Battery | Yes | Yes | |||

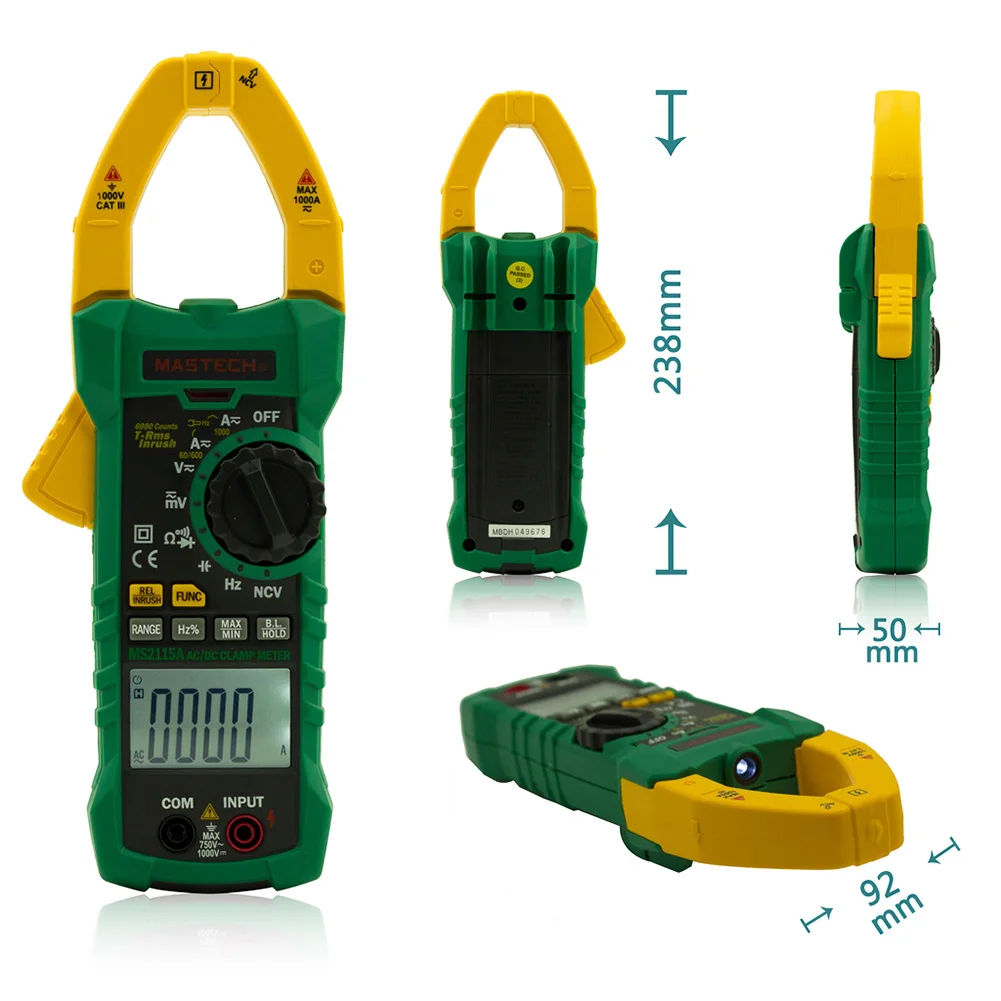

Product Size | mm | 238x92x50 | 238x92x50 | |||
inch | 9.3x3.6x2.0 | 9.3x3.6x2.0 | ||||
Product Weight | 400g | 400g | ||||
0.9lb | 0.9lb | |||||
Category | CAT.III1000V CAT.IV600V | CE | CE | |||

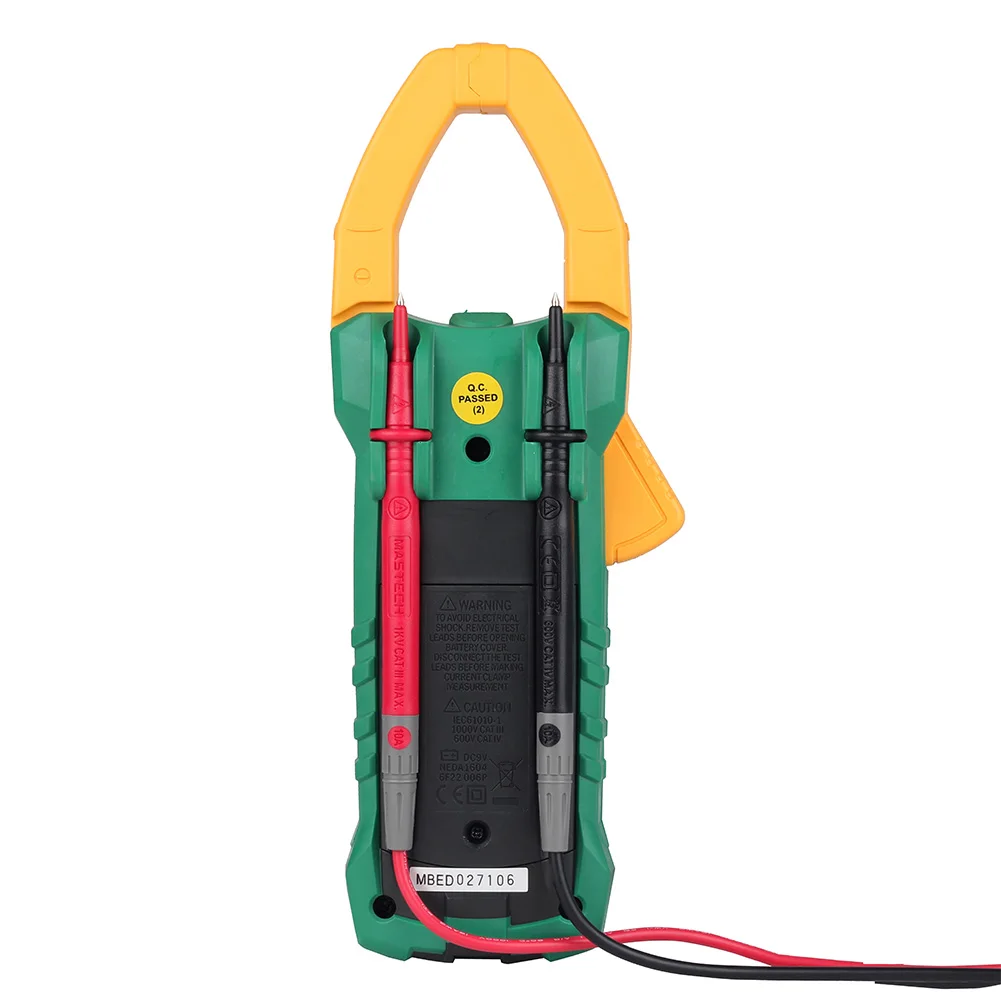

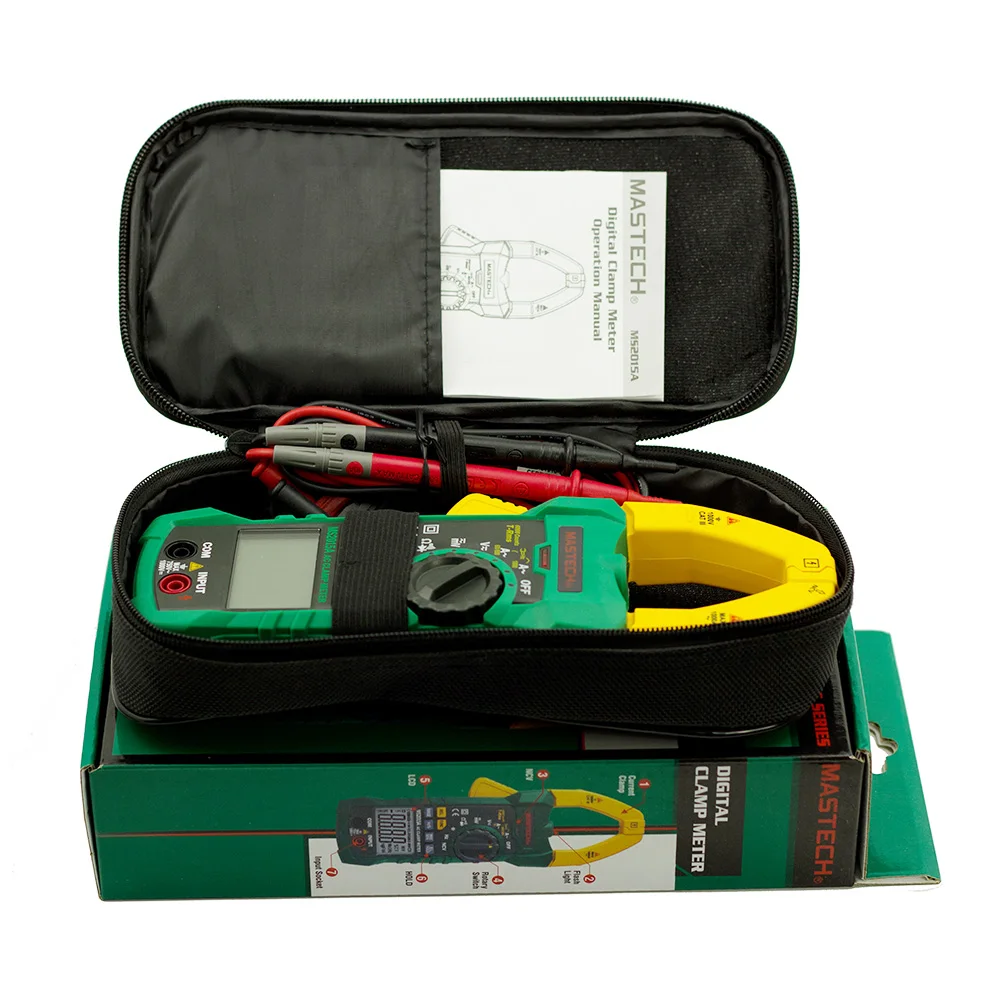

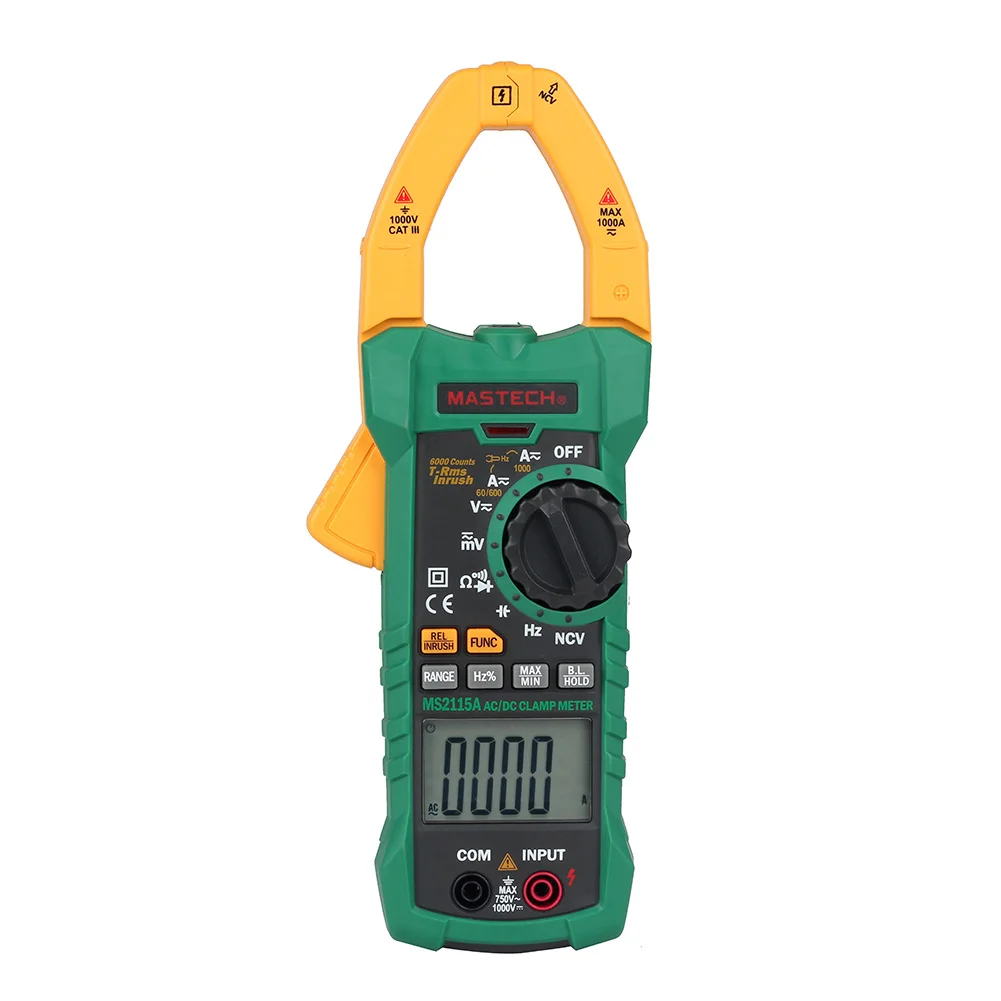

Details Images
Company Profile
Shenyang Dawan Technology Co., Ltd.
Founded in 2011, Shenyang Dawan Technology Co., Ltd. develops and produces all kinds of measuring instruments and meters in China and sells them all over the world. The company can provide OEM and ODM services. The company's infrared thermal imager and non-contact infrared thermometer and other products have been widely used in various industries and around the world. At the same time, the company is also acting as an agent of famous instruments and meters in China and the world, doing import and export trade and services for China and other countries. The company has a trading company in Hong Kong, offices and R & D centers in Beijing and Shenzhen. It can do R & D, design, production, sales and service of non-standard and special instruments. The company adheres to the business philosophy of "professionalism, integrity, service and cooperation" and wholeheartedly provides users with the best quality products and services. We are willing to cooperate with colleagues from all walks of life around the world for common development!
FAQ
1. Are your company a trading one or a factory?
Factory + trade (integration)
OEM is also acceptable for us.
2. How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3. What’s the delivery term?
Most of the time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making a special
arrangement for you.
4. Do you accept customization service?
Yes, of course, we can not only offer standard machines but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5. Can we visit your factory before the order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange a hotel and pick up you from the airport.
6.How about the packing for the machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
7. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
8.How to install and use the product
The product is shipped with operating instructions and video of the English version.
