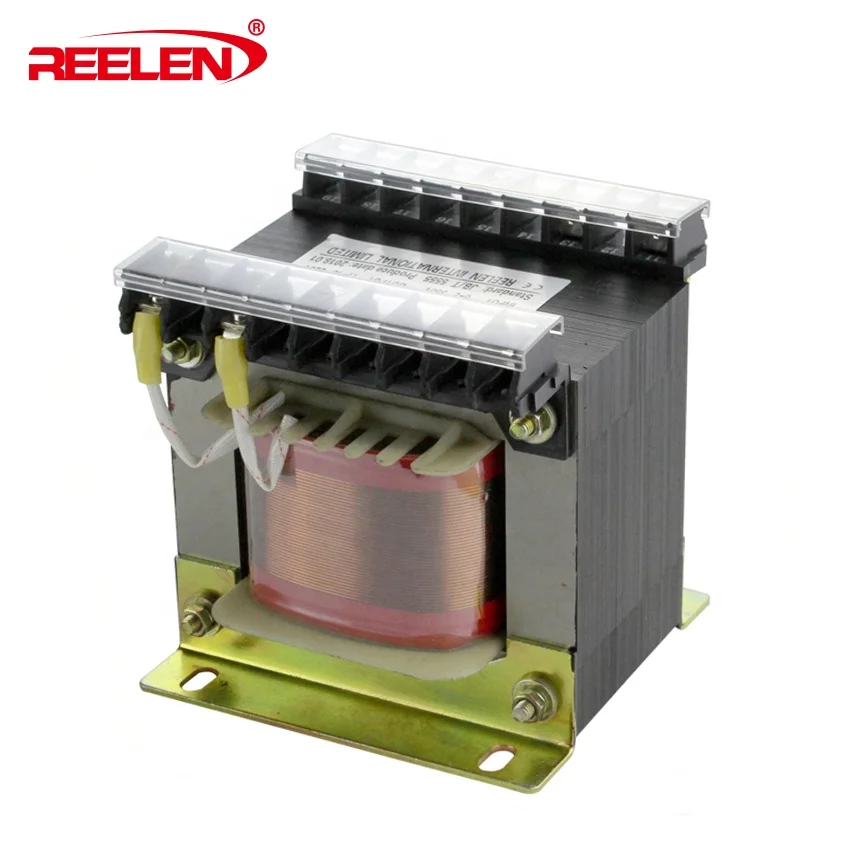

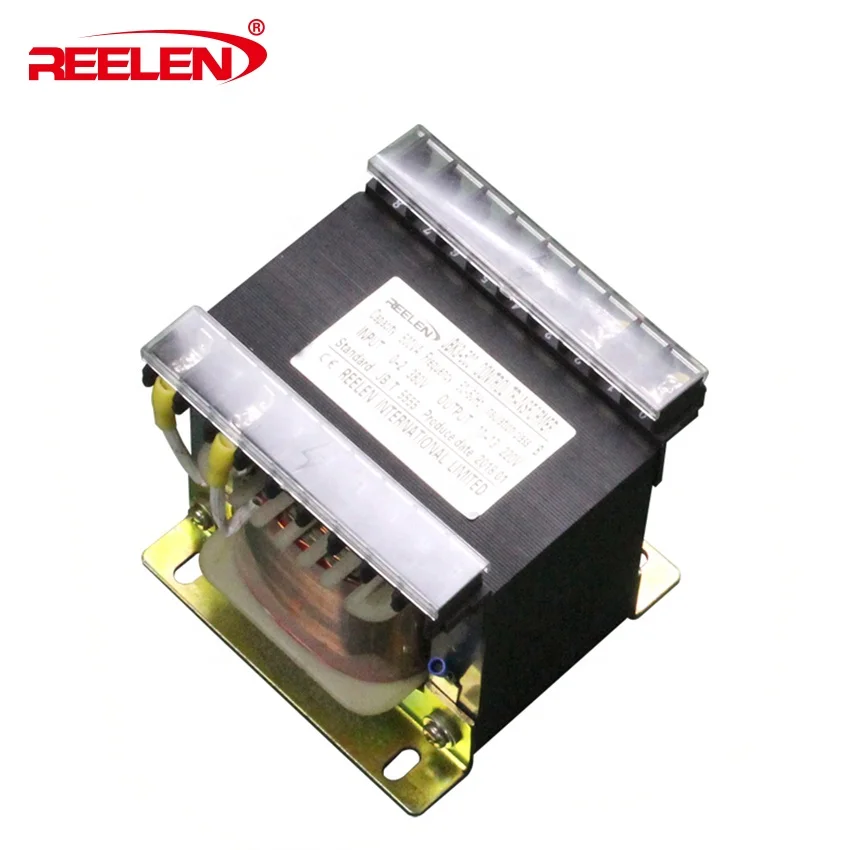

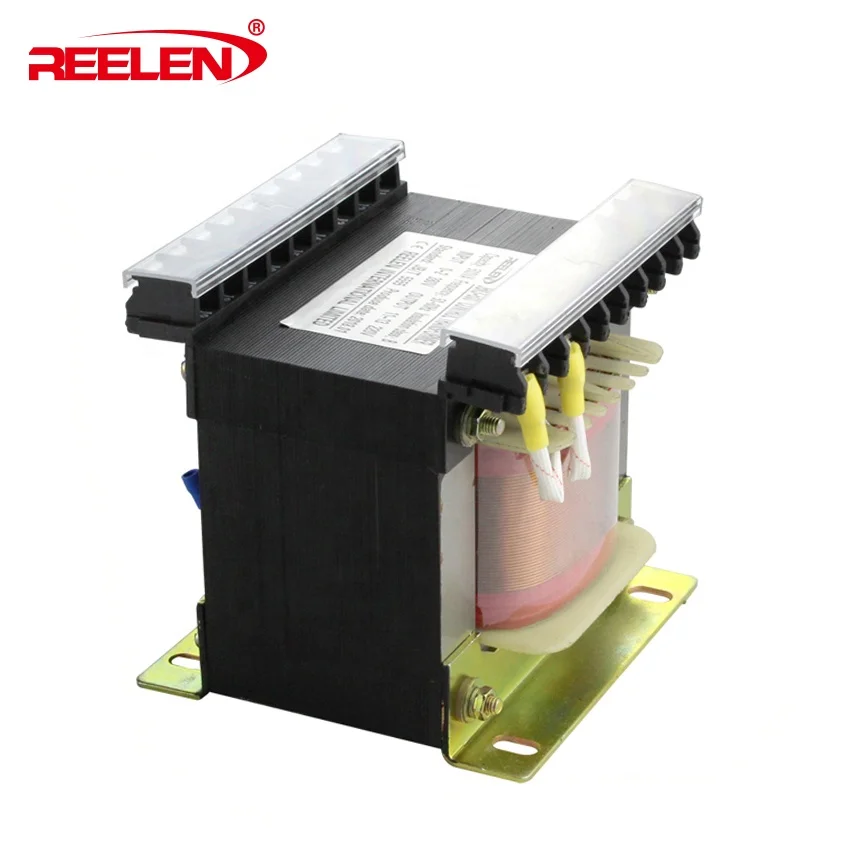

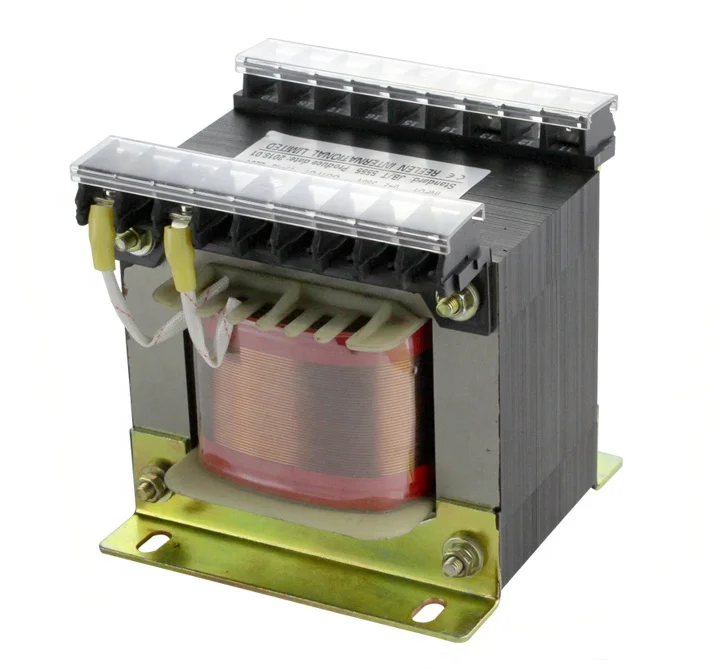

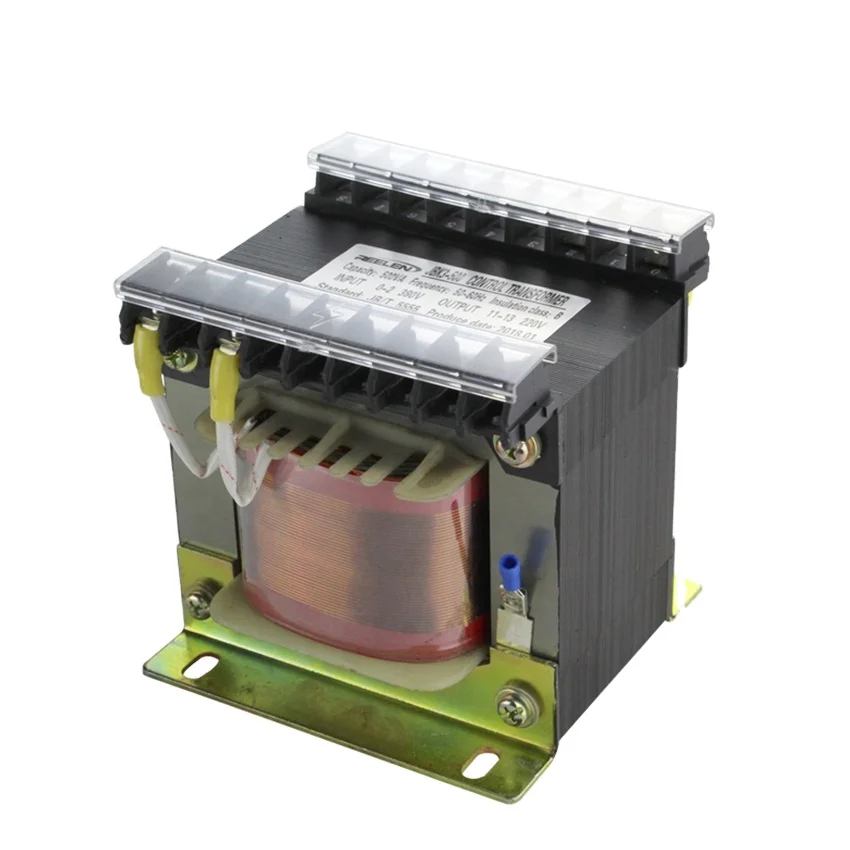

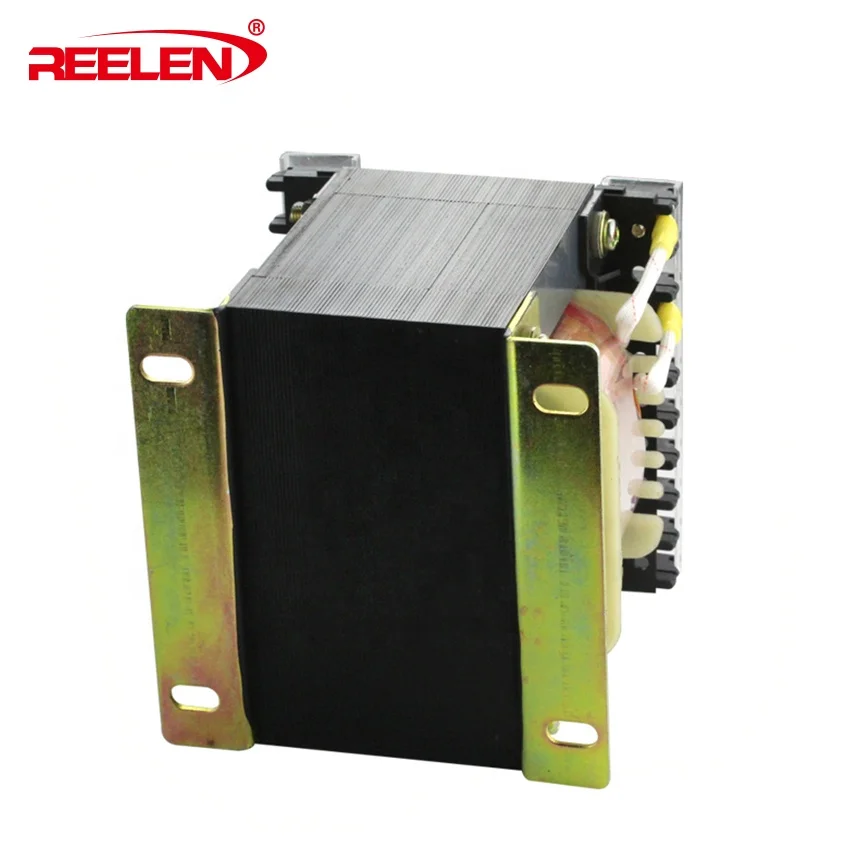

Высококачественный однофазный трансформатор EI 800VA IP00
- Категория: Transformers >>>
- Поставщик: WENZHOU,REELEN,ELECTRICAL,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 57.70 $* | 58.56 $* |
| Jul-15-2025 | 46.65 $* | 47.48 $* |
| Jun-15-2025 | 56.42 $* | 57.34 $* |
| May-15-2025 | 56.41 $* | 57.64 $* |
| Apr-15-2025 | 45.65 $* | 46.10 $* |
| Mar-15-2025 | 55.71 $* | 56.84 $* |
| Feb-15-2025 | 54.13 $* | 55.14 $* |
| Jan-15-2025 | 54.38 $* | 55.98 $* |
Характеристики
Specification
1.Standard:IEC/ ISO CE Certification
2.Rated voltage: <3kV
3.Isolation transformer
4.Low loss & noise
5.Beautiful appearance, reliable quality,high efficiency
6.Easy to install
2.Rated voltage: <3kV
3.Isolation transformer
4.Low loss & noise
5.Beautiful appearance, reliable quality,high efficiency
6.Easy to install
Product Description
Application
________________________________________________________________________________________________________________________
JBK3 series machine tool control transformer is a kind of new product by reference to sample of SIMENS Company,it accords with standards like VDE0550,IEC204-1,IEC439,GB5226,etc.It is suitable for AC circuit of 50~60Hz,output rated voltage less than 220V,input rated voltage less than 500V,worked as control power supply for mechanical equipment and general electrical appliance and as power supply for work lighting and signal lamp.
Working Conditions
1.Ambient temperature: -5°C~+40°C;
2.Altitude for installing place should not exceed 2000m;
3.Relative humidity: <95%;
4.Environment exists without gas, steam, chemical deposition, dust or dirt that will affect transformer's insulation seriously, also explosive or corrosive medium is not allowed;
5.If any special working conditions that are not in line with the above stipulations, user shall negotiate with us.
Main Technical Characters
1.Input voltage: 220V,380V or be customized
2.Output voltage: 6V,12V,110V or be customized
3.Capacity range: 25VA-100KVA above
4.Efficiency: ≥95%
5.Insulation class: B or above as customized
6.Type of cooling system: natural air drying or with fans cooling for IP20
7.Waveform distortion: no additional waveform distortion
8.Function: indication of input voltage, output voltage and current
9.Protection: over-current protection
10.Winding conductor material: usually use copper, can use aluminum if you have special requirements
11. Can operate itself without anybody attending for a long term
12.Electric strength: no breakdown or flashover phenomenon under power frequency sine voltage of 2000V for 1min
13.Overload capability: for 1min under two times of rated current
Overall dimension and installation dimension diagram
Outline and Installation dimension
Model | Rated capacity (VA) | Primary voltage (V) | Secondary voltage (V) | Outline size (mm) | Hole distance for installation (mm) | Installation hole (mm) | ||||||
Bmax | Dmax | Emax | A | C | KxJ | |||||||
JBK3-40 | 40 | 220, 380V or be customized | 6.3,12,24,36,110,127,220,380V or be customized | 82 | 78 | 92 | 56 | 52 | 5x9 | |||
JBK3-63 | 63 | 82 | 78 | 92 | 56 | 52 | 5x9 | |||||
JBK3-100 | 100 | 86 | 92 | 95 | 64 | 69.5 | 5x9 | |||||
JBK3-160 | 160 | 98 | 97 | 105 | 84 | 71.5 | 6x11 | |||||
JBK3-250 | 250 | 98 | 110 | 105 | 84 | 85 | 6x11 | |||||
JBK3-300 | 300 | 122 | 109 | 125 | 90 | 88 | 6x11 | |||||
JBK3-400 | 400 | 122 | 113 | 125 | 90 | 92 | 6x11 | |||||
JBK3-500 | 500 | 122 | 126 | 125 | 90 | 105 | 6x11 | |||||
JBK3-630 | 630 | 152 | 110 | 150 | 130 | 90 | 8x14 | |||||
JBK3-800 | 800 | 152 | 125 | 150 | 130 | 105 | 8x14 | |||||
JBK3-1000 | 1000 | 230 | 170 | 156 | 160 | 142 | 7x14 | |||||
JBK3-1600 | 1600 | 258 | 185 | 168 | 180 | 155 | 7x14 | |||||
JBK3-2500 | 2500 | 285 | 210 | 175 | 210 | 175 | 7x14 | |||||
Attention
1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: For the small capacity, it will be in carton, for big capacity, we should use strong wooden case for protection.
4.The material of windings: 100% real copper wire.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.The month capacity: reach near 80000pcs/month(for small capacity) or near 7000pcs/month(for big capacity).
7.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.
8.Warranty: in 13 months since BL date.
Company Profile
REELEN company is located in Yueqing city, which known as the Chinese electrical appliances, since the inception, REELEN has been specialized in manufacturing and exporting various of electrical products, most of our products have passed CE & RoHS certifications.
Our main products include machine tool control transformers, lighting control transformers, auto voltage reducing starter transformers, three phase Isolation transformers, step up & down transformers, temperature controllers, AC-DC switching power supplies, DC-DC converter, waterproof LED driver, AC voltage stabilizer, inverter, EMI filter, regulators and so on; And our products have been exported to many countries in US, Southeast Asia, the Middle East, Europe and South America and so on.
Quality excellence and customer satisfaction is our strategic principle, we are responsible for powerful competitive price, better quality, quick shipment and developing new products. Our aim is to help our clients realize their goals and to achieve an win-win situation through our great efforts.
We are sincerely looking forward to developing long-term friendly and cooperative business relationships with friends all over the world, and hereby, we welcome customers of every country to our company and factory. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.
Thanking you!
Certifications
Packing & Delivery
FAQ
1. Q: How to order?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods with in the stipulated time.
2. Q: When will make delivery?
A: Delivery Time
-Sample Order: normally 3-7 days as per different models;
-Stock Order: 3-7 days after receipt of the full payment;
-OEM Order: 10-35 days after receipt of the deposit.
A: During the warranty period, if you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
4. Q: What is your available payment term?
A: T/T, Western Union, Paypal, Money Gram, L/C at sight.
5. Q: What price terms is available for you to do?
A: EXW, FOB, CNF, CIF, DDU etc.
6. Q: Transportation
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Sea freight.
7. Q: What's the main business scope of Reelen?
A: We are professional manufacturer and exporter of kinds of transformers, ac reactors, EMI filters, AVRs, LED drivers, Switching Power supplies, PID Temperature Controllers etc.
8. Q: Is it available for your company to make an customized product?
A: Yes, please let us know the detail technical data, we will try the best to make for you.
9. Q: which is loading port?
A: If not specified, the loading port is Ningbo port.
10. Q: May I ask for exclusive agent right in my country?
A: We welcome you to be our long term cooperator in this field. As we have strict principle to entitle the exclusive rights, we suggest placing trial orders first to test your market. If the response is really good, we can talk more on this point.
11. Q: Is OEM welcome by your company?
A: OEM is warmly welcome by our company.
Hope we both parties will benefit a lot through the cooperation.
12. Q: What is warranty on your products?
A: AVR: in 1 year warranty
Transformer: 1 year warranty
Ac reactor: 1 year warranty
EMI filter: 1 year warranty
Switching power supply: 2-3 years warranty
Temperature controller: 1 year warranty
