Food grade sus304 fruit paste ratory drum dryer scraper dryer machine



HG rotatary scraper roller drying machine is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the paddle, and are conveyed, collected and packed.



Scope of application:

It is suitable for the drying of liquid viscous materials in chemical, dyestuff, pharmaceutical, food, metallurgy, yeast and other industries. Widely used in: rice flour, oatmeal, starch, potato powder and other dried products into flake, powder and granule.



Principle:

It is inner heating conductive drying equipment; the wet materials gain the heating from the wall of the roller to dehydrate the water. The heating is transferred from the inner roller wall to the outer wall and then goes through the film. The thermal efficirncy is very high, so it can be continuously operated. It is widely used for drying liquid or paste materials.



Features:

1. High thermal efficiency. The principle of heat transfer of rotary dryer is heat conduction which heat conducting direction    keeps identical with operation cycle. Except cap heat dissipation and radiation loss, all heat energy can be used for evaporating wet materials on the wall of roller. Thermal efficiency could reach 80%-90%.
2. Large operation elasticity and wide application. Various drying factors of the rotary drier can be adjusted, such as density of feeding materials, thickness of materials film, temperature of heating medium, rotating speed of roller etc, which can change drying speed. As these factors have no interrelations with each other, it brings great convenient to dry operation, and makes it applicable to suit various materials and to meet different requirement of production.
3. Short drying period. The drying period of material is normally 10 to 15 seconds, so it is suitable for heat-sensitive material. It can be also working under less pressure condition if it is put in vacuum device.
4. Drying rate is very quick. As material film coated on the wall of roller is very thin. Normally thickness is 0.3-1.5 mm, plus heat and mass transfer direction are identical, the evaporation capacity on the surface of film can keep at 15-70kg.H2O/m2.h.



Product technical parameter:

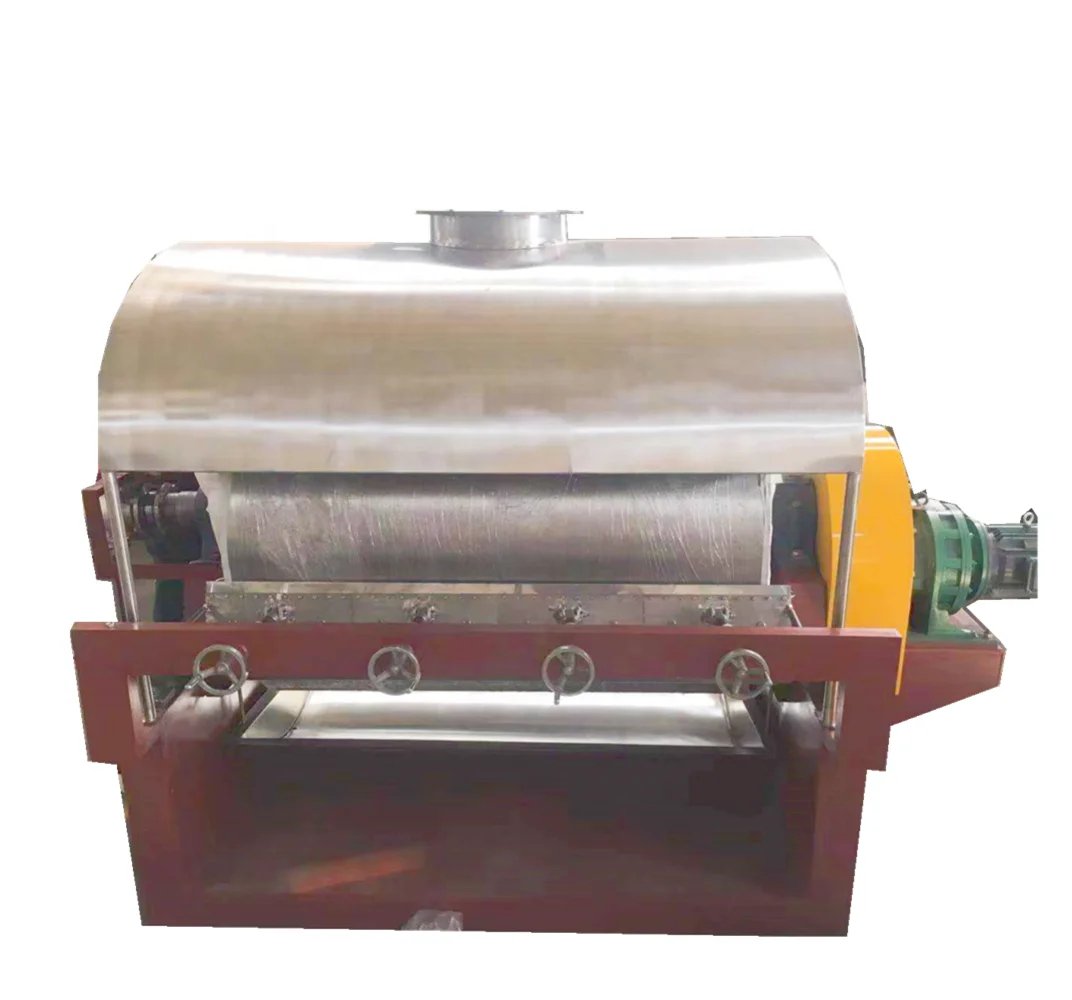

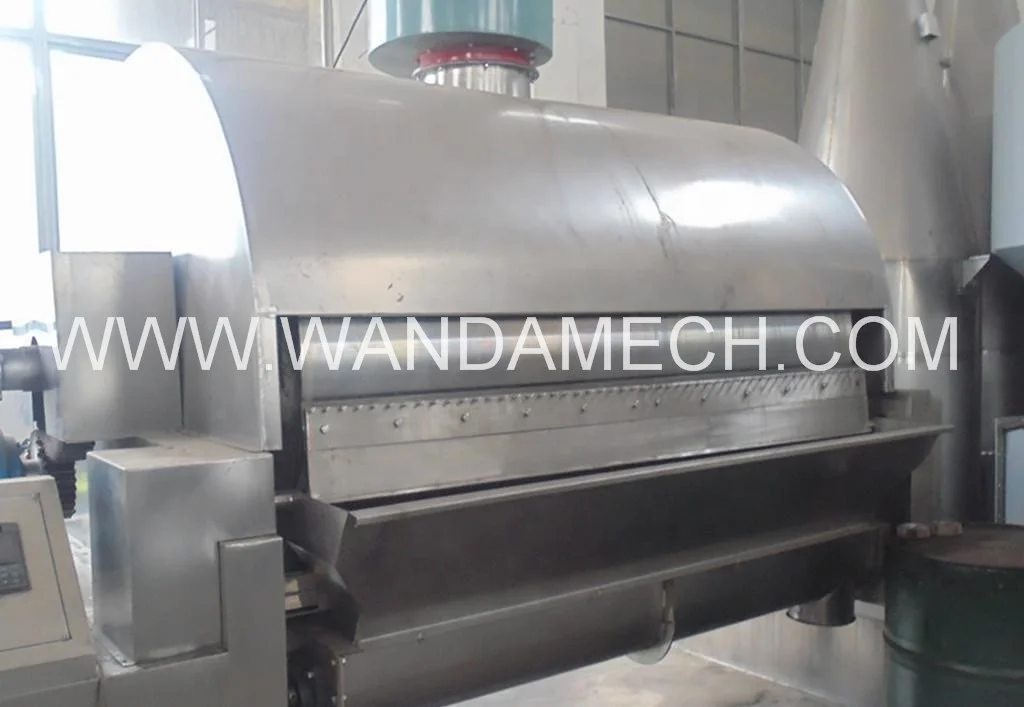

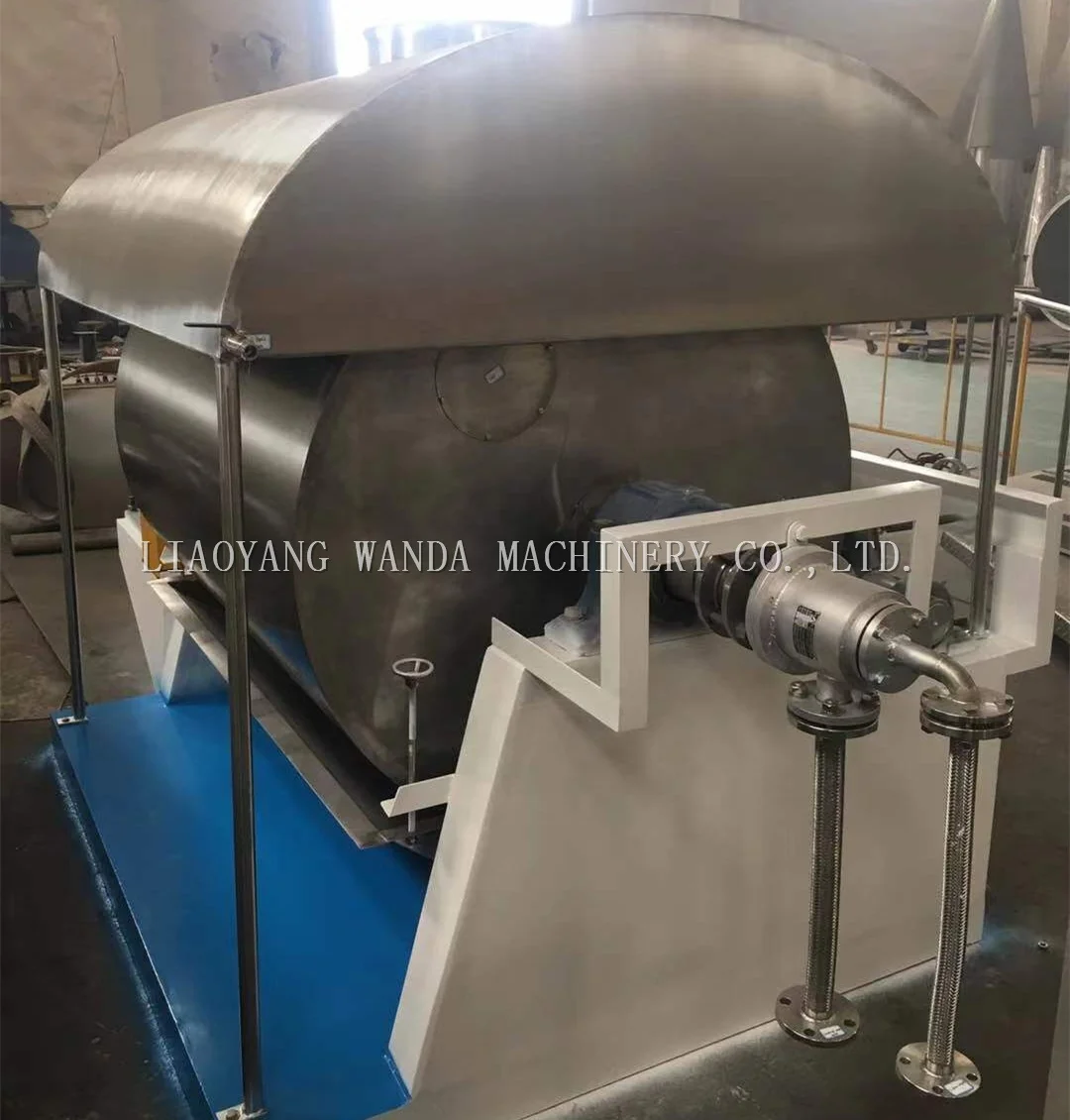

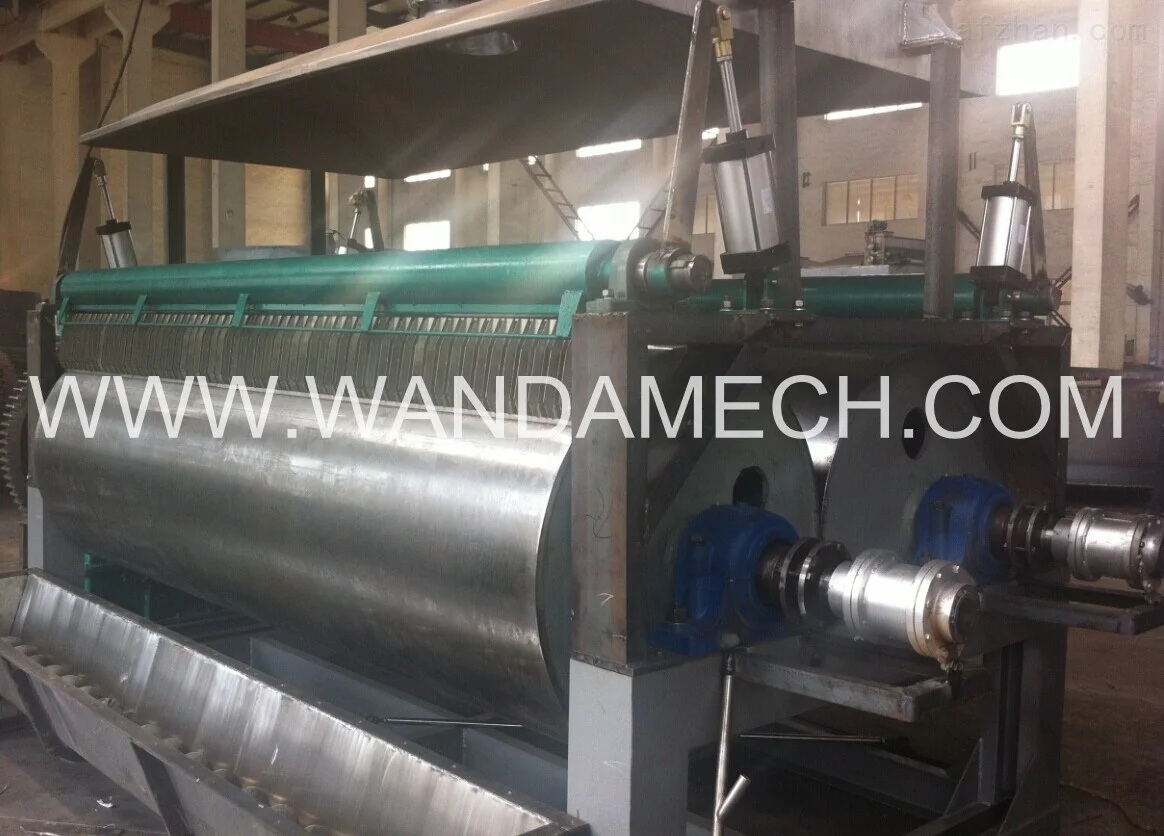

Product Pictures:









Wanda Machinery Co., Ltd. specializes in R&D, manufacturing, operation, export and related services of various drying machines, such as rotary flash dryers, centrifugal spray drying equipment, vibrating fluidized bed dryers, etc. The production base is located in Liaoyang City, Liaoning Province,China. Equipment designed over the years has been involved in the fields of medicine, chemicals, pesticides, electronics, mining, food, dyes, pigments and so on. The market is spread all over the country.

Wanda Machinery not only has a group of capable engineers and senior management personnel with more than ten years of work experience, but also has a group of excellent production personnel. They have excellent capabilities in research, design, service, etc. Over the years, they have devoted themselves to researching and summing up in practice. "Pragmatism, innovation, integrity, pursuit of excellence", a deep understanding is a strong guarantee for the quality of customers' products!

Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.







Our Service:

We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :

l 1. Each machine is manufactured by professional experienced staff.

l 2. 12 months warranty + 100% QC inspection Before Shipment.

l 3. Overseas  services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the  commissioning.

l 4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.
