Стальной лазерный маркер Raycus IPG JPT MAX Mopa 20 Вт 30 50
- Категория: >>>
- Поставщик: Perfect,Laser,(Wuhan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3070.3 $* | 3224.44 $* |
| Aug-16-2025 | 3044.90 $* | 3196.9 $* |
| Jul-16-2025 | 2554.41 $* | 2682.48 $* |
| Jun-16-2025 | 2993.46 $* | 3143.11 $* |
| May-16-2025 | 2606.96 $* | 2736.45 $* |
| Apr-16-2025 | 2941.83 $* | 3088.69 $* |
| Mar-16-2025 | 2915.24 $* | 3061.94 $* |
| Feb-16-2025 | 2890.12 $* | 3035.71 $* |
| Jan-16-2025 | 2864.45 $* | 3007.47 $* |
Характеристики

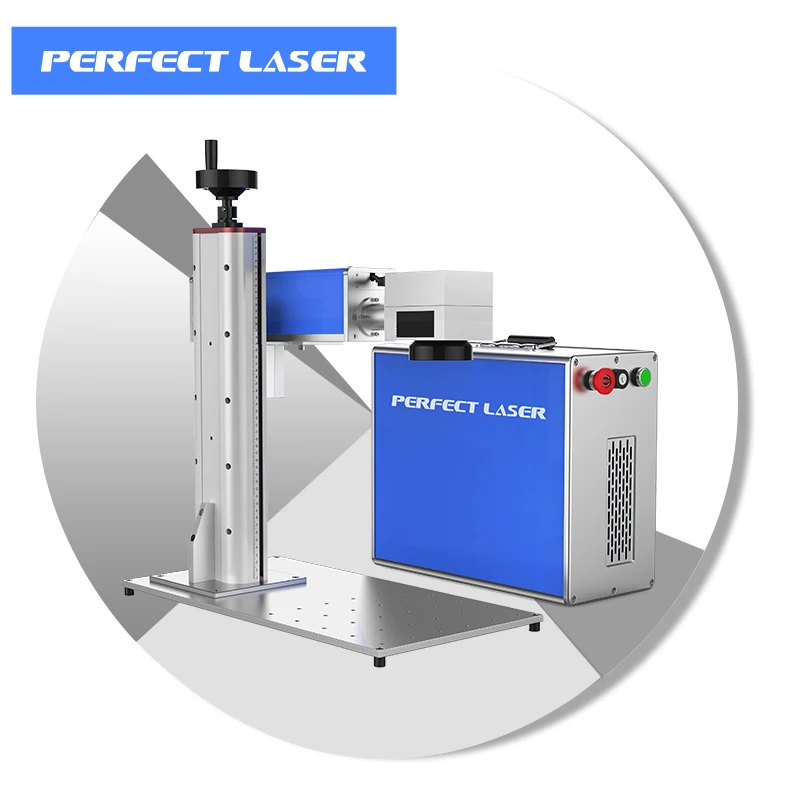

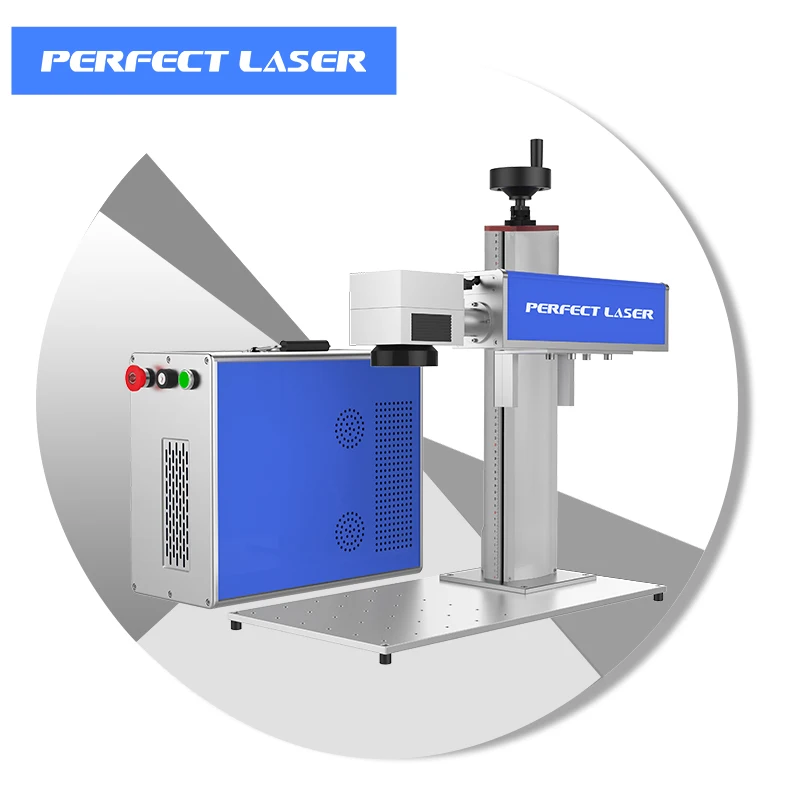

20w 30w 50w 100 Watts Desktop Metal Steel Raycus IPG JPT MAX Mopa Laser Marker Engraver Etching Engraving Marking Machines
(Model:PEDB-400B)
Contact: Lydia Wechat/Whatsapp:+86138 8602 5739 Email : sales019(@)perfectlaser.net

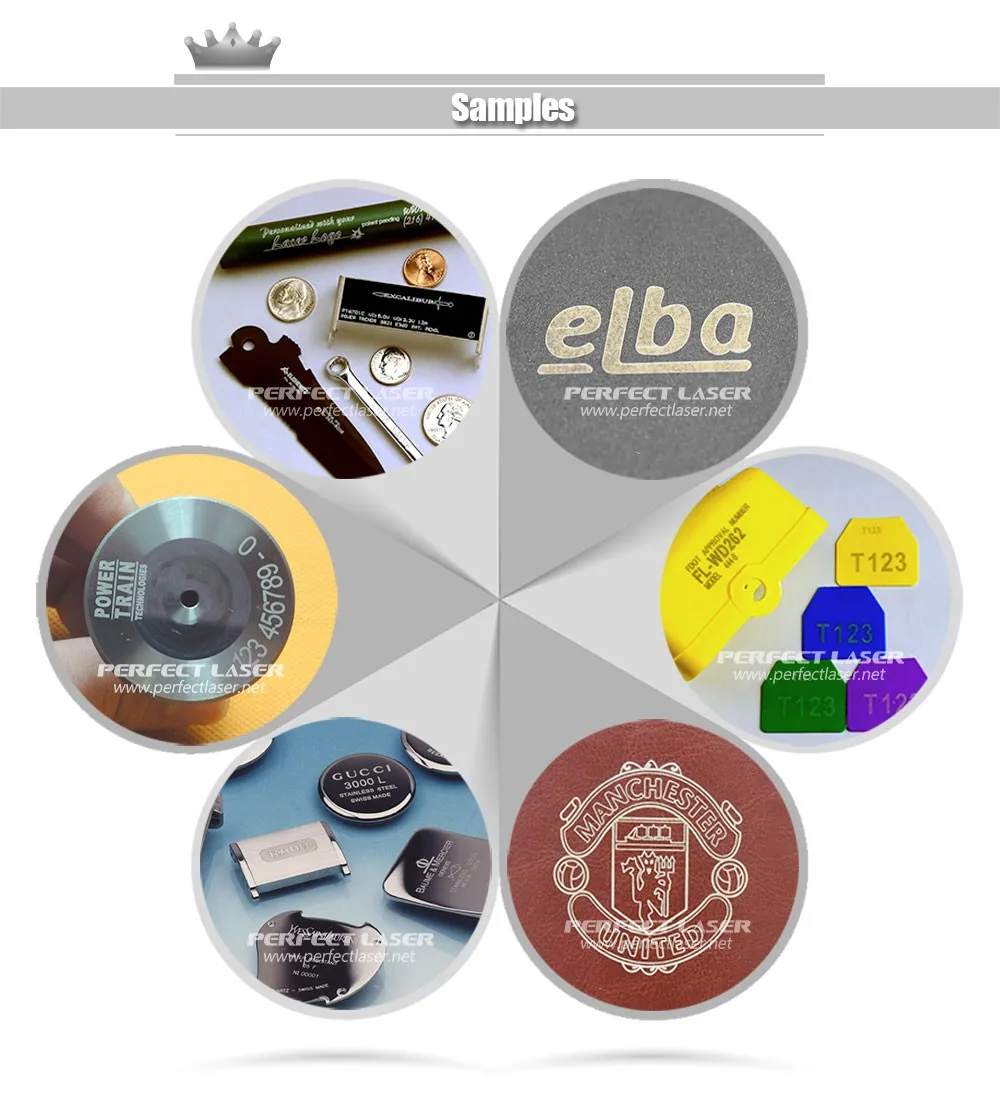

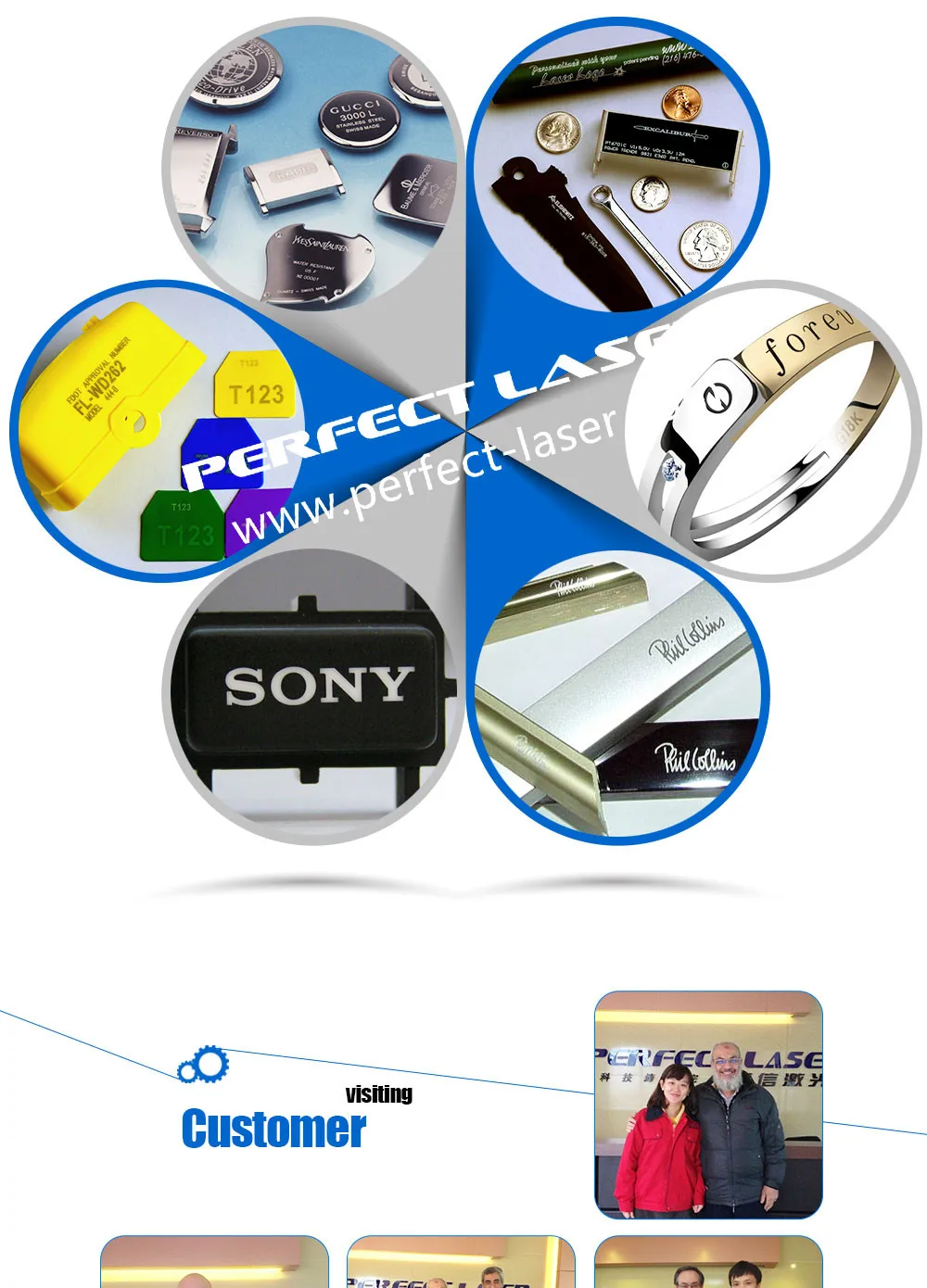

Samples&Application
Technical Data
Machine Name | PEDB-400B Fiber Laser Marking Machine |
Computer | Not includes PC |
IPG Series | Pulsed, High Energy Ytterbium Fiber Lasers |
Mode of operation | Pulsed |
Polarization | random |
Average output power | 10W - 100W |
Central emission wavelength | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% |
Emission Bandwidth (FWHM) | <10 nm |
Long-term average power instability | <5% |
Pulse width, (FWHM) | 100 ns |
Laser switching ON time | 180 μsec |
Laser switching OFF time | 180 μsec |
Pulse Repetition Rate* kHz | 20-80 kHz |
Energy per pulse (PRR = 20 kHz) | 0.95 mJ |
Typical beam quality, M2 | <1.8 |
Output fiber delivery length | 3m |
Operating voltage | 220V |
Max. Power consumption | 600W |
Net Dimensions | 80*38*72cm |
Net Weight | 53 kgs |
Gross Weight | 70 kgs |
Scanning Speed | 0-7000mm/s |
Marking Speed | 0-5000mm/s |
Marking size | 110mm×110mm (F-theta 160) |
Spot size | ≤ 40 micron (F-theta 160) |
Cooling unit | Air cooled |
Pilot laser | 650nm diode laser, visible red light for marking guide |
Continuous working time | ≥16h |
Humidity | 45～85% (no condensation) |
Operating temperature | 0~40℃ |
Control units | Laser Mark (English Version) |
Details Images
Related Product
Our Company
We, Perfect Laser, as a 21 years history industrial equipment manufacture in laser field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
Our products include the following types:
1.Laser Marking Machine(Fiber/CO2/UV)
2.Fiber Laser Cutting Machine
3.3D Crystal Laser Engraver
4.Co2 Laser Engraver and Cutter
5.Dot Peen Marking Machine
Our products include the following types:
1.Laser Marking Machine(Fiber/CO2/UV)
2.Fiber Laser Cutting Machine
3.3D Crystal Laser Engraver
4.Co2 Laser Engraver and Cutter
5.Dot Peen Marking Machine
