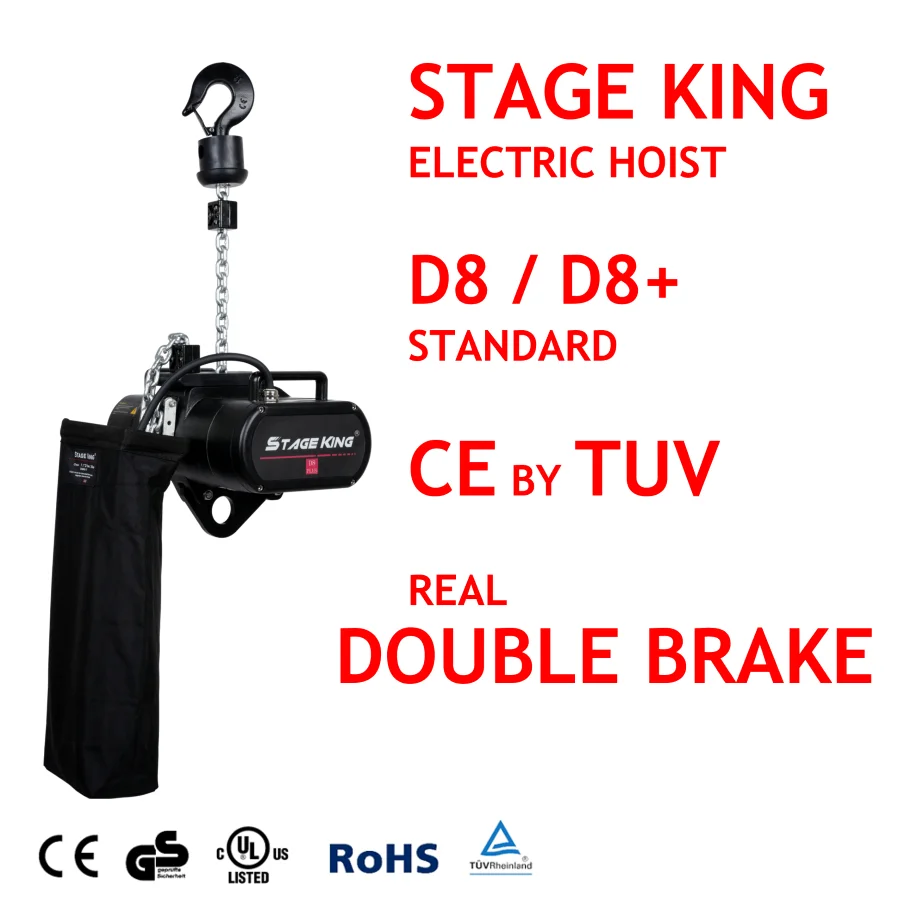

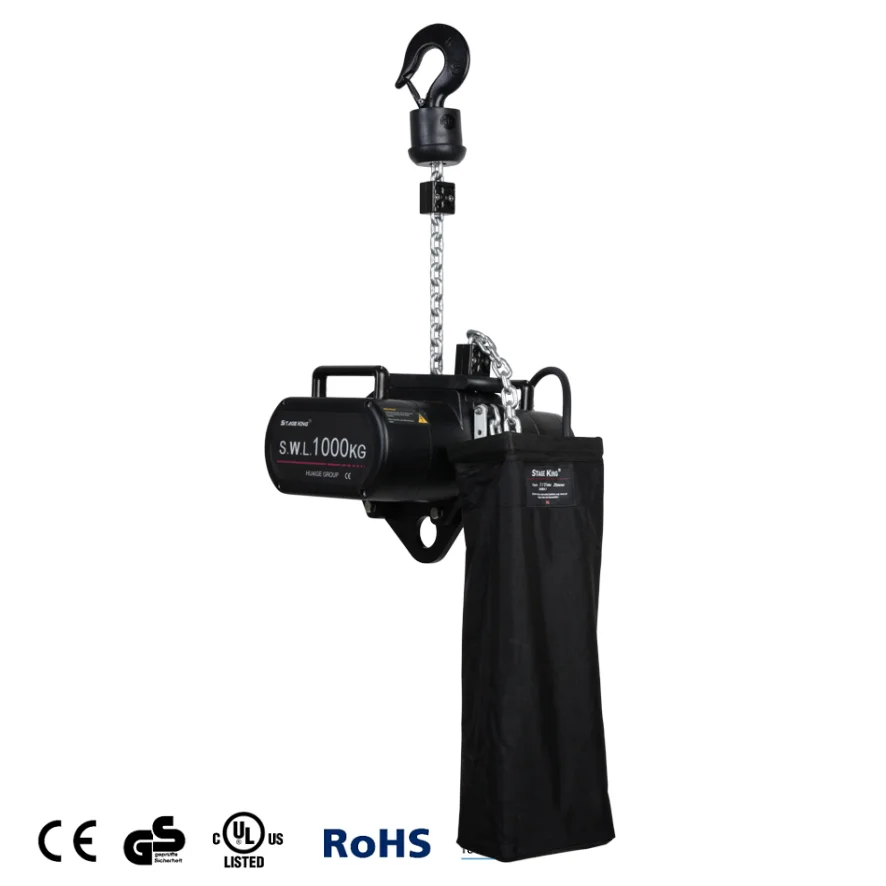

Stage King electric chain hoist

D8 standard



Lifting stage equipment electric chain hoist stage hoist 380v 1000KG D8





Introductions:

Compact structure, small shape, light weight, suitable for operation in ultra-small space and convenient handling.

The protection grade of the whole machine is IP66, and it can work in the rain.

The hook can rotate 360 degrees and is designed to prevent decoupling.

G100 chain EN 818-7, 8 times safety factor

The clutch is integrated on the rotor shaft and adopts dry clutch friction plate. It does not slide after clutch wear to ensure safety.

Maintenance free electromagnetic braking, brake locking at the first time after power failure.

Helical gear transmission, gear grade 6, operating noises 60 dB

The lower hook lifting ring design is safer to use with shackle.

High strength special nylon chain guide ensures smooth chain operation.

Cast aluminum integrated shell and heat treatment make the fuselage firmer and reduce the weight of the fuselage.

The clutch is on the transfer shaft of the motor.







Benefits:

In the D8 Plus version, people may stand under the resting load. Two independent DC spring-loaded brakes secure the load. The electric chain hoist is designed to equip with a Second brake which is mounted on the existing shaft in just a few simple taps









Model	Capacity	Power (kw)	Chain Fall	Speed (m/min)	Chain (mm)
D8+ 250	250kg	0.18	1	4	4
D8+ 800	800kg	0.75	1	4	7.1





Hoist Dimension/mm
L	W	H	D	E	A	A1
495	325	345	105	195	26
780	370	520	140	260	26	38

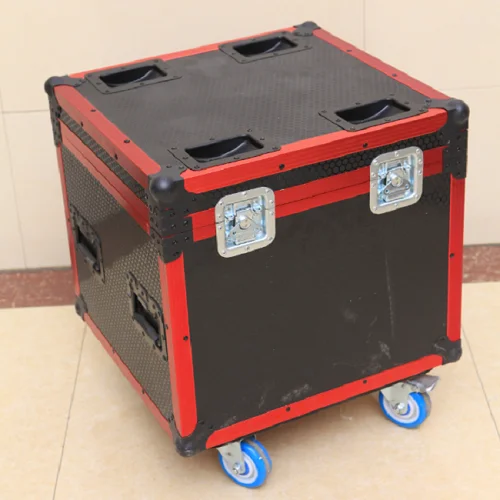

No Chain Self Weight(kg)	Chain Weight (kg/m)	Flight Case Size (mm)
15	0.35	81*72*45 4 in 1	28kg
26.5	1.1	90*80*51 4 in 1	35kg

We are a limited number of manufacturers that have obtained CE certification through TUV. A good reputation and excellent product quality can ensure that you have no worries.

The STAGE KING  is simple in construction and is distinguished by low weight and a high lifting capacity. It is designed to be low in wear and tear and has a long service life. Repair and maintenance work can be done quickly and efficiently. The easy accessibility of parts and ease of maintenance make the electric chain hoist economical to maintain.
