Китай жесткие отходы пластиковые обрезки ПП ПЭ Полиэтиленовая промывочная линия
- Категория: Recycle Washing Line >>>
- Поставщик: Jiangsu,Acemech,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 77350.70 $* | 81218.55 $* |
| Aug-15-2025 | 76700.59 $* | 80535.42 $* |
| Jul-15-2025 | 64350.76 $* | 67568.88 $* |
| Jun-15-2025 | 75400.89 $* | 79170.98 $* |
| May-15-2025 | 65650.41 $* | 68933.51 $* |
| Apr-15-2025 | 74100.76 $* | 77805.77 $* |
| Mar-15-2025 | 73450.6 $* | 77123.18 $* |
| Feb-15-2025 | 72800.91 $* | 76440.71 $* |
| Jan-15-2025 | 72150.39 $* | 75758.32 $* |
Характеристики
Product Overview

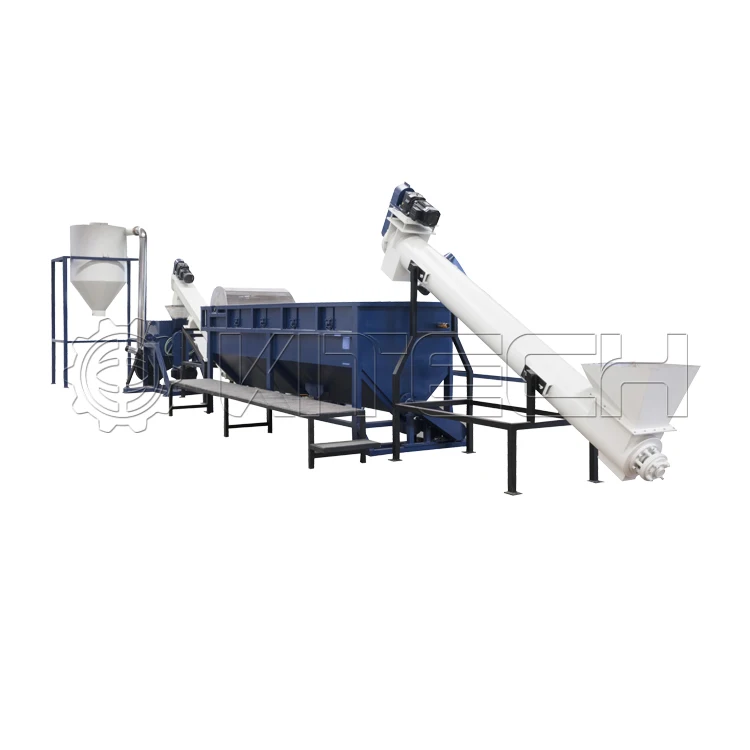

>>Rigid Plastic(HDPE/PP/ABS/PC/PS) Washing Line is one of the main recycling series of KITECH machinery. This system has smart modular design aiming at blow molding packaging bottle/box/cup/barrel/bucket and injection waste recycling.
>>Including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular. Which can remove ferrous and nonferrous metals, sand, oil, glue, paper and many other different contaminants efficiency.
>>You can get a different module combinations design from KITECH according to your requirements and material's condition. In range of different raw materials, KITECH provides 400-5000kg/h economy and high-level production lines with different configurations.
Would like to know more about KITECH Machine equipments, feel free to send us an inquiry!
Recycling Line
1. What can our machines do for you?
>>High automation, only 2 workers are required to operate
>>High production capacity (more than 30% higher than the same equipment in the same industry), low energy consumption (water, electricity, gas, chemical cleaning agent consumption is 20% lower)
>>Reasonable process design and good cleaning effect
>>Reliable components, internationally renowned brands, reliable quality, low maintenance costs
>>Cost-effective, high profit return
2. What kind of raw materials can this recycling line wash?
3. Working processing:
>>After getting waste plastic raw material, KITECH Technicians will study and analysis the main contaminants to provide a proper solution to remove most of the impurities by mechanical, chemical, physical and other principle.
>>Main process of whole project including pretreatment of raw material → crushing → washing → drying → package → granulation.
Equipment List of HDPE/PP Rigid Plastic Recycling Washing Line | ||
Conveyor belt | Loading material | |
Crusher Machine | Crushing HDPE/PP/PC/ABS/PS rigid plastic into flakes | |
Screw loader | Loading material | |
Low Speed Friction washing | Remove chemical water/glue/dirty from flakes by friction principle and centrifugation | |
Floating washing tank | Washing flakes to remove dust, sands, sludge, soil and other sink contaminants | |
Screw loader | Loading material | |
Low Speed Friction washing | Remove chemical water/glue/dirty from flakes by friction principle and centrifugation | |
Zig-Zag separating | Remove dust/fines/labels | |
Dewatering Machine | Reduce the moisture content of the material to below 7 without melting | |
Thermal drying | Reduce humidity about 1-2% by adopting heating source from electricity and steam | |
Silo | Storage material | |
Electric control panel | Control the full line | |
Crusher Machine
>>Cutting geometry: V-shaped arrangement of the rotor knives
>>The chamber with wear-proof design
Data:
>>Model: AGF500/700
>>Rotor width: 700mm
>>Rotor diameter: Φ500mm
>>Rotor speed: 600rpm
>>Drive motor: 30kW
>>Screen size: 12/14mm
>>No. of rotor knives: 5pcs x2
>>No. of stator knives: 2pcs
>>Blades materials: D2
>>Blades materials: D2
>>Hydraulic pusher: 3.7KW
Screw Loader
>>Conveying PE/ PP grinding materials
>>Materials: S. S. 304
Data:
>>Motor power: 2.2kW.4-P motor, AC
>>Screw structure: "U" type
>>Screw diameter: Φ250mm
>>Screw flight: 5mm
>>Screw body: 4mm
>>Screw structure: "U" type
>>Screw diameter: Φ250mm
>>Screw flight: 5mm
>>Screw body: 4mm
Floating Washing Tank
>>Clean materials by water, paddles and friction, Sludge and sands discharge by pneumatic valves
>>Materials: S.S. 304
Data:
>>Tank(Length x Width): 4.2mx 1.2m
>>Tank Structure: Rolling paddles
>>Top paddles motor: AC 0.37kW x 3
>>Bottom sucking pump: AC1.5kW
>>Lift motor: 1.5kW
Low Speed Friction Washing
>> Strongly friction to clean the materials mechanically
Data:
>>Motor power: 11kW,6-P motor, AC
>>Rotary Diameter: Φ300mm
>>Rotary Speed: 700rpm
>>Main Shaft: Φ114Χ12mm
>>Bearing: NSK/Japanese brand
>>Screen sieve: 2mm

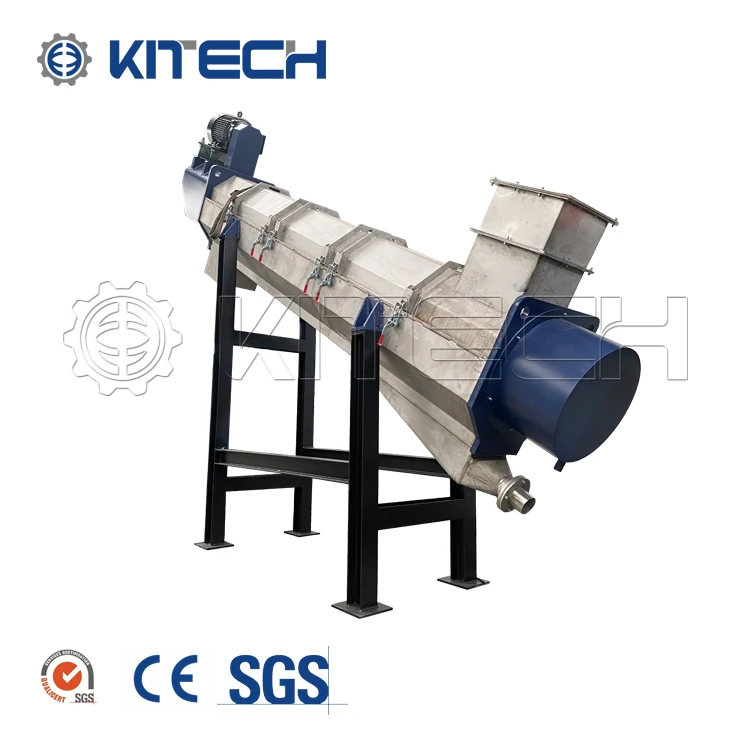

Dewatering Machine
>>Drying materials by centrifugal force
Data:
>>Motor power: 15kW,2-P motor, AC
>>Driving of motor: Star-Delta Start
>>Rotary Diameter: Φ450mm
>>Rotary Speed: 1800rpm
>>Bearing: NSK/Japanese brand
>>Screen sieve: 2mm
>>Humidity remain ratio: 0.5-1.5%(depends on raw materials)
Data:
>>Motor power: 15kW,2-P motor, AC
>>Driving of motor: Star-Delta Start
>>Rotary Diameter: Φ450mm
>>Rotary Speed: 1800rpm
>>Bearing: NSK/Japanese brand
>>Screen sieve: 2mm
>>Humidity remain ratio: 0.5-1.5%(depends on raw materials)
Thermal Drying
>>Further drying materials by hot air
Data:
>>Capacity: 500kg/h
>>Heating power: 36KW
>>Pipeline length: 17m
>>Blower: 1.5kw
>>Feeding fan: 7.5kw
Data:
>>Capacity: 500kg/h
>>Heating power: 36KW
>>Pipeline length: 17m
>>Blower: 1.5kw
>>Feeding fan: 7.5kw
Silo
>>For packaging materials
Data:
>>Fan Motor power: 5.5kW,
>>Driving of motor: Directly
>>Discharge of materials: Double outlet
>>Discharge controlling: Pneumatic Valve
>>Cylinder: SAL-CM-40*100-SD 8psc
Data:
>>Fan Motor power: 5.5kW,
>>Driving of motor: Directly
>>Discharge of materials: Double outlet
>>Discharge controlling: Pneumatic Valve
>>Cylinder: SAL-CM-40*100-SD 8psc
Would like to know more about KITECH Machine equipments, feel free to send us an inquiry!
Technical Data
Type | RPW500 | RPW1000 | RPW2000 | RPW3000 | RPW5000 |
Capacity(kg/h) | 400-500 | 800-1000 | 1600-2000 | 2500-3000 | 4000-5000 |
Dimension:LxWxH(m) | 35x10x5 | 50x12x6 | 70x12x6 | 100x15x6 | 120x20x6 |
Steam consumption(kg/h) | 0-150 | 0-200 | 0-300 | 0-450 | 0-600 |
Chemical consumption(kg/h) | 0-3 | 0-5 | 0-10 | 0-15 | 0-20 |
Energy consumption(kWh) | 175 | 198 | 306 | 463 | 550 |
Installation power(kWh) | 210 | 330 | 498 | 630 | 810 |
Man power(persons/shift) | 3-5 | 3-8 | 3-10 | 3-12 | 3-12 |
Would like to know more about KITECH Machine equipments, feel free to send us an inquiry!
