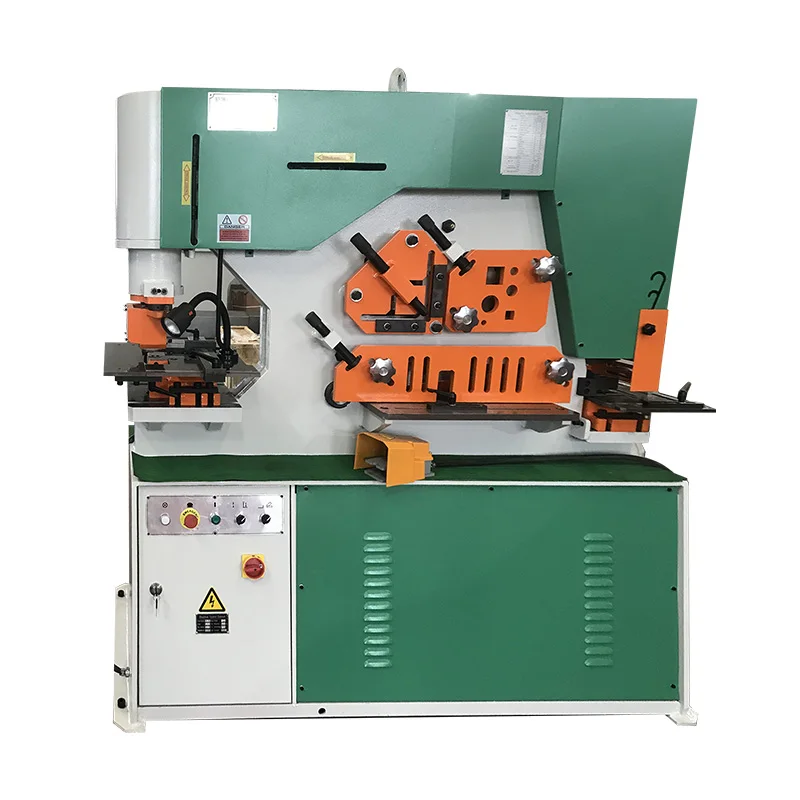

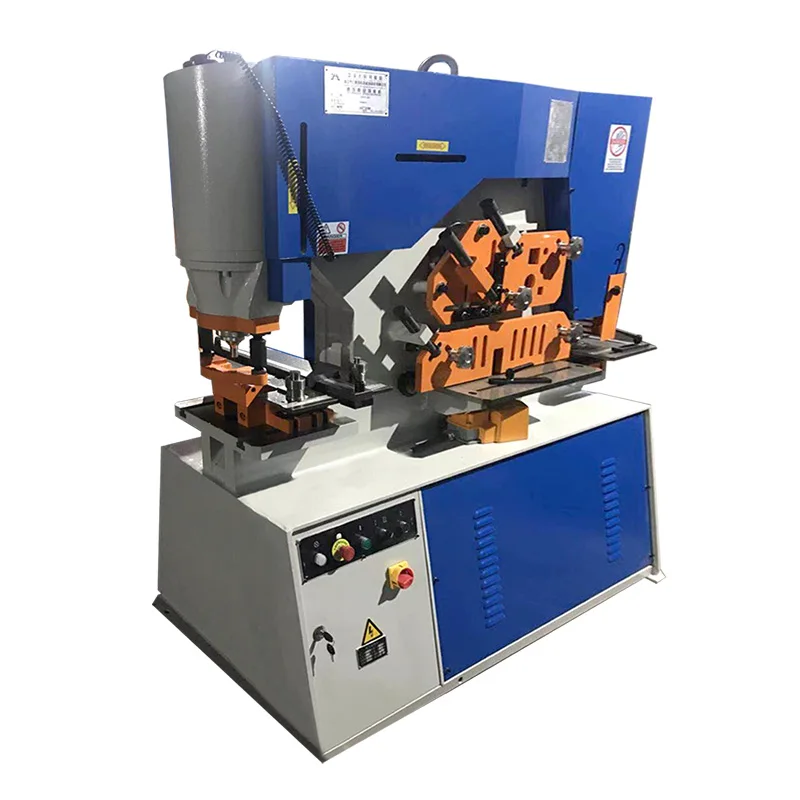

Q35Y-20 гидравлическая комбинированная машина для перфорации и режущий станок обработки
- Категория: Punching Machines >>>
- Поставщик: WMT,CNC,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.94 $* | 0.3 $* |
| Aug-19-2025 | 0.72 $* | 0.4 $* |
| Jul-19-2025 | 0.87 $* | 0.14 $* |
| Jun-19-2025 | 0.71 $* | 0.73 $* |
| May-19-2025 | 0.62 $* | 0.20 $* |
| Apr-19-2025 | 0.99 $* | 0.98 $* |
| Mar-19-2025 | 0.12 $* | 0.17 $* |
| Feb-19-2025 | 0.22 $* | 0.74 $* |
| Jan-19-2025 | 0.24 $* | 0.22 $* |
Характеристики
Products Recommend
Product Description
Main Function and Features
The two cylinder can working at the same lime, and without interference .
Hydraulic system cooling system.
CNC automatic posibonHig and feeding system.
The seals are imported products (Taiwan DZ).
The seals are imported products (Taiwan DZ).
Q35Y-20 hydraulic combined punching ard shearing machine is widely used In steel processing, steel, vehicles, tower frame lines, telecommunication signal frame, repair ships, bridges and other construction enterprises.
This mactime is easy to operate, hydraulic system, and electrical system adopt the famous brand which has the stable performance, safe and reliable.
Also can supply with CNC system to Improve production efficiency and processing accuracy.
Low noise safe and reliable.
Low noise safe and reliable.
Specification
Name | Value | ||
Punching Force | 900KN | ||
Flat bar shear | Flat bar(Width x Thickness) | 330×20mm | |
Max Capacity(Width x Thickness) | 480×10mm | ||
Section cutting | Square Bar Shear | 50mm | |
Round Bar Shear | 50mm | ||
Channel Shear | 160mm | ||
H Beam shear | 160mm | ||
Equal Angle at 90° | 140×12 | ||
Notching | Thickness | 10mm | |
Width | 80mm | ||
Depth | 100 | ||
Punching | Thickness (Max) | 20mm | |
Diameter (Max) | 30mm | ||
Throat Depth | 355mm | ||
Max Stroke Length | 80mm | ||
Cycles/min(20mm stroke) | 22times/min | ||
Tensile Strength | 450N/mm² | ||
Oil Volume | Hydraulic oil （46＃） | 80L | |
Motor | Power | 5.5KW | |
Machine Dimension | Length | 1860mm | |
Width | 900mm | ||
Height | 1900mm | ||
Weight | 2300KG | ||
Punching table height | 1010mm | ||
Cut flat bench height | 900mm | ||
Notching table height | 900mm | ||
Cut angle part,angle bottom of height | 1180mm | ||
Cut round bar,channel bottom of height | 1220/1300mm | ||
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
