Сварочная машина hebei sade для проволочной
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Hebei,Sade,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 117810.52 $* | 123701.55 $* |
| Aug-15-2025 | 116820.70 $* | 122661.26 $* |
| Jul-15-2025 | 98010.63 $* | 102911.79 $* |
| Jun-15-2025 | 114840.48 $* | 120582.59 $* |
| May-15-2025 | 99990.30 $* | 104990.15 $* |
| Apr-15-2025 | 112860.74 $* | 118503.90 $* |
| Mar-15-2025 | 111870.96 $* | 117464.33 $* |
| Feb-15-2025 | 110880.7 $* | 116424.43 $* |
| Jan-15-2025 | 109890.15 $* | 115385.69 $* |
Характеристики
Product Description

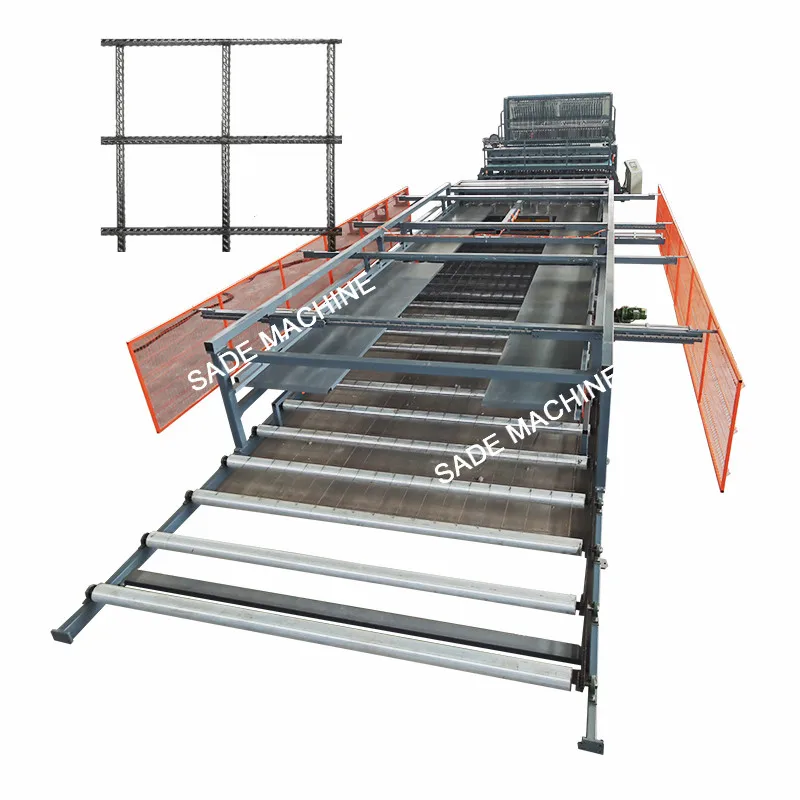

Rebar Steel Construction Mesh Fence Welding Machine
The steel mesh welding machine adopts modular structure design, which is more convenient for upgrading the functional structure, and provides convenience for satisfying different needs of customers in different periods. According to its structure, it is divided into vertical wire discharging frame, welding part, horizontal line blanking and drawing part, etc. It has the characteristics of novel structure, firm frame, easy operation and easy learning, and has high cost performance.
Technical parameter
Wire rod | 5-12mm |
Mesh panel width | 2.5m |
Mesh panel length | 6.0m |
Mesh opening size | 100-300mm |
Welding frequency | 50-70times/min |
Transformer KVA water cooling | 160KVA*12 |
Voltage | 380v |
Current frequency | 50hz |
Control system | PLC totally touch screen |
Welding type | Pneumatic |
Mesh panel Stretch type | Servo motor |
wire feeding type | Pre-straightening & cutting |
Cross wire hopper feeder | 1 ton |
Trolley power | 3.5KWservo motor +Precision reducer |

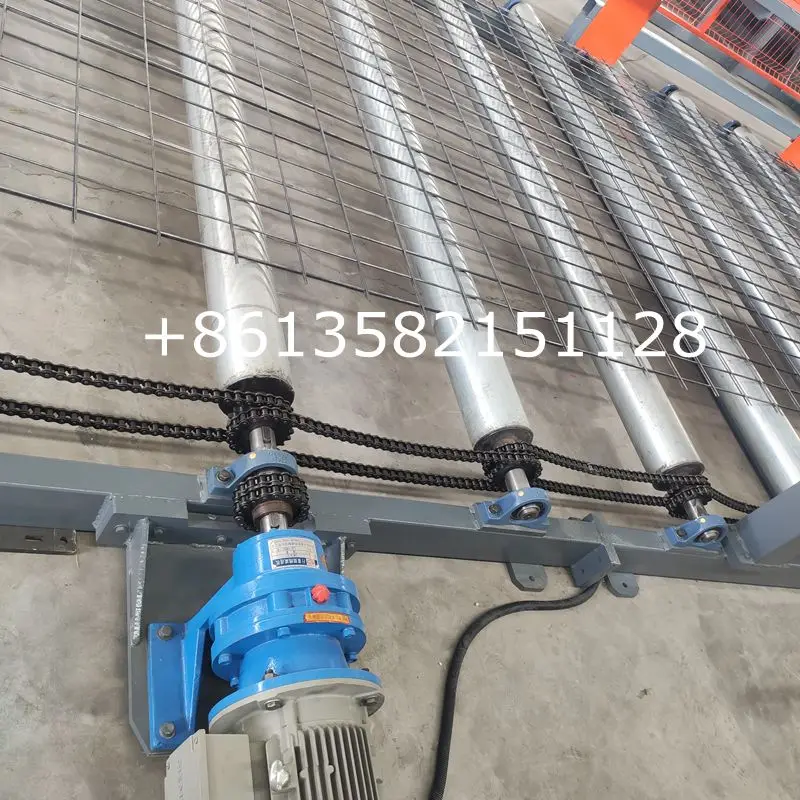

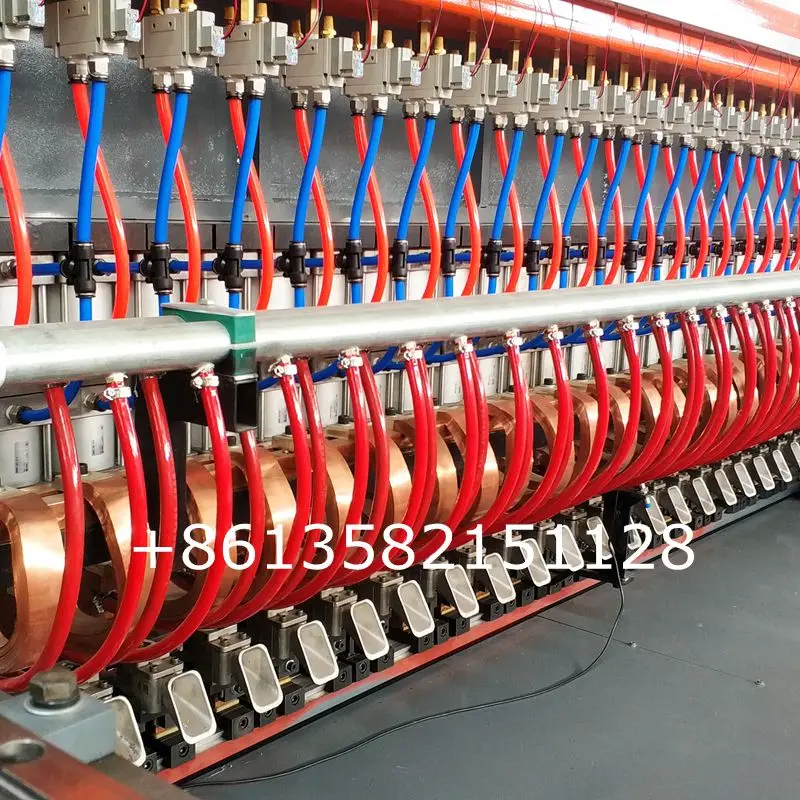

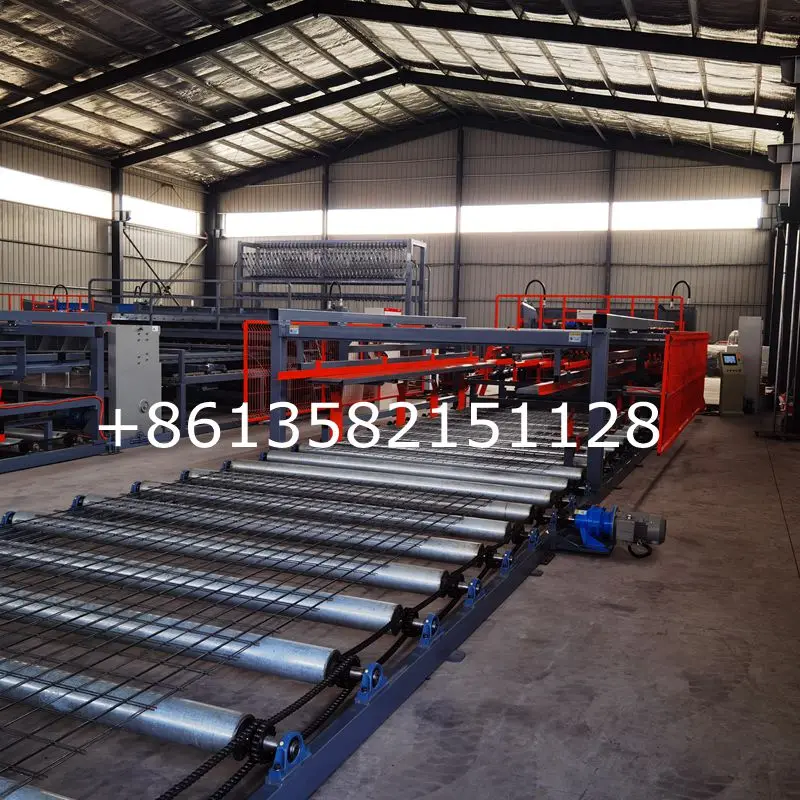

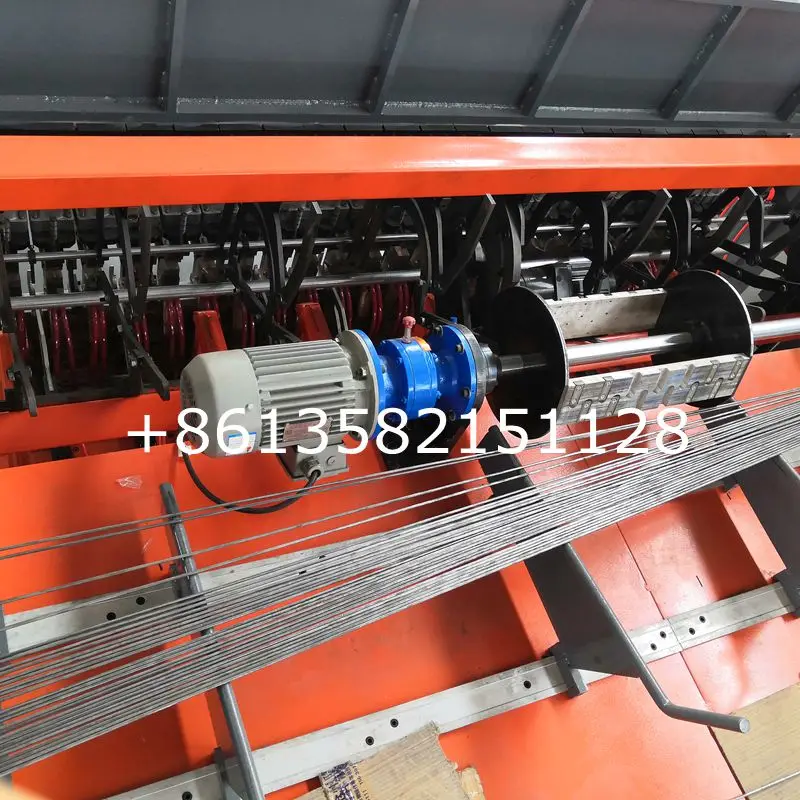

Details picture
Our advantage
1.All electrical compenents are famous brand
PLc:Siemens,Germany
Touch screen:Siemens,Germany
Low voltage application :Schneider,France
Servo motor and drive :Mitsubish ,Japan
2. Cross wire device with add materials device ,max loading 1tons raw materials ,save labour
3. Pneumatic welding type ,improve speed ,max 80times/min

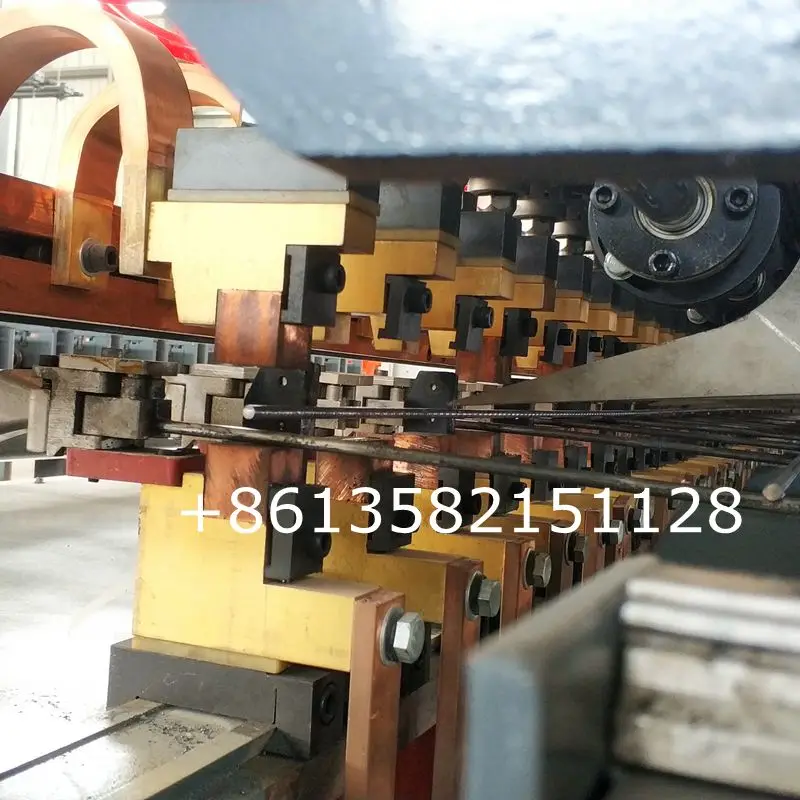

4. Chromized copper welding ,firm and smooth mesh surface
Recommend products
3d fence welding production line
Coil wire welded mesh machine
Cold roll ribbed wire machine
High speed straight and cut wire machine
Application
The welded mesh can be used in the floor & wall reinforcing mesh in the building, reinforcing mesh in the tunnel, bridge and road.
