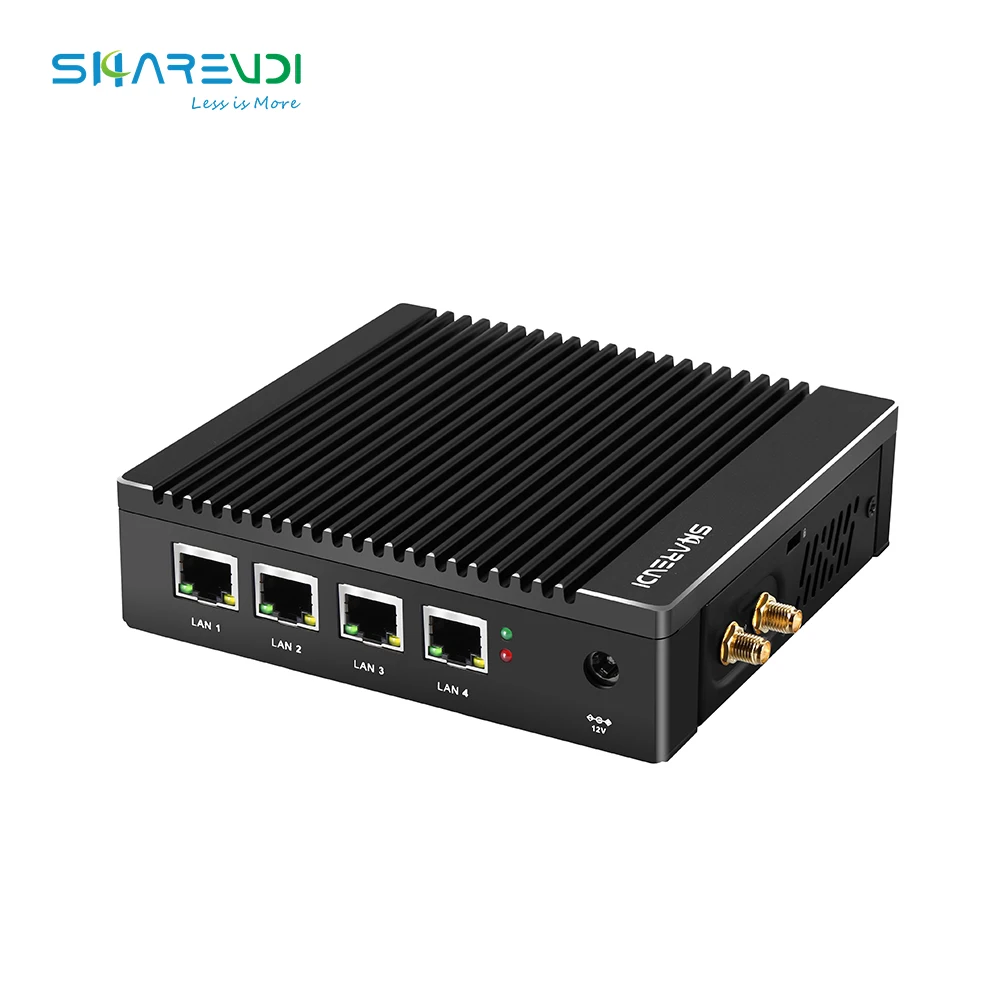

Четырехъядерный сетевой LAN-сервер 4 NIC VGA pfsense mini брандмауэр
- Категория: Barebone System >>>
- Поставщик: Shenzhen,Huixin,Tengda,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.43 $* | 0.10 $* |
| Aug-19-2025 | 0.2 $* | 0.82 $* |
| Jul-19-2025 | 0.24 $* | 0.77 $* |
| Jun-19-2025 | 0.65 $* | 0.23 $* |
| May-19-2025 | 0.61 $* | 0.49 $* |
| Apr-19-2025 | 0.15 $* | 0.0 $* |
| Mar-19-2025 | 0.81 $* | 0.7 $* |
| Feb-19-2025 | 0.43 $* | 0.9 $* |
| Jan-19-2025 | 0.32 $* | 0.83 $* |
Характеристики
\t\t\t \t\t\t | ||
\t\t\t OEM & ODM Service \t\t\t>>>Contact us<<< \t\t\t | \t\t\t \t\t\t | |
\t\t\t OEM \t\t\t | \t\t\t 1. logo printing on housing \t\t\t2. Customize package \t\t\t3. Software Customization: Booting image, UI, APP, Function… and so on \t\t\t | |
\t\t\t ODM \t\t\t | \t\t\t 1. PCBA desgin \t\t\t2. Housing desgin \t\t\t3. Software Customization: Booting image, UI, APP, Function… and so on \t\t\t | |
Best Hardware Firewalls for Small Business (SMB) Network Use
This link is the price without memory and hard disk, if you need RAM/SSD/WIFI, please contact us for the latest quotation
Product Usage
* Secure your network with a compact, fanless & silent firewall.
Full Support & 1 year warranty!
* CPU: Quad-Core N2940/J3160, 64 bit, up to 2.2GHz, AES-NI hardware support
* PORTS: 4x Intel i211 Gigabit Ethernet ports, 2x USB 3.0, HD+VGA
* CPU: Quad-Core N2940/J3160, 64 bit, up to 2.2GHz, AES-NI hardware support
* PORTS: 4x Intel i211 Gigabit Ethernet ports, 2x USB 3.0, HD+VGA
* Small and compact: 134*127*36 mm
* Fan-less design, quite working
* Running 24/7
* Aluminum alloy case
* Memory, mSATA SSD and Wi-Fi are replaceable
* Extension: SATA connector inside
* Support SIM card and 3G/ 4G Module
* Support multiple Operating System
* Customized service
* One year warranty
* Fan-less design, quite working
* Running 24/7
* Aluminum alloy case
* Memory, mSATA SSD and Wi-Fi are replaceable
* Extension: SATA connector inside
* Support SIM card and 3G/ 4G Module
* Support multiple Operating System
* Customized service
* One year warranty
SHAREVDI Firewall Appliance features a Quad-Core processor with 2GB RAM and 32GB SSD drive making sure that almost any open-source firewall software will be running great on it. It also includes 4 gigabit Ethernet ports, including a LAN and WAN port for connecting the device to a home network. The device is intended for experienced users and electronics hobbyists. It uses open-source software firewall distributions, which require some technical knowledge to install and configure. The small form factor PC is built for use as a hardware firewall/router and includes a 32GB mSATA solid-state drive and 2GB of DDR3L RAM. However, users may upgrade the RAM up to 8GB. Some open-source firewall and other software that can be installed on this module include pfsense, dd-wrt, FreeBSD, ClearOS, CentOS, OpenVPN etc. Pros: Works with a wide variety of open source firewall projects. Extremely reliable device. Provides a customizable solution for advanced users who can install a great open-source firewall for great protection. Offers whisper-quiet operation with fan-less construction with no mechanical or moving parts. Cons: Difficult for novices to set up and configure
Install any software
All SHAREVDI firewall hardware are OS agnostic and support a variety of popular open source software distributions. Want to run a
firewall like OPNsense, pfSense, or others? We can do that. Want to run a hypervisor instead? Go for it! Optionally choose to have
an OS preinstalled by us during configuration
firewall like OPNsense, pfSense, or others? We can do that. Want to run a hypervisor instead? Go for it! Optionally choose to have
an OS preinstalled by us during configuration
Run on advanced firmware
Simple. Clean. Secure: our model can be configured with coreboot, the open source BIOS for maximum security, transparency, and
audit-ability.
audit-ability.
Trust your hardware
Compact, 100% silent and backed by team: The features CPUs & NICs, SSDs throughout, and comes with up to 6 Ports.
Combine with 4G Failover
New plans available! Never lose internet connectivity if you add the SHAREVDI 4G LTE Modem for failover.
\t\t\t Specification \t\t\t | \t\t\t \t\t\t | |
\t\t\t General \t\t\t | \t\t\t Brand: SHAREVDI \t\t\tType: Mini PC \t\t\tProcessor: Processor N2940 2M Cache, up to 2.42 GHz \t\t\tCPU: N2940 4-core \t\t\tCore:4 \t\t\tGPU: HD Graphics \t\t\tRAMType: 1 x DDR3L (Low voltage 1.35V) Ram slot \t\t\tRAM:2G, 4G, 8G for optional \t\t\tHard Disk type: support mSATA \t\t\tHard Disk: 16G, 30G, 60G, 120G, 240G 480G SSD for optional \t\t\tWIFI: optional \t\t\t 4G Module: optional \t\t\t \t\t\t | |
\t\t\t Product detail \t\t\t | \t\t\t Onboard LAN: 4 x Intel i211AT Gigabit Lan port \t\t\tWiFi: optional \t\t\tSystem: 10/7/8, Pfsense, Linux, etc. \t\t\tColor: Black(Other color support customized) \t\t\tCooling system: Fanless \t\t\t | |
\t\t\t I/O Port \t\t\t | \t\t\t 2xUSB3.0 \t\t\t1xVGA+1xHD \t\t\t4xLAN \t\t\t1x Switch \t\t\t | |
\t\t\t Power Requirement \t\t\t | \t\t\t Power Type: External Power Adapter Mode \t\t\tPower Input Vol: 12V \t\t\tPower Input Ampere:5A \t\t\t | |
\t\t\t Working Environment \t\t\t | \t\t\t Operating Temperature ‘-20-80℃ \t\t\tStorage Temperature 0℃-80℃ \t\t\tRelative Humidity 10%~90% (non-condensing) \t\t\t | |
\t\t\t Dimension and weight \t\t\t | \t\t\t 134x127x36mm \t\t\t | |

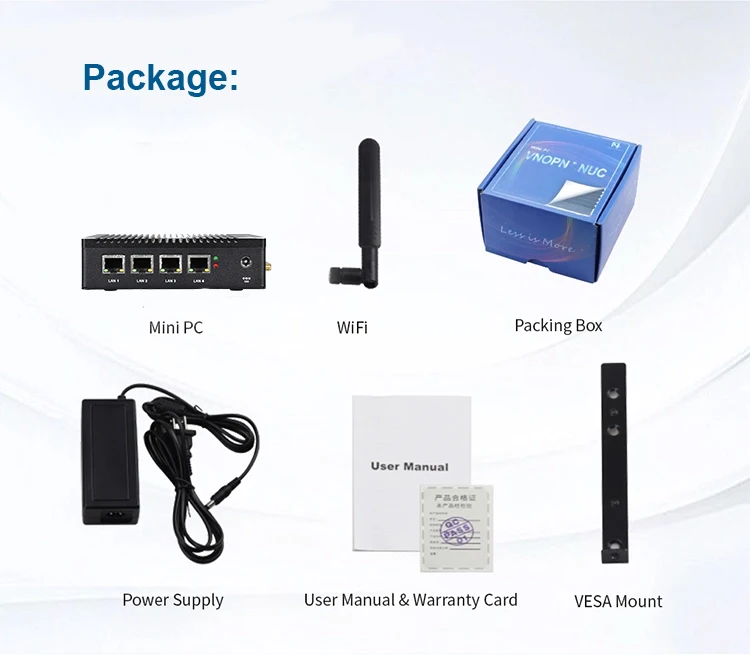

\t\t\t Package Contents \t\t\t | \t\t\t 1 x Mini PC \t\t\t1 x User manual \t\t\t1 x VESA mount \t\t\t1 x Power Cable and SATA Cable \t\t\t1 x Hard Disk Mounting Bracket \t\t\t | |
Related Products
Packing&Shipping
FAQ
Q: What’s the warranty for these PC
A:We support 1 years Warranty, the second year and the third year,We can repair it free. But we will charge for the parts that need to change.
Q: Can you have my logo or company name to be printed on your products?
A: Yes. We can print your logo, company name on the products; we can provide OEM/ODM service for you.
Q: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
Q: What is the lead time? (How long do you need to prepare my goods?)
A: 1-3 days for sample orders, 5-15 days for mass production orders(based on different quantities, OEM, etc.)
Q: How will you deliver my goods to me?
A:We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to enable our customers to get their goods rapidly.
A:We support 1 years Warranty, the second year and the third year,We can repair it free. But we will charge for the parts that need to change.
Q: Can you have my logo or company name to be printed on your products?
A: Yes. We can print your logo, company name on the products; we can provide OEM/ODM service for you.
Q: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
Q: What is the lead time? (How long do you need to prepare my goods?)
A: 1-3 days for sample orders, 5-15 days for mass production orders(based on different quantities, OEM, etc.)
Q: How will you deliver my goods to me?
A:We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to enable our customers to get their goods rapidly.
