Automatic pneumatic double head 1500mm workpiece makita woodworking door cabinet machine hinge drill







Machne data

	Single head hinge machine	Double head hinge machine
Maximum drilling length	≤1000mm	≤1500mm
Maximum drilling depth	50mm	50mm
Maximum drilling diameter	35mm	40mm
Number of drill spindles	3*1	3*2
Air pressure	0.6-0.8mpa	0.6-0.8mpa
Motor power	1.1kw	1.1kw*2
Rotation speed of spindle	2840r/min	2840r/min
Weight	160kg	300kg
Oversize	1000*650*1550mm	1700*800*1550mm





Machine detail



1 Pure copper motor, imported international pure copper motor, high-precision double track, to ensure the precision movement and adjustment of the vertical shaft

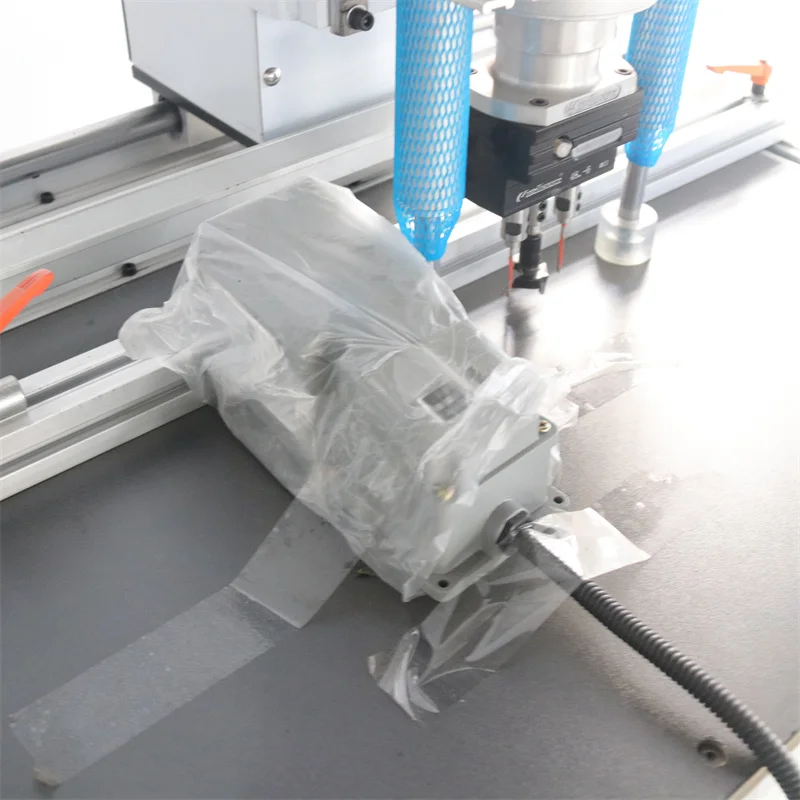

2 The hinged drill bag adopts the imported international standard drill bag, which has low noise, durable and high drilling precision. The drill bag adopts high-speed joints, and the drill bit can be replaced quickly. The drill bit can be replaced according to different needs.



3 Oil-water separator, this machine adopts oil-water separator to prevent water vapor from entering the cylinder, work more stably, effectively filter water vapor in the air, and make pneumatic components longer life



4 Positioning baffle, the positioning baffle of this machine has a precise scale, and the positioning baffle can be adjusted according to needs, and the work is more precise



5 Chrome-plated round rod guide rail, smooth driving, no rust, wear resistance, corrosion resistance, durable

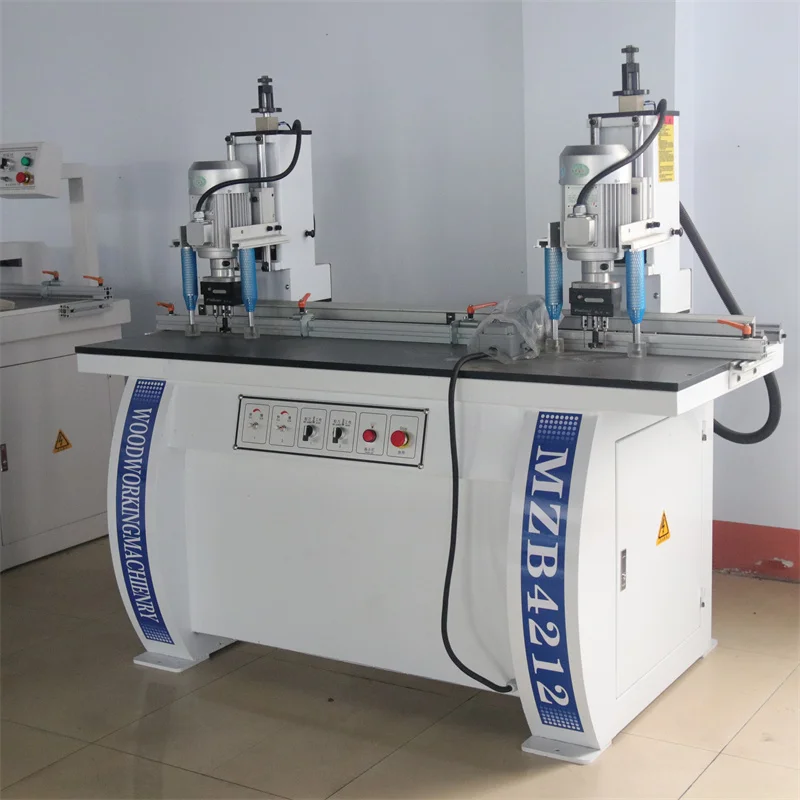

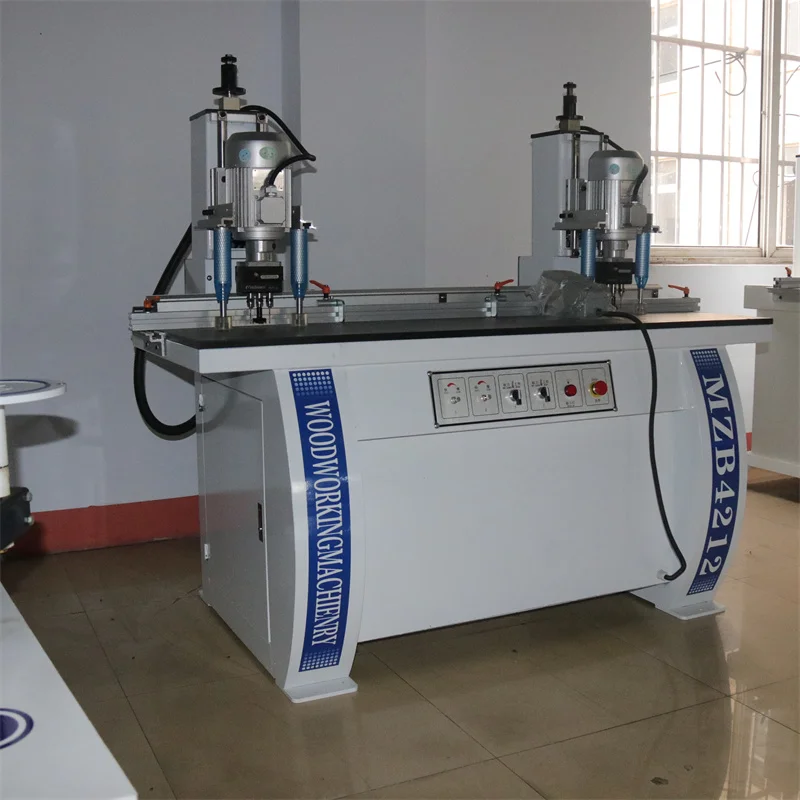

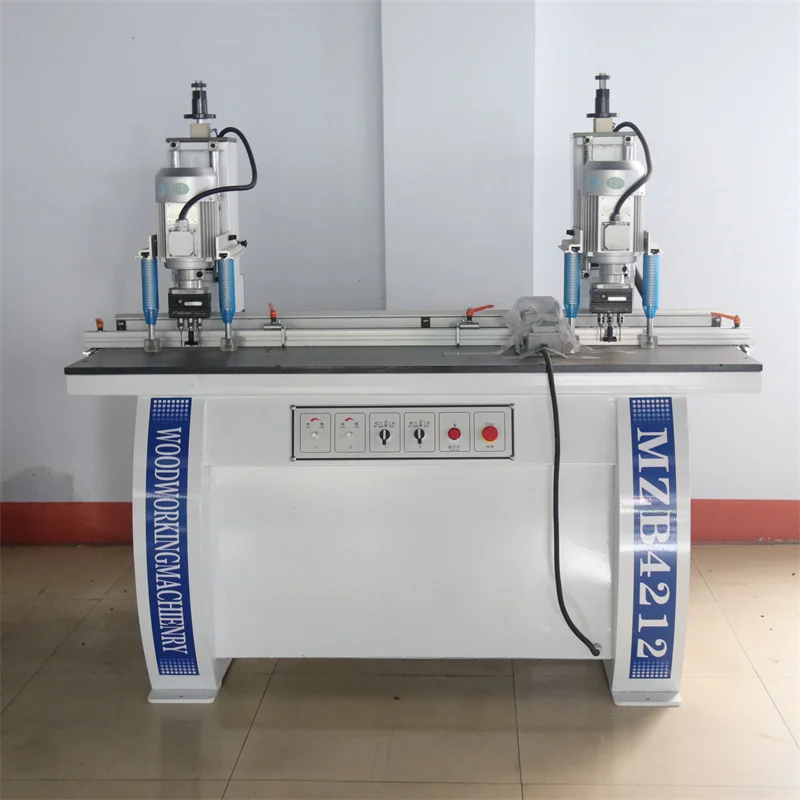

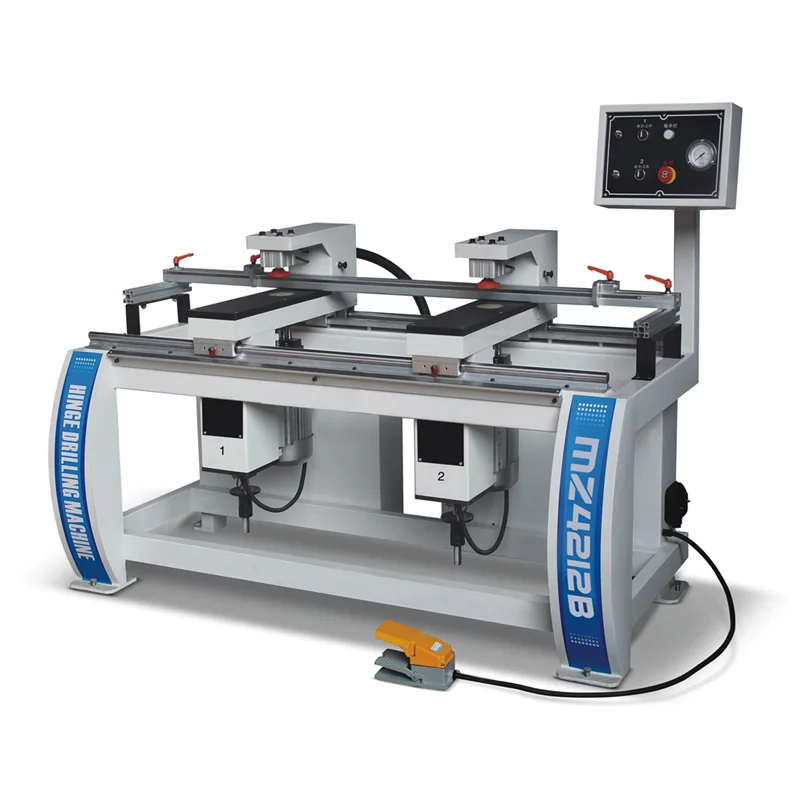

Product picture
