Лидер продаж 2020 длительный срок службы сетчатая машина для алмазной
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Tangshan,Junnan,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 7619.54 $* | 7771.16 $* |
| Jul-18-2025 | 6179.25 $* | 6303.46 $* |
| Jun-18-2025 | 7499.6 $* | 7649.65 $* |
| May-18-2025 | 7439.62 $* | 7588.69 $* |
| Apr-18-2025 | 5939.97 $* | 6058.5 $* |
| Mar-18-2025 | 7319.6 $* | 7465.86 $* |
| Feb-18-2025 | 7259.3 $* | 7404.35 $* |
| Jan-18-2025 | 7199.4 $* | 7343.18 $* |
Характеристики
Product Description

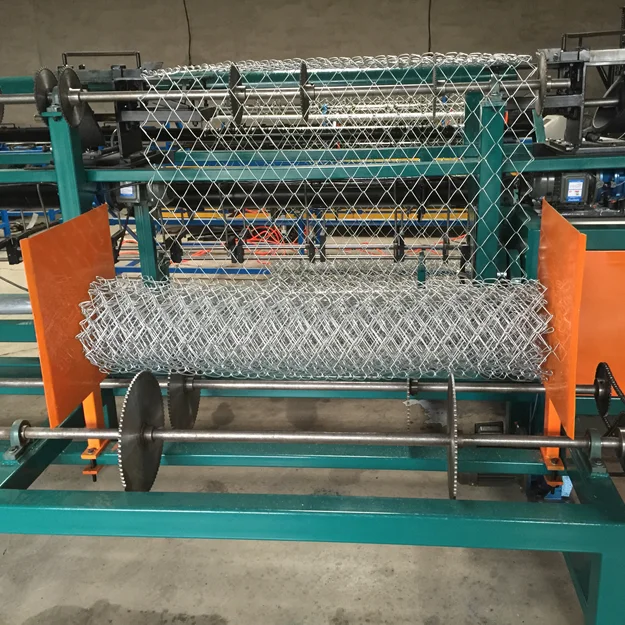

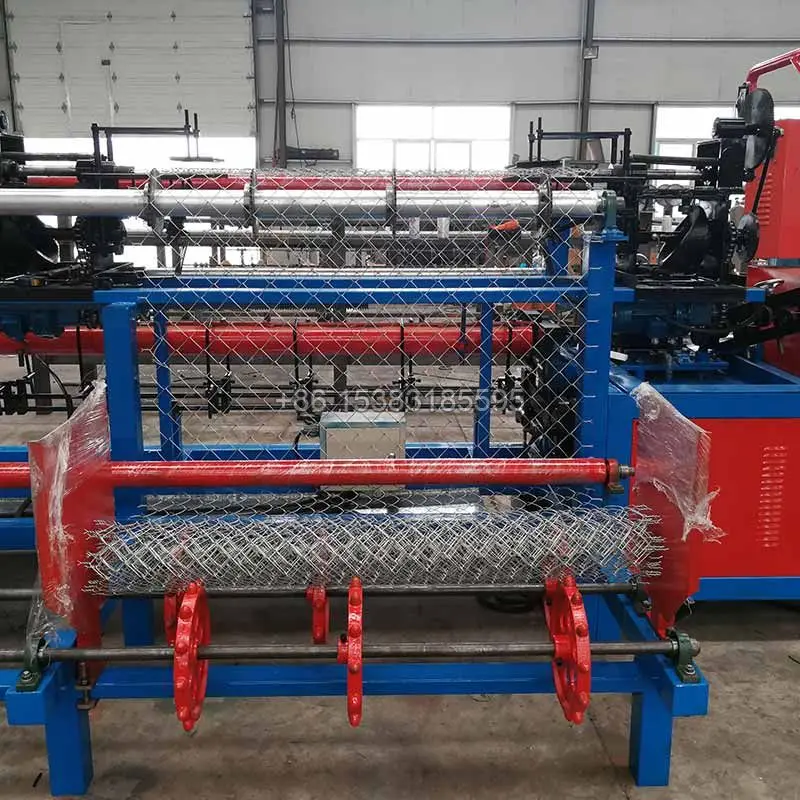

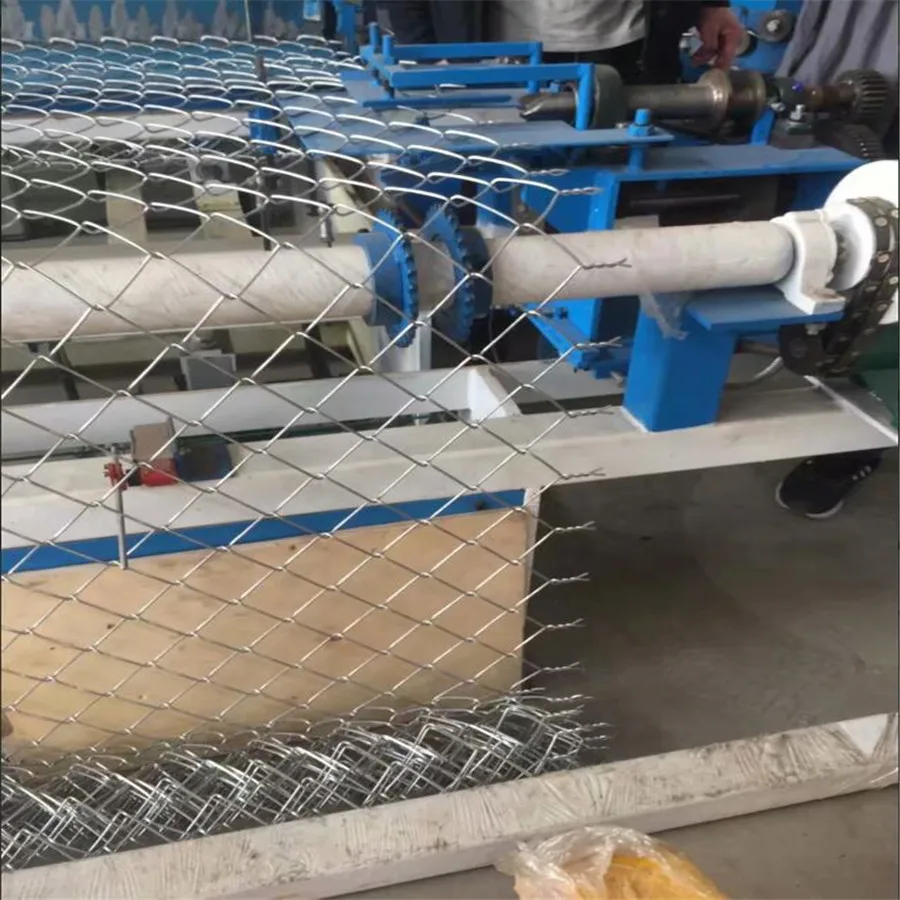

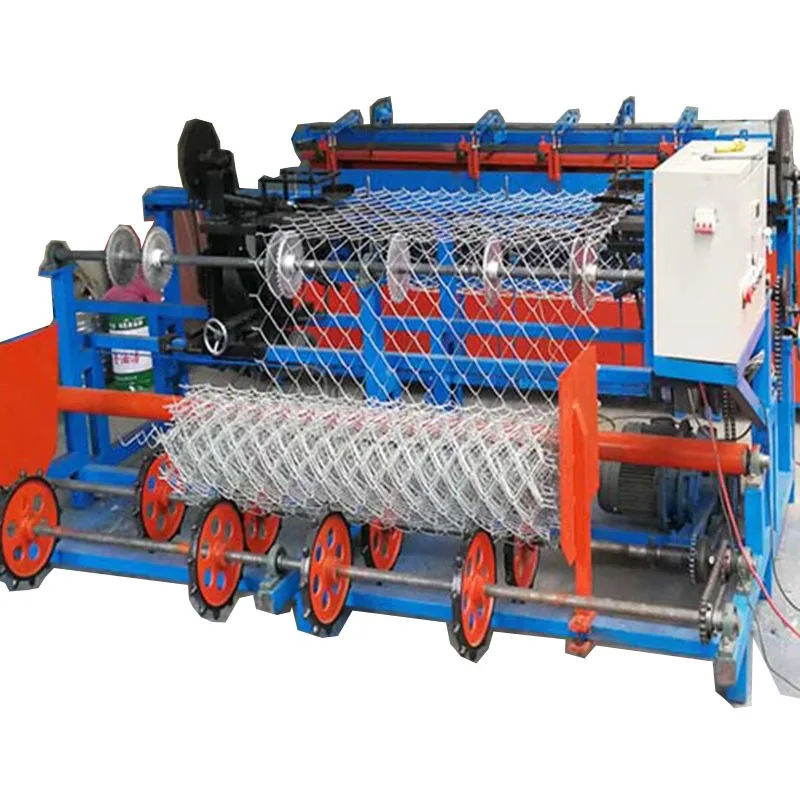

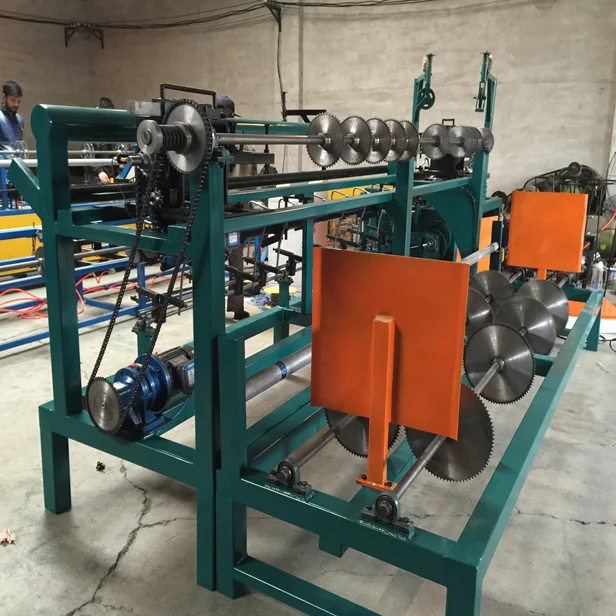

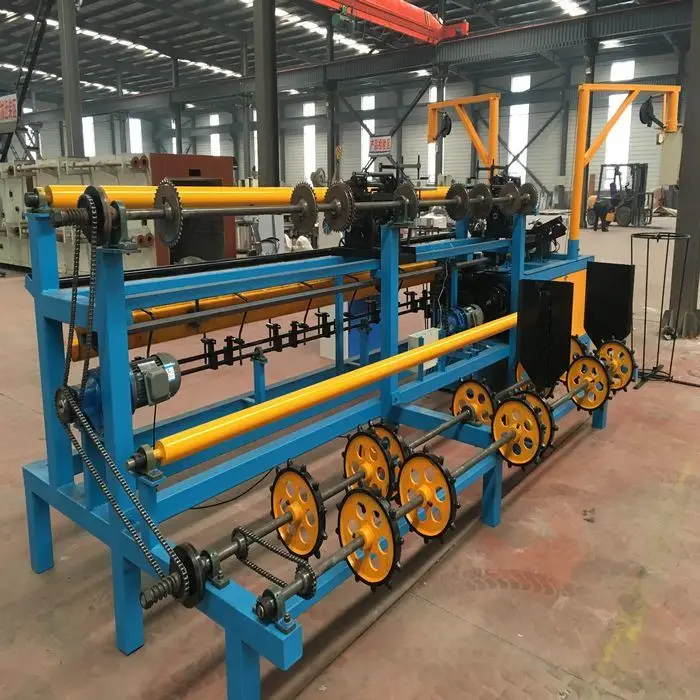

AUTOMATIC CHAIN LINK FENCE MACHINE
* Fully automatic CNC controlled high output machine for the production of chain link fence.
* It adopts double wires feeding principle according to German technology. As so, the production capacity is greatly improved and the machine saves the material best.
* It Can automatically complete the spinning, wearing mesh, cutting wire, bending side, twisting side, rolling mesh and compacting mesh automatically. simple operation, easy to master the technology.
Specification
Full Automatic Double Wire Chain Link Fence Machine | ||
Wire Diameter | 1.5-4.0mm | |
Mesh Size | 30x30mm-100x100mm | |
Width | 600-4000mm | |
Motor | 1.main motor:2.2kw 2.serov motor:5.0kw 3.rolling fence motor:1.1kw 4.bending or twisting edge wire motor:0.75kw*2 | |
Weaving Way | Servo Motor | |
Productive Capacity | 130-160 square meters/hour | |
Control Way | PLC+Touch Screen | |
Packing & Delivery
Our services
* All of our motor for our chain link machine is using Serve Motor, which is very famous brand in China and with best quality,which can make the mesh accurate when you working.
*Our Motor is Servo Motor, which can adjust many things through PLC.
At the same time, using Servo Motor weave chain link machine more accurate and fast.
* We using big and thick frame tube to make the machine more strong.
*We fully welded the frame, also polish the welding print before painting. Moreover, we paint by E-caoting to make the machine more beauty.
*.We will adjust the machine and send the video to you before send the machine to you.You can use directly once get electricity.
*Our Motor is Servo Motor, which can adjust many things through PLC.
At the same time, using Servo Motor weave chain link machine more accurate and fast.
* We using big and thick frame tube to make the machine more strong.
*We fully welded the frame, also polish the welding print before painting. Moreover, we paint by E-caoting to make the machine more beauty.
*.We will adjust the machine and send the video to you before send the machine to you.You can use directly once get electricity.
Application
Our Company
Customer Photos
If you want more information about the machine,pls feel free to contact us:
