Операционный стол для операционного кинотеатра с боковым

Операционный стол для операционного кинотеатра с боковым

Категория: Operating Table >>>
Поставщик: Safety,Medical,Technology,Co.,Ltd.

Цена:3 500,00 $ - 3 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	4165.5 $*	4373.1 $*
Aug-19-2025	4130.47 $*	4337.89 $*
Jul-19-2025	3465.77 $*	3638.15 $*
Jun-19-2025	4060.33 $*	4263.60 $*
May-19-2025	3535.55 $*	3712.59 $*
Apr-19-2025	3990.59 $*	4190.0 $*
Mar-19-2025	3955.70 $*	4153.64 $*
Feb-19-2025	3920.79 $*	4116.87 $*
Jan-19-2025	3885.66 $*	4079.93 $*

Характеристики

Product Description

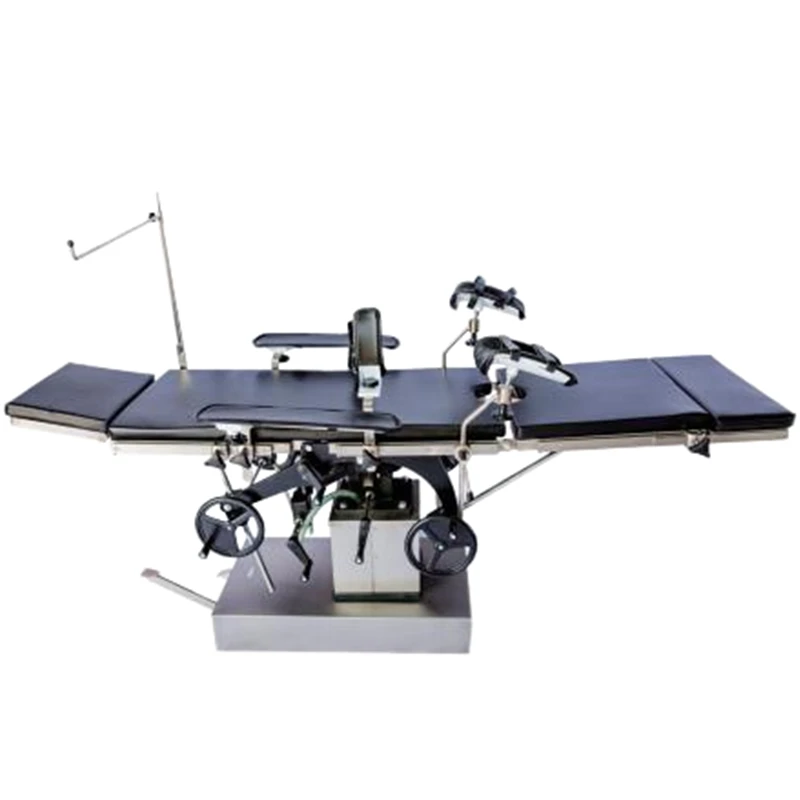

Side-control type operating theatre operation table

Product Name	Side-control type operating theatre operation table
Table length and width	2100×480mm（±20mm）
Table height and low height	1045×800mm（±20mm）
Backward angle of table top	Forward ≥55° Backward ≥35°
Tilt angle of table top	Forward ≥25° Backward ≥25°
Backboard turning angle	≥85° ≤10°
Lumbar lift	120mm
Fold the footboard	Lower turn ≥ 90 °
Oil pump stroke	240mm
Head plate (275×310mm)	Can be folded up and down 90° to extend or unload

1. Both sides of the operating table are equipped with a back board adjusting hand wheel and a leg board manipulating hand wheel, so that the positions of the back board and the leg board can be manipulated whether the operator is on the left or right side of the operating table;

2. A side-tilting adjustment crank 7 for leftward or rightward tilting of the operating table and a waist board adjustment crank 6 for manipulation of the waist board are on the right side of the operating table;

3. The forward-backward tilting adjustment crank to manipulate the forward and backward tilting of the operating table is on the right side and the crank also can be removed and installed on the left side;

4. The lifting of the operating table is adjusted by the oil pump structure. When leaving the factory, the oil in the imported hydraulic pump is pumped out and filled in a barrel and the pump cannot be lifted, so the user needs to slowly add the oil in the oil barrel using a funnel into the oil pump (the tubing and funnel can be taken out only after the oil is all filled into the pump). When lifting the table top, the pedal of the oil pump can be continuously pressed for lifting and the table top will stop automatically once it reaches the highest point. When lowering the table top, the foot pedal of the oil pump can be pressed to the lowest position and the table can be lowered slowly;

5. The table base is equipped with rotating casters to facilitate movement. Controlled by a landing unit, the bed is fixed or moved using the same pedal. When the landing pedal is pressed down, the rotating casters in the base are lowered and the base is lifted up and then the table can be pushed to move; when the pedal is released, the table will be landed and fixed.

Our Company

Our Certifications

Customer Photo

FAQ

Q1. Are you a factory or trading company?

We are factory.OEM&ODM orders are avaliable here.

Q2. Where is your factory located? How can I visit there?

Our factory is located in Luoyang City,Henan Province,China.2 hours by air from Guangzhou to Luoyang.You can go to Luoyang by train or by air,and then we will pick you up there.

Q3. How long is your delivery time?

If we have raw material in stock,usually 15-25 days,if not ,kit will take 20-30 days ,which depends on the quantity.

Q4. How can I get some samples?It is free or extra?

We are honored to offer you samples for free.

Q5. Which certification do you have?

Our company has passed ISO 9001/ISO 14001/ISO 18001/ISO 13485/ISO 45001 certification.

Q6. What is your terms of payment?

L/C,T/T,Western Union,Paypal,Cash,Credit ect.,
