Product Description

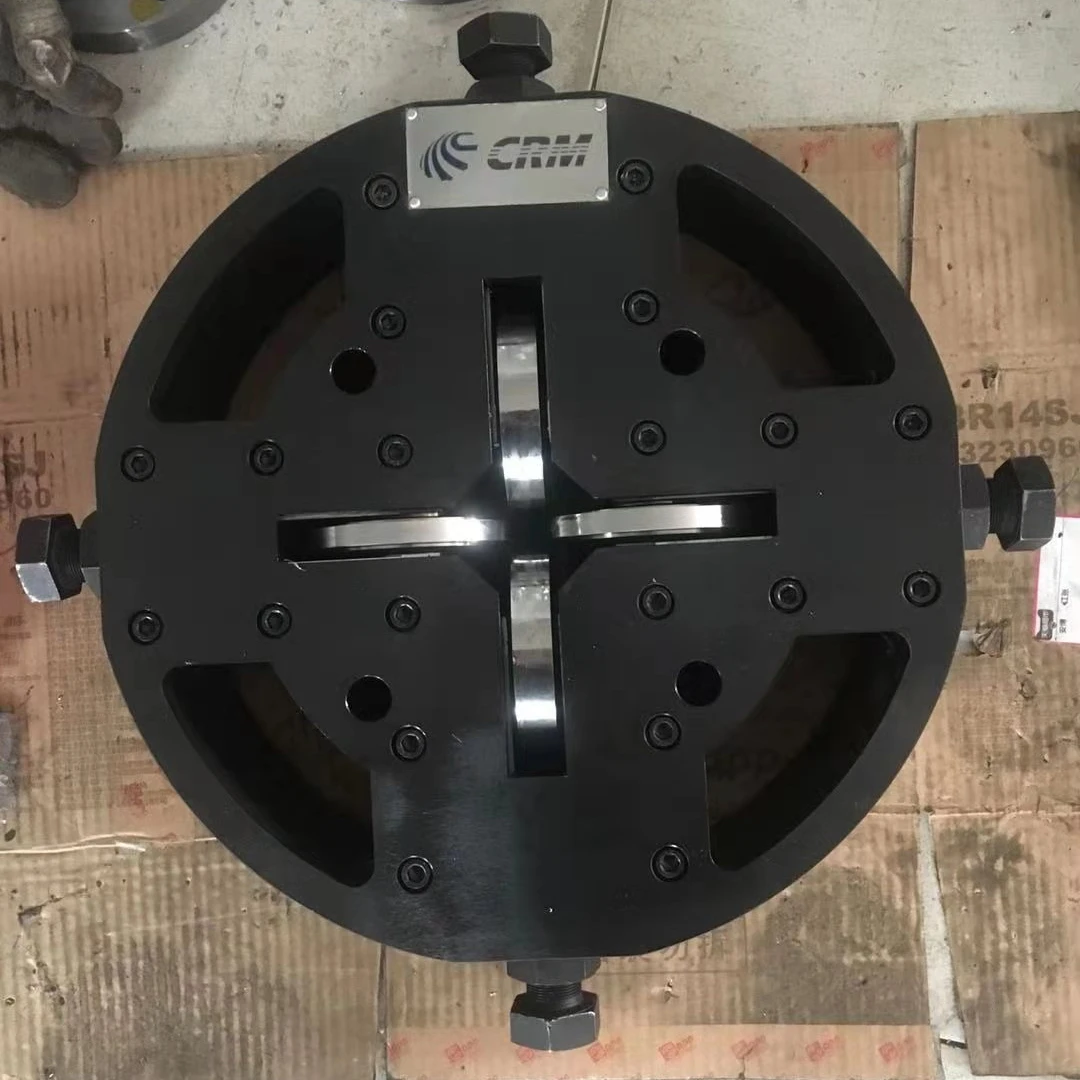

Turks head die/Turks head rolls/ turk head/ Turks heads/Rolling Die/C-type Die/Y-type Drawing Die/Micro rolling cassettes/wire flattening tool.

turks Heads dies. The Turks Head die are always equipped with drawing machine or wire flattening rolling machine.

Features: Turks Head Rolling Dies have compact structure with small size

Uses: CRM Turks Head Rolling Dies are specially designed to replace traditional dies used on rolling round wires to rectangular and shaped wires.

Applying materials: suitable for ferrous metals, such as high-carbon, medium-carbon, low-carbon steel wire, stainless steel wire, titanium wire, titanium nickel alloy wire.

Attribute: No drives

Advantages:

1-CRM has an experience team of highly qualified and strongly motivated people that develops turks head rolling dies for the rolling wire industry.

2-dry operation in a special case.

3-Different from the drawing die with “one size one die” it possible of roller non-replacing when forming flat and shaped wires.

4-Roll material: tungsten carbide.

5-Roll diameter: 75-150mm

6-Using method: usually equipped with drawing machine or tractors.

Our products

Sky Bluer Environmental Technology Co., Ltd. has been able to produce special versions Turks Head Rolling Dies to meet the most varied market demands with regards to the production of special profiles. Therefore, cassettes with only 2 rolls (Skin pass type), Motorized cassettes have also been produced to be used if, for various reasons, pulling of the wire cannot be carried out by a bull block. One of these types of cassettes is the 4-roll driven cassette (a motor for each roll) coupled with an idle cassette and suitable for producing ribbed squares with a side up to maximum 15 mm.
