Высокое качество GBX-3L Плавная мульти скорости крутящего момента с бесщеточным двигателем точность Электрическая
- Категория: Power Screw Drivers >>>
- Поставщик: Shenzhen,Danheng,Technology,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 161.78 $* | 164.44 $* |
| Jul-20-2025 | 131.10 $* | 134.99 $* |
| Jun-20-2025 | 159.27 $* | 162.30 $* |
| May-20-2025 | 157.1 $* | 160.65 $* |
| Apr-20-2025 | 126.97 $* | 129.88 $* |
| Mar-20-2025 | 155.40 $* | 158.42 $* |
| Feb-20-2025 | 154.92 $* | 157.20 $* |
| Jan-20-2025 | 152.49 $* | 155.48 $* |
Характеристики
Specification
High Quality GBX-3L Stepless Multi Speed Torque Adjustment Brushless Precision Electric Screwdriver
Product features
· Imported brushless motor, strong performance, high stability and long ser vice life.
· Low vibration, low noise, low electromagnetic interference, comply with environmental requirements, especially applicable to
dustfree working environment.
· The internal stop device adopts magnetic induction system, with high sensitivity, instantaneous braking, low impact force, and
long-term use not easily damaged.
· The newest power supply design, break through the traditional volume big, the power consumption big drawback, use medium is
lighter, more convenient, apply to 100V ~ 250V working environment.
· The torque is accurate, the torque is accurate and the torque is adjusted by using professional tools so that you don't have to
worr y about the torque.
· A perfect combination of push-start and push-down dual mode functions, with just a small switch to make your use more arbitrary.
· Specially designed for screw assembly automation equipment, with signal output, is the best choice for the manufacturer of screw
assembly automation equipment.
· The speed of 0-1200rpm can be adjusted to suit your different needs.
The products are fully functional and meet all kinds of industrial needs.
· Imported brushless motor, strong performance, high stability and long ser vice life.
· Low vibration, low noise, low electromagnetic interference, comply with environmental requirements, especially applicable to
dustfree working environment.
· The internal stop device adopts magnetic induction system, with high sensitivity, instantaneous braking, low impact force, and
long-term use not easily damaged.
· The newest power supply design, break through the traditional volume big, the power consumption big drawback, use medium is
lighter, more convenient, apply to 100V ~ 250V working environment.
· The torque is accurate, the torque is accurate and the torque is adjusted by using professional tools so that you don't have to
worr y about the torque.
· A perfect combination of push-start and push-down dual mode functions, with just a small switch to make your use more arbitrary.
· Specially designed for screw assembly automation equipment, with signal output, is the best choice for the manufacturer of screw
assembly automation equipment.
· The speed of 0-1200rpm can be adjusted to suit your different needs.
The products are fully functional and meet all kinds of industrial needs.
Model number | GBX-1L | GBX-2L | GBX-3L | ||
Input Voltage | DC-25V | ||||
Torque range | Kgf.cm | 0.1-1 | 0.2-2 | 0.3-3 | |
Lbf.in | 0.085-0.85 | 0.17-1.7 | 0.255-2.55 | ||
N.m | 0.01-0.1 | 0.02-0.2 | 0.03-0.3 | ||
Torque accuracy | ±3% | ±3% | ±3% | ||
Torque adjustment | Stepless | Stepless | Stepless | ||
Torque adjustment mode | Back stop screw | Back stop screw | Back stop screw | ||
Start the way | Hand press type | Hand press type | Hand press type | ||
Idling speed (R.P.M) Quick series | 0~1000 300~1000 | 0~1000 300~1000 | 0~1000 300~1000 | ||
Weight (g) | 210 | 210 | 210 | ||
No load current (A) | 0.3A | 0.3A | 0.3A | ||
Bit type | Φ4 | Φ4 | Φ4 | ||
Applicable Screw diameter(mm) | Mechanical tooth | 1.0-1.6 | 1.0-1.8 | 1.0-2.0 | |
Self-tacking tooth | 1.0-1.7 | 1.0-2.0 | 1.0-2.3 | ||

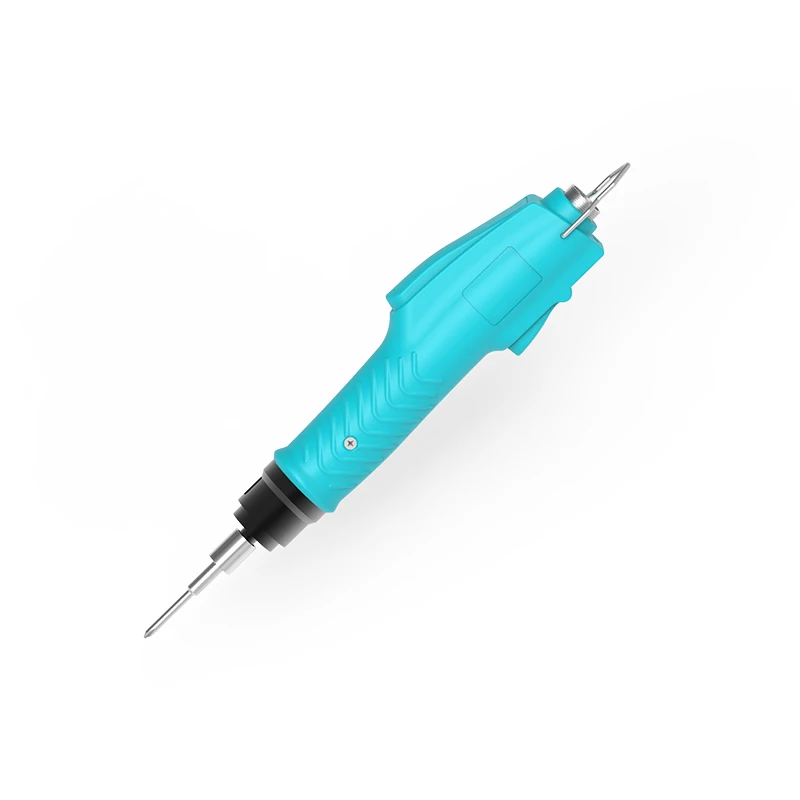

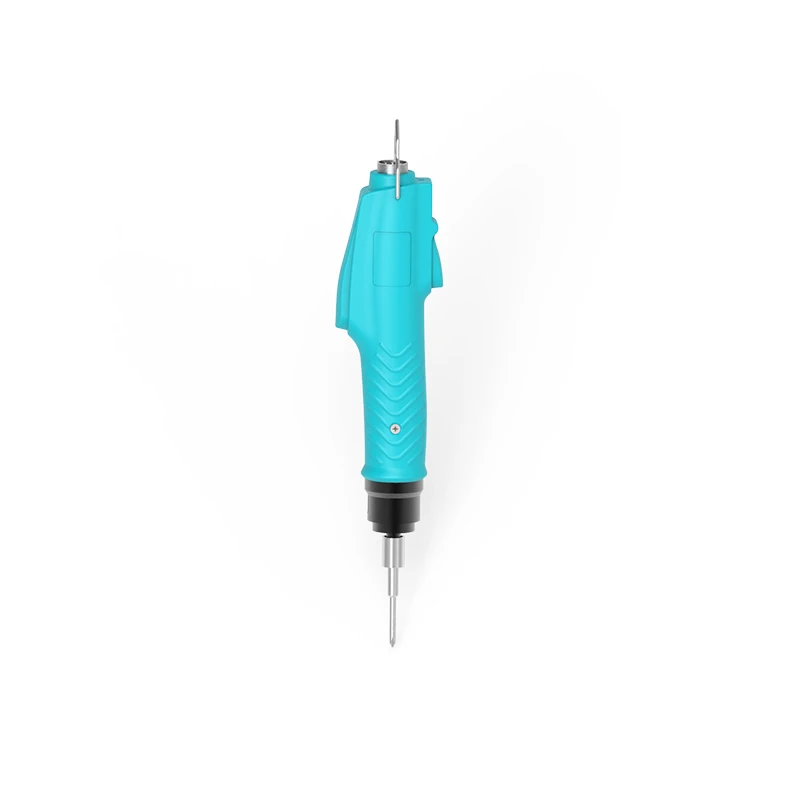

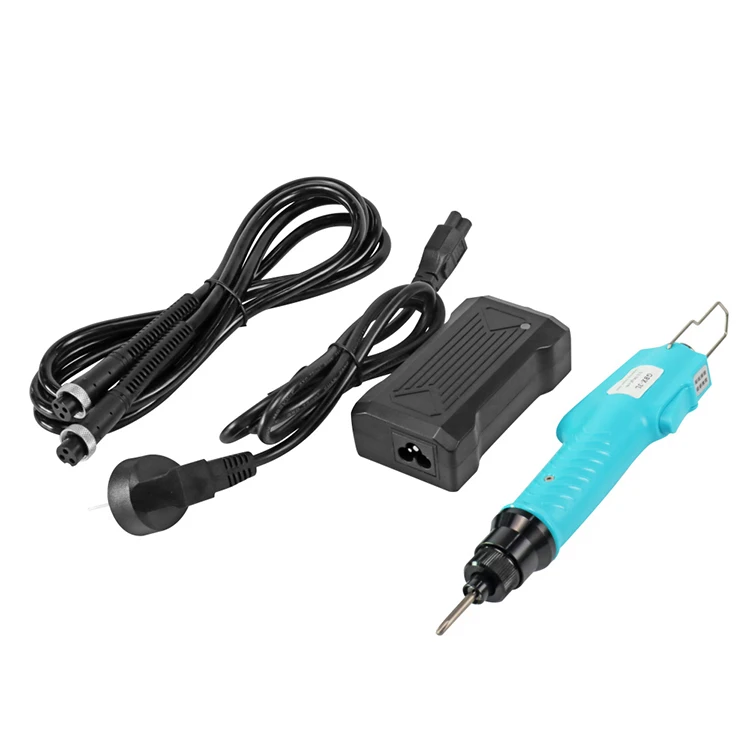

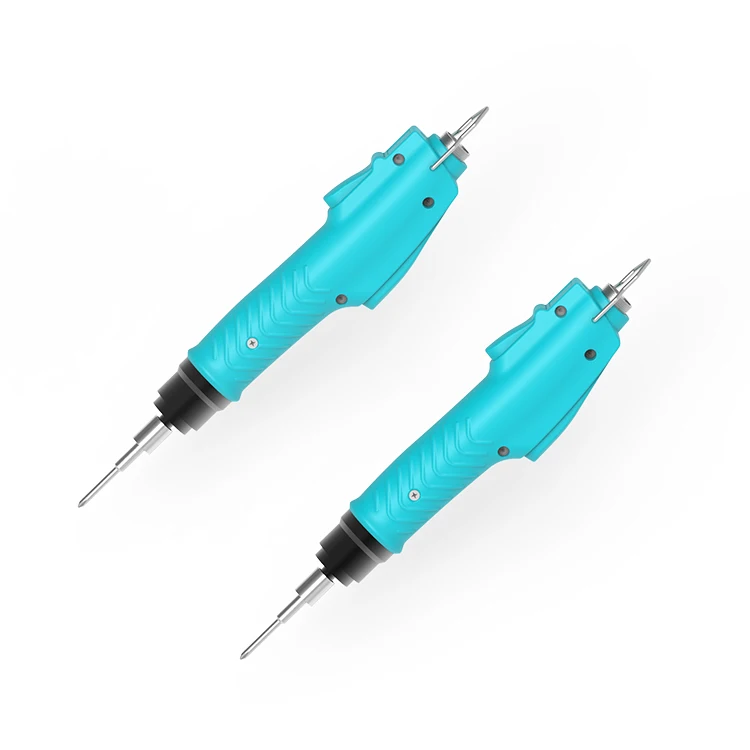

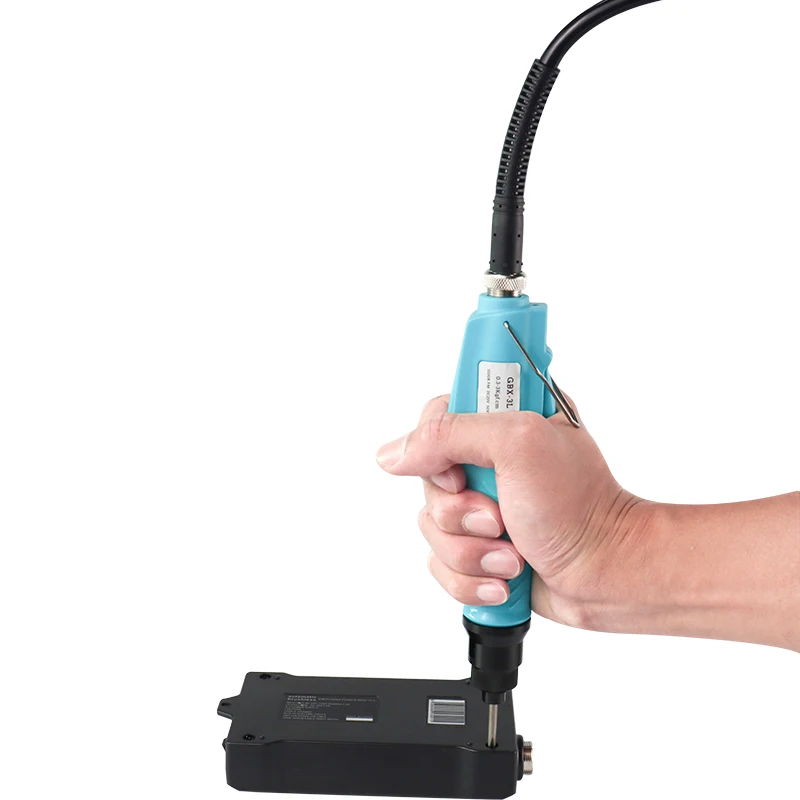

Product Picture
Company Profile
Shenzhen Danheng Technology Co.,Ltd
Shenzhen Danheng Technology Co., LTD is a dominated by repairing the phone's screen, , 3 c digital accessories to form a complete set, set design, development, production, sales in the integration of modern science and technology , manufacturing and trading company. Our main products are Touch screen panel separator machine,uv glue removing machine,OCA laminating machine,vacuum laminating machine,air bubble removing machine ,Products covered China nearly thirty provinces, autonomous regions, and many foreign countries and regions. We can provide the original factory price, and have a high quality team, can provide customers with perfect after-sales service in a timely manner.
Production Line
Our Advantages
Packing & Delivery
Why Choose Us
1.Good quality and competitive price.
2,Any Inquires will be replied within 24 hours.
3,All of our products 100% inspection before shipment, we guarantee to use our products safety.
4,OEM/ODM orders are warmly preferred.
5,We own the best after-sale service.Any problems occur,our team will do our best to solve for customers.
6,Faster delivery, sample order in stock, and 3-7 days after bulk production.
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
A2. Our products are high quality and low price.
Q3.Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
A3. Yes,we can provide good after-sale and fast delivery.
