Двойные рабочие столы винтовая приводная машина с двойными

Двойные рабочие столы винтовая приводная машина с двойными

Категория: >>>
Поставщик: Dongguan,Chuanghui,Automation,Co.,Ltd.

Цена:1 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	1785.36 $*	1874.76 $*
Aug-15-2025	1770.97 $*	1859.30 $*
Jul-15-2025	1485.99 $*	1559.14 $*
Jun-15-2025	1740.34 $*	1827.40 $*
May-15-2025	1515.5 $*	1591.53 $*
Apr-15-2025	1710.1 $*	1796.84 $*
Mar-15-2025	1695.90 $*	1780.63 $*
Feb-15-2025	1680.4 $*	1764.47 $*
Jan-15-2025	1665.16 $*	1748.46 $*

Характеристики

Product Description

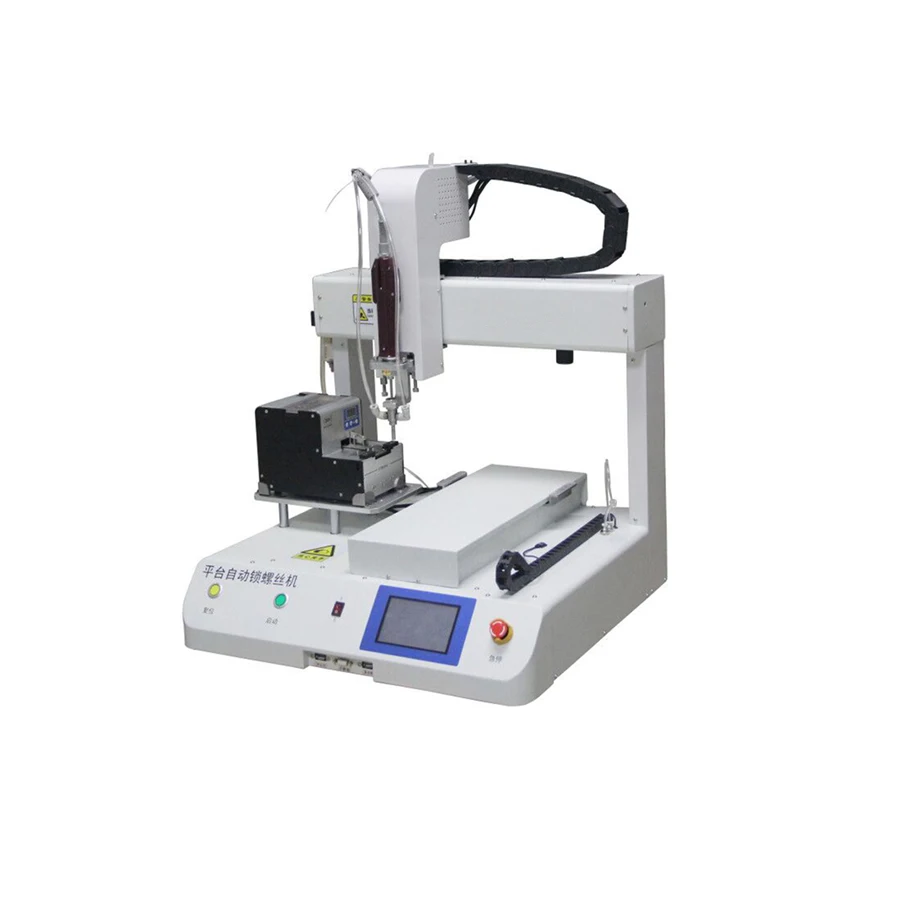

Double worktables screw driving machine with double screwdriver bits

The automatic screw machine is a machine that replaces the traditional manual tightening of screws. It has continuous feeding, constant torque, optional counting function, anti-leakage function, screw sliding and floating lock detection, which saves labor costs and improves production assembly efficiency. Commonly used in the electronics and machinery industries

Features:
1. Wide universality, small in size, can cooperate with production line, convenient for product replacement.
2. High degree of automation, easy operation which the staff can master and debug quickly.
3. With intelligent inspection function, inspection miss locked,unstable locked,loose screw and so on.
4. Touch screen display or teach pendant programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management..
5. The Y axis can be made into double-station(that is, double Y axis),so the operator can load alternately.
6. Accurate torsion, convenient adjustment, and the quality of lock is guaranteed.
7. With the function of leak detection, once a screw did not fill in place it can fill continually or start alarm processing.

Specification

Machine Constuction	The gross weight		About 50KG
		Dimension		556580cm
		Voltage		AC 100V 230V50~60HZ
		Power		1000W
		Ambient Temperature		-20~40℃
Control Instructions	Host program control		Autonomous dedicated control system
		Hand-held teaching box		Hand-held teaching box (touch screen)
		The program input		Direct coordinate input or computer connection
		The I/O signals		8 INPUT / 8 OUTPUTS
Speed and accuracy	Positioning accuracy		X,Y:+/-0.08mm; Z: +/-0.01mm
		Running speed		600mm/sec(X-Y)
Range of application	X &Y Working Range		Customized
		Z Working Range		Customized
