Вибрационный камертон датчик взрывостойкого материала реле уровня жидкости из
- Категория: Other Test Instruments >>>
- Поставщик: Shandong,Dongrun,Instrument,Science,And,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 179.5 $* | 188.82 $* |
| Aug-20-2025 | 177.25 $* | 186.43 $* |
| Jul-20-2025 | 149.78 $* | 156.48 $* |
| Jun-20-2025 | 174.54 $* | 183.96 $* |
| May-20-2025 | 152.95 $* | 160.27 $* |
| Apr-20-2025 | 171.74 $* | 180.32 $* |
| Mar-20-2025 | 170.55 $* | 179.20 $* |
| Feb-20-2025 | 168.78 $* | 176.69 $* |
| Jan-20-2025 | 167.1 $* | 175.75 $* |
Характеристики
Tuning Fork Level Switch for water level switch
We accept PAYMENT REFUND AGREEMENT in case of bad quality
Responding to national policy One Belt And One Road(B&R), big discounting for countries along the routes. Welcome for Consulting!
PLEASE BE ATTENTION:
Product Description

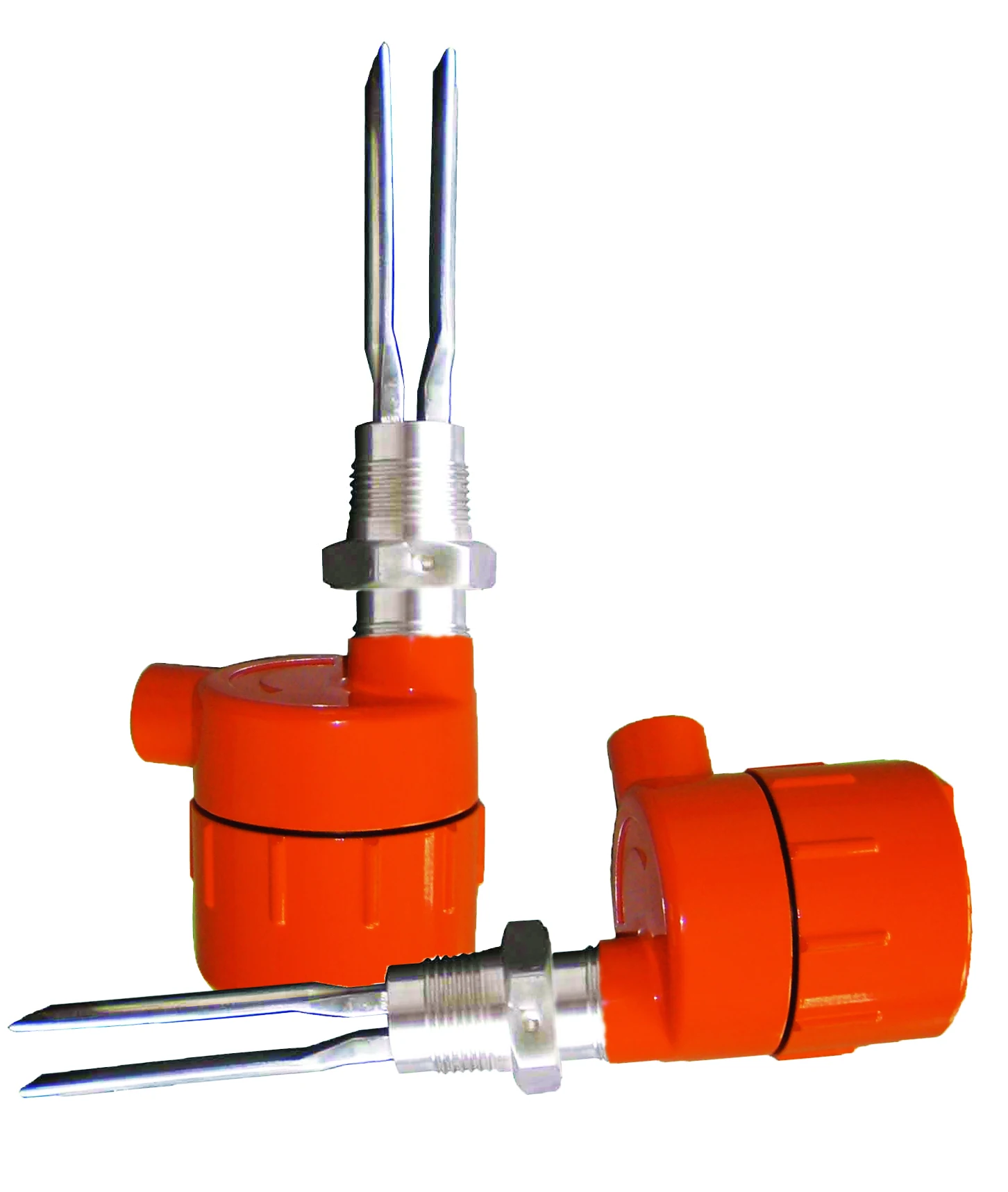

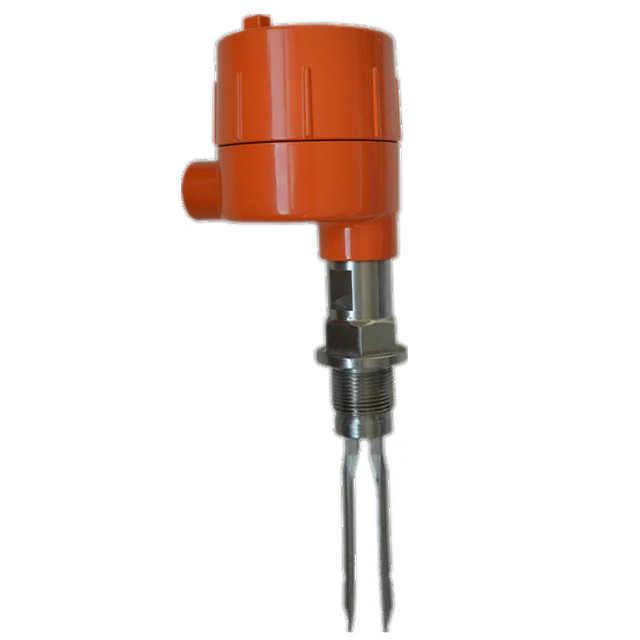

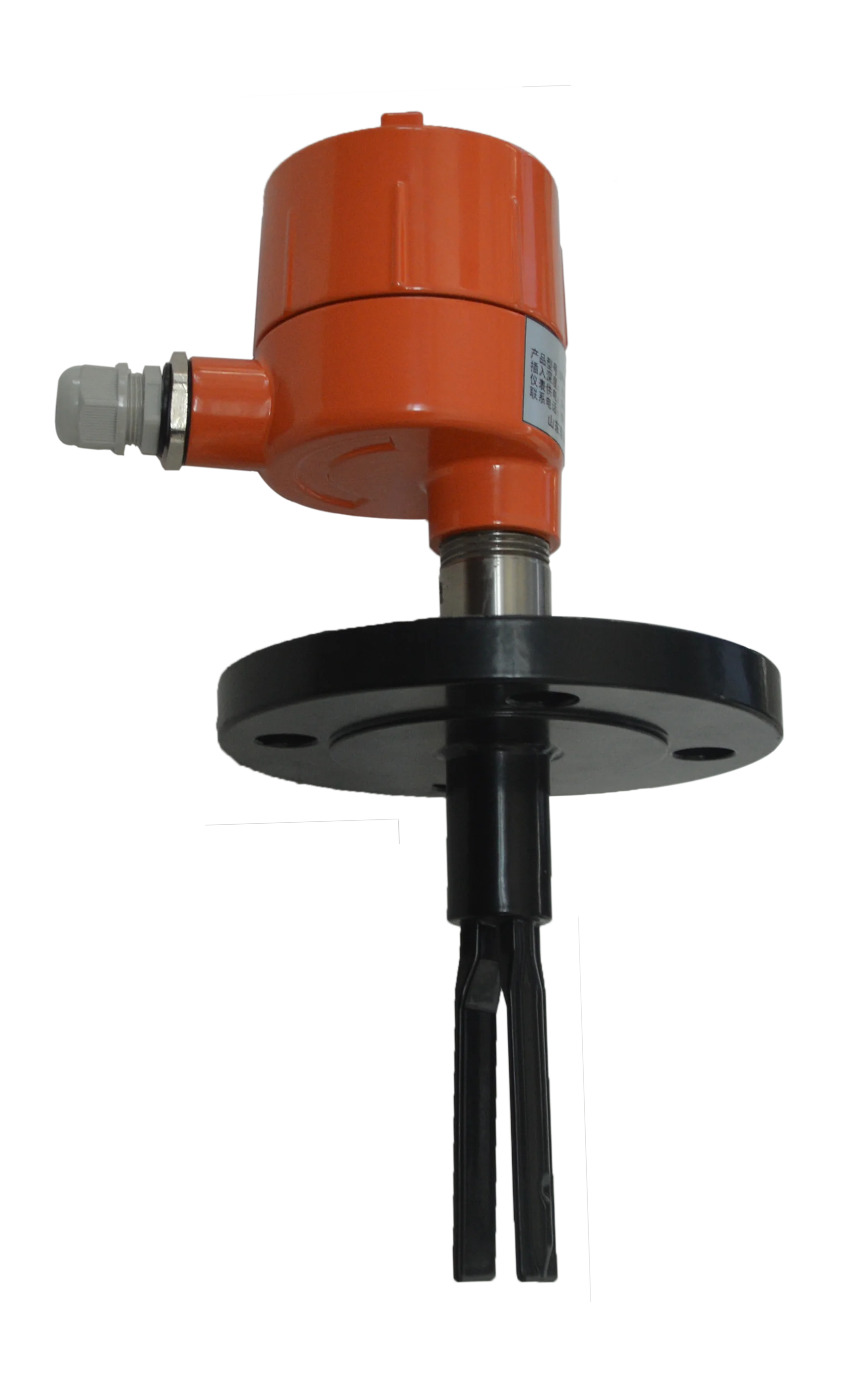

The UYCK series Tuning Fork Level Sensor is made through a set of piezoelectric crystals mounted on the tuning fork base, which makes the tuning fork vibrates at a certain resonance frequency. When the tuning fork is in contact with the medium , the frequency and amplitude of the tuning fork will be changed and these changes will be tested and processed by the intelligent circuit, which converts it into a switch signal for output.
Solid materials:Fly ash, cement, stone powder, plastic granule, salt, sugar, etc.
Liquid materials: water, acid, alkali mud, paper pulp, fuel, oil, milk, liquor, beverage, etc.
Specifications
Tuning Fork Level Sensor
Ambient temperature | -30~80℃ |
Air humidity | 5%RH~100%RH |
Material | SUS 304/316(also can customized) |
Power voltage | 50/60HZ AC220V; DC24V |
Rated power | 1.5W |
Output signal | DPDT, load current is 3A |
Medium requirements | Liquid Density≥0.3g/cm³ |
Solid density≥0.05g/cm³ | |
Particle size≤ 100mm | |
Medium viscosity | ≤10000mm²/S |
Medium temperature | -30~80℃(Special type can reach 200℃) |
Vibrational frequency | 400Hz±50Hz |
Delay time | 2~10s |
Working pressure | ≤2Mpa |
Explosion-proof grade | ExiaⅡBT5 |
ExdⅡBT5 |
Product Installation
The Installation as the picture shows. Pls check it and Installed correctly.So the switch could with a long life.
Why Choosing Us
•AS a professional manufacturer of Level Sensers and water quality analyzers for 20 years.
• EVERY product is made strictly based on international standard and certified by ISO9001:2008, BV, CE, ROHS and EX-PROOF.
• STABLE product quality wins long-term cooperation with companies from China and the world.
•TRANSACTION implement by means of the “ Trade Assurance System” of Alibaba to ensure that buyers can get full order protection , that is, 100% Product quality protection, 100% On-time shipment protection and 100% Payment protection. Pls look over the link for more details: http://activities.alibaba.com/alibaba/ordering/tradeassurance.php?spm=5386
Production Process
Packaging & Shipping
Company Information
Yantai dongrun Instrument Co., Ltd. founded in 1998. It specializes in manufacturing online water quality analysis equipment, level meters, pressure gauges, flow meters, special temperature gauges and laboratory analysis equipment. Our company cooperates with Chinese Academy of Sciences and builds up a water analysis laboratory, mainly producing TOC analyzer, ammonia analyzer, fluorescence oxygen analyzer, etc. We have passed the ISO9001 certification. Our professional R & D team can provide technical supports to satisfy customer demand and our unique technologies can meet different working conditions. We are the important supplier of Yantai Wanhua Group,Pepsi,Sinopec,Jereil etc.
Good Reputation
WITHOUT ANY BAD REPUTATION FOR MORE THAN 20 YEARS
