Лидер продаж контроллер скорости двигателя переменного тока отличное качество изготовления 220 В 6 Вт ~
- Категория: Motor Controller >>>
- Поставщик: Yueqing,Duoji,Electric,Appliance,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.43 $* | 5.94 $* |
| Aug-18-2025 | 5.79 $* | 5.16 $* |
| Jul-18-2025 | 4.39 $* | 4.42 $* |
| Jun-18-2025 | 5.9 $* | 5.1 $* |
| May-18-2025 | 4.83 $* | 4.21 $* |
| Apr-18-2025 | 5.31 $* | 5.86 $* |
| Mar-18-2025 | 5.83 $* | 5.27 $* |
| Feb-18-2025 | 4.28 $* | 4.76 $* |
| Jan-18-2025 | 4.69 $* | 4.24 $* |
Характеристики
Products Description
Product name | ac motor speed controller |
Material | ABS |
Color | Black |
Usage | Widely used in packaging, printing, food, electronics, instruments, clothing industry production line to do speed drive device |

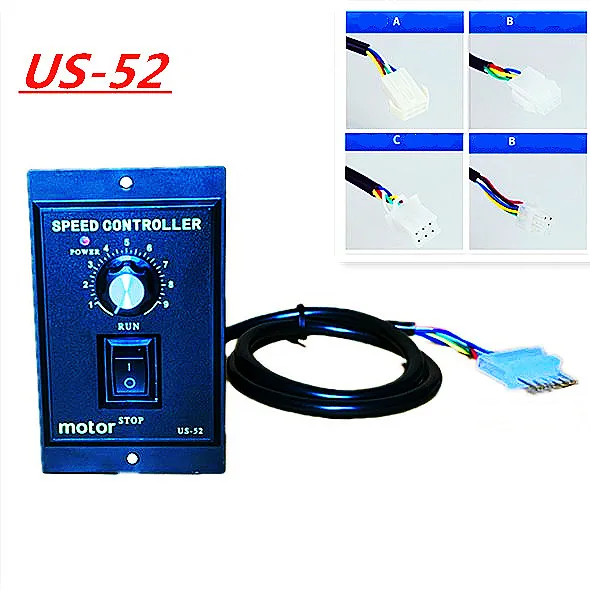

US-52
AC 220V Motor Speed Pinpoint Regulator Controller Forward & Backward Motor Governor
Features:
* This motor speed controller is suitable for AC220V 50/60HZ motor.
* Speed regulation range is 90-1400r/min 50HZ, 90-1700r/min 60HZ
* Suitable for packaging, printing, food, electronics, instrumentation, medical equipment, clothing industry production line for
speed control drive devices
* The controller uses high quality electronic circuit and integrated components for durability.
* It has small size, high precision, wide speed controlling range, and long service life.
Specifications:
Power supply:AC220V50/60hz
Rated power: 6W 15W 25W 40W 60W 90W 120W 150W 180W 200W 250W 300W 400W
Environment temperature: - 10 ~ + 50°;
Relative humidity:<90%;
Speed regulation range: 90-1400r/min 50HZ, 90-1700r/min 60HZ
Weight: 270g

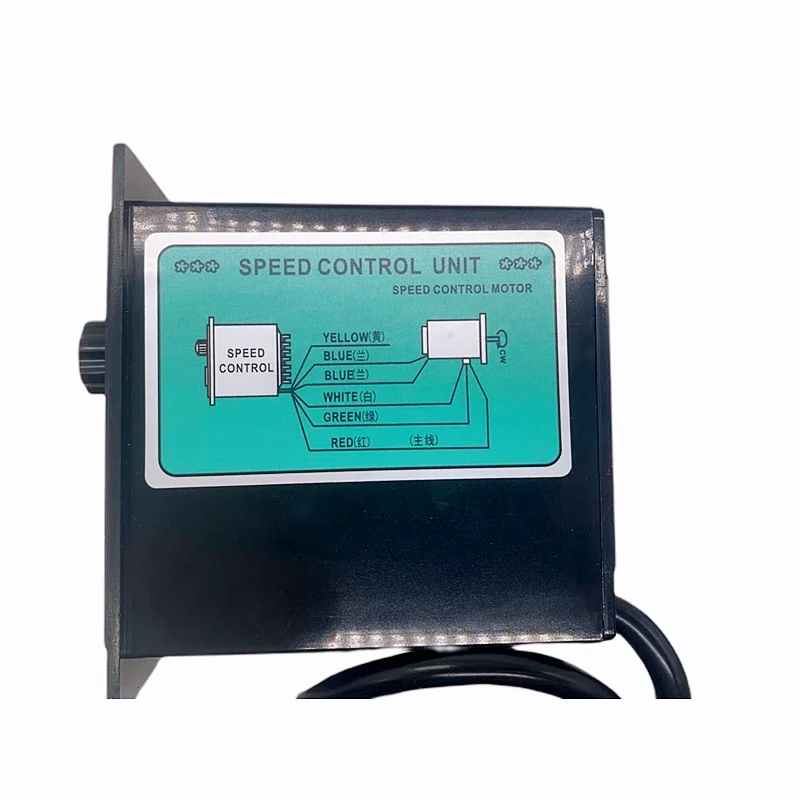

Wiring method:
Red wire is the motormainwire, Green and white are the capacitor auxiliary wires, and 2 blue wires are the speed control feedback
wires, the yellow wire is the ground wire.
Method of use:
1. Turn off the power, connect it according to the wiring diagram and make sure the connection is correct.
2. Fix the controller well and set the speed to the lowest "0", so as to avoid sudden large current and permanent damage when
starting the power supply;
3. Then turn on the power and adjust the speed knob to the desired position. Please turn off the power when not needed;
4. The governor is connected to the motor. If the torque or speed is found to be inconsistent with the requirements, please adjust
the fine-tuning potentiometer on the side of the product

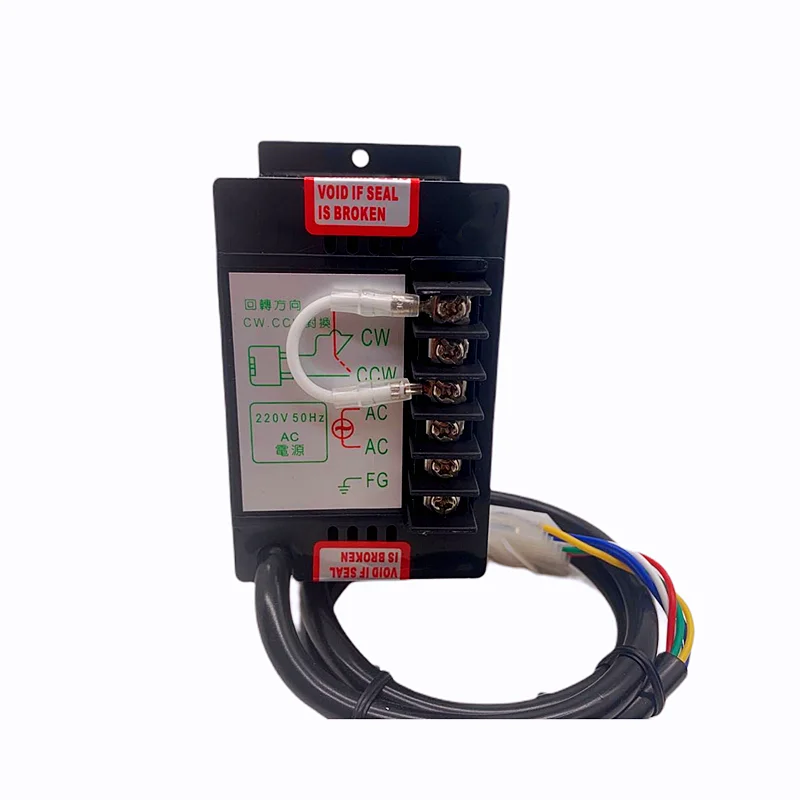

5. To change the running direction of the motor, simply replace the jumper lines of "CCW" and "CW" on the back of the controller.
6. Select COM and CW short connection, then the motor will rotate clockwise.
7. Select COM and CCW short connection, then the motor do counterclockwise rotation.
(when changing direction, do not change the direction until the motor stops running completely.)
AC 220V Motor Speed Pinpoint Regulator Controller Forward & Backward Motor Governor
Features:
* This motor speed controller is suitable for AC220V 50/60HZ motor.
* Speed regulation range is 90-1400r/min 50HZ, 90-1700r/min 60HZ
* Suitable for packaging, printing, food, electronics, instrumentation, medical equipment, clothing industry production line for
speed control drive devices
* The controller uses high quality electronic circuit and integrated components for durability.
* It has small size, high precision, wide speed controlling range, and long service life.
Specifications:
Power supply:AC220V50/60hz
Rated power: 6W 15W 25W 40W 60W 90W 120W 150W 180W 200W 250W 300W 400W
Environment temperature: - 10 ~ + 50°;
Relative humidity:<90%;
Speed regulation range: 90-1400r/min 50HZ, 90-1700r/min 60HZ
Weight: 270g
Wiring method:
Red wire is the motormainwire, Green and white are the capacitor auxiliary wires, and 2 blue wires are the speed control feedback
wires, the yellow wire is the ground wire.
Method of use:
1. Turn off the power, connect it according to the wiring diagram and make sure the connection is correct.
2. Fix the controller well and set the speed to the lowest "0", so as to avoid sudden large current and permanent damage when
starting the power supply;
3. Then turn on the power and adjust the speed knob to the desired position. Please turn off the power when not needed;
4. The governor is connected to the motor. If the torque or speed is found to be inconsistent with the requirements, please adjust
the fine-tuning potentiometer on the side of the product
5. To change the running direction of the motor, simply replace the jumper lines of "CCW" and "CW" on the back of the controller.
6. Select COM and CW short connection, then the motor will rotate clockwise.
7. Select COM and CCW short connection, then the motor do counterclockwise rotation.
(when changing direction, do not change the direction until the motor stops running completely.)
