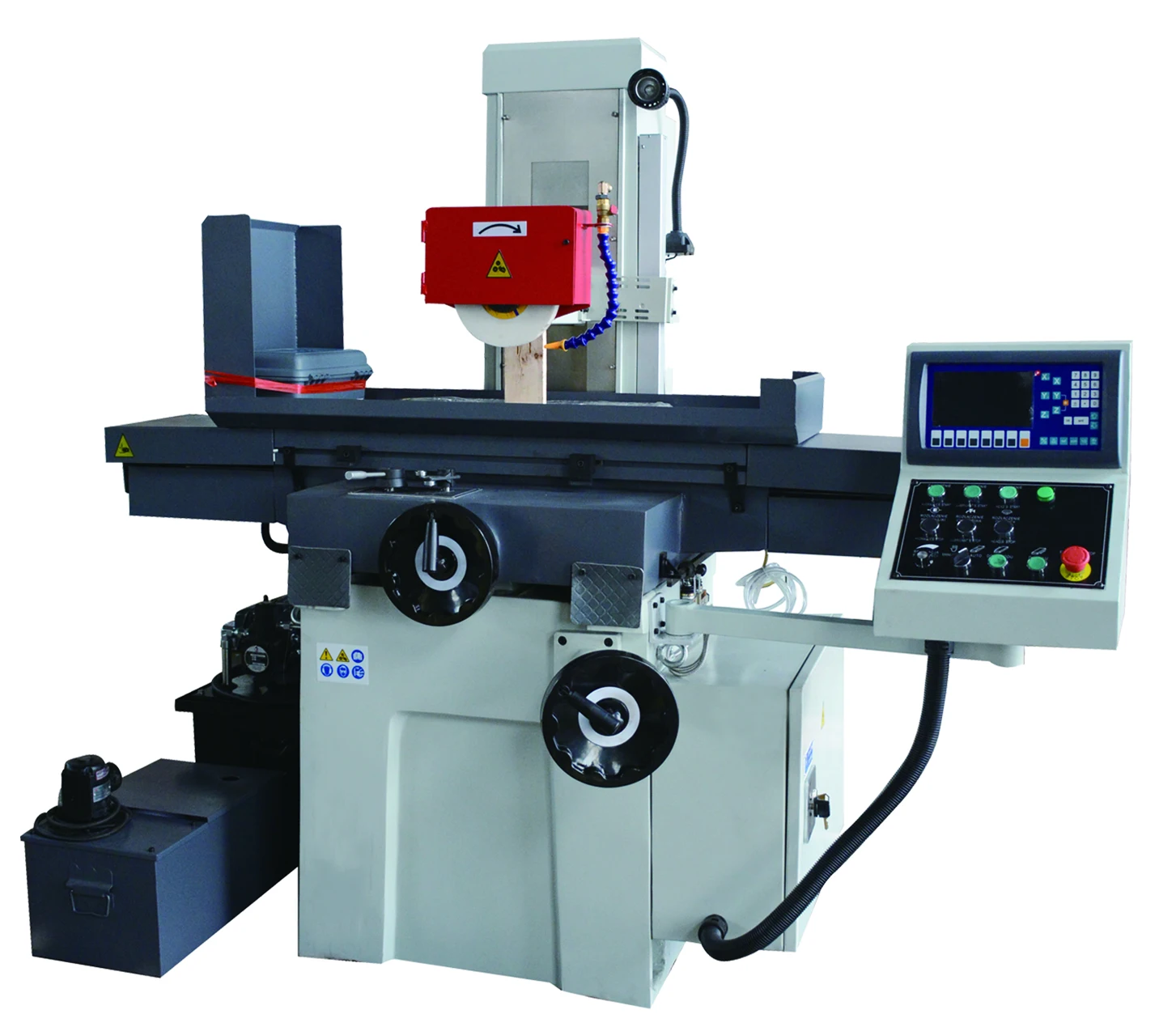

Полуавтоматическая гидравлическая Поверхностная шлифовальная машина M1022AHR для быстрого подъема горизонтальных поверхностей настольная седлового типа размер 520*250
- Категория: Surface Grinding Machines >>>
- Поставщик: Yancheng,Kaiqi,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.88 $* | 0.97 $* |
| Aug-17-2025 | 0.82 $* | 0.25 $* |
| Jul-17-2025 | 0.98 $* | 0.6 $* |
| Jun-17-2025 | 0.86 $* | 0.44 $* |
| May-17-2025 | 0.46 $* | 0.81 $* |
| Apr-17-2025 | 0.39 $* | 0.64 $* |
| Mar-17-2025 | 0.72 $* | 0.23 $* |
| Feb-17-2025 | 0.43 $* | 0.82 $* |
| Jan-17-2025 | 0.88 $* | 0.76 $* |
Характеристики
Products Description
Technical Parameters | Unit | M1022AHR | ||||
Working Table | Table size(L*W) | mm | 520*250 | |||
Max. table travel(L*W) | mm | 540*250 | ||||
Chuck size(L*W) | mm | 500*250 | ||||
Number of T-Slot | n*mm | 1*14 | ||||
Grinding head | Distance from table surface to spindle center | mm | 450 | |||
Wheel size(Diameter*width*bore) | mm | 200*20*31.75 | ||||
Spindle speed(50Hz) | rpm | 2800 | ||||
Feeding amount | Table longitudinal speed(stepless)(Right and left movement) | m/min | 3-20 | |||
Table horizontal feeding amount | Continuous (Variable speed) | mm/min | 150 | |||
Intermittent (stepless) | mm/Time | 0-5 | ||||
Handwheel rotates | mm | 4 | ||||
Handwheel each grid | mm | 0.02 | ||||
Vertical feeding wheel feed | Handwheel rotates | mm | 2 | |||
Handwheel each grid | mm | 0.01 | ||||
Motor Power | Spindle motor | kw | 1.5 | |||
Cooling motor | kw | 0.04 | ||||
Hydraulic motor | kw | 1.5 | ||||
Elevating motor | kw | 0.25 | ||||
Hydraulic system | Working pressure | Mpa | 3 | |||
Oil tank capacity | L | 80 | ||||
Max. flow capacity | L/min | 18 | ||||
Working precision | The machined surface of the base of the parallelism | mm | 300/0.05 | |||
Surface roughness | Ra0.32 | |||||
Machine weight | Net weight | kgs | 1100 | |||
Gross weight | kgs | 1200 | ||||
Machine size(L*W*H) | mm | 1750*1250*1960 | ||||
The main performance characteristics:
1. The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.
2. Using precision plastic guide surface and precision scraping,grinding imported hydraulic transmission,drive by synchronous.
3. The main mechanical valve is a special valve grinder, is devided into two parts, the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop.
4. Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnetic chuck or electromagnetic chuck.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
1. The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.
2. Using precision plastic guide surface and precision scraping,grinding imported hydraulic transmission,drive by synchronous.
3. The main mechanical valve is a special valve grinder, is devided into two parts, the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop.
4. Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnetic chuck or electromagnetic chuck.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
