Новая энергия 5 кВт ветровая турбина с инвертором ветровой
- Категория: Alternative Energy Generators new >>>
- Поставщик: Yunnan,Yaochuang,Energy,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 344.6 $* | 351.51 $* |
| Jul-19-2025 | 279.67 $* | 285.8 $* |
| Jun-19-2025 | 339.21 $* | 346.36 $* |
| May-19-2025 | 336.25 $* | 343.84 $* |
| Apr-19-2025 | 268.44 $* | 273.58 $* |
| Mar-19-2025 | 331.64 $* | 338.80 $* |
| Feb-19-2025 | 328.45 $* | 335.2 $* |
| Jan-19-2025 | 325.89 $* | 332.39 $* |
Характеристики
Product Description

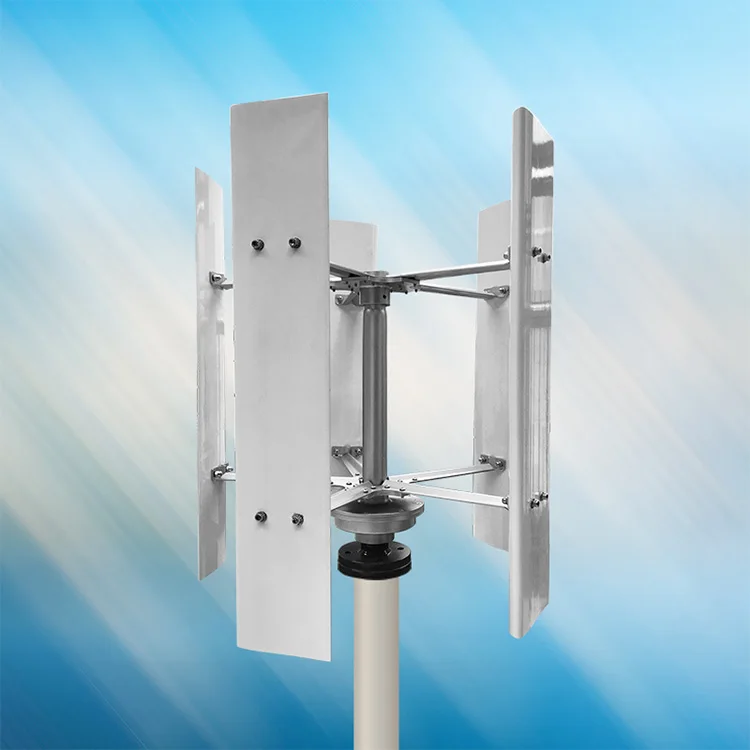

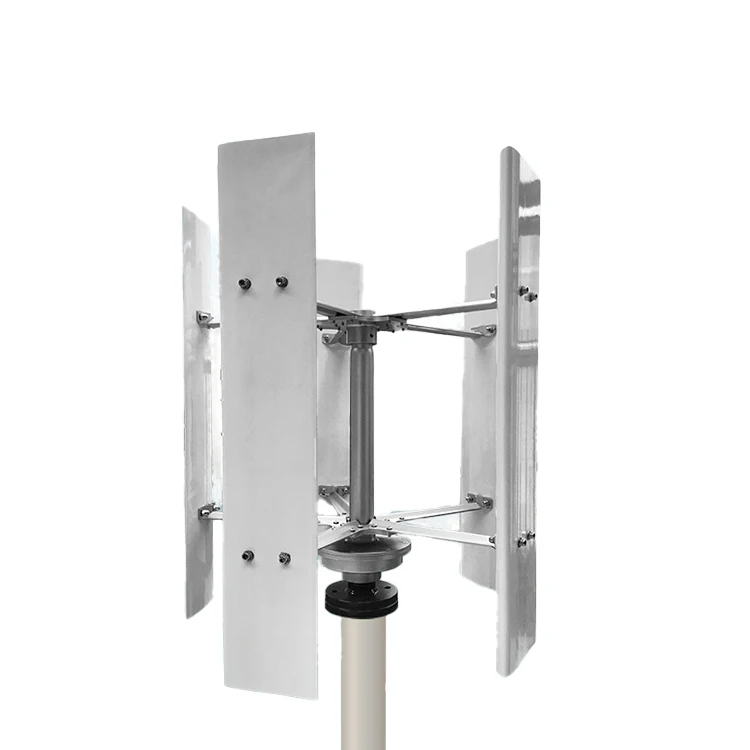

Product Features of H type Mini Vertical Wind Turbine
1. Low start-up wind speed, small size, beautiful appearance and low operating vibration;
2. Humanized flange installation design is used to facilitate installation and maintenance;
3. The wind turbine blades are made of high-quality aluminum alloy plates, and the surface of the blades is sprayed or oxidized Processing hair, enhanced corrosion resistance, beautiful and durable, the color can be made according to customer requirements;
4. The generator adopts a permanent magnet rotor alternator with patented technology, and is equipped with a special rotor design, which effectively reduces the generator’s The torque of the group is only 1/3 of that of the ordinary motor, and at the same time, the wind turbine and the generator have a better matching performance, and the reliability of the unit operation;
5. The maximum power tracking intelligent microprocessor control is adopted to effectively adjust the current Voltage.
2. Humanized flange installation design is used to facilitate installation and maintenance;
3. The wind turbine blades are made of high-quality aluminum alloy plates, and the surface of the blades is sprayed or oxidized Processing hair, enhanced corrosion resistance, beautiful and durable, the color can be made according to customer requirements;
4. The generator adopts a permanent magnet rotor alternator with patented technology, and is equipped with a special rotor design, which effectively reduces the generator’s The torque of the group is only 1/3 of that of the ordinary motor, and at the same time, the wind turbine and the generator have a better matching performance, and the reliability of the unit operation;
5. The maximum power tracking intelligent microprocessor control is adopted to effectively adjust the current Voltage.
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | YC |
Model Number | 5kw wind turbine |
Warranty | 1year |
Certification | CE |
Customized | Yes |
Output Voltage | 48V/96V |
Rated Power | 5kw |
rotor diameter | 3.6m |
Product name | 5kw wind turbine |
Rated power | 5kw |
Blades Material | Aluminum alloy |
Rated Wind Speed | 12m/s |
Generator Type | Three-phase Permanent Magnet ac Synchronous Generator |
Control System | Electromagnet |
Speed Regulation | Automatically Adjust Windward Direction |
Number of Blades | 5 |
Working Temperature | -40°C~80°C |
Net Weight | 20kg |
Technical Data
Model | JLCHK | JLCI-1.5K | JLCI-2K | JLCI-3K | JLCI-5K | JLCHOK | JLCH20K1 | ||||||
Rated Power | 1KW | 2KW | 2KW | 3KW | 5KW | 10KW | 20KW | ||||||
Max Power | 1.2KW | 2KW | 2.2KW | 3.5KW | 5.5KW | 12KW | 23KW | ||||||
Rated Voltage | 48V | 48V/96V | 48V/96V | 96V/120V | I20V/220' | 360V | 360V | ||||||
Start-up Speed | 2nVs | 2m/s | 2m/s | 2m/s | 2nVs | 2.5m/s | 25m/s | ||||||
Rated Wind Speed | 12m/s | 12m/s | 12m/s | 12m/s | 12nVs | 12m/s | 12nVs | ||||||
Survival Wind Speed | 35m/s | 35m/s | 35m/s | 35m/s | 35m/s | 35m/s | 35nVs | ||||||
Wheel Diameter | 2.2m | 255m | 2.55m | 2.85m | 3.6m | 5.8m | 7.6m | ||||||
wheel height | 2.4m | 2.8m | 3m/2.6m | 3.5m/3m | 4.5m/4m | 8nV6m | 10m/9m | ||||||
Number of Blades | 5 | ||||||||||||
Blades Material | FRP | Aluminum alloy | |||||||||||
Generator | Three phase ac permanent magnet generator | ||||||||||||
Control System | Electronic magnet | ||||||||||||
Wind direction adjustment | Automatic adjustment to the wind | ||||||||||||
Operating temperature | -40℃-80℃ | ||||||||||||
