Лучший производитель солнечных инверторов кВт солнечные панели без аккумулятора Mppt гибридный солнечный инвертор для
- Категория: Solar Energy Products >>>
- Поставщик: Guolong,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.70 $* | 0.74 $* |
| Aug-18-2025 | 0.93 $* | 0.56 $* |
| Jul-18-2025 | 0.66 $* | 0.74 $* |
| Jun-18-2025 | 0.84 $* | 0.16 $* |
| May-18-2025 | 0.71 $* | 0.86 $* |
| Apr-18-2025 | 0.74 $* | 0.11 $* |
| Mar-18-2025 | 0.53 $* | 0.56 $* |
| Feb-18-2025 | 0.18 $* | 0.90 $* |
| Jan-18-2025 | 0.60 $* | 0.92 $* |
Характеристики
Product Description
Specification
Model | GL-HB 3500W-24V | GL-HB 5500W-48V | ||
RATED POWER | 3500VA/3500W | 5000VA/5000W | ||
Input | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |||
90~280VAC(For Home Appliances) | ||||
Frequency Range | 50 Hz/60Hz(Auto sensing) | |||
Output | ||||
AC Voltage Regulation(Batt.Mode) | 230VAC±5% | |||
Surge Power | 7000VA | 11000VA | ||
Efficiency(Peak)PV to INV | 97% | |||
Efficiency(Peak)Battery to INV | 94% | |||
Transfer Time | 10 ms (For Personal Computers);20 ms(For Home Appliances) | |||
BATTERY &AC CHARGER | ||||
Battery Voltage | 24VDC | 48VDC | ||
Floating Charge Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 33VDC | 63VDC | ||
Maximum Charge Current | 100A | 100A | ||
SOLAR CHARGER | ||||
Maximum PV Array Power | 5000W | 6000W | ||
MPPT Range @ Operating Voltage | 120~450VDC | |||
Maximum PV Array Open CircuitVoltage | 500VDC | |||
Maximum Charging Current | 100A | 100A | ||
Maximum Efficiency | 98% | |||
PHYSICAL | ||||
Dimension,D*W*H(mm) | 100*300*400MM | |||
Net Weight(kgs) | 11 | 12 | ||
Communication interface | USB/RS232/GPRS/WIFI | |||
OPERATING ENVIRONMENT | ||||
Mumidity | 5% to 95% Relative Humidity(Non~condensing) | |||
Operating Temperature | 0°C~55℃ | |||
Storage Temperature | -15°C~60°c | |||

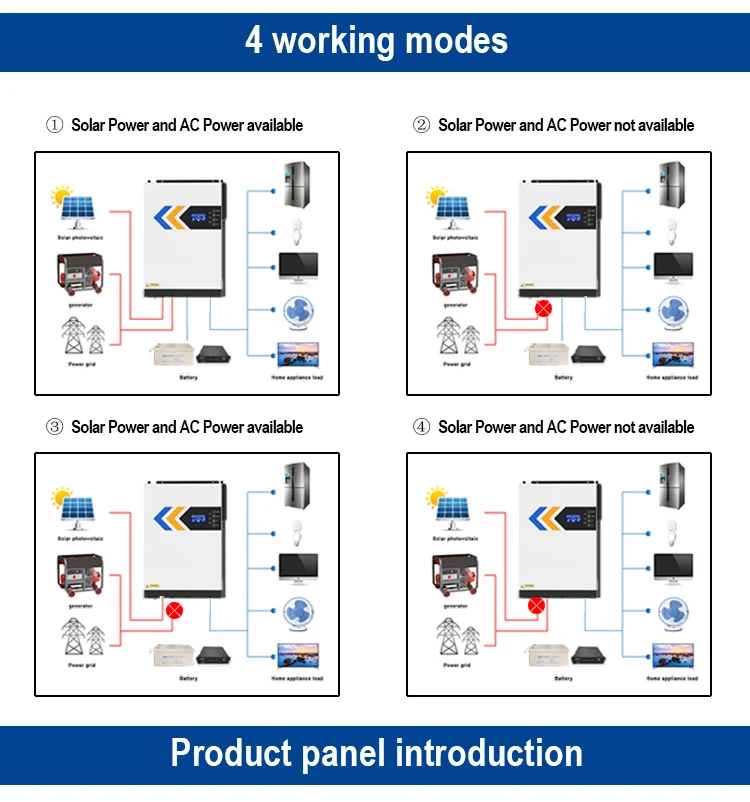

Working Modes Applications
Product Panel Introduction
Production Site
Company Profile
Packing & Delivery
