TP-LINK CPE210 5KM Outdoor 2.4GHz 300Mbps Wireless Pharos Control 802.11b/g/n Network
- Категория: Wireless Networking >>>
- Поставщик: Shenzhen,Xiangchuang,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.81 $* | 0.11 $* |
| Aug-16-2025 | 0.10 $* | 0.59 $* |
| Jul-16-2025 | 0.56 $* | 0.65 $* |
| Jun-16-2025 | 0.45 $* | 0.75 $* |
| May-16-2025 | 0.74 $* | 0.37 $* |
| Apr-16-2025 | 0.94 $* | 0.62 $* |
| Mar-16-2025 | 0.30 $* | 0.59 $* |
| Feb-16-2025 | 0.47 $* | 0.31 $* |
| Jan-16-2025 | 0.51 $* | 0.92 $* |
Характеристики

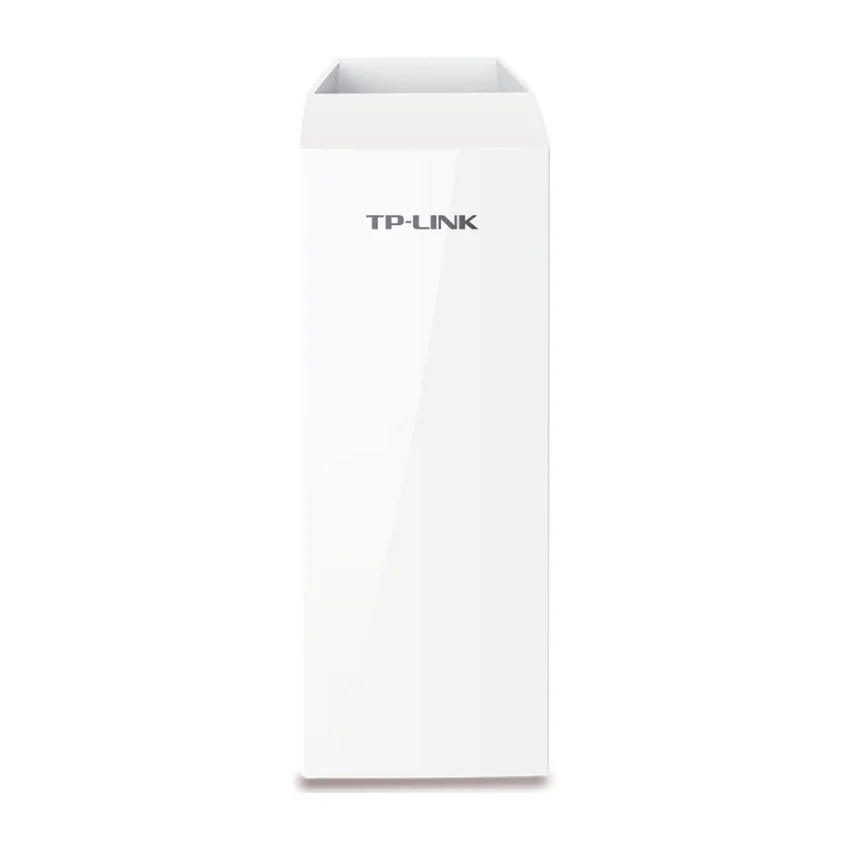

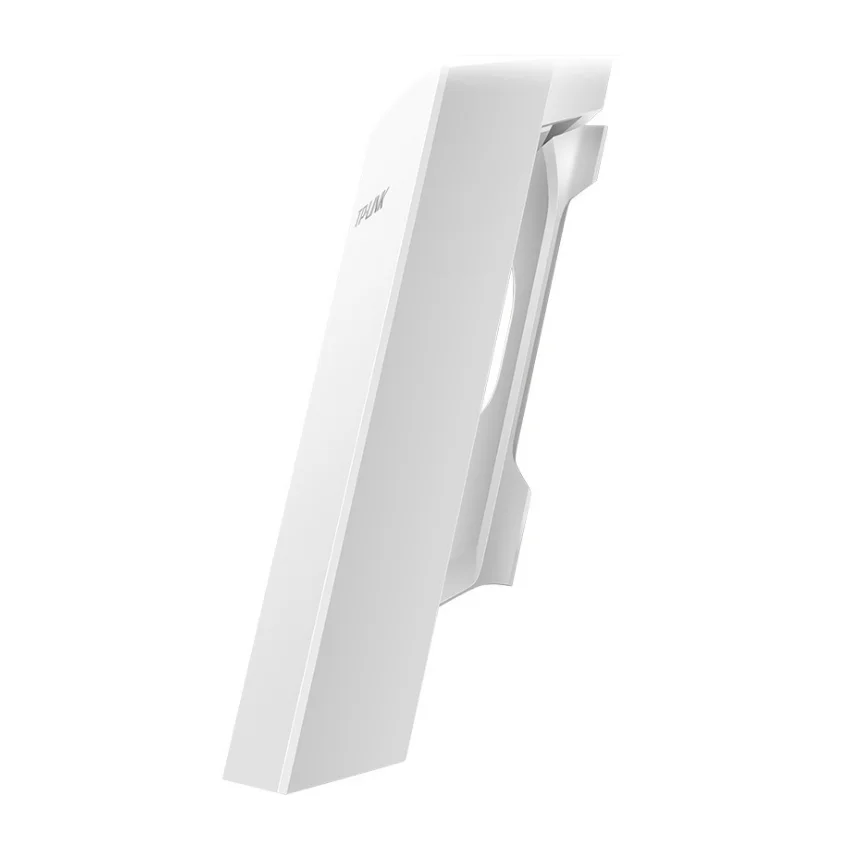

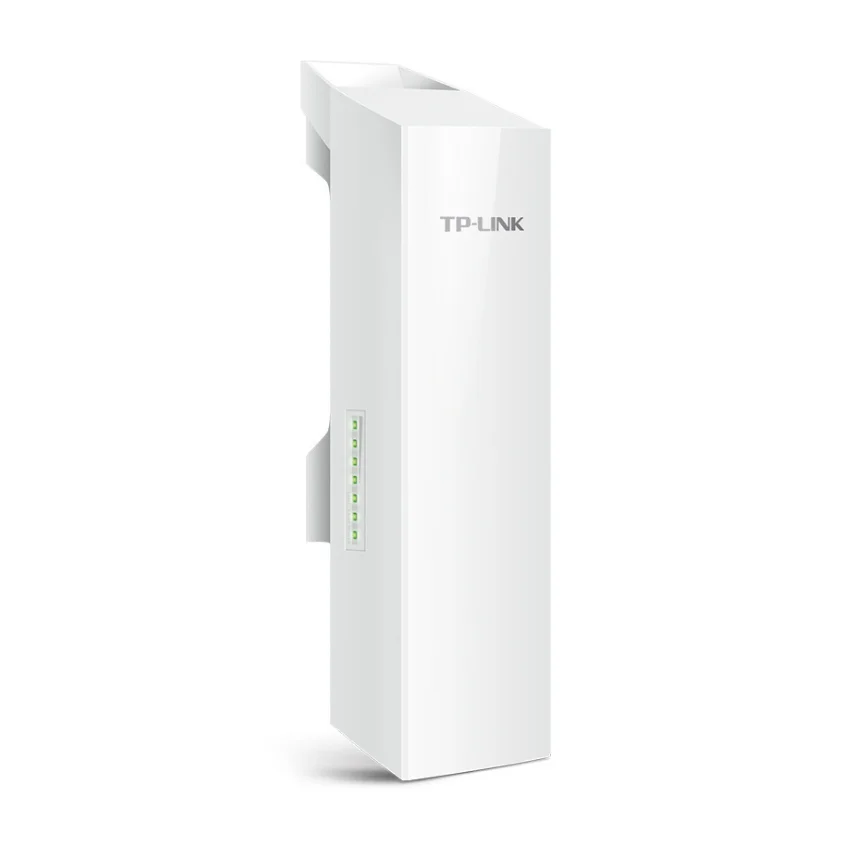

TP-LINK CPE210 5KM Outdoor 2.4GHz 300Mbps Wireless Pharos Control 802.11b/g/n Network Bridge
Product Description
TP-LINK CPE210 Wifi network bridge specification:
| HARDWARE FEATURES | |
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) |
| 1 Grounding Terminal | |
| 1 Reset Button | |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) |
| Voltage range: 16-27VDC | |
| Power Consumption | 5 Watts Max |
| Dimensions ( W x D x H ) | 224 x 79 x 60 mm |
| Antenna Type | Built-in 9dBi 2x2 Dual-polarized Directional Antenna |
| Beam Width: 65° (H-Plane) / 40° (E-Plane) | |
| Note: For more details, please refer to datasheet | |
| Protection | 15KV ESD Protection |
| 6KV Lightning Protection | |
| Enclosure | Outdoor ASA stabilized plastic material |
| IPX5 waterproof Certification | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) |
| Up to 144.4Mbps (20MHz,Dynamic) | |
| Up to 72.2Mbps (10MHz,Dynamic) | |
| Up to 36.1Mbps (5MHz,Dynamic) | |
| Frequency | 2.4~2.483GHz |
| Transmission Power | 25dBm/316mw (Adjustable power by 1dBm) |
| SOFTWARE FEATURES | |
| Wireless Configurations | Pharos MAXtream TDMA Technology |
| 802.11b/g/n Modes | |
| Selectable Channel Width: 5/10/20/40MHz | |
| Automatic Channel Selection | |
| Transmission Power Control | |
| Dynamic Frequency Selection (DFS) | |
| WDS Enable/Disable | |
| Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption | |
| SSID Broadcast Enable/Disable | |
| Multi-SSID with VLAN Tagging (AP mode only) | |
| Distance/ACK Timeout Setting | |
| Wireless MAC Address Filter | |
| Wireless Advanced: | |
| > Beacon Interval/RTS Threshold/Fragmentation | |
| >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multime wireless wifi router details: | |

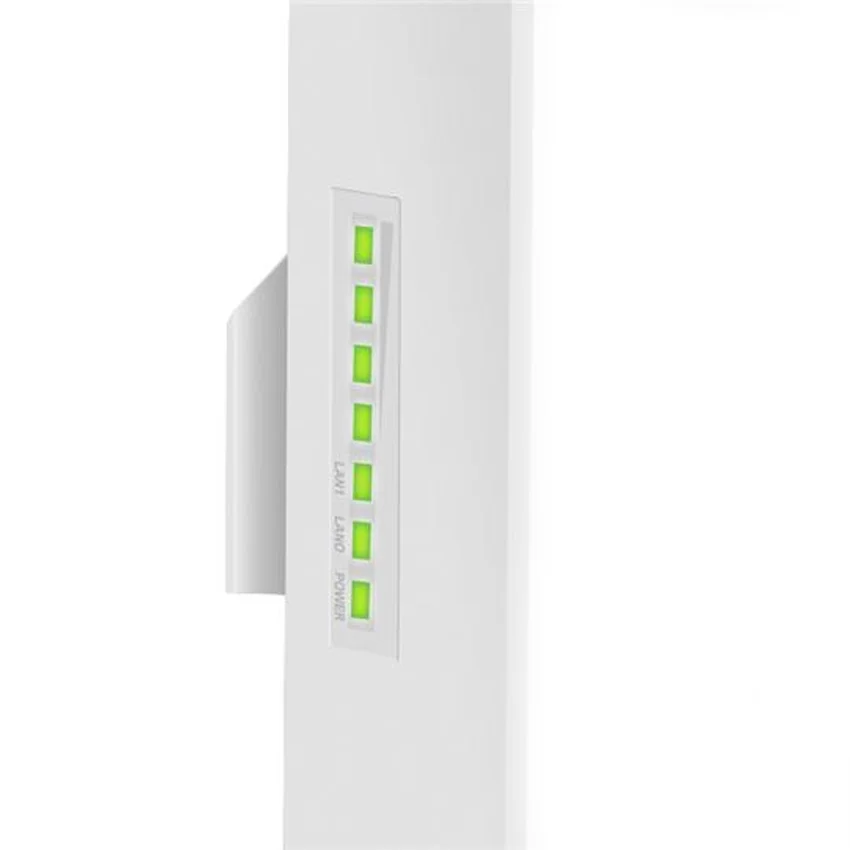

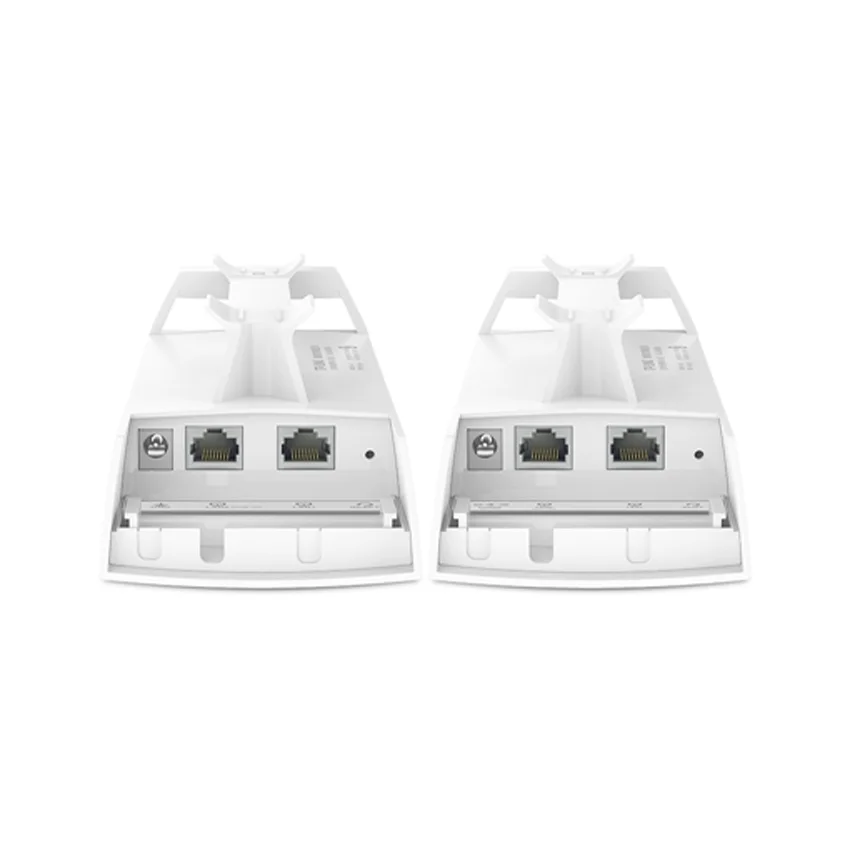

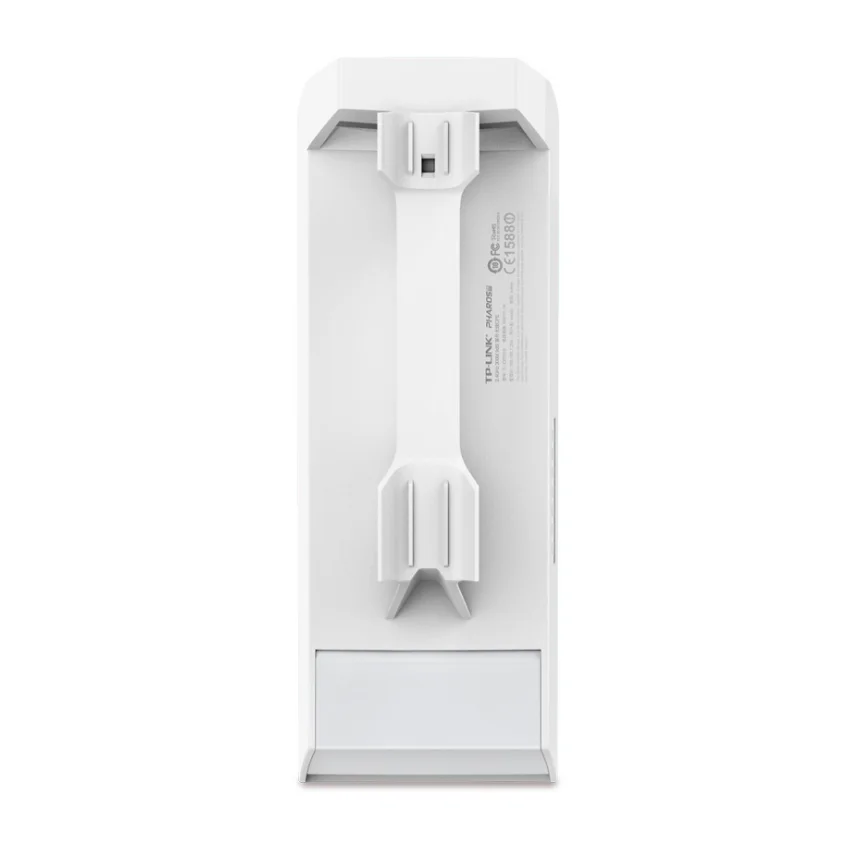

TP-LINK CPE210 Wifi network bridge details:
Customer Review
Usuage
Payment & Shipping
TP-LINK CPE210 Network Bridge shipping:
1. Immediate delivery for stock products after payment received ;
2. Express for small orders ,you can receive the goods fast ,like DHL ,Fedex,UPS;
3. Air way for bulk orders,more economic ,but you need to collect goods at airport .
Payment:
1. For small order ,we accept Paypal ;
2. For bulk order ,TT, Westeunion, Escrow ,Money Gram ;
3. For custom order ,30%--50% percent deposit in advance ,balance before delivery .
