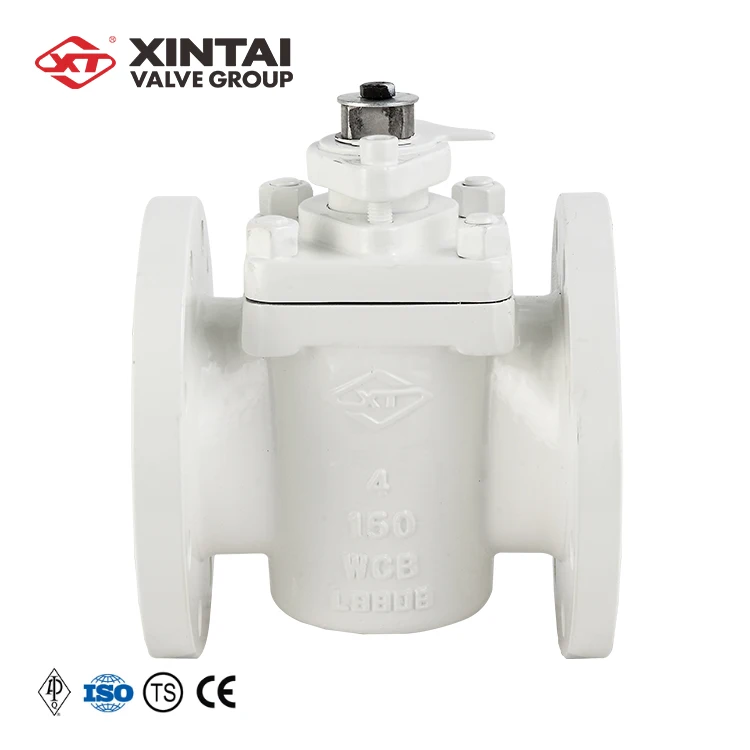

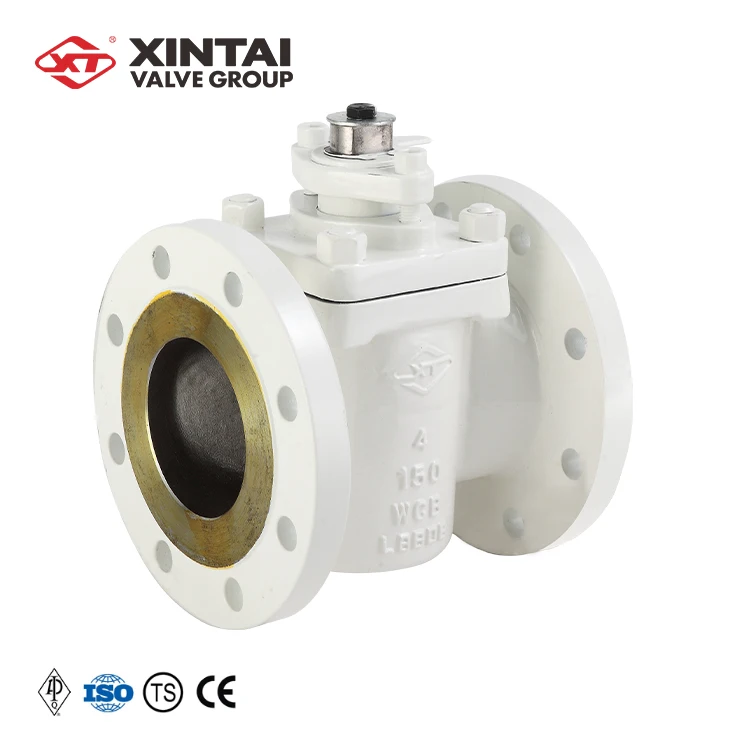

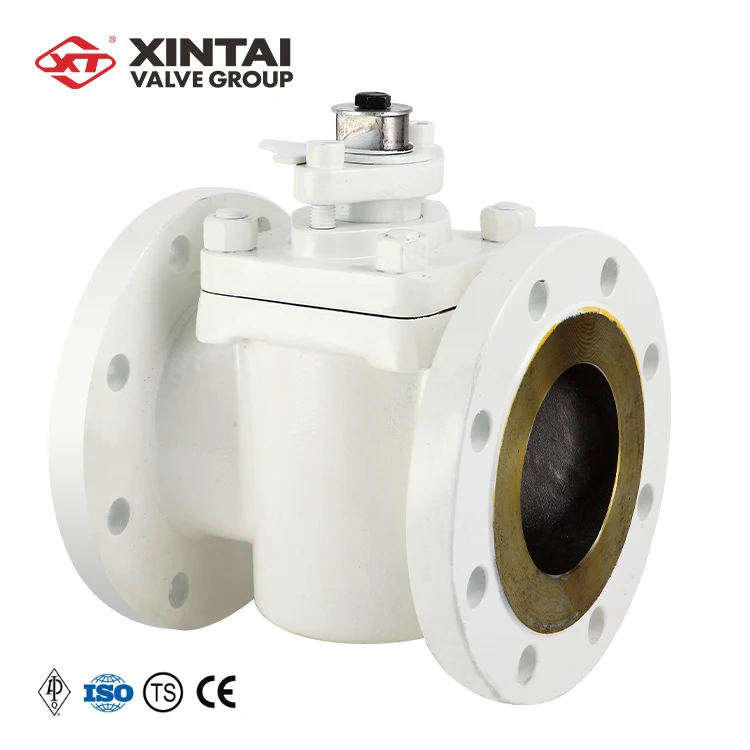

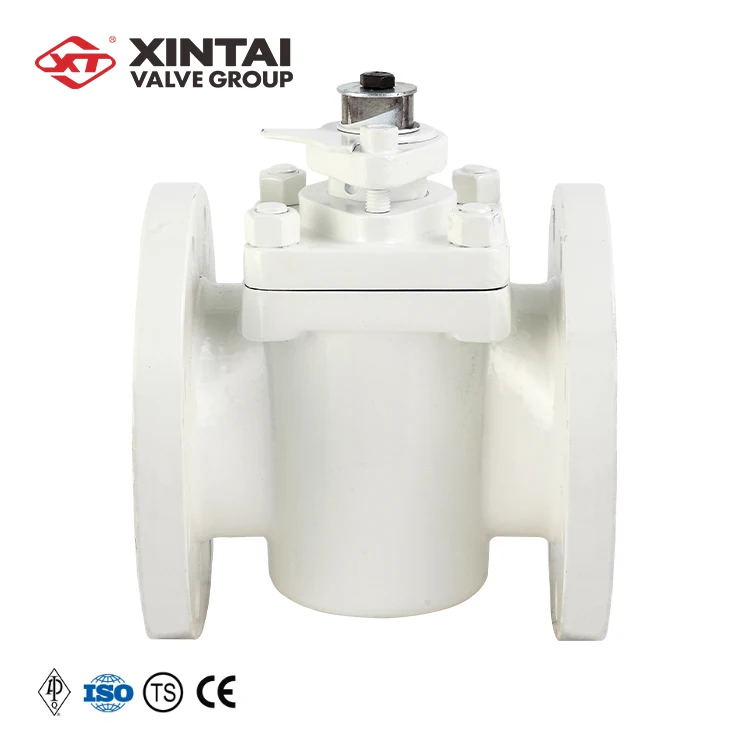

XINTAI производители API руководство 3in WCB 150LB облицовочный клапан для некоторых коррозионных

Type

API Plug Valve

Authentication

ISO9001,CE, API6D

Medium temperature

Minus 29 degrees to 150 degrees

Power

Manual

Flow medium

Water, Oil, Air, And Some Corrosive liquid

Interface size

1/2in,3/4in,1in,1-1/4in,1-1/2in,2in,2-1/2in,3in,4in,5in,6in,8in,10in,12in,14in,16in,18in,20in,24in

Material

WCB

Pressure

150LB

Application

X43F American standard plug valve is composed of valve body, bonnet, ferrule, plug, and other parts. By rotating the plug with a hole, the plug hole is aligned or staggered with the valve body hole. It is suitable for nominal pressure class 150lb-900lb,working Food,petroleum,chemical,pharmaceutical, fertilizer, electricity, precious metals and other pipelines with a temperature of -29-180°C.

Structure

① The movement between the sealing surfaces of the plug valve has a wiping effect, and it can completely prevent the sealing
surface from contacting the medium when it is fully opened, so it can be used for medium with suspended particles. ②The
cylindrical closing part of the plug valve can be opened and closed by rotating 900, so the valve is very suitable for fast
opening and closing occasions. ③The plug valve has a simple structure and is easy to maintain and clean. For example, the
tight-fitting circular plug valve, unscrewing the tightening nut, and removing the gasket valve plug can be taken out of the valve
body for cleaning and maintenance.
