Products Description

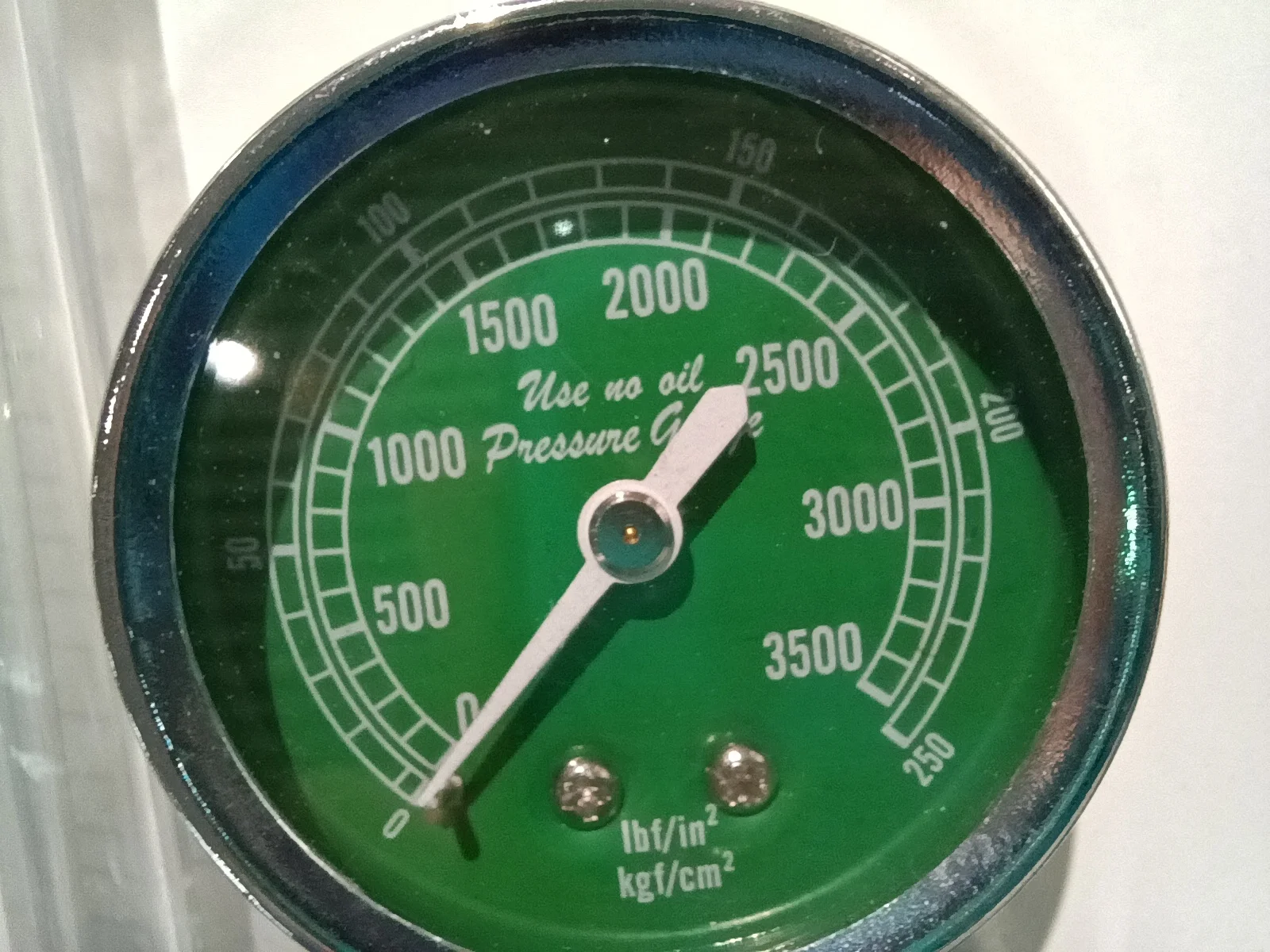

Medical oxygen regulator is used for oxygen breathing in hospital or home and meant to be connected on high pressure medical gas cylinder to decrease the outlet pressure and supply a stable low pressure for use. The pressure gauge indicates the pressure level of the gas cylinder.

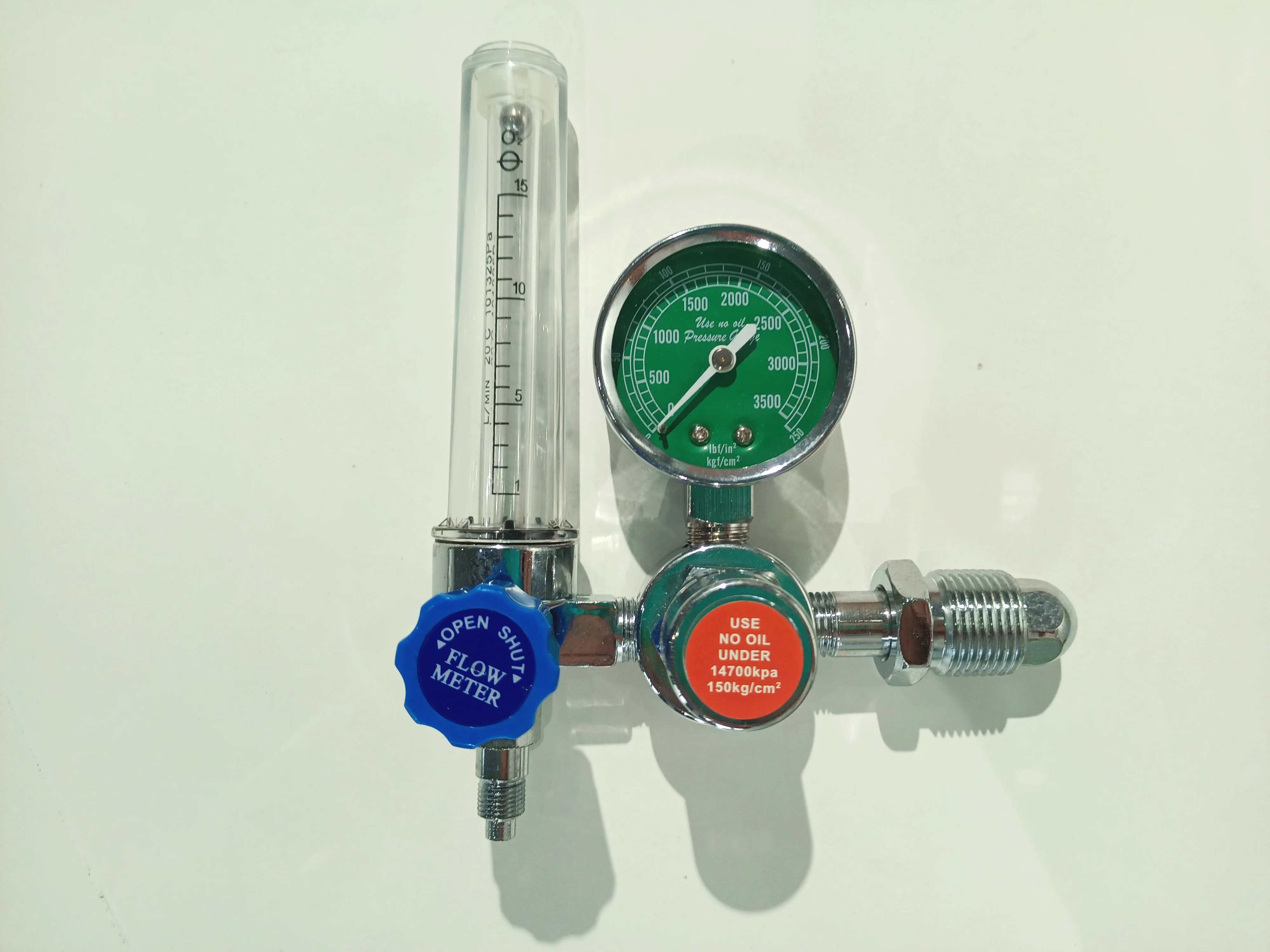

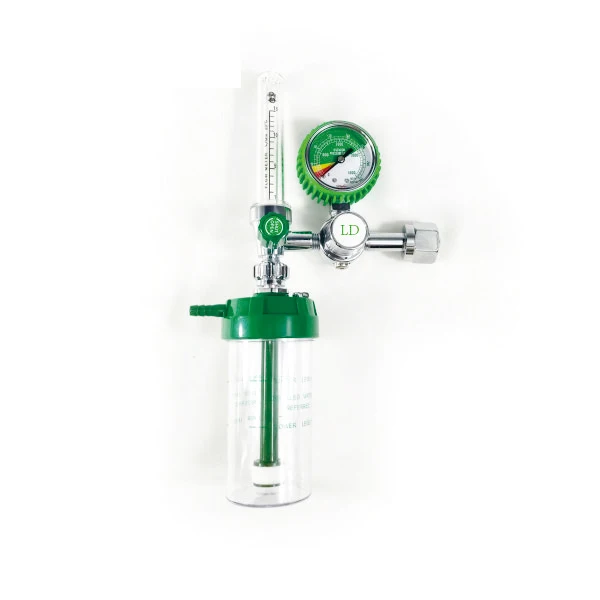

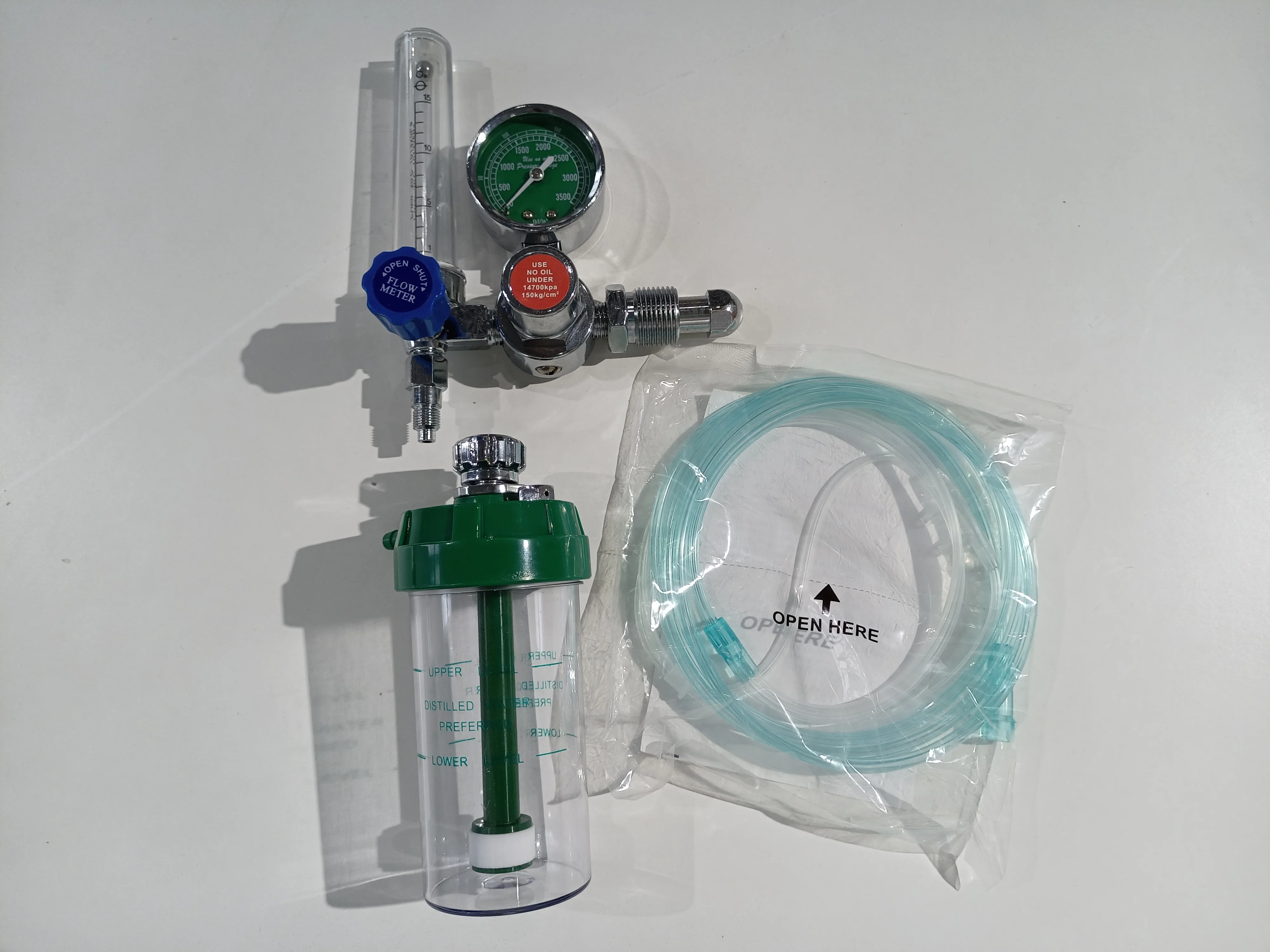

Medical Oxygen Regulators Manometer Oxygen Pressure Regulator With Humidifier

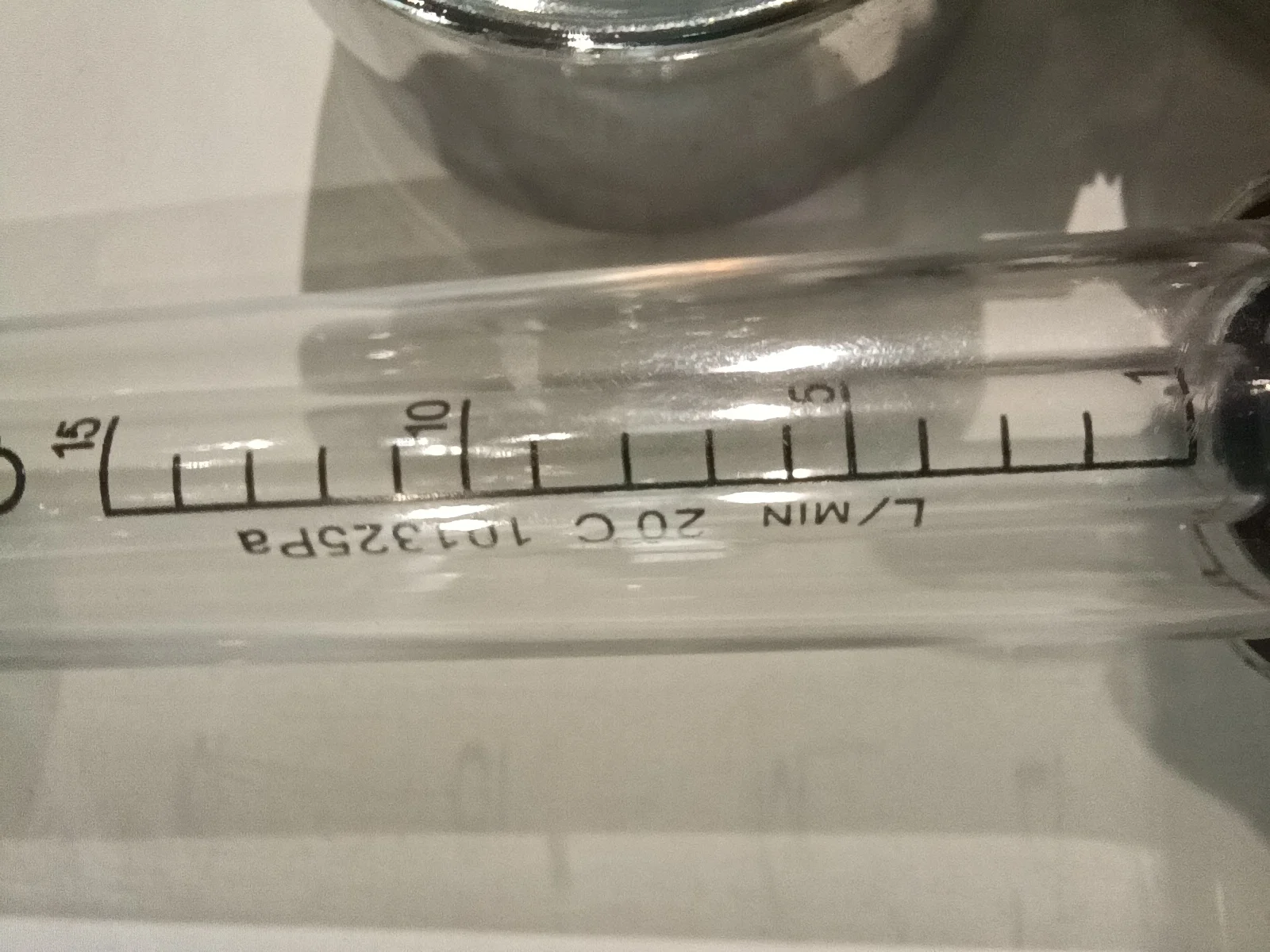

1) metering range (L/min): 1-10, 1-15;
2) accuracy: grade 4;
5) entrance connection screw thread: G5/8-14-RH; CGA540-RH; G3/4-14-RH;
3) entrance Pressure(MPa): 12MPa 15MPa;
4) exit pressure(MPa): 0.2-0.3MPa;
6) output connection screw thread: 8mm
1. Gas regulators used in hospitals, clinics, homes and emergency medical care.
2. The valve body and lining are made of brass forging to ensure high strength and high safety. The chrome-plated valve body is easy to clean.
3. The preset outlet pressure of the regulator is 3.5 Bar.4. Suitable for oxygen and mixed gas.

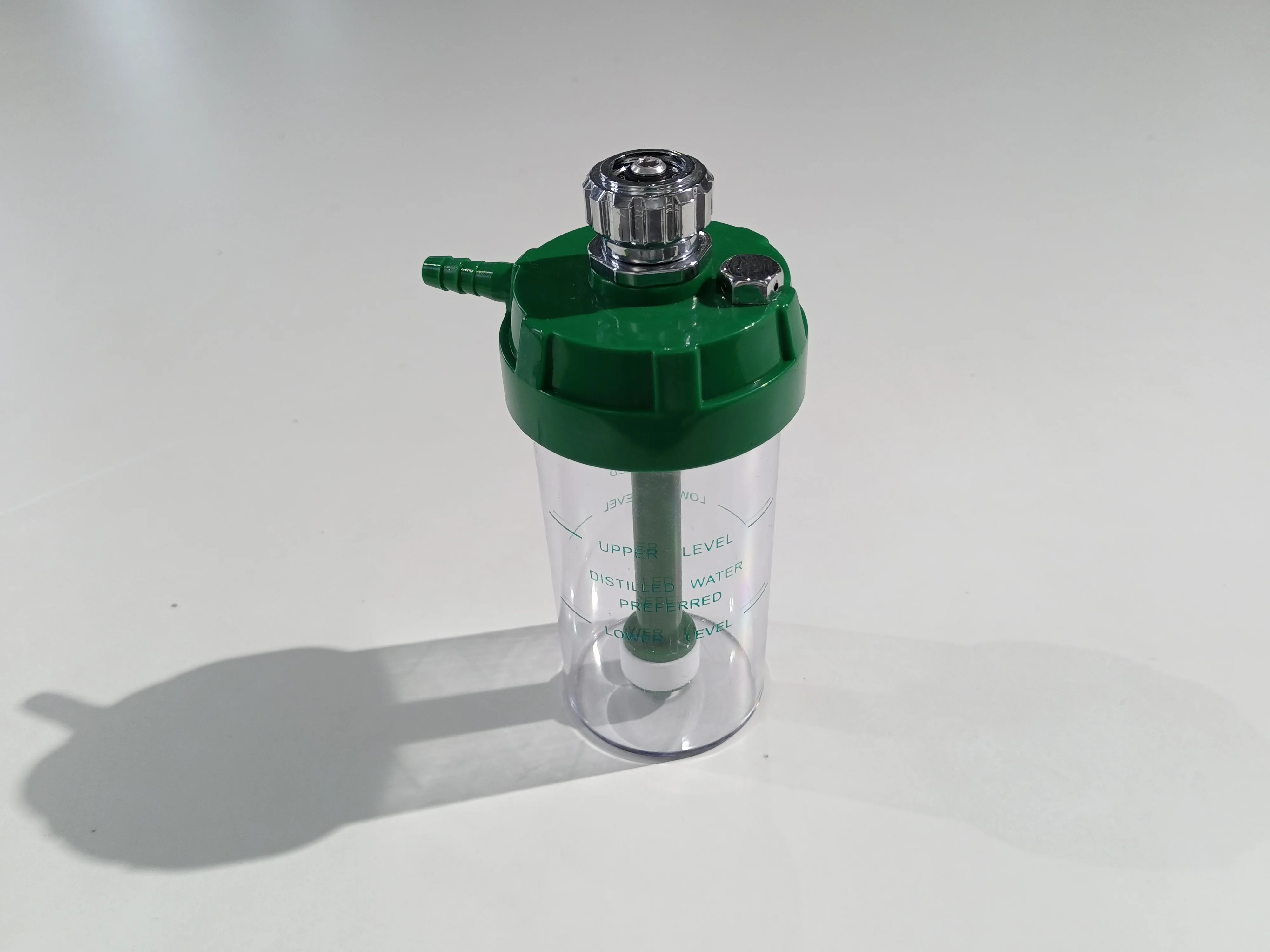

5. The front cover of the meter, the tube of the flow meter and the humidifying cup are all made of high-grade shatterproof PC.
6. The external safety valve ensures safe use.
Outlet connection | 6-8mm Hose Barb |
Humidifier Bottel capcatity | 150ml |
Humidifier Bottel Matrial | Plastic |
Femede Connection | 9/16 UNF-18 |
Female Connection | G5/8 |
Inlet pressure | 3000psi |
Flow range | 0-15 LPM/ 0-10 LPM/ 0-5LPM |
medium | oxygen |
Humidifier flowmeter | 0-15L/min |
