Гидравлический пресс ультразвуковая машина для сварки и резки поливинилхлоридной полиуретановой
- Категория: Plastic Welders >>>
- Поставщик: Dongguan,Chaobo,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 6743.74 $* | 7080.20 $* |
| Aug-19-2025 | 6686.27 $* | 7020.21 $* |
| Jul-19-2025 | 5609.6 $* | 5889.13 $* |
| Jun-19-2025 | 6573.69 $* | 6902.19 $* |
| May-19-2025 | 5723.68 $* | 6009.42 $* |
| Apr-19-2025 | 6459.69 $* | 6782.90 $* |
| Mar-19-2025 | 6403.30 $* | 6723.92 $* |
| Feb-19-2025 | 6346.63 $* | 6663.77 $* |
| Jan-19-2025 | 6289.43 $* | 6603.51 $* |
Характеристики
The price has not included the welding moulds, please contact us to confirm the specifications before placing the order.
Product Description

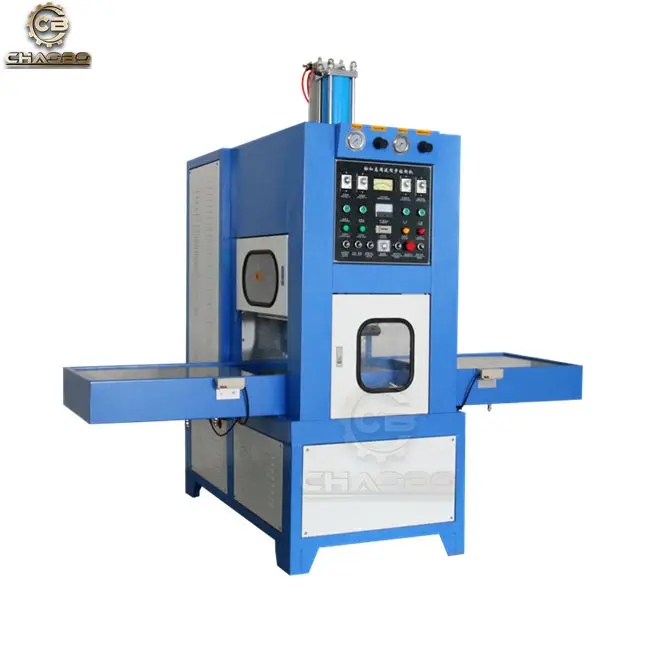

CHAOBO High Frequency Welding Machine
High Frequency PVC & PU Welding Machine only works with thermoplastics that have a high dielectric constant. In this process, an electric field is generated near the joint, the direction of which is alternated approximately twenty-seven million times a second. Every time the electric field changes, the dipole molecules of the polymer attempt to flip around to realign themselves to the new field orientation. Because this movement is impaired by inertia and friction, the molecules do not flip in unison. This constant relative movement of the molecules results in inter molecular friction which results in heat and, subsequently, melting. Radio Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.
Main Features:
1. Automatic slide table increase the productivity and accurate location.
High Frequency PVC & PU Welding Machine only works with thermoplastics that have a high dielectric constant. In this process, an electric field is generated near the joint, the direction of which is alternated approximately twenty-seven million times a second. Every time the electric field changes, the dipole molecules of the polymer attempt to flip around to realign themselves to the new field orientation. Because this movement is impaired by inertia and friction, the molecules do not flip in unison. This constant relative movement of the molecules results in inter molecular friction which results in heat and, subsequently, melting. Radio Frequency welding typically has weld cycle times from two to five seconds and can handle parts from approximately one-thousandths inches thick to fifty-thousandths inches thick.
Main Features:
1. Automatic slide table increase the productivity and accurate location.
2. Special mechanical structure design can provide a stable and uniform pressure.
3. Air & Hydraulic pressurizing, the Max pressure can reach 20 tons.
Advantages:
1. Anti-spark protection
When spark occur, the high sensitiveness spark protects electric system, cuts high frequency power immediately to protect tooling and material.
2. Jamming prevention device
Equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc.
3. Safety device
When the welding current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by mis-operation is also prevented.
4. High power welder
High frequency welding machine using a special designed mechanism, the maximum pressure of the hydraulic press can reach up to 20000KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.
5. Easy tuning and special protection circuit
The adjustable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out.
4. High sensitivity spark protection circuit, which can effectively cut off the high current output, suppression of sparks.
5. Square-type level adjustment, time-saving and easy transfer mode.
6. Main parts adopts imported components, Taiwan Airtac, Japan OMRON, Toshiba and NL-5557.
7. Equipped with preheating function, heating temperature up to 300'C
8. 27.12 MHz standard frequency, no radiation to Human beings and electronic devices.
5. Square-type level adjustment, time-saving and easy transfer mode.
6. Main parts adopts imported components, Taiwan Airtac, Japan OMRON, Toshiba and NL-5557.
7. Equipped with preheating function, heating temperature up to 300'C
8. 27.12 MHz standard frequency, no radiation to Human beings and electronic devices.
9. Fully closed enclosure, elegant appearance and safe and reliable operation.
10. All control circuit and switch are all applies 24V safe voltage.
Advantages:
1. Anti-spark protection
When spark occur, the high sensitiveness spark protects electric system, cuts high frequency power immediately to protect tooling and material.
2. Jamming prevention device
Equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc.
3. Safety device
When the welding current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by mis-operation is also prevented.
4. High power welder
High frequency welding machine using a special designed mechanism, the maximum pressure of the hydraulic press can reach up to 20000KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.
5. Easy tuning and special protection circuit
The adjustable output power ensured a stable quality of the products for it could reduce the heating time when joining is being carried out.
Model | CB-S5 | CB-S8 | CB-S10 | CB-S12 | |||
HF Power | 5KW | 8KW | 10KW | 12KW | |||
Power Input | 7.5KVA | 15KVA | 18KVA | 20KVA | |||
Frequency | 27.12MHz | ||||||
Voltage | AC 220V/380V/400V/415V/450V(Customization offered) | ||||||
Driven Mode | Pneumatic + Hydraulic | ||||||
Stroke | 200MM(Customization offered) | ||||||
Working Pressure | 0.4-0.7MPa | ||||||
Max Pressure | 15000 KGS | 20000 KGS | 20000 KGS | 20000 KGS | |||
Welding Time | 0-30S(Customization offered) | ||||||
Worktable Size | 350*500MM (Customization offered) | 400*600MM (Customization offered) | 400*600MM (Customization offered) | 400*600MM(Customization offered) | |||
Oscillation Tube | 7T85 | 7T69 | E3069 | E3130 | |||
Anti-spark Tube | High Sensitive NL-5557 | ||||||
Recitifer | Silicon Diode | ||||||
Weight | 980 KGS | 1050 KGS | 1050 KGS | 1100 KGS | |||
Dimensions(MM) | 1700*1100*1550 | 1800*1400*1550 | 1800*1400*1550 | 1800*1400*1550 | |||
Welding Samples
The applications mainly including: For Embossing(EVA, sponges, PU & TPU, Leather), Products that needs Welding And Die Cutting such as PVC & PET & PP plastic folding boxes, PET & Paper Cards Blister Packaging Sealing and Cutting like toothbrush packing, Shoe Upper, Mobile Phone Flip Covers, Ipad Covers, many more.
Details Images
Machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 20000 KGS so as to meet most
operating conditions. The high quality components make these machines work very smoothly and precisel

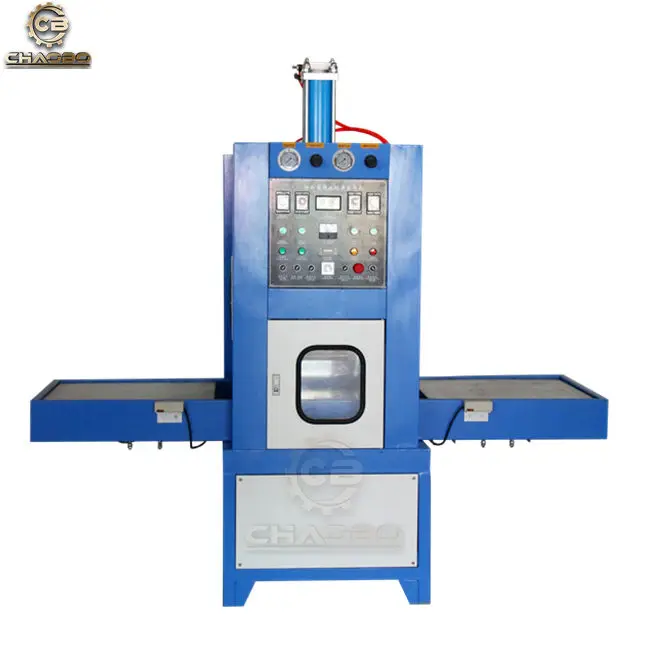

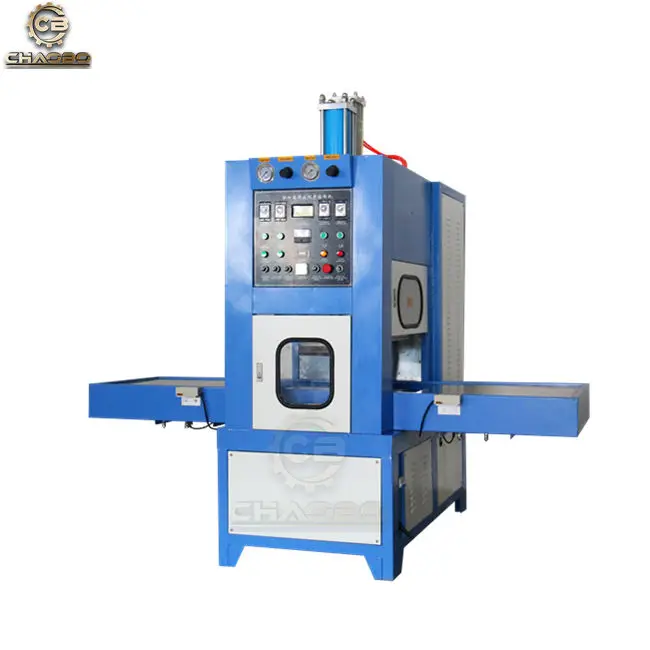

1. Equipped with two sliding table to deliver the products in and out.
2. Two automatic sliding table controlled by motors.
3.Fully closed enclosure, elegant apperance and safe and reliable operation
Function: High sensitive anti-spark tube to protect the welding bar and welding products.
Original: JAPAN & CHINA
Made in Japan Power grid tube, durable, stable and reliable in output. European-model square high frequency vibration cavity.
Certifications
Packing & Delivery
Packing material | Plywood |
Packing Size | L*W*H=2100*1500*2280MM |
Gross Weight | 1180 KGS |
Description | Standard export wood cases, no solid wooden. With soft packaging material inside the box |
Company Profile
Since its foundation, Dongguan Chaobo Machine Co., Ltd has been devoted to optimization and integration of developing, producing, selling, and application of technology of plastic welding and Packing Solution, our main products including: Hot AirWelding Machine(Hot Air Seam Sealing Machine), High Frequency Welding Machine, Ultrasonic PLastic Welding Machine, Ultrasonic Tube Sealing Machine, Heat Staking Machine, Blister Packing Machine, Hot Plate Welding & Spin Welding Machinery. CHAOBO High Frequency Welding Machine.
* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier
* Quality is our culture
* Competitive Advantages
* Market Niche
* Trustworthy Supplier
FAQ
Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service?
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service?
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
Services
1. Overseas site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
