300w 500w оцинкованный канал из Нержавеющей Стали YAG Лазерный Сварочный

300w 500w оцинкованный канал из Нержавеющей Стали YAG Лазерный Сварочный

Категория: Other Welding Equipment >>>
Поставщик: Shandong,Dahe,Machinery,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.17 $*	0.65 $*
Aug-18-2025	0.79 $*	0.69 $*
Jul-18-2025	0.41 $*	0.94 $*
Jun-18-2025	0.75 $*	0.55 $*
May-18-2025	0.65 $*	0.42 $*
Apr-18-2025	0.8 $*	0.71 $*
Mar-18-2025	0.72 $*	0.9 $*
Feb-18-2025	0.4 $*	0.43 $*
Jan-18-2025	0.51 $*	0.73 $*

Характеристики

Product Description

Application

1. Applied for the welding of various metal letters, LED illuminated letters, customized metal signage, and exterior billboards and metal crafts, etc.

2.Available Metal: Stainless Steel, Brass, Tin, Galvanized Sheet, Cold-Rolled Plates and other Metal PlateThis fabric is a elegant, first class quality satin rosette lace fabric, graceful color

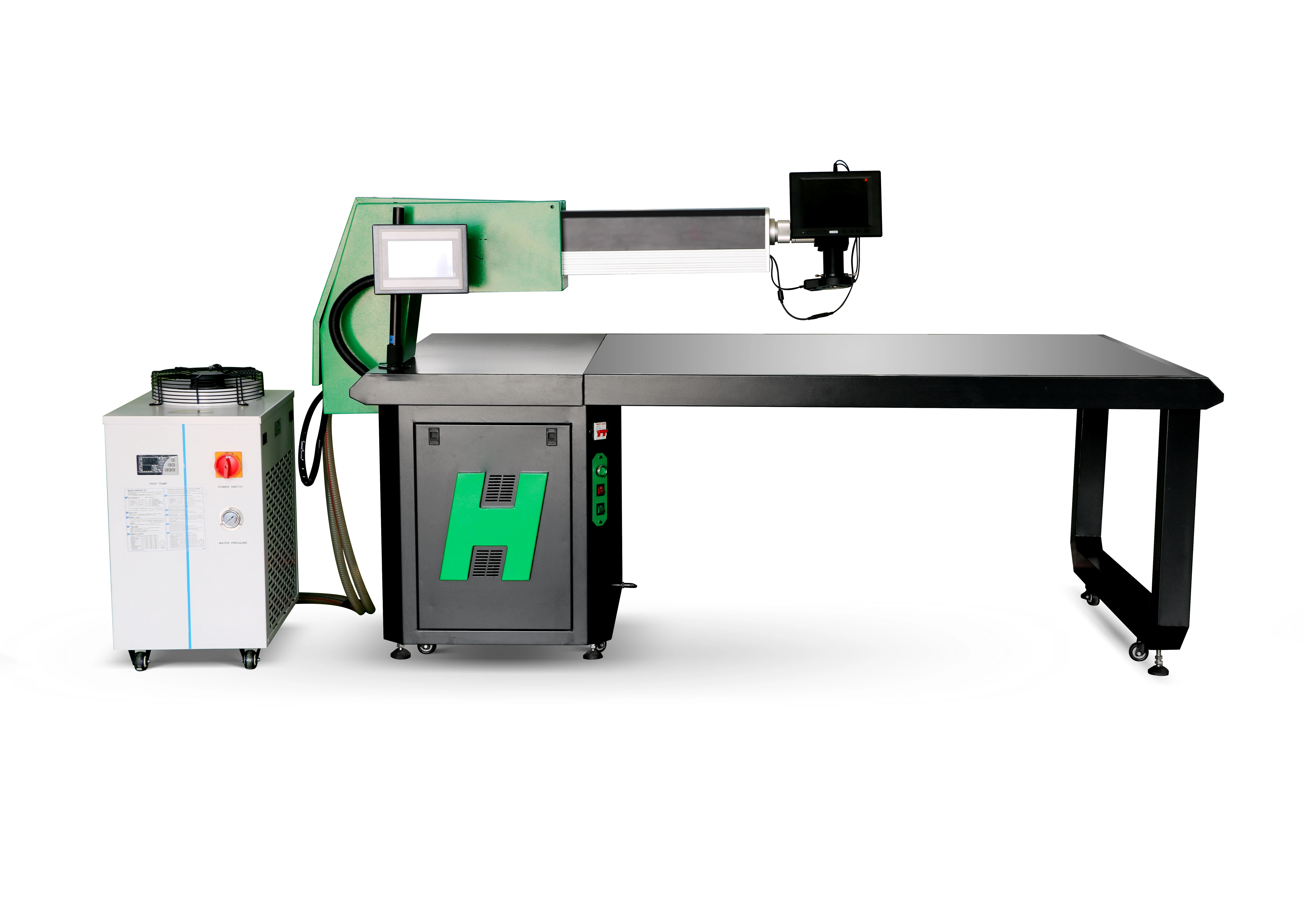

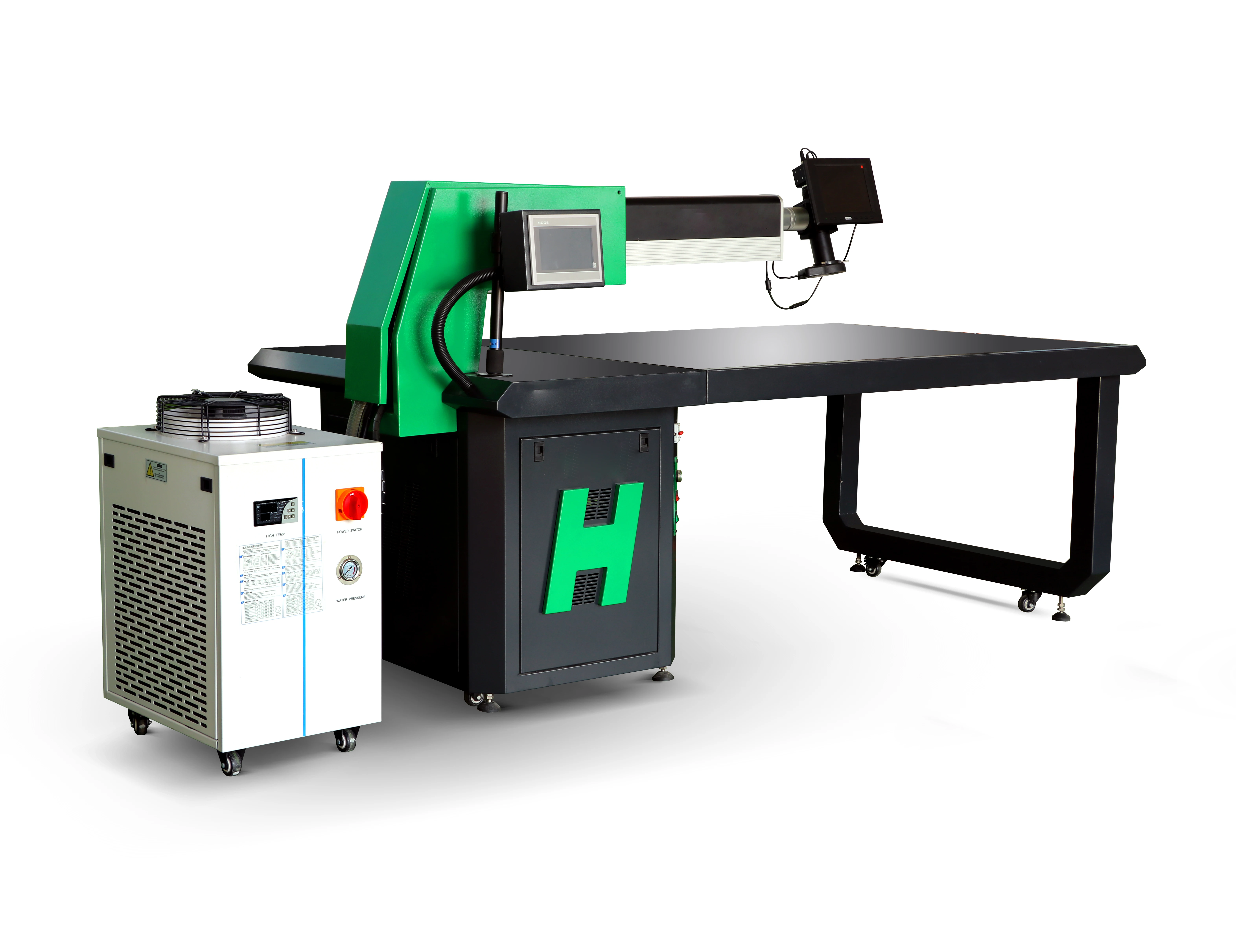

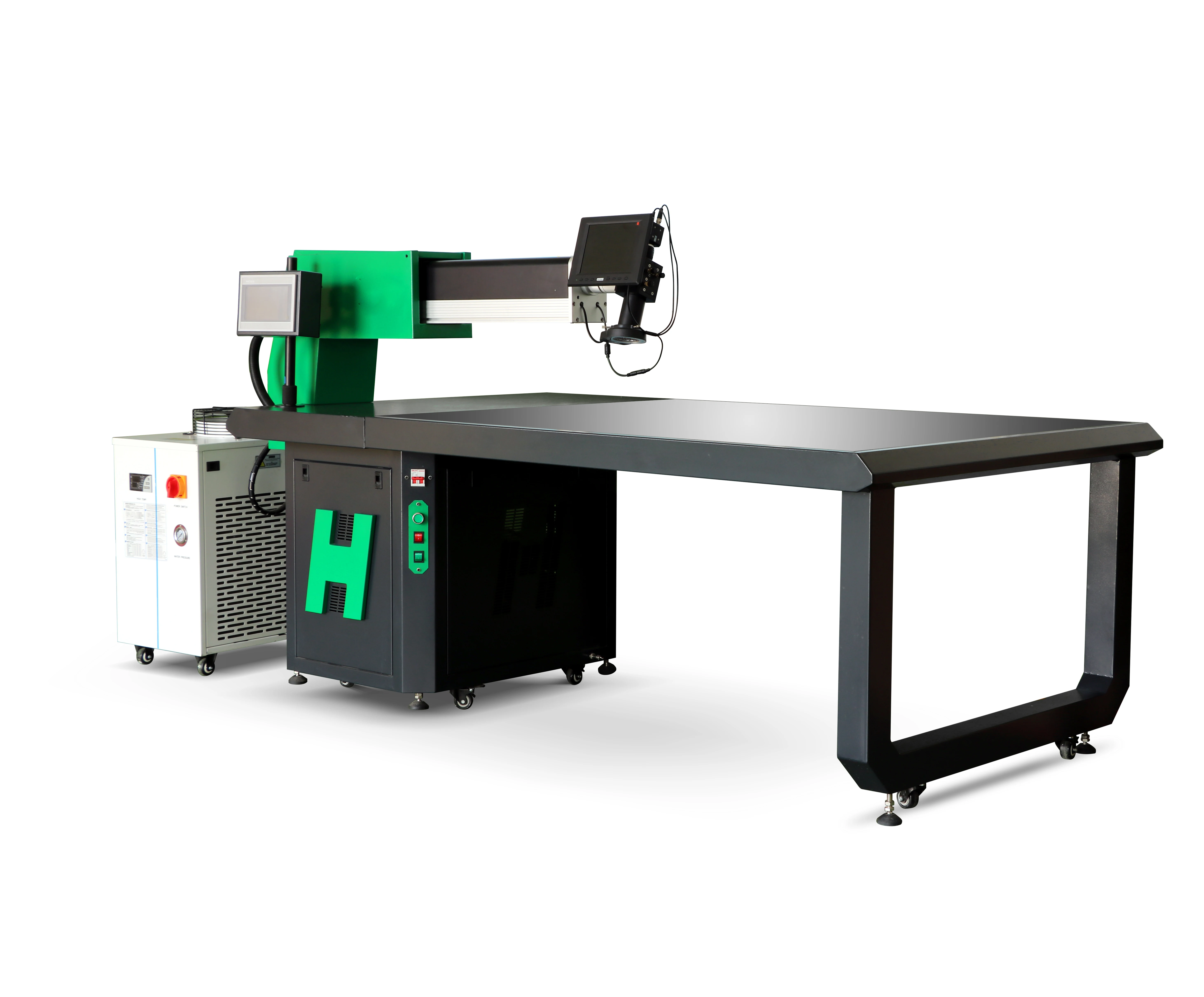

Model	DH-500W
Maximum Laser Output Power	500W
Laser Wavelength	1064nm
Optical Chamber	Imported Metal Optical Chamber
Laser Work Material	YAG
The Biggest Laser Pulse Energy	120J/20ms
Spot Size	0.1-2.5mm
Cooling System	1.2P Integration Chiller
Welding Depth	0.1-4.0mm

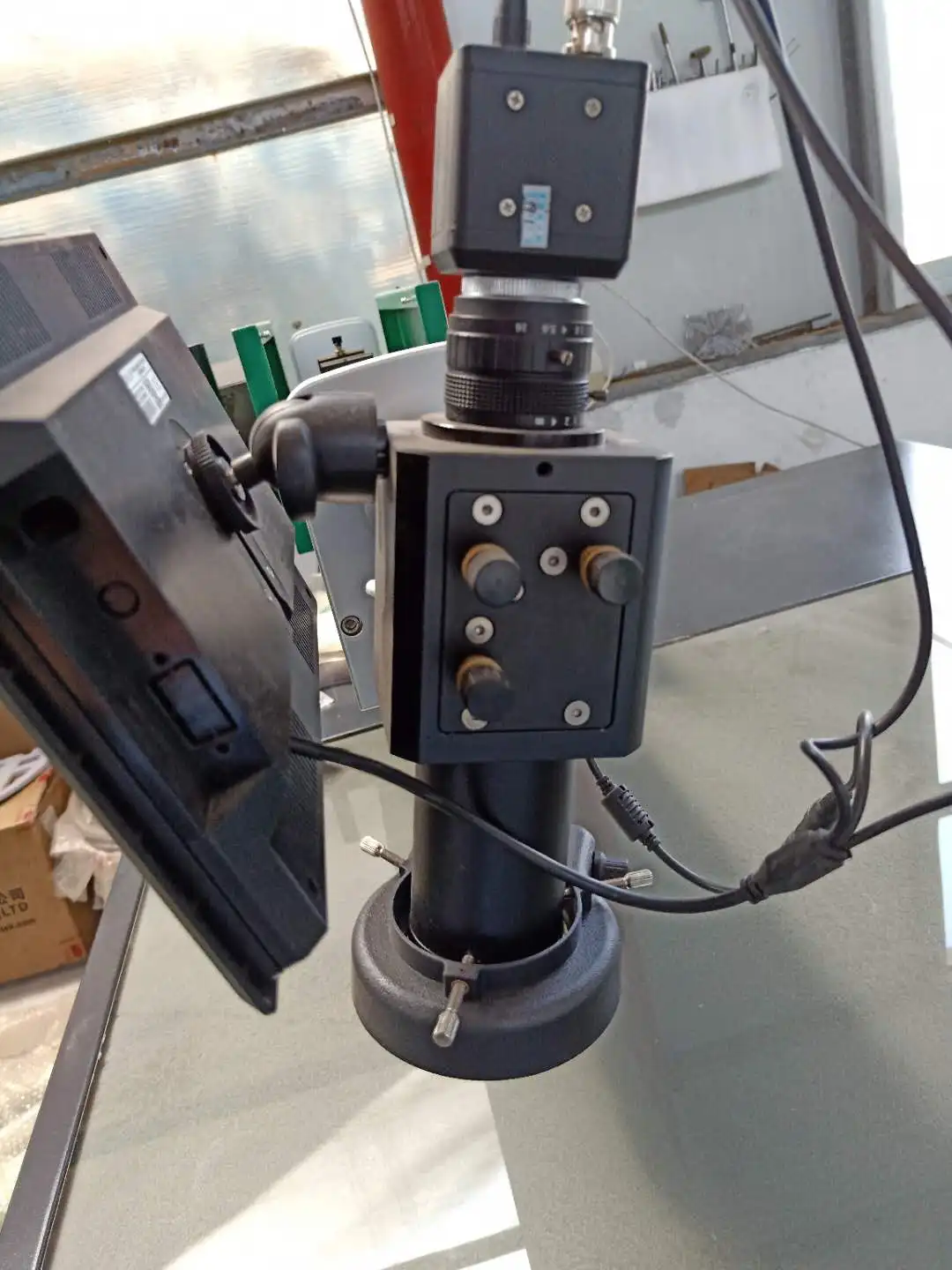

Observation System	The CCD camera and red light positioning
Welding Travel Height	200mm
The Volatility of Energy	<±10%
Pulse Width	0.5-25ms
Pulse Frequency	0-100Hz
Power Supply	380v±10%/50HZ/63A
Total Power	14KW
Working Table Size	1200*2050mm

DH-6120 Stainless Steel Channel Letter Bender

DH-8150 Multi-Function Channel Letter Bender

DH-6120 Letter Bending to make metal channel.

DH-500W Laser Welding Machine to make welding after metal channel be finshed by DH-6120 Bender.

Two machine help you to get a finished sign product.

Company Profile

Sign Channel Letter Machine Laser Welding Machine Fiber Cutting Machine

Package

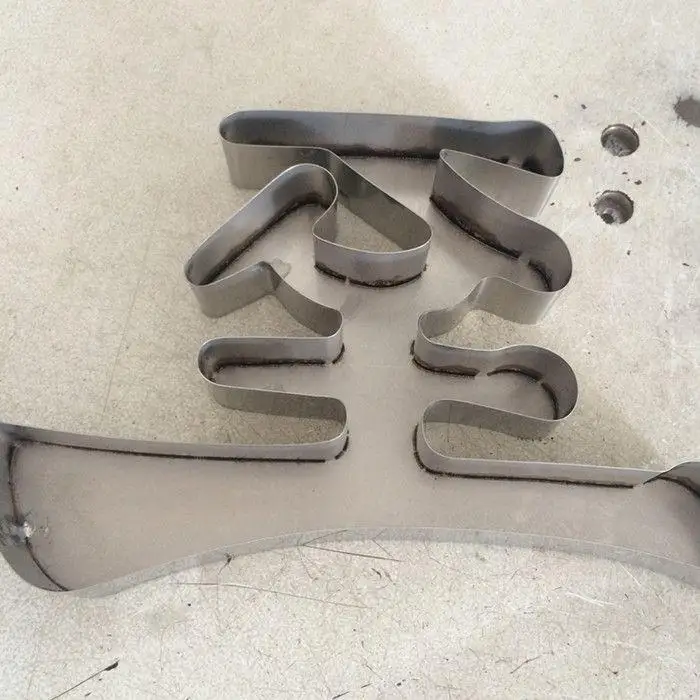

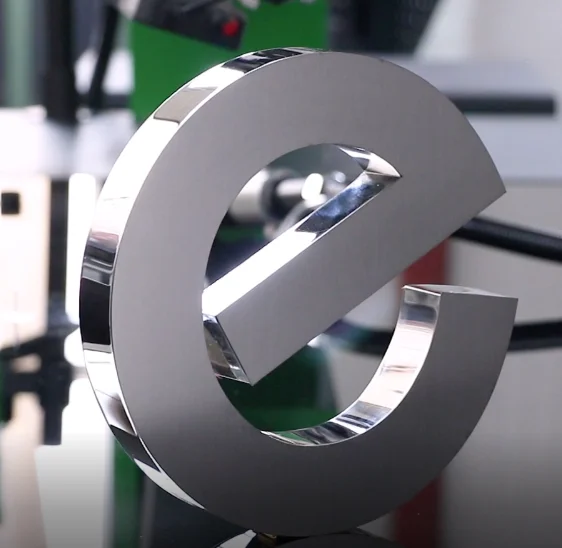

Working Sample

Certifications

Other Option Model

_Model	_DH-300W
_{Maximum Laser Output Power}	_500W
_{The Biggest Laser Pulse Energy}	_300W
_{Welding Depth}	_0.1-2.6mm
_{Power Supply}	_{220V±10%/50HZ/40A}
_{Total Power}	_6KW
