Преобразователь постоянного тока в переменный 110 В 220 48 10 ква преобразователь чистой синусоидальной волны инвертор солнечной энергии автономный
- Категория: Solar Inverter >>>
- Поставщик: Guangzhou,Felicity,Solar,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 912.25 $* | 958.54 $* |
| Aug-17-2025 | 904.93 $* | 949.76 $* |
| Jul-17-2025 | 758.36 $* | 796.46 $* |
| Jun-17-2025 | 889.17 $* | 933.36 $* |
| May-17-2025 | 774.10 $* | 813.44 $* |
| Apr-17-2025 | 873.77 $* | 917.68 $* |
| Mar-17-2025 | 866.90 $* | 909.45 $* |
| Feb-17-2025 | 858.65 $* | 901.40 $* |
| Jan-17-2025 | 850.97 $* | 893.68 $* |
Характеристики
Product Series
Advantage
>Bypass charging function: when the unit off,it can be activated with bypass output and can charge the battery.
>High charging current,the max charging current can be 200A for IVPA10048 and 180A for IVPA7548,170A for IVPA5048,120A for IVPA3524.
>Wide range of AC input voltage:the range of AC input voltage can be 90-280V for IVPA7548 and IVPA10048,80-140V for IVPA5048 and IVPA3524.It can be better compatible with generator working.It is rare to have wide rang input voltage for the power frequency inverter.
>Electricity and battery priority is optional:customer can choose Electricity or battery priority according to their needs.
>Battery self-defined:customer can set the overcharge voltage and float voltage,and over-discharge voltage.
>High charging current,the max charging current can be 200A for IVPA10048 and 180A for IVPA7548,170A for IVPA5048,120A for IVPA3524.
>Wide range of AC input voltage:the range of AC input voltage can be 90-280V for IVPA7548 and IVPA10048,80-140V for IVPA5048 and IVPA3524.It can be better compatible with generator working.It is rare to have wide rang input voltage for the power frequency inverter.
>Electricity and battery priority is optional:customer can choose Electricity or battery priority according to their needs.
>Battery self-defined:customer can set the overcharge voltage and float voltage,and over-discharge voltage.
>50/60HZ compatible.
>Intelligent: Intelligent adjustment of over-discharge voltage,intelligent fine-tuning of over-discharge voltage according to the power of the load; intelligent cooling fan, intelligent adjustment of speed according to power and charging current and core temperature inside the machine.
>Safety: Safety design is upgraded overall. Comprehensive protection(Among them, transformerover-temperature protection is a leading design in the industry).
>Later it can communicate with our MPPT. And the electricity charging and solar charging can be managed comprehensively and scientifically.
>Intelligent: Intelligent adjustment of over-discharge voltage,intelligent fine-tuning of over-discharge voltage according to the power of the load; intelligent cooling fan, intelligent adjustment of speed according to power and charging current and core temperature inside the machine.
>Safety: Safety design is upgraded overall. Comprehensive protection(Among them, transformerover-temperature protection is a leading design in the industry).
>Later it can communicate with our MPPT. And the electricity charging and solar charging can be managed comprehensively and scientifically.
Product Paramenters
Model | IVPA10048 | IVPA10048 | ||
DC Input Voltage | 48V | |||
Rated output power(VA) | 10000VA 8000W | |||
Rated output power(W) | 8000W | |||
Input voltage waveform | Sine(public facility or generator) | |||
Rated input voltage | 220vac | |||
Grid low voltage | 90Vac±7Vac | |||
Grid low voltagerecovery voltage | 100Vac±7Vac | |||
Grid high voltage | 280Vac±7Vac | |||
Grid high voltage recovery voltage | 270Vac±7Vac | |||
Max input voltage | 280Vrms | |||
Rated input frequency | 50Hz/60Hz | |||
Grid underfrequency | 40±1Hz | |||
Grid underfrequency recovery | 42±1Hz | |||
Grid overfrequency | 65±1Hz | |||
Grid overfrequency recovery | 43±1Hz | |||
Output waveform | Synchronize with input voltage | |||
Overload protection | Air switch protection | |||
Output short circuit protection | Air switch protection | |||
Efficiency(grid) | ≥95% | |||
Switching time(AC TO DC) | 15ms Typical value | |||
Switching time(DC TO AC) | 15ms Typical value/30ms special value | |||
Through battery free | NO | |||
Grid max bypass current | 63A | |||
Charging parameter | ||||
Rated input voltage | 220Vac | |||
Input voltage range | 90-280Vac | |||
Rated voltage output | Depending on batty type | |||
Max charging current | 80A | |||
Adjustable charging current range | 0-80A | |||
Initial voltage of the battery | Breaker | |||
Charging short circuit current | 63A | |||
Breaker size | Dependent on battery type or self-defined | |||
Overcharge protection | Yes | |||
MPPT Charging&Grid Charging(MPPT built-in controller is option) | ||||
Max PV open circuit voltage | / | 195V | ||
PV voltage working range | / | 60-195VDC | ||
Max input power | / | 6600W | ||
Max mains charging current | / | 120A | ||
Max charging current(mains+solar energy) | / | 200A | ||
System connection

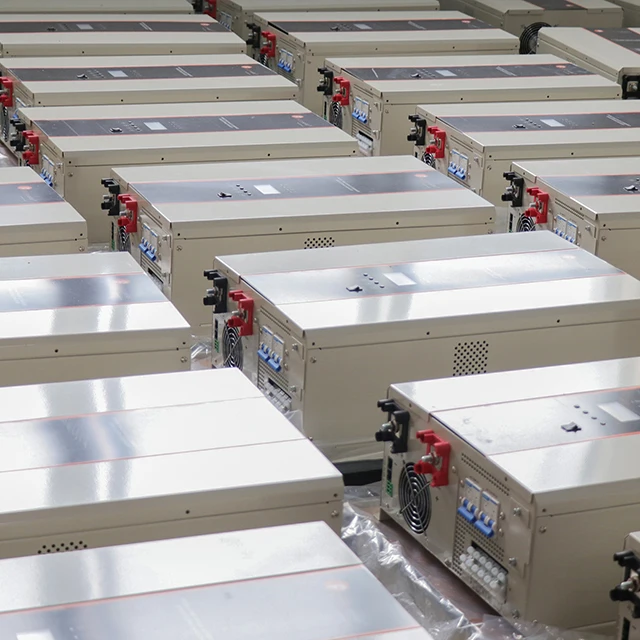

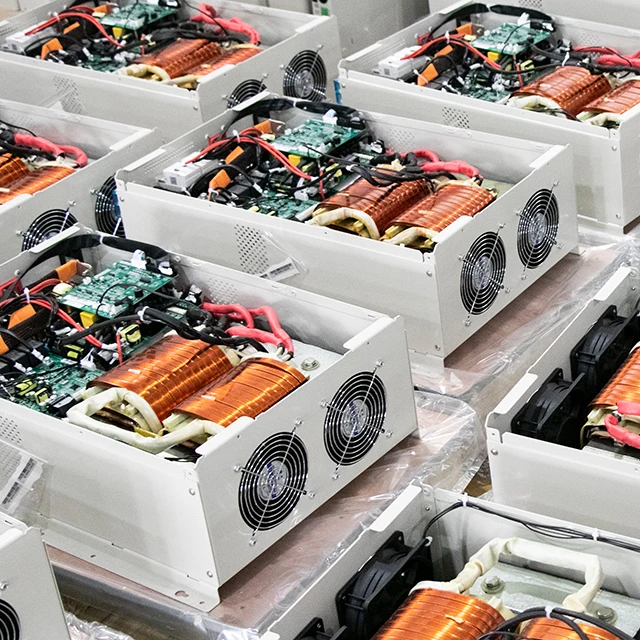

Production line
Exhibition
