Лидер продаж 2021 нагревательный и охлаждающий тепловой насос
- Категория: Heat Pump Water Heaters >>>
- Поставщик: Zhejiang,Zhongguang,Electrical,Co.,Ltd.,Ningbo,Branch
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 3927.29 $* | 4123.56 $* |
| Aug-17-2025 | 3894.61 $* | 4089.17 $* |
| Jul-17-2025 | 3267.17 $* | 3430.28 $* |
| Jun-17-2025 | 3828.91 $* | 4019.12 $* |
| May-17-2025 | 3333.67 $* | 3500.38 $* |
| Apr-17-2025 | 3762.68 $* | 3950.19 $* |
| Mar-17-2025 | 3729.12 $* | 3915.27 $* |
| Feb-17-2025 | 3696.88 $* | 3881.0 $* |
| Jan-17-2025 | 3663.62 $* | 3846.77 $* |
Характеристики
Product Overview

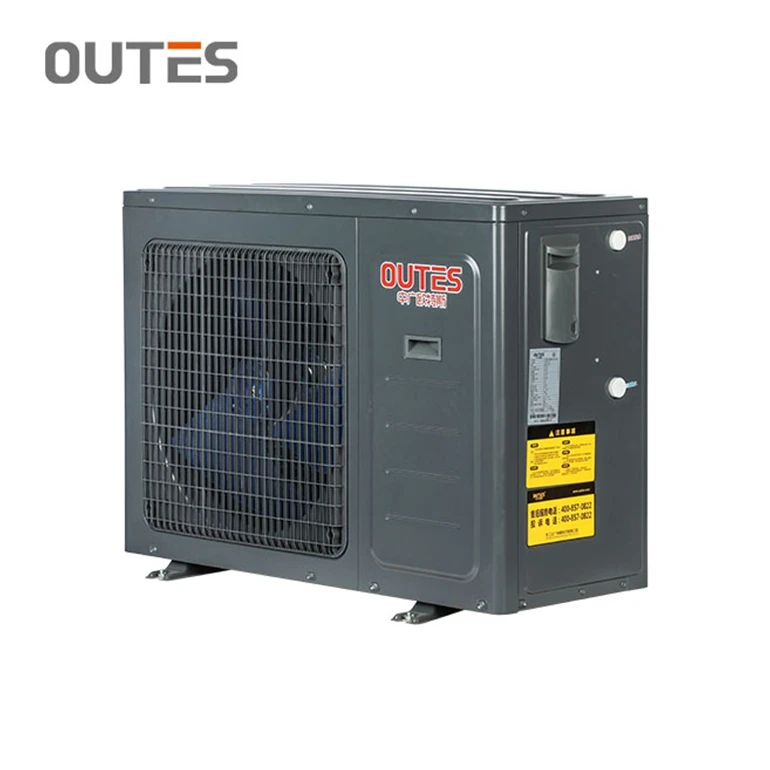

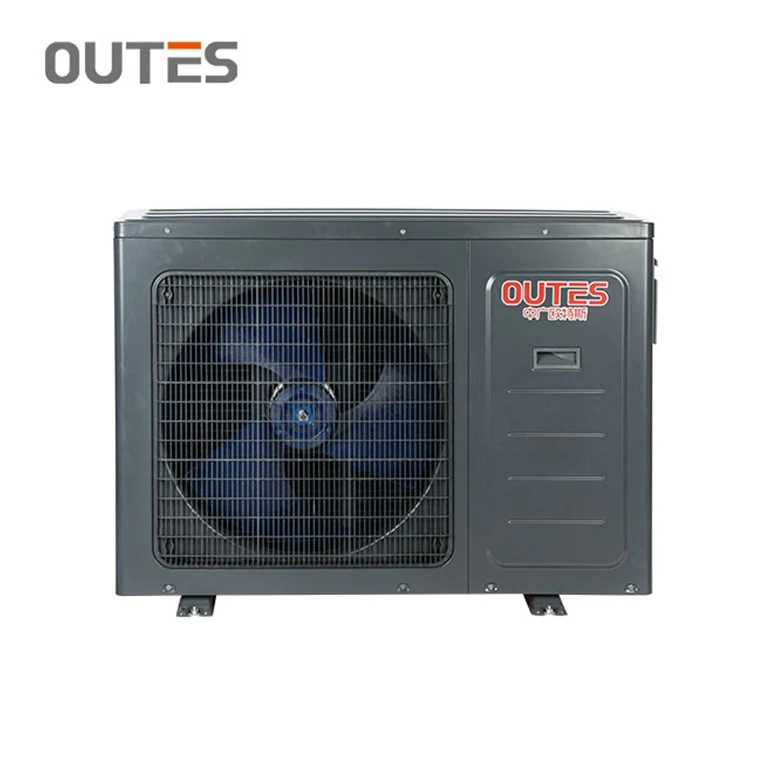

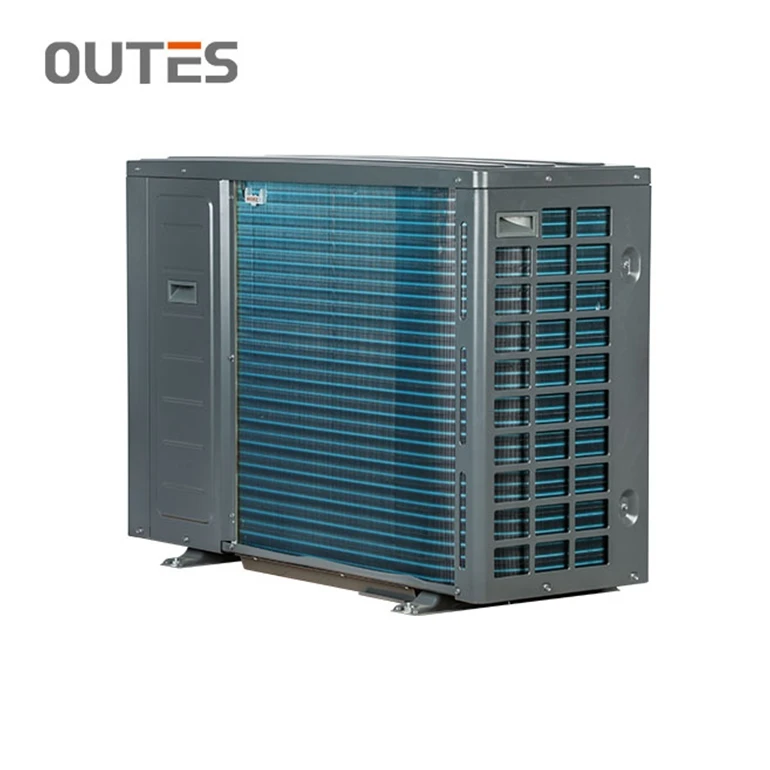

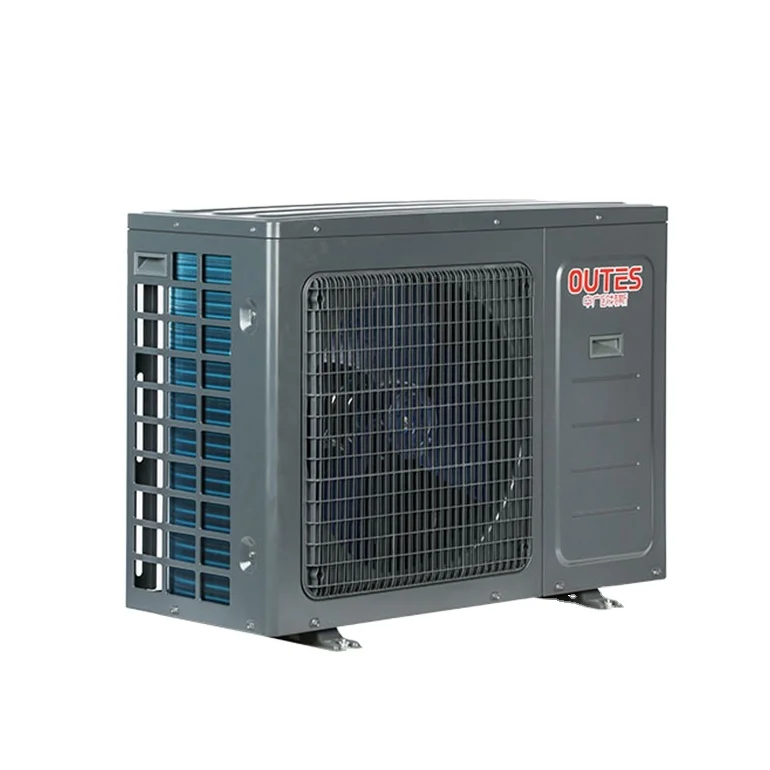

House Heating Heat Pump
Modes: AUTO/ECO/FAST/MULT
PRODUCT SPECIFICATIONS
Unit Model | AHb19E/OHP | ||||
Hydraulic Box Model | AHb19E/HP | ||||
Main Unit Model | AHb15E/O | ||||
Power Supply | / | 220-240V/1N/50Hz | |||
Heating-A7W35 | Rating Heating Capacity | kW | 14.5 | ||
Heating Input Power | kW | 3.69 | |||
Input Current | A | 16.0 | |||
COP | W/W | 3.93 | |||
Heating-A7W45 | Rating Heating Capacity | kW | 13.9 | ||
Heating Input Power | kW | 4.19 | |||
Input Current | A | 18.2 | |||
COP | W/W | 3.32 | |||
Cooling | Rating Cooling Capacity | kW | 10.0 | ||
Cooling Input Power | kW | 4.1 | |||
Input Current | A | 17.8 | |||
EER | W/W | 2.44 | |||
Hot Water | Rating Heating Capacity | kW | 17.4 | ||
Water Yield | L/H | 375 | |||
Rating Input Power | kW | 3.96 | |||
Input Current | A | 18.0 | |||
COP | W/W | 4.39 | |||
Outdoor Unit | Rated Input Power | kW | 5.9 | ||
Rated Input Current | A | 31.0 | |||
Ambient temperature | / | -25-43 | |||
Refrigerant Type | / | R410A | |||
Max. Water Outlet Temperature | ℃ | 55.0 | |||
Compressor Type | / | Scroll | |||
Capacity Adjustable | / | ON/OFF | |||
Water Side Heat Exchanger | / | Plate | |||
Connecting Pipe Size | / | RC1 | |||
Rated Water Flow | m3/h | 2.5 | |||
Water Pressure Drop | kPa | 50 | |||
Max.Water Pressure | MPa | 1.0 | |||
Noise | dB(A) | ≤62 | |||
Water Proof Class | / | IPX4 | |||
Electrical Shock Proof | / | Class I | |||
Net Weight | Kg | 144 | |||
Net Dimensions ( L*W*H) | mm | 1060*485*1410 | |||
Packing Dimensions ( L*W*H) | mm | 1100×500×1557 | |||
Hydraulic | Model | AHb19E/HP | |||
Power Supply | 220V~240V/50Hz | ||||
WaterProof Level | / | IPX1 | |||
Electric Shock Proof Grade | / | ClassⅠ | |||
Electric Heater Power | kW | 3.0 | |||
Pump Head | m | 12.5 | |||
Water Flow | m3/h | 2.50 | |||
Pump Input Power | W | 180 | |||
Water Pipe Connection | / | RC1(DN25) | |||
Expansion Tank Volume | L | 5.0 | |||
Noise | dB(A) | ≤30 | |||
Running Weight | Kg | 37 | |||
Net Dimension ( L*W*H) | mm | 960*530*300 | |||
Packing Dimension ( L*W*H) | mm | 1210*640*460 | |||
Loading Quantity（20Feet） | Unit | 26 | |||
Loading Quantity（20Feet） | Pcs | 26 | |||
Loading Quantity（40Feet） | Unit | 54 | |||
Loading Quantity（40Feet） | Pcs | 54 | |||
PRODUCT SPEC.
