Горячая Распродажа в Непале Высокая емкость 1- 2 т/ч опилки биомасса рисовая шелуха машина с

rice husk pellet machine is euipment for making the wood log/wood chips/sawdust/wood shaving/rice husk/stalk/grass...raw material into fuel pellets, Main process:

Wood chipper--hammer mill--biomass dryer--biomass pellet machine--pellet cooler--pellet packing machine

Wood Chipping Section- Drum Wood Chipper

Capacity: 3 ton per hour to 25 ton per hour

Function:Chipping large wood log, wood branches, waste building template,bamboo, wood pallets into 3-5cm chips.

Finished Products:3-5cm wood chips

Spare parts:Rotary Blades and Screen

Feeding System:4m feeding bet or 4m chain conveyor

Grinding Section-Wood Hammer Mill/Wood Crusher

Capacity: 300kg/h to 6 ton per hour

Function:Make 6mm-10mm sawdust

auxiliary equipment: Cyclone, bag dust collector, air lock and big power fan

Finished products:6-10mm sawdust

Drying Section-Rotary Dryer

Function:Drying high moisture content wood chips/wood sawdust/rice husk .... into suitable moisture content

Finished Moisture content:10-15%

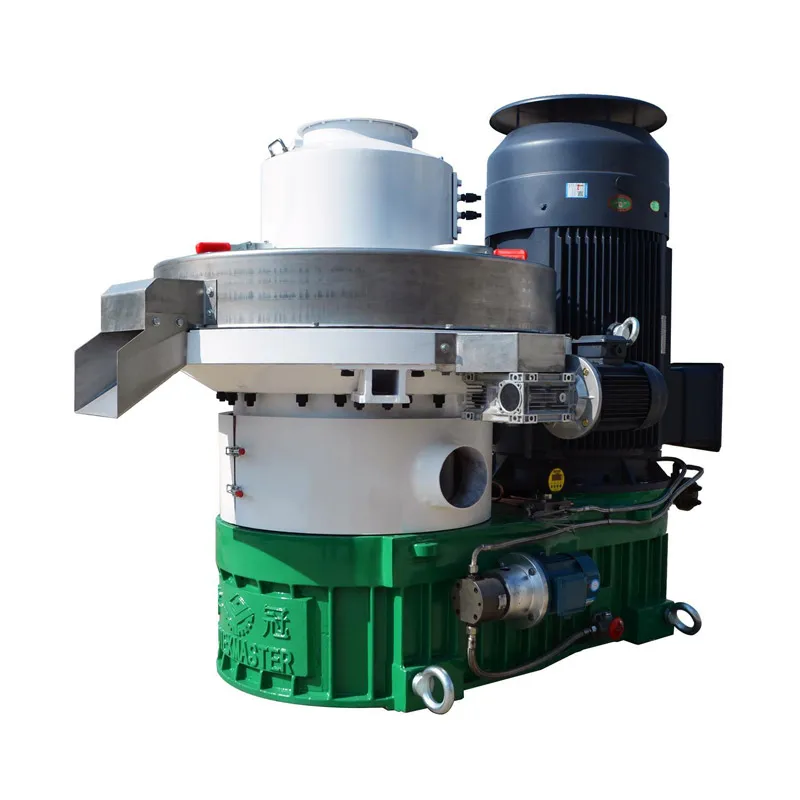

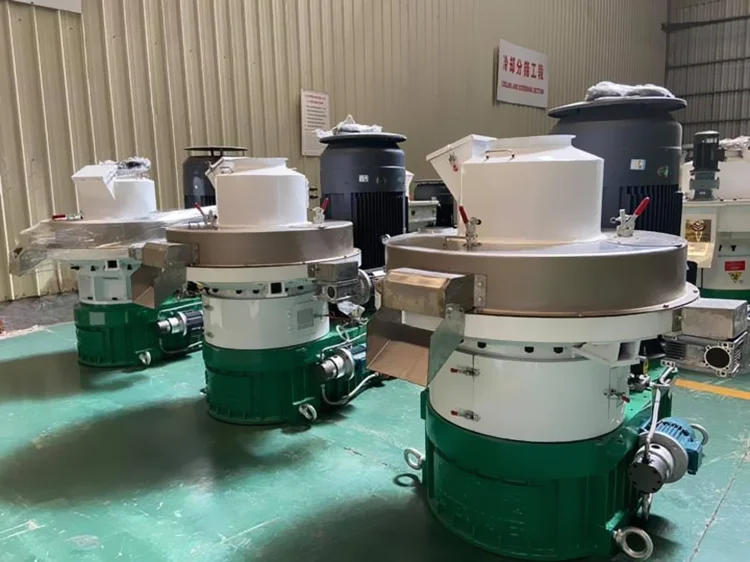

Pelleting Section-Vertical Ring Die wood pellet machine

Function:Press small size wood into 6mm/8mm/9mm/10mm pellets

Auxiliary Equipment: Bag dust collector, big power steam fan, cyclone

Type of Pellet machine-Vertical Ring Die pellet machine

Funished products:6mm/8mm /9mm/10mm wood pellets

Cooling Section-Counter flow cooler

Function:Cool down the temperature of wood pellets, to enhance stabillity.Cooling the pellets can make them more convenient to package and transport.

 Packing Section-Small packing machine or jumb bags

Name: Packing Machine

Usage:  Pack pellets into 20-50kg/bag or 1 ton bag.

Advantage: easily to be transported to final users' site.

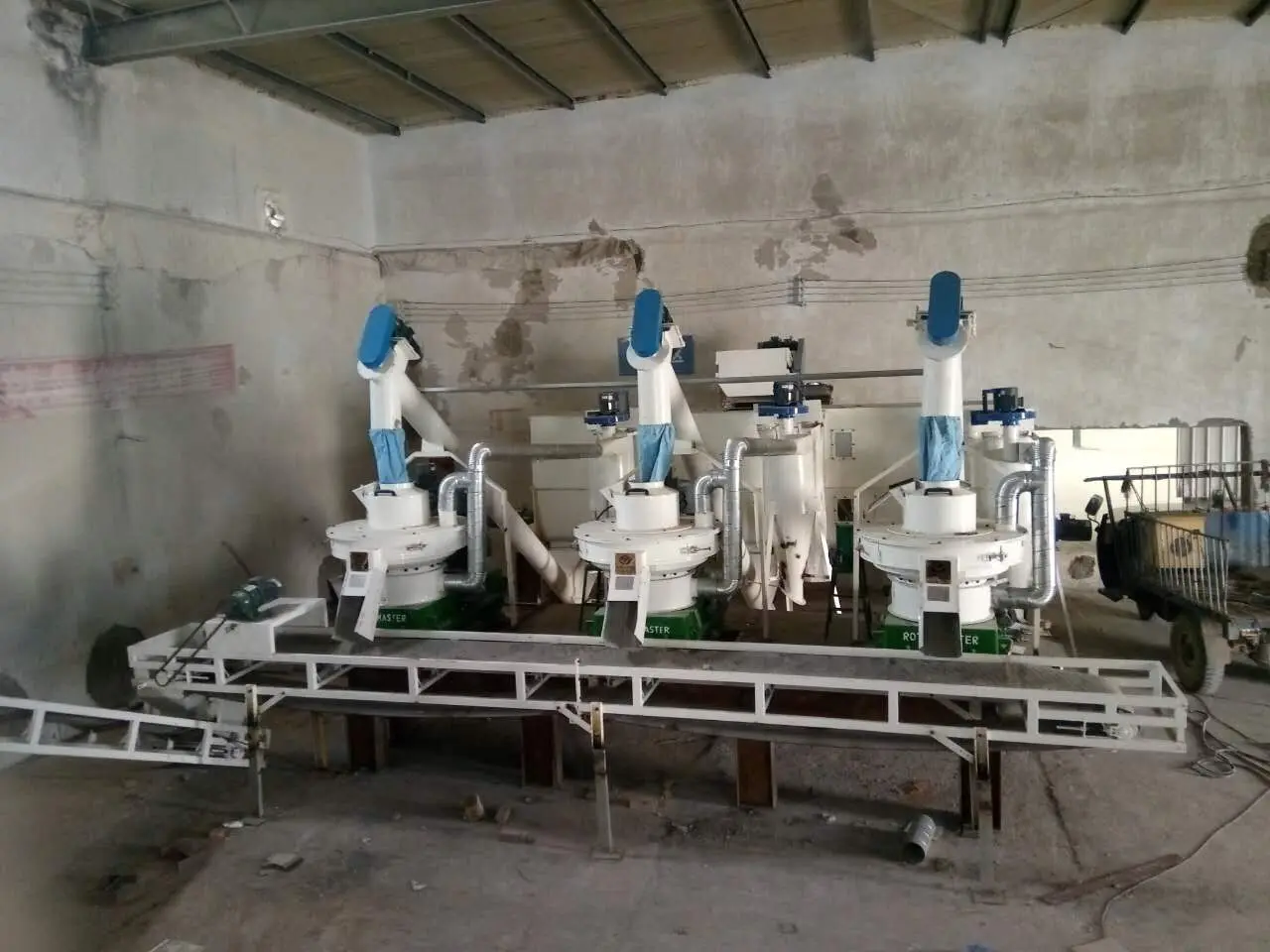

Rotex Master has helped our clients to set up hundreds of wood pellet line with capacity from 500 kg/h to 20 ton per .

Based on plenty of after-sale service and invest many R&D funds, Rotex Master has Accumulated rich experiences to deal with any problems during process of wood pellets.How to design a more suitable wood pellet line to save the area , to save labors and reduce your investment.

Below is some customers case.

Shandong Rotex Machinery Co.,ltd is the leading enterprise in manufacturing, marketing and R&D of biomass pellet machinery, crushing, drying equipment, feed pellet production equipment, cooling equipment in China.

We are located in Jinan city, Shandong China, which is superior in its geographical location and is convenient for transportation.

Our Mission: Offer The World A Blue Sky

Principle: Service First, Customer First

How to prepare for setting up a wood pellet Production Line?
1.Factory

You need to have a factory with enough area to set up the pellet line, to store your raw material and your finished pellets.

2.Raw Material

You should know the kind of your raw material, forest wood, agricuture or other residues.

You need to offer these information to the pellet production suppliers, The size of your raw material, the moisture, the capacity you want.

3.Staff

When you begin to set up a pellet line, you need to know how many staff needed for this complete wood pellet production line.

4.Transformer

You need to have a big transformer to offer enough power for this pellet line.
