Automatic Hot Melt Road
- Категория: Road Marking Machines >>>
- Поставщик: Tatu,Highway,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 4998.91 $* | 5248.68 $* |
| Aug-19-2025 | 4956.99 $* | 5204.90 $* |
| Jul-19-2025 | 4158.76 $* | 4366.76 $* |
| Jun-19-2025 | 4872.16 $* | 5116.17 $* |
| May-19-2025 | 4242.29 $* | 4454.89 $* |
| Apr-19-2025 | 4788.17 $* | 5027.15 $* |
| Mar-19-2025 | 4746.41 $* | 4983.55 $* |
| Feb-19-2025 | 4704.79 $* | 4939.93 $* |
| Jan-19-2025 | 4662.98 $* | 4895.81 $* |
Характеристики

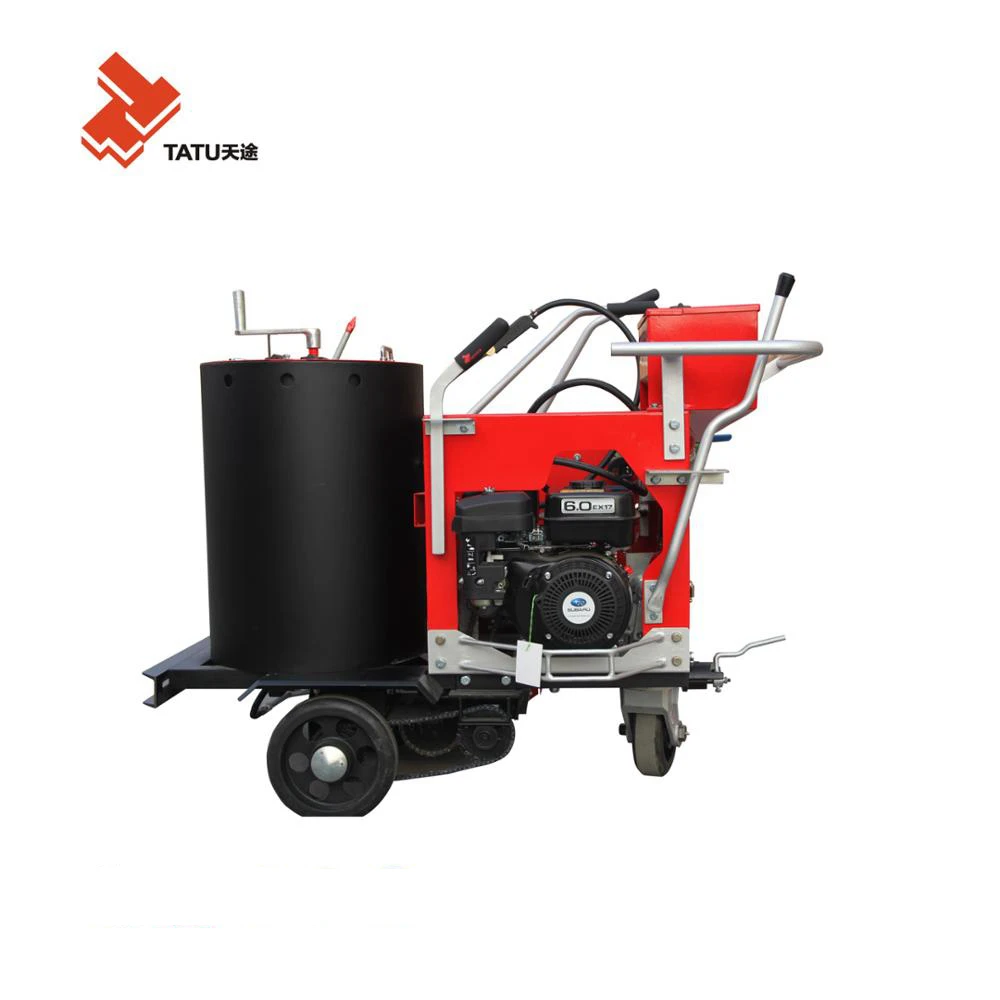

TATU hand-guided (self-propelled) thermoplastic road marking machine TT-FRG-I is a kind of simply easy-used small size marking machine. It has the advantages of easy operation and save labor because it is equipped with a 6.0HP enigne. This machine is suitable for the marking work with thermoplastic paints in all kinds of roads.
Technical Parameter | ||||
Engine | HONDA OR ROBIN 6.0 HP gasoline engine | |||
Heating mode | Liquefied petroleum gas, infrared burner | Gasoline or diesel injection burner | ||
Paint tank capacity | 65L | |||
Glass beads bin | 14L | |||
Marking equipment | Manual screeding marking shoe, standard configuration 150mm | |||
Marking width | 50/100/150/200/250/300 mm (optional, standard equipped with 150mm) | |||
Marking thickness | 1.8mm-3.0mm | |||
Dimension | 1350 mm × 1000 mm × 1100 mm | |||
Weight | 230Kg | |||
Capacity: 65L. The heating temperature can be freely controlled(0-230℃) according to different kinds of paint chosen by users.
The heating preservation tank which is made of stainless steel or cold-rolled anti-oxidation steel equips with an erect hand stirring device.
Marking shoe
50/100/150/200/250/300 mm road marking shoes for option, our machine standard equipped with 150mm), it can meet different requirement for road marking lines width.
Glass beads dispenser
Automatic quantitative dispenser synchronous with the paint screeding system, ensures dispensing glass beads much evener and more economical.
Engine
Honda or Robin 6.0 HP hand starting four-stroke air-cooled gasoline engine.
High quality gas valve
It ensures operation safty.
1.Q:Are you a factory or trading company?
A:We are factory which is dedicated in developing road traffic field more than 20 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong City, Cangzhou City and Zhengzhou City. All our clients are warmly welcome to visit us!
3.Q:What’s the marking area for one ton of thermoplastic paint?
A: 200-250 square meters for flat lines, about 150 square meters for convex lines, it depends on two factors: line thickness and road surface flatness.
4.Q:How many glass beads drop on type for one ton of thermopalstic paint?
A: About 100KG for one ton thermoplastic paint.
6.Q:How many worker is necessary for one marking team?
A: 6-8 worker
A:We are factory which is dedicated in developing road traffic field more than 20 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong City, Cangzhou City and Zhengzhou City. All our clients are warmly welcome to visit us!
3.Q:What’s the marking area for one ton of thermoplastic paint?
A: 200-250 square meters for flat lines, about 150 square meters for convex lines, it depends on two factors: line thickness and road surface flatness.
4.Q:How many glass beads drop on type for one ton of thermopalstic paint?
A: About 100KG for one ton thermoplastic paint.
6.Q:How many worker is necessary for one marking team?
A: 6-8 worker
