Самоходная термопластичная выпуклая дорожная маркировочная
- Категория: Road Marking Machines >>>
- Поставщик: Tatu,Highway,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 7378.57 $* | 7747.18 $* |
| Aug-20-2025 | 7316.73 $* | 7682.26 $* |
| Jul-20-2025 | 6138.24 $* | 6445.87 $* |
| Jun-20-2025 | 7192.14 $* | 7552.14 $* |
| May-20-2025 | 6262.56 $* | 6575.16 $* |
| Apr-20-2025 | 7068.71 $* | 7421.25 $* |
| Mar-20-2025 | 7006.91 $* | 7356.35 $* |
| Feb-20-2025 | 6944.77 $* | 7291.90 $* |
| Jan-20-2025 | 6882.47 $* | 7226.74 $* |
Характеристики
Product Description

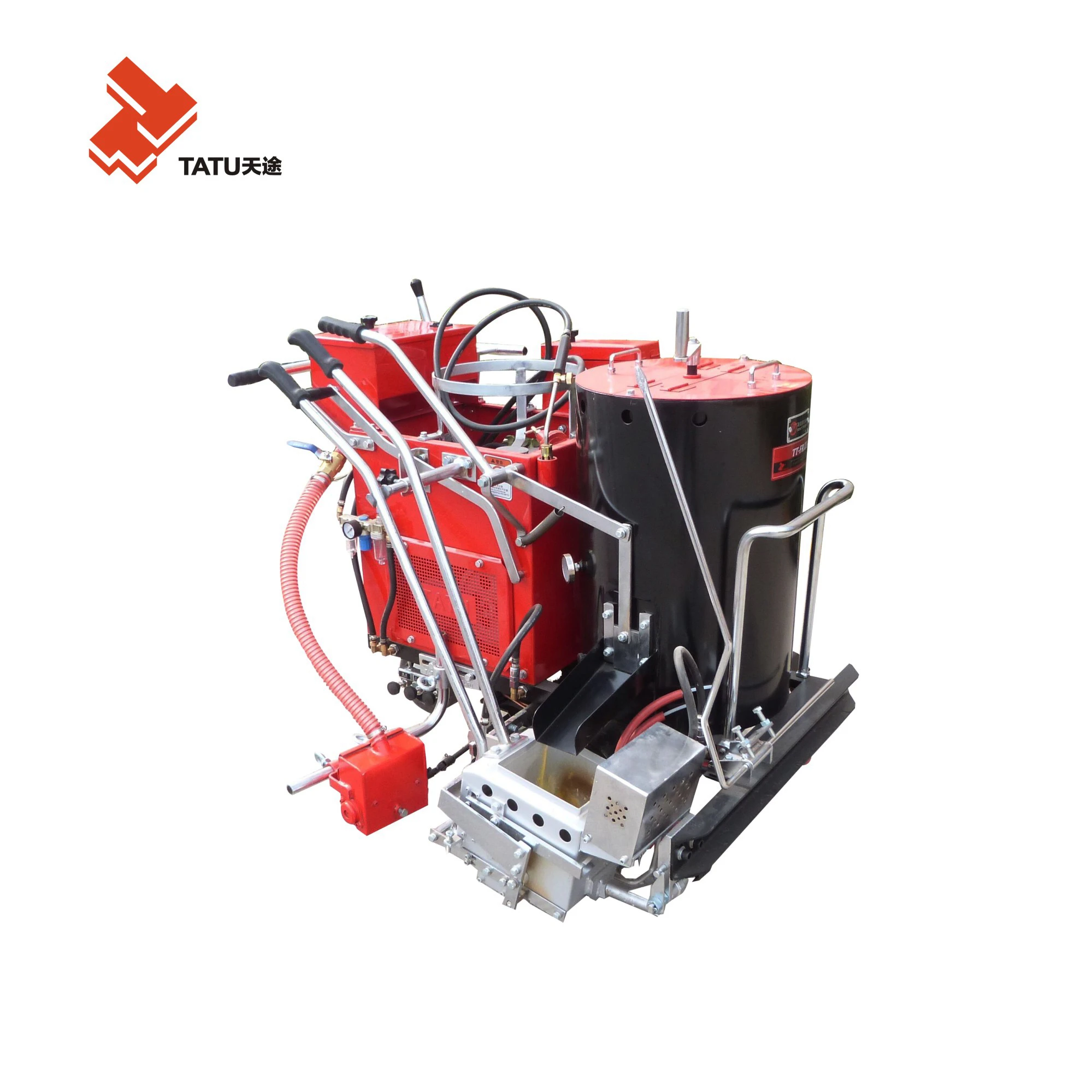

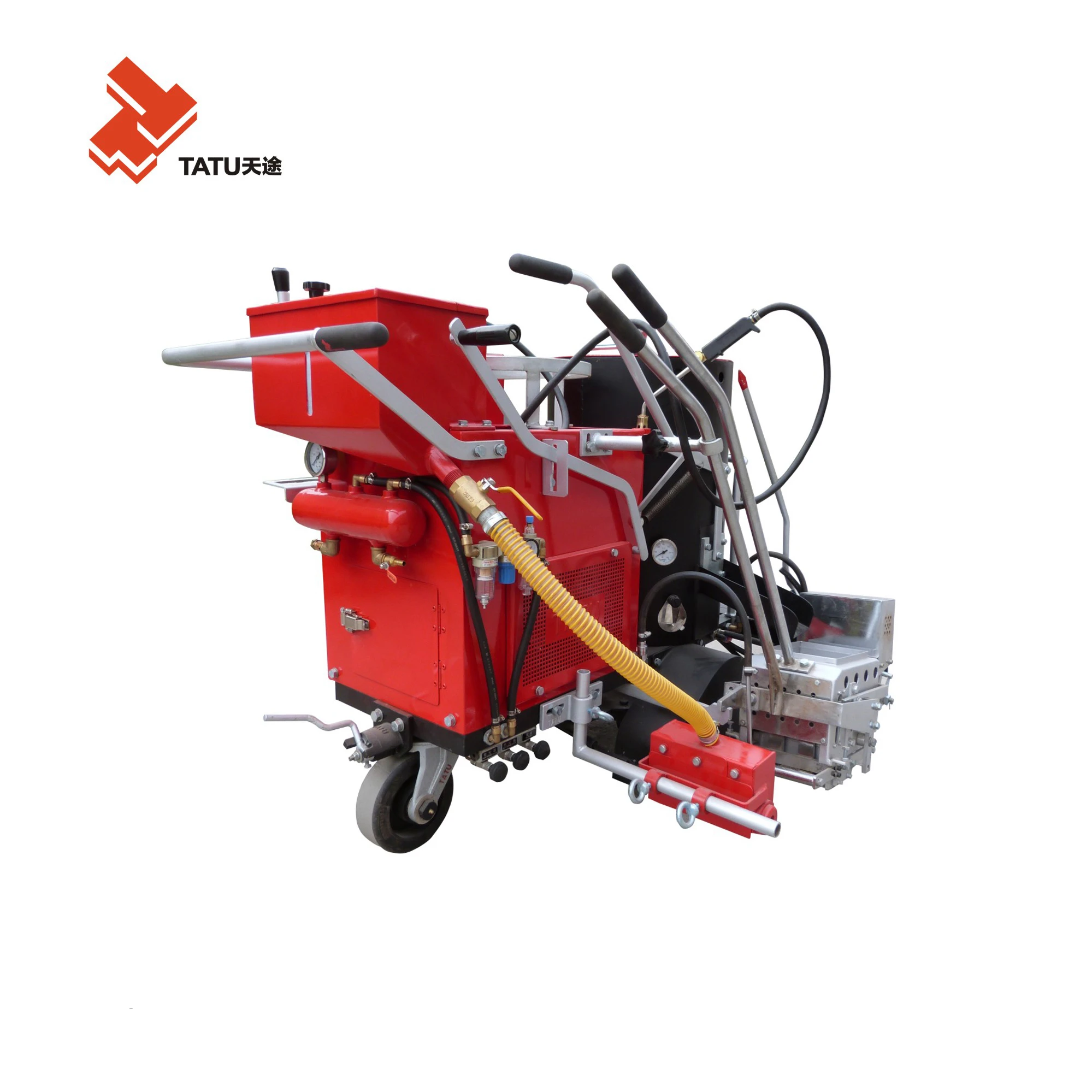

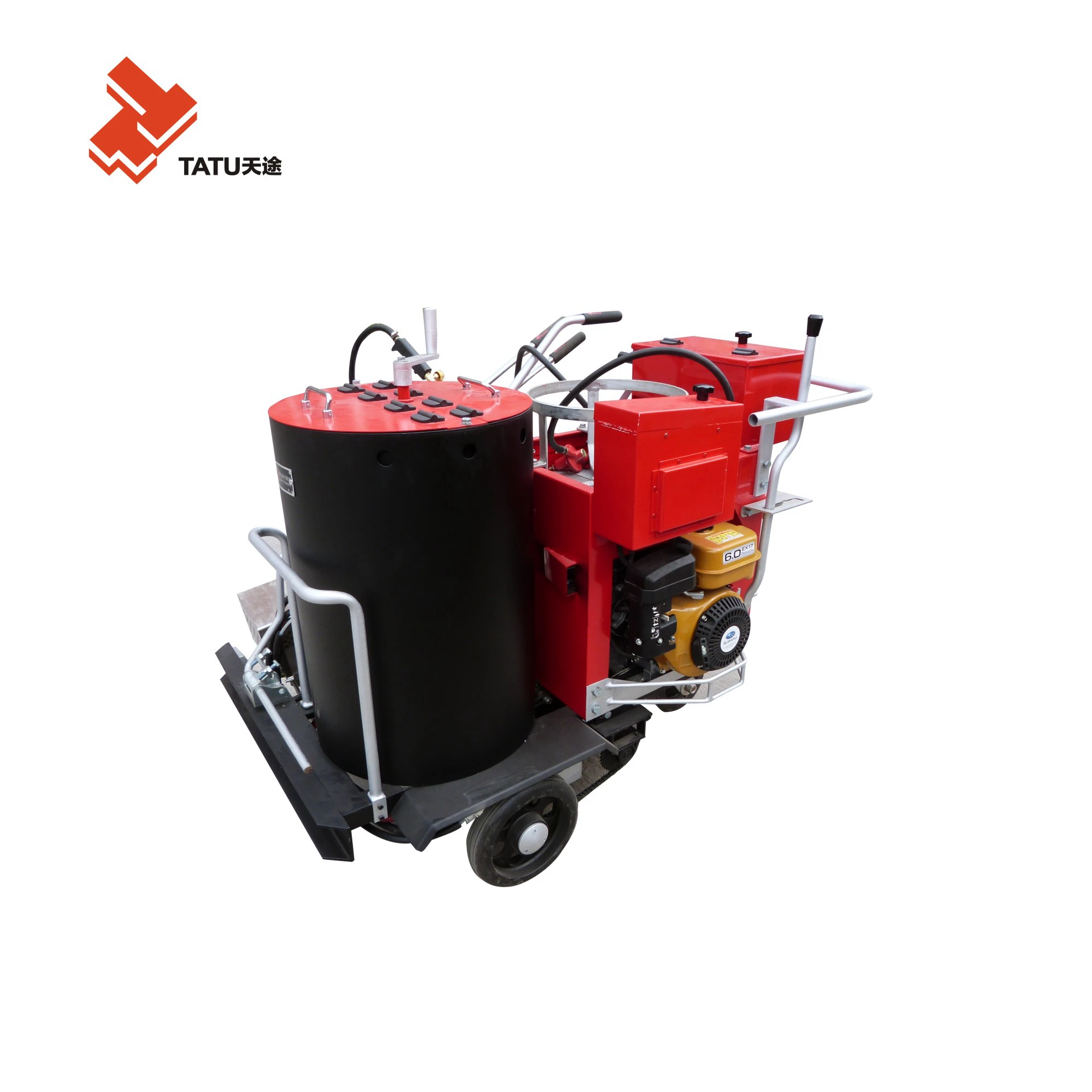

Thermoplastic road traffic safety mark convex line marking equipment road paint machine TT-FR/ZG-I
Thermoplastic road traffic safety mark convex line marking equipment road paint machine TT-FR/ZG-I can mark different kinds of road limitation markings: traffic safty convex lines and flat lines.
It has advantages of low investment, light weight, easy loading, easy operation and maintenance, has the best flexibility,
suitable for the marking work in all kinds of roads, vehicle parks, schools, factories etc. Not only apply to thermoplastic convex road marking, but also do flat line through changing marking shoes.
suitable for the marking work in all kinds of roads, vehicle parks, schools, factories etc. Not only apply to thermoplastic convex road marking, but also do flat line through changing marking shoes.
Specification
ITEM | PARAMETERS |
Engine | 6.0HP Gasoline Engine |
Air compressor | 0.16 m3/min |
Drive system | Hydrostatic infinitely variable speed |
Drive speed | Forward: 0-4，backward: 0-3.2 |
Maximum climbing ability | 15ﾟ |
Marking application | Screed convex line or flat line |
Paint tank capacity( | 65 L |
Glass bead tank capacity | 14 L |
Heating and insulation method | Direct-fired high-efficiency energy-saving stove, double-layer insulation |
Marking width | Standard configuration 200mm |
Optional：flat: 50、100、200、250、300；convex：200、250、300mm | |
Marking thickness | Bottom line（Flat）1.2-3.0(adjustable)； Convex line 5-7(adjustable) |
Dimensions | 1420x1070x1120mm |
Weight | 260KG |
Product application of road machines:
Zebra crossings,Sidewalks,Lanes,Highways,Municipal roads,County and township highways,Vrtual solid lines,Guiding arrows,Parking lot parking lines,Factory markings,Driving training school,Rural road marking, highland area marking, urban road marking, urban marking, road marking, road marking, highway marking, parking marking, community marking, community marking, parking marking , school line, campus line, playground line, gas station line / gas station line, road, bridge, railway, factory, coal mine, parking lot, city market and airport interior operation, square, workshop.
Why Choose Us
Five big Reason to choose us:
* Double barrel:double insulated bucket with stirring handle
* Glass bead spreader:set with speed shifting device
* Customized Hopper:10-50 can be customized

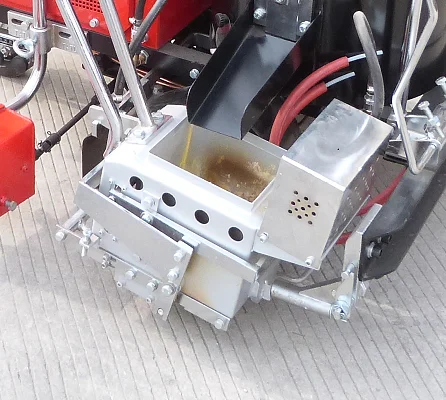

* Floor knife:can adjust the thickness range
* Indicator pin:positioning the edge of the line
* Glass bead spreader:set with speed shifting device
* Customized Hopper:10-50 can be customized
* Floor knife:can adjust the thickness range
* Indicator pin:positioning the edge of the line
Recommend Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customer Photos
Company Profie
TATU highway group was founded in 1998, it is an integrated production service enterprise focusing on special road
product manufacturing and professional road service operation and global development.
product manufacturing and professional road service operation and global development.
The group number of single product, number of exporting countries and comprehensive competitive strength ranks among the forefront of international road specialty product manufacturing industry. Many products fill the gaps in China, Asia and even the world, and the products are exported to more than 100 countries and regions.
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which is dedicated in developing road traffic field more than 20 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong City, Cangzhou City and Zhengzhou City. All our clients are warmly welcome to visit us!
3.Q:What’s the marking area for one ton of thermoplastic paint?
A: 200-250 square meters for flat lines, about 150 square meters for convex lines, it depends on two factors: line thickness and road surface flatness.
4.Q:How many glass beads drop on type for one ton of thermopalstic paint?
A: About 100KG for one ton thermoplastic paint.
6.Q:How many worker is necessary for one marking team?
A: 6-8 worker
A:We are factory which is dedicated in developing road traffic field more than 20 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong City, Cangzhou City and Zhengzhou City. All our clients are warmly welcome to visit us!
3.Q:What’s the marking area for one ton of thermoplastic paint?
A: 200-250 square meters for flat lines, about 150 square meters for convex lines, it depends on two factors: line thickness and road surface flatness.
4.Q:How many glass beads drop on type for one ton of thermopalstic paint?
A: About 100KG for one ton thermoplastic paint.
6.Q:How many worker is necessary for one marking team?
A: 6-8 worker
