Solder Paste Printer SMT Assembly Line Semi-Automatic PCB Stencil YX32125 LED Production
- Категория: Screen Printers >>>
- Поставщик: Wenzhou,Yingxing,Import&export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.35 $* | 0.21 $* |
| Aug-18-2025 | 0.42 $* | 0.75 $* |
| Jul-18-2025 | 0.85 $* | 0.40 $* |
| Jun-18-2025 | 0.53 $* | 0.26 $* |
| May-18-2025 | 0.21 $* | 0.84 $* |
| Apr-18-2025 | 0.43 $* | 0.76 $* |
| Mar-18-2025 | 0.79 $* | 0.26 $* |
| Feb-18-2025 | 0.87 $* | 0.40 $* |
| Jan-18-2025 | 0.62 $* | 0.93 $* |
Характеристики
Product Description
Semi-Automatic Solder Paste Printing Machine
YX32125 High precision solder paste printing machine is using steel structure, alluminum alloy platform combination with SIEMENS PLC full color touching screen, Delta frequency converter, stable,reliable, convenient and easy to operate, it’s an indispensable equipment in SMT process.
Features
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.PLC Control System to ensure working stabilized & reliable; Touch screen is easy to operate.
7.Can be set to one-way and two-way, a variety of printing methods.
8.With the automatic counting function to facilitate the production of output statistics.
9.Adjustable blade angle, steel blade, rubber scraper are suitable.
10.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
11.Printing speed display, can be adjusted.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.PLC Control System to ensure working stabilized & reliable; Touch screen is easy to operate.
7.Can be set to one-way and two-way, a variety of printing methods.
8.With the automatic counting function to facilitate the production of output statistics.
9.Adjustable blade angle, steel blade, rubber scraper are suitable.
10.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
11.Printing speed display, can be adjusted.
Specification
Product Name | High Precise Semi-automatically Solder Printing Machine |
Model | YX32125 |
Printing Table Acreage | 320*1250mm |
Frame Size | 370mm*470mm,420*520mm,550*650mm，550mm*1550mm |
Substrate Size | 300*1230mm |
Substrate Thickness | 0.2-5.0mm |
Fixation of Printing Position | PCB Outer or Pin Positioning |
Micro Adjust of Table Board | Front/Back±10mm, R/L±10mm |
Printing Precise | ±0.02mm |
Machine Repeated Accuracy | ±0.05mm |
Minimum Spacing | 0.35mm |
Using Empty Press | 4-6Kgf/Cm2 |
Using Power Supply | 220V 50/60Hz 100W |
Machine Size | 1680*700*1650mm |
Packaging Size | 2200*850*2120mm |
Net Weight | 280kg |
Gross Weight | 350KG |
Starting Switch
Double knobs starting design prevent from malfunction promise produce safety.

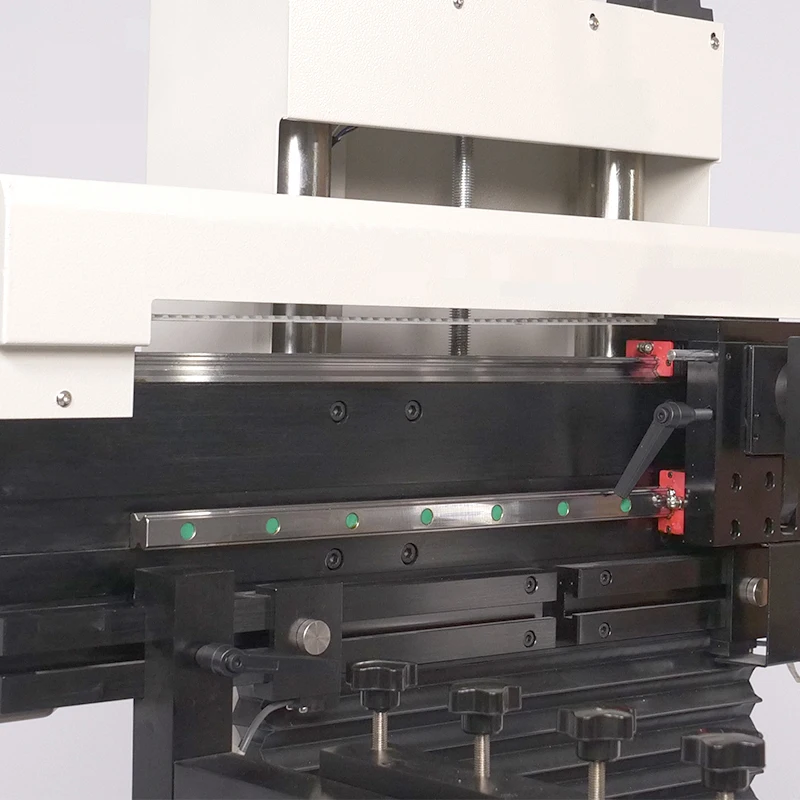

Printing Table
Micro adjust quick and convenient, installantion and adjust easily,apply to single and double panels printing.

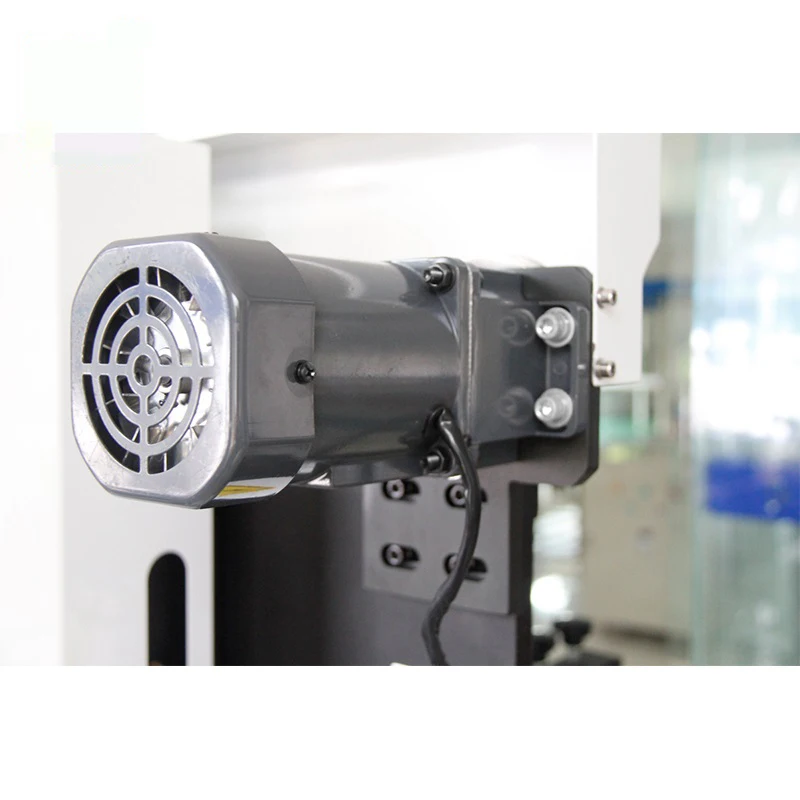

Driving Motor
Korea SPG motor even speed.

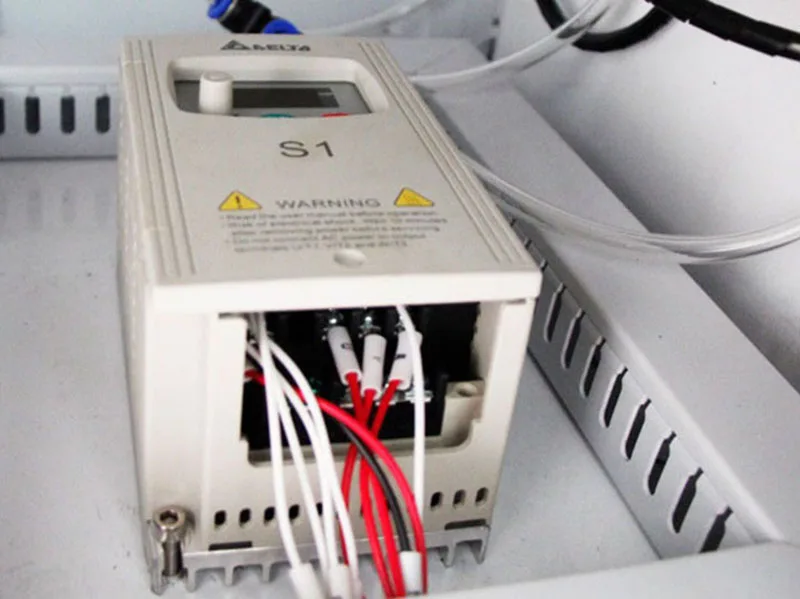

The Drive Converter
Delta frequency converter balance running even speed.
Package
Plastic film wrapped inside, Wooden case outside.
Certifications
Wenzhou Yingxing Technology Co.,Ltd
Specialises in SMT Production Line (PNP Machine）more than 9 years
Our Services
1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts（With 1 YEAR warranty）
FQA
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training
video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training
video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
