Квартирная Тепловая система OUTES Aa 300L тепловой насос для горячей воды все в
- Категория: Heat Pump Water Heaters >>>
- Поставщик: Zhejiang,Zhongguang,Electrical,Co.,Ltd.,Ningbo,Branch
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 952.17 $* | 1000.34 $* |
| Aug-17-2025 | 944.81 $* | 991.9 $* |
| Jul-17-2025 | 792.58 $* | 832.6 $* |
| Jun-17-2025 | 928.36 $* | 974.28 $* |
| May-17-2025 | 808.29 $* | 848.2 $* |
| Apr-17-2025 | 912.39 $* | 958.95 $* |
| Mar-17-2025 | 904.38 $* | 949.89 $* |
| Feb-17-2025 | 896.63 $* | 941.32 $* |
| Jan-17-2025 | 888.65 $* | 932.86 $* |
Характеристики
Video Description
Product Family
Product Overview
Modes: AUTO/ECO/FAST/MULT
R134a, A+
Topside air outlet
Built-in Magnesium Rod & Anion Anode for anti-corrosion
Enamel water tank with external aluminium micro-channel coil
50mm foaming insulation material Electronic Expansion Valve for high efficiency
2KW Auxiliary Tubular Electric Heater back up for cold winter
Electric Heater back up for cold winter
Built-in Internal Solar water coil or boiler water coil are optional for Muti-thermal connection
R134a, A+
Topside air outlet
Built-in Magnesium Rod & Anion Anode for anti-corrosion
Enamel water tank with external aluminium micro-channel coil
50mm foaming insulation material Electronic Expansion Valve for high efficiency
2KW Auxiliary Tubular Electric Heater back up for cold winter
Electric Heater back up for cold winter
Built-in Internal Solar water coil or boiler water coil are optional for Muti-thermal connection
Product Specification
Factory Model | / | KD50/E160CE1 | KD50/E200CE1 | KD50/E260CE1 | KD50/E300CE1 |
/ | 8100151 | 8100152 | 8100153 | 8100154 | |
Model | / | AAa21R1/160E | AAa21R1/200E | AAa21R1/260E | AAa21R1/300E |
Power Supply | / | 220~240V/50Hz | 220~240V/50Hz | 220~240V/50Hz | 220~240V/50Hz |
Water Tank Volume | L | 160 | 200 | 260 | 300 |
Heating Capacity | W | 2100 | 2100 | 2100 | 2100 |
COP | W/W | 3.92 | 3.92 | 3.92 | 3.92 |
Electrical Heat Power | W | 2000 | 2000 | 2000 | 2000 |
Max Water Temp | ℃ | 75 | 75 | 75 | 75 |
Noise Power Level | dB(A) | ≤57 | ≤57 | ≤57 | ≤57 |
Refrigerant/Weight | / | R134A/1.0kg | R134A/1.0kg | R134A/1.0kg | R134A/1.0kg |
Compressor Working Condition | °C | -7~46 | -7~46 | -7~46 | -7~46 |
Heat Pump Working Condition | °C | -20~46 | -20~46 | -20~46 | -20~46 |
Protection Grade | / | IPX4 | IPX4 | IPX4 | IPX4 |
Electric Shock Proof Grade | / | Class I | Class I | Class I | Class I |
Tapping Cycle | / | / | L | L | XL |
ErP Class | / | / | A+ | A+ | A+ |
Net Weight | Kg | 89 | 103 | 113 | 121 |
Gross Weight | Kg | 99 | 115 | 126 | 136 |
Packing Dimension | mm | 725x725x1705 | 725x725x1910 | 750x720x2075 | 750x720x2240 |
Loading Quantity（20Feet） | Sets | 24 | 24 | 24 | 24 |
Loading Quantity（40HFeet） | Sets | 48 | 48 | 48 | 48 |
Details Images
Front view

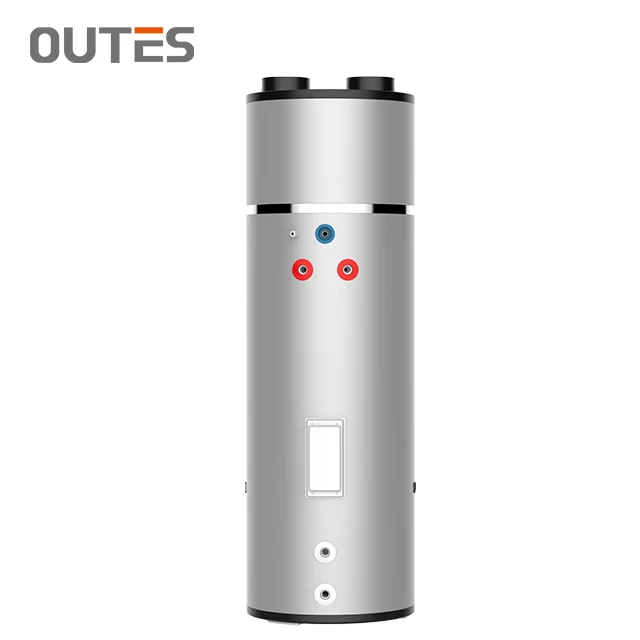

Back view
side view
Application
About OUTES
OUTES was established in 2 0 0 6 with an industry park of 500,000m2, specializing in sales, R&D and manufacturing air conditioner, Cooling & Heating heat pump, Hot Water heat pump, Swimming Pool heat pump, Commercial heat pump, Fan Coils, Air Ventilation Unit, Water Purification Equipment and Pressure Water Tank.
OUTES has reputation in domestic market. With 2000 distributors, 1000 After-sales Service Center and 10 local warehouse.
FAQ
Q1: How about your delivery time ?
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
