Интеллектуальный и быстрый биомедицинский анализатор TC220 клинический биохимический автоматизированный химический для

Описание и отзывы

Трекер стоимости

Характеристики

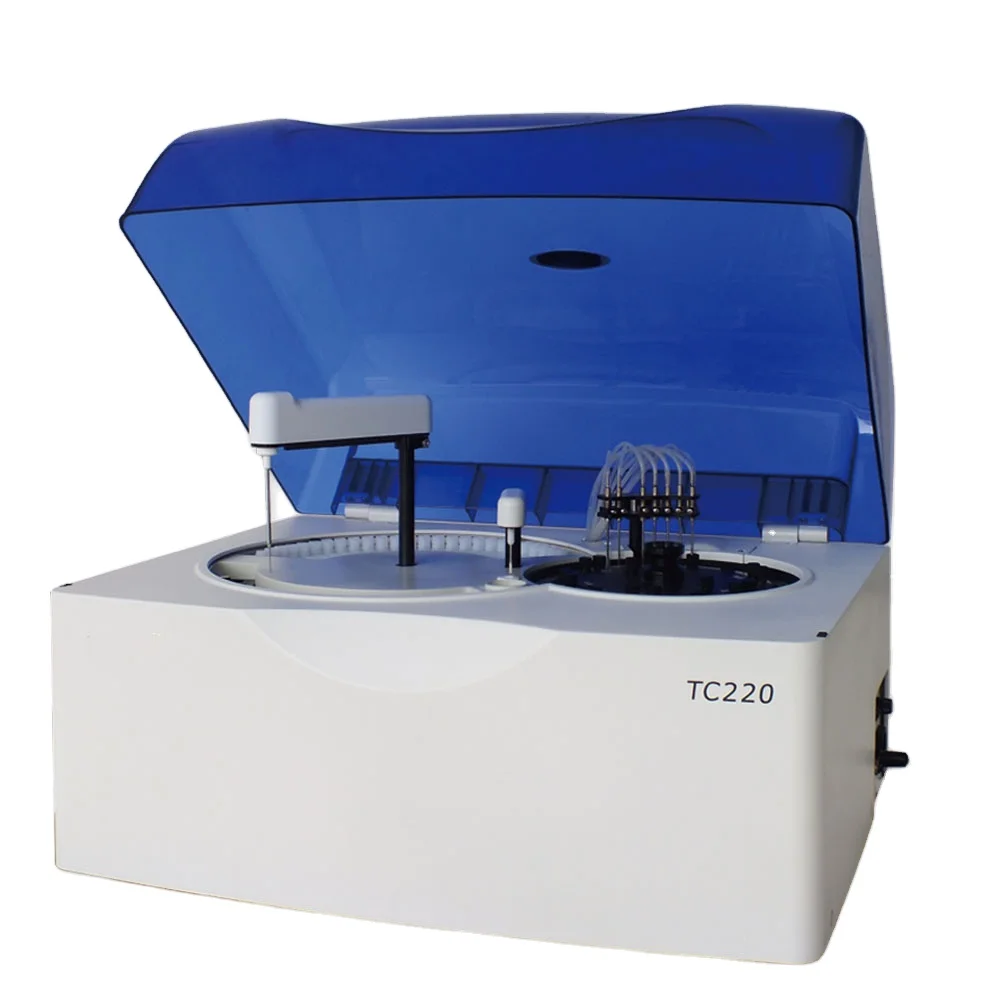

DW-TC220  Automatic Chemistry Analyzer

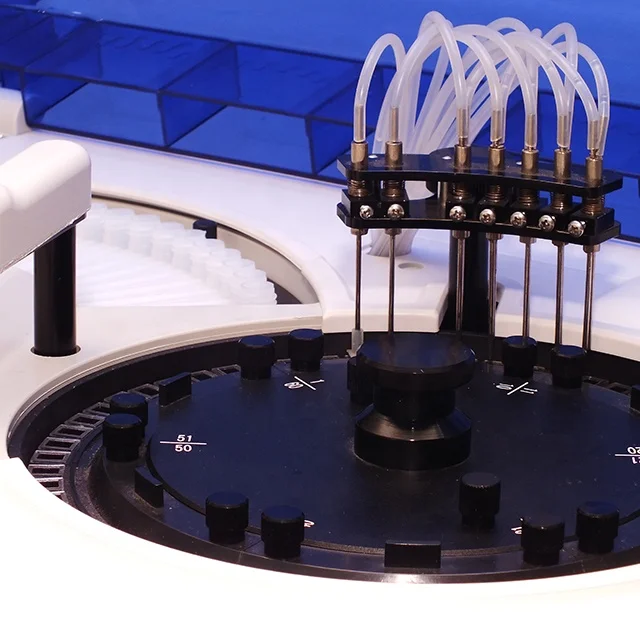

Sample/Reagent Position• 18pcs sample position• Reagent refrigerated function• 26pcs reagent position

Reaction Cuvettes• 60 pcs reusable plastic cuvettes• Automatic blank testing for cuvette• Colorimetry system in the pattern   of light splitting behind cuvette• Dismountable, easily replacement

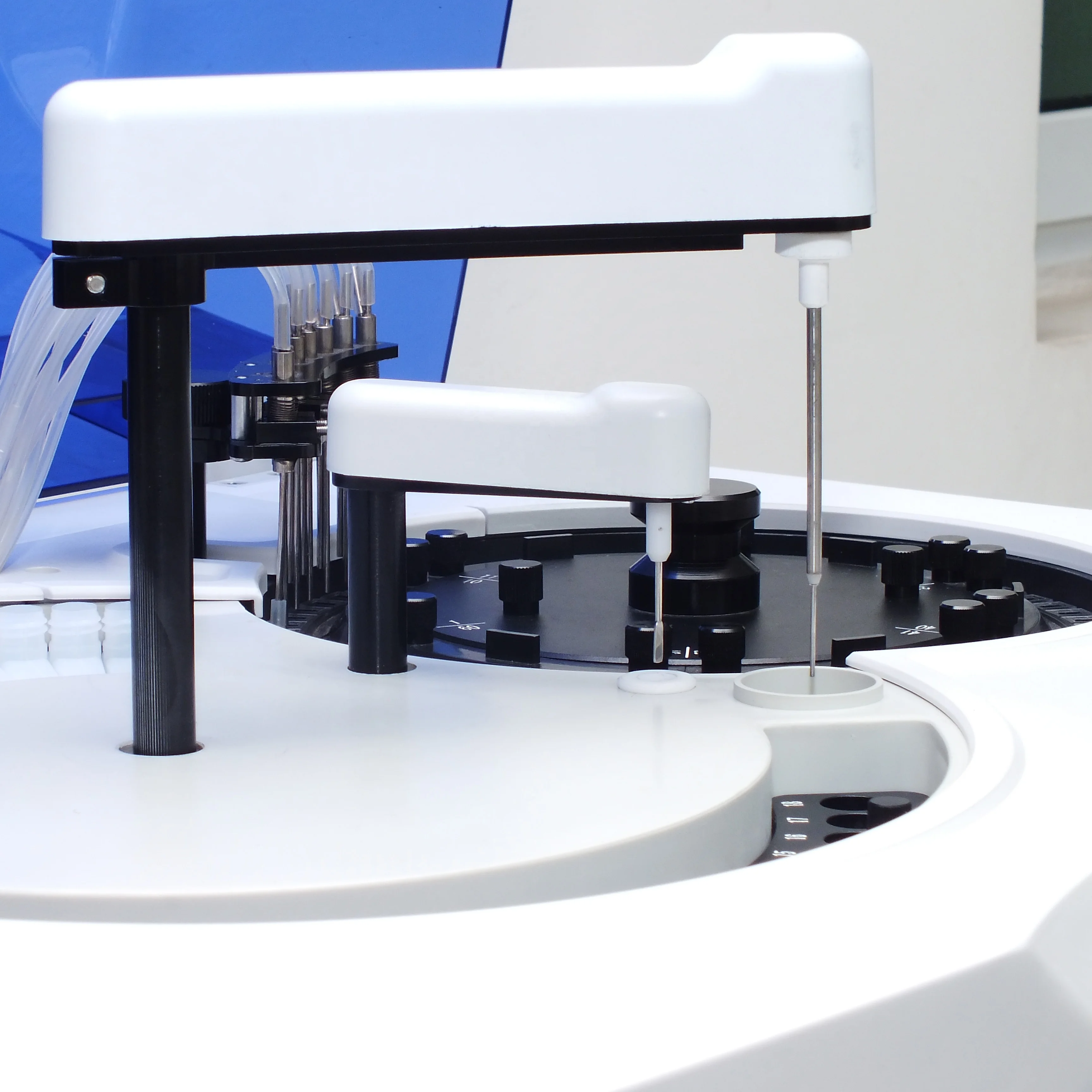

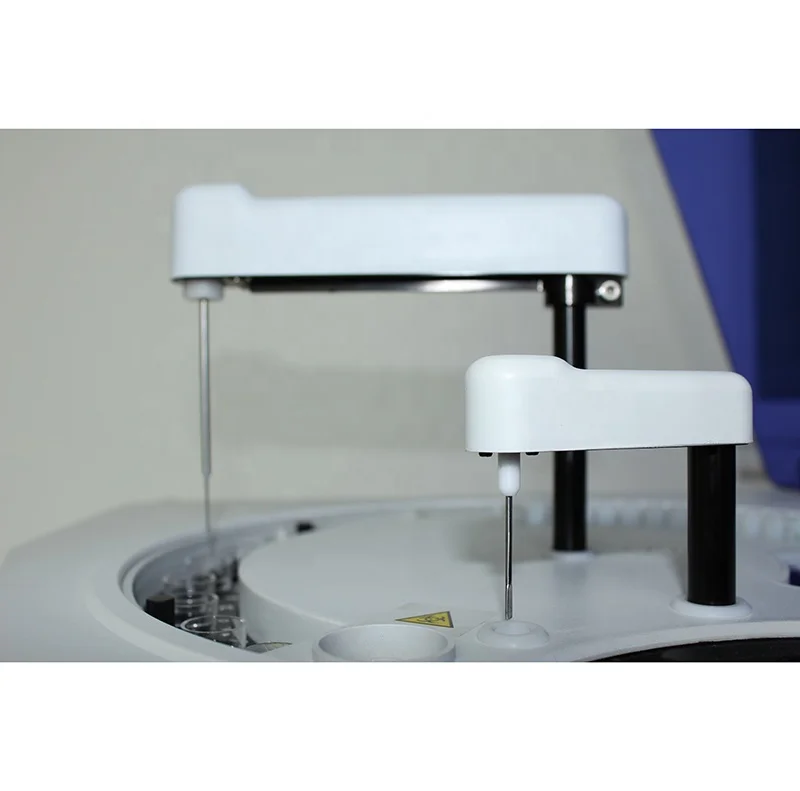

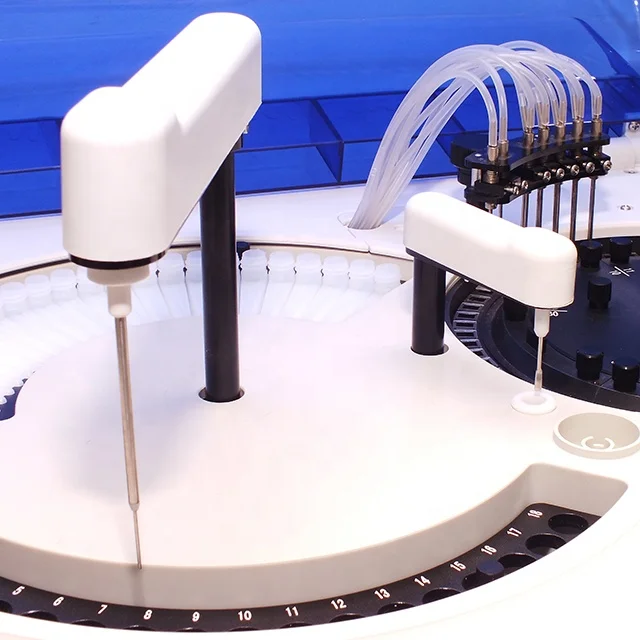

Sample/Reagent/Mixing  Probe• Automatic liquid level detect• Collision protection function• Probe internal/external washing• Independent mixing probe



7-Step Auto Cleaning System• Automatic 7-step washing• Hi-tech washing station to ensure    accurate results• With low water consumption: 1-2L/H



Intellective software• Automatic washing cuvette    when startup & shut down• Automatic detect reagent    volume during every startup• Reagent plate temperature detecting when startup



Optimum calibration cuvette• Automatic Cuvette blank    testing• Automatic wash selected    cuvettes

Dynamic and Real-time display of running status• Real-time online monitoring    running status of sample    tray, reagent tray and   cuvette • Real-time online monitoring    reagents residual volume• Real-time online monitoring    waste volume



Automatic dilute and re-test• Automatic dilute and re-test when absorbance range is   out of range• Automatic dilute and re-test    when linear limit is out of    range• Automatic dilute and re-test when linear range is out   of range• Freely set the auto dilute ratio and dilute water position



A revolutionary automatic biochemistry analyzer with• Compact design: 54.8cmX42.2cmX38.3cm• Easy to carry: net weight≤23kg  Optimal substitution of semi-auto  biochemistry analyzer• Minimal labor required• Independent mixing probe• Utility of reagents decreased: 300ul/test• Efficiency speed:  200 tests/hour• User friendly: Smart and easy-operating software • High Accuracy: Minimal operating/random errors• High reputation from clinics



System Functions• Analysis Methods: end-point, kinetic, two-point,    double-reagent, double-wavelength, multi-standard    etc, open to various reagents



Sample/Reagents Handling• Sample volume: 2-50µl, 0.1µl step   • Sample Dilution: automatic/Manual pre-dilution, with   dilution ratio  up to 1:100• Reagent Position: 26 pcs (Refrigeration function is optional) • Reagent Volume: 10-400µl, 1µl step



Reaction System• Reaction Cuvette: 60 reusable plastic units• Optical Length of Cuvette: 6mm• Reaction Volume: 180~500µl• Max reaction Time: 12 minutes• Reaction Temperature: 37±0.1℃



Optical System• Light Source: halogen-tungsten lamp• Wavelength: 340-690nm, 9 wavelengths, precision ±2nm• Absorbance Range: 0~4.0 Abs• Resolution: 0.001 Abs• Rear spectrophotometry



Calibration• Calibration: linear/nonlinear multi-points calibration• Re-test: retest the sample automatically when the    result is out of the linearity range or the sample is    not sufficient

Working Condition• Power Supply: ~100-240V, 50/60Hz, 300VA• Temperature: 10-30℃• Humidity: ≤90%, no dew

Operation System• Windows XP or Windows 7



Input and Output• Input: RS-232 interface/computer• Output: multi-format printout

STANDARD PARAMETERS

Efficiency speed: 200 tests/hour

Independent mixing probe

Easy to operate: Friendly and Intellective Software

18pcs sample position

26pcs reagent position

60 pcs reusable cuvettes

Automatic 7-step washing

With low water consumption: 1-2L/H



Model	Sample/Reagent Position	Reaction System• Reaction Cuvette	ptical System• Light Source	Input and Output	Operation System	7-Step Auto Cleaning System
DW-TC220	18pcs sample position• Reagent refrigerated function• 26pcs reagent position	60 reusable plastic units• Optical Length of Cuvette: 6mm• Reaction	halogen-tungsten lamp•Wavelength: 340-690nm, 9 wavelengths, precision ±2nm• Absorbance Range: 0~4.0 Abs• Resolution: 0.001 Abs• Rear spectrophotometry	RS-232 interface/computer• Output: multi-format printout	Windows XP or Windows 7	Automatic 7-step washing• Hi-tech washing station to ensure    accurate results• With low water consumption: 1-2L/H
