Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
500ml water bottle blow molding machine pet semi automatic blowing plastic
- Категория: >>>
- Поставщик: Taizhou,Waton,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 6783.19 $* | 7122.83 $* |
| Aug-19-2025 | 6726.46 $* | 7062.27 $* |
| Jul-19-2025 | 5643.26 $* | 5925.78 $* |
| Jun-19-2025 | 6612.87 $* | 6943.83 $* |
| May-19-2025 | 5757.0 $* | 6045.14 $* |
| Apr-19-2025 | 6498.8 $* | 6823.44 $* |
| Mar-19-2025 | 6441.51 $* | 6763.11 $* |
| Feb-19-2025 | 6384.68 $* | 6703.21 $* |
| Jan-19-2025 | 6327.3 $* | 6643.36 $* |
Характеристики
Product Description
Model | MS-20L |
Theoretical Capacity | 60-240 BPH |
Mold Cavities | 1 |
Neck Size | 25-120mm |
Max. Volume | 20 Liter |
Advantages | 1.Pre-blow Function improve bottle quality2.Affordable price |

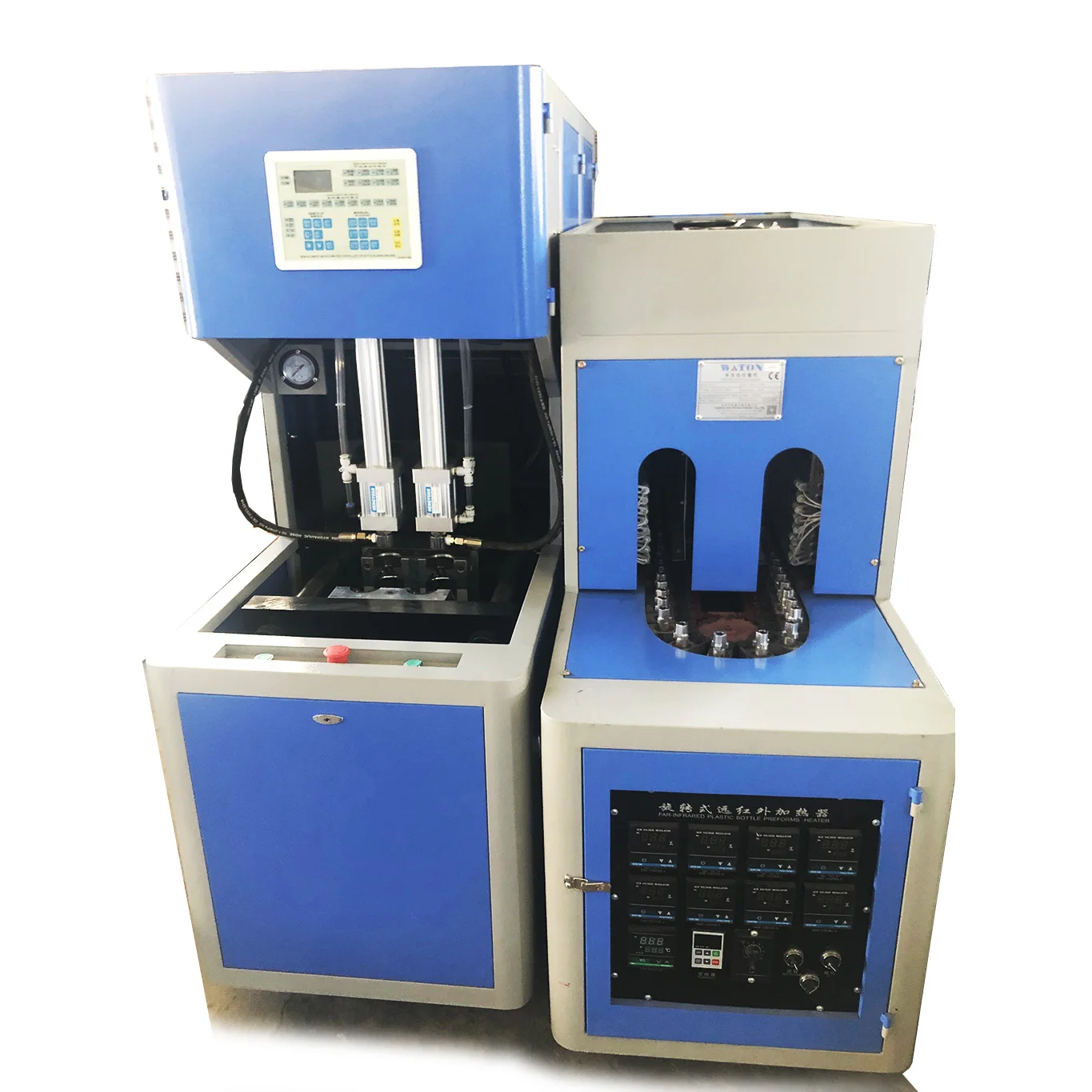

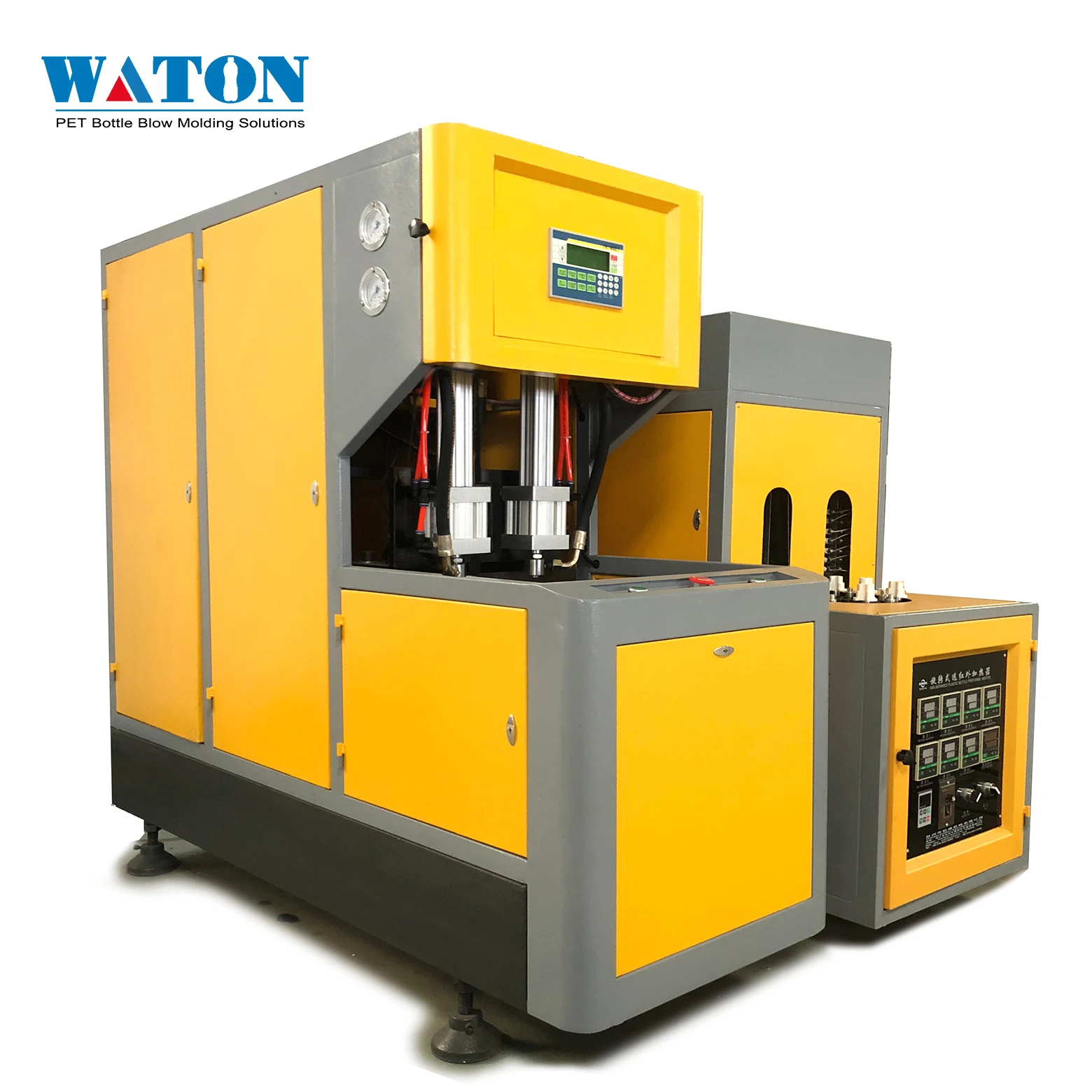

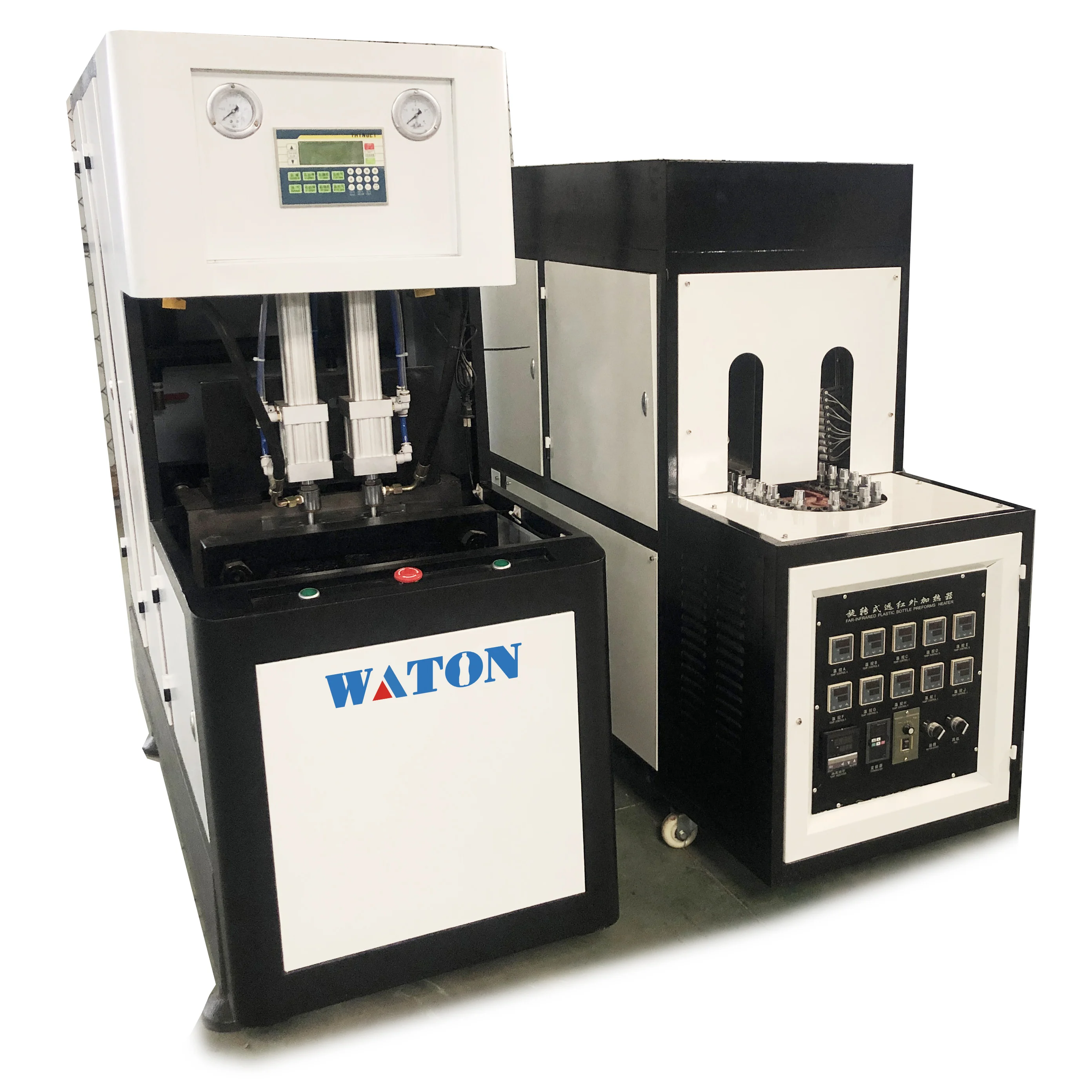

MS Series is traditional model of Semi-automatic Stretch-Blow Molding Machine. Each set of MS Series machine is composed by two parts: Bottle Blower and Infrared Preform Oven.Suitable for various PET bottles from 20L, wide range of application. Infrared heaters, independently adjustable, simple structure, stable running.
Direction for use
1.We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
2.We will send the instruction book to you to let you install the machine. You can talk with our engineer by video chat or we will send the engineers overseas to help you.
WATON Machinery designs the most suitable machine models according to the special requirements of customers, suitable for PETcontainers from 100ml~20L, including package for water, Carbonated Soft Drink, juice, milk, edible oil, beer, solid food, cosmetics, pharmaceuticals, etc.
Detailed Images
Each set of MS Series machine is composed by two parts: Bottle Blower and Infrared Preform Oven. Function of these two parts is:
Infrared Preform Oven: heat the PET preform to suitable soft condition for blowing;
Infrared Preform Oven: heat the PET preform to suitable soft condition for blowing;

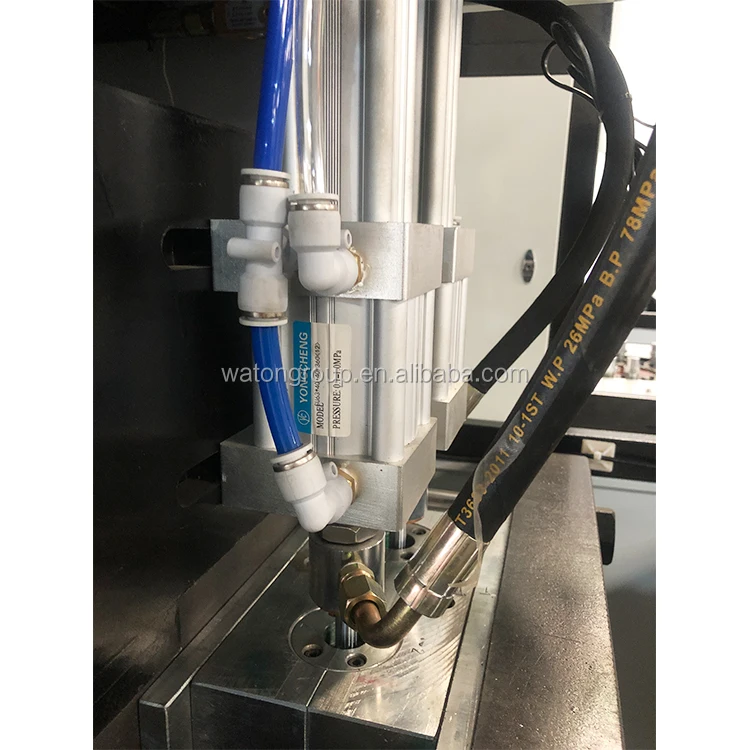

Blower: do the whole bottle blowing process, including sealing, stretching, blowing, exhausting and blow mold’s moving, which is controlled by advanced PLC control system.
Patent Blow Air Heating System & Pre-blow Function plays important role for producing high quality bottles, eliminate bottle whiten appearance.
Patent Blow Air Heating System & Pre-blow Function plays important role for producing high quality bottles, eliminate bottle whiten appearance.
Specifications
Models | MS-2L | MS-2L2 | MS-5L-1 | MS-5L-2 | MS-20L | ||
Theoretical Capacity(BPH) | 800~1,000 | 1,600~2,000 | 350~400 | 700~800 | 60~240 | ||
Mold Cavities | 1 | 2 | 1 | 2 | 1 | ||
Bottle | Max. Neck Size | 100mm | 100mm | 110mm | 110mm | 55mm | |
Max. Volume | 2000ml | 2000ml | 5000ml | 5000ml | 20000ml | ||
Max. Diameter | 105mm | 105mm | 180mm | 180mm | 280mm | ||
Max. Height | 330mm | 330mm | 350mm | 350mm | 500mm | ||
Main Machine Size | 1680*950*1980mm | 2 main machine | 1900*650*1580mm | 1900*800*1580mm | 2500*800*1900mm | ||
Heater Size | 1650*700*1700mm | 1 heater | 2100*600*1350mm | 2100*600*1350mm | 2600*700*1580mm | ||
Main Machine Weight | 1500KGS | 2500KGS | 1700KGS | 1700KGS | 2400KGS | ||
Certifications
Packing&Shipping
As a factory, all of packages are neutral to support trading company and whole seller and distributor from all over the world. If you have special request, please leave your comments.
After Sales Service
after-sales service we offer
1.Your inquiry related to our product & price will be replied within 72 hours.
2.Well-trained & experienced staff will answer all your inquiries in English and Chinese.
3.Working time: 8:30am ~5:30pm, Monday to Saturday.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sales service offered, please get back to us if you got any questions.
2.Well-trained & experienced staff will answer all your inquiries in English and Chinese.
3.Working time: 8:30am ~5:30pm, Monday to Saturday.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sales service offered, please get back to us if you got any questions.
Company Introduction
WATON Machinery is a professional manufacturer of two-step linear full-electric high-speed automatic PET bottle blow molding machine, located in Taizhou City, Zhejiang Province. Our team has 20-years experience in PET stretch Blow Molding Machine manufacturing. Since establishment, we have been committed to be a trustworthy and reliable partner, providing customers with high efficiency, low energy consumption, stable operation of equipment and excellent services. Our offer service in:
√Automatic/Semi-auto Electric PET Blow Molding Machine
√Turnkey solution for PET bottle production line
√In-line service for PET bottle production line & Filling line.
√Automatic/Semi-auto Electric PET Blow Molding Machine
√Turnkey solution for PET bottle production line
√In-line service for PET bottle production line & Filling line.
Our Services & Strength
1. Stable running machines with newly technology, competitive price;
2. top rank technical support ;
3. Best and prompt service.
2. top rank technical support ;
3. Best and prompt service.
FAQ
Q1: Are you a manufacturer or trading company?
A: We are the manufacturer from Taizhou, so we can offer you the best quality and best price of the machine.
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with high quality after-service. Also we have two year warranty of the spare parts, free of charge.
Q3: What is the advantage of servo control?
A3: 1. Precision
2. Fast reaction, make high speed possible
3. Low power consumption
4. Low noise
5. hygiene, without oil leakage problem
Q4: Do you have technical support after we purchased your machines?
A4: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q5: What after-sales service your company offers?
1.Your inquiry related to our product & price will be replied within 72 hours.
2.Well-trained & experienced staff will answer all your inquiries in English and Chinese.
3.Working time: 8:30am ~5:30pm, Monday to Saturday.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sales service offered, please get back to us if you got any questions.
Q6: Can I visit your factory and send team for learning and inspect?
A6:Yes,sure.We will do our best to teaching you how to use the machine.welcome to visit our factory!
Q7: What your advantages are?
A7: 1. Stable running machines with newly technology, competitive price;
2. top rank technical support
3. Best and prompt service
Q8: Where is your factory located? How can we visit there?
A8: Our factory is located in Tai Zhou City, Zhe Jiang Province, China. From Shanghai to our city, it takes 3.5hrs by train, 45mins by air.
Q9: What is your terms of packing?
A9: Because of the new provisions on fumigation, we pack machines with bubble film and wrap film. It is safe pack in container. We can also do wooden case. Some countries require fumigation for wooden case. It depends on your country’s requirement.
Q10: When Can I get my machine after I paid?
A10: The delivery time is about 30-45 working days
