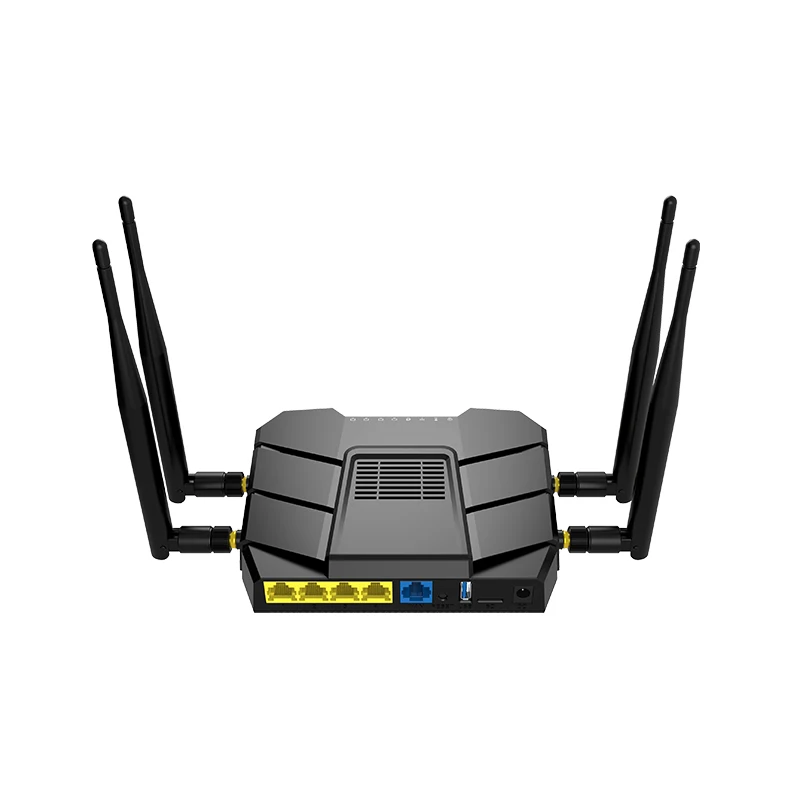

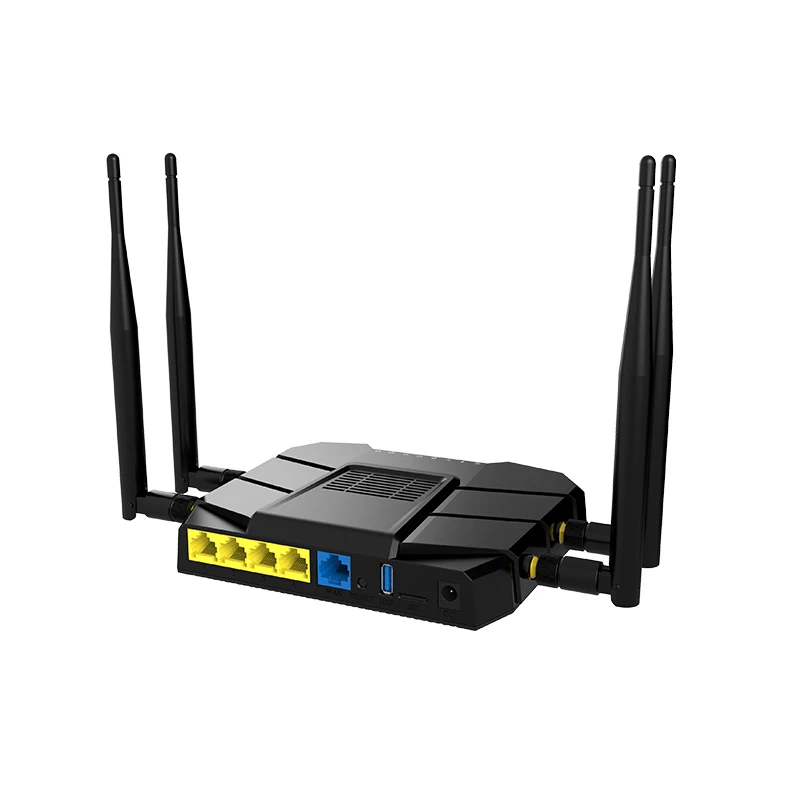

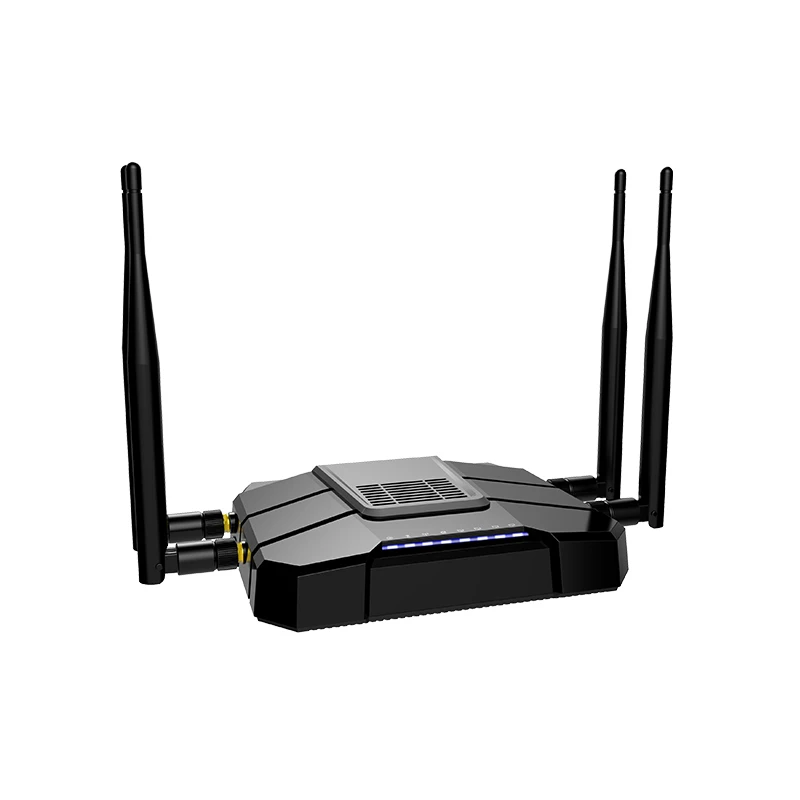

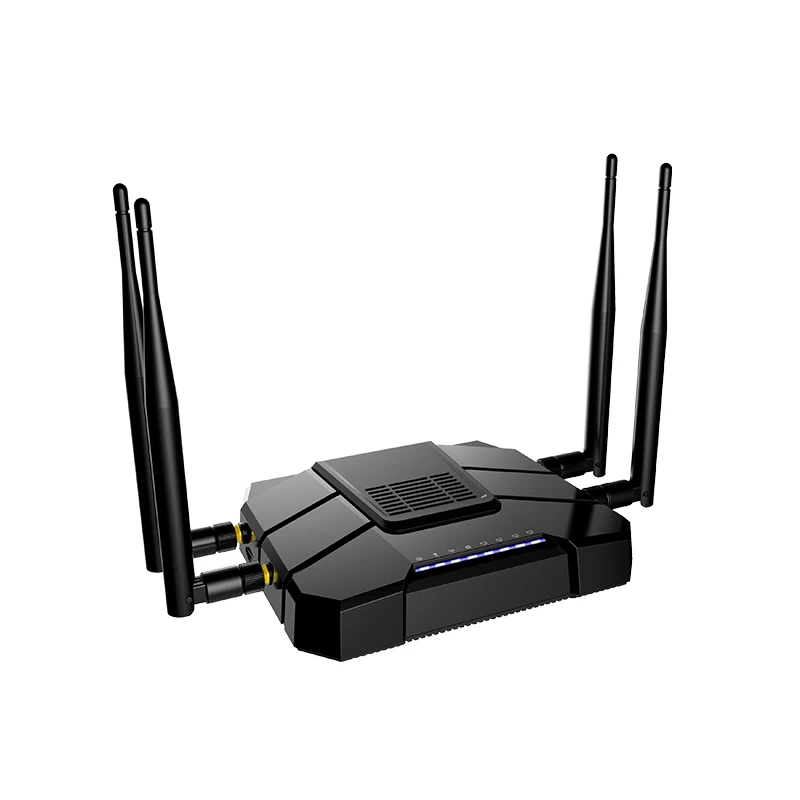

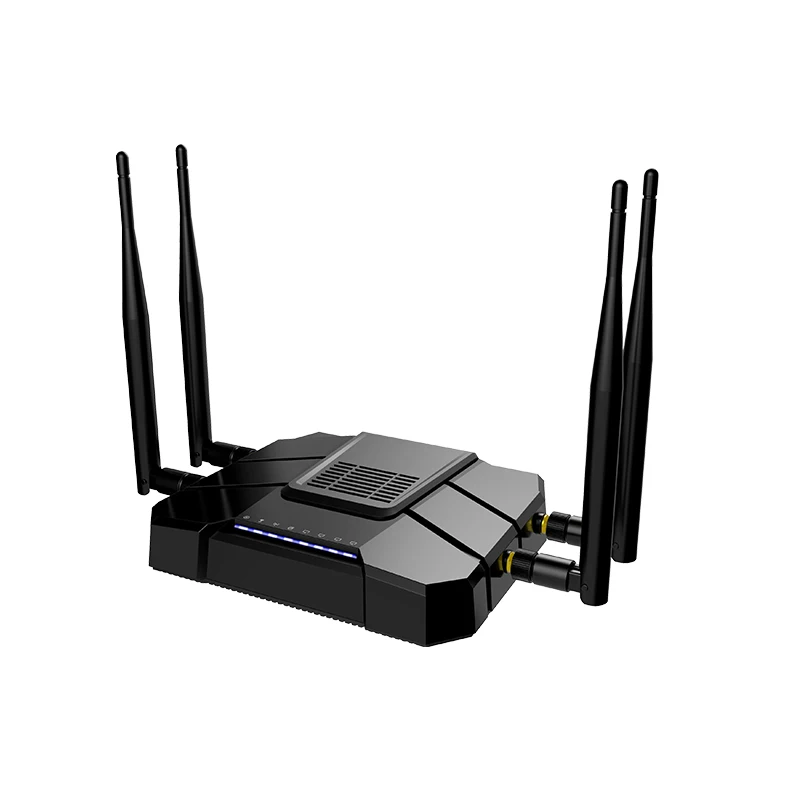

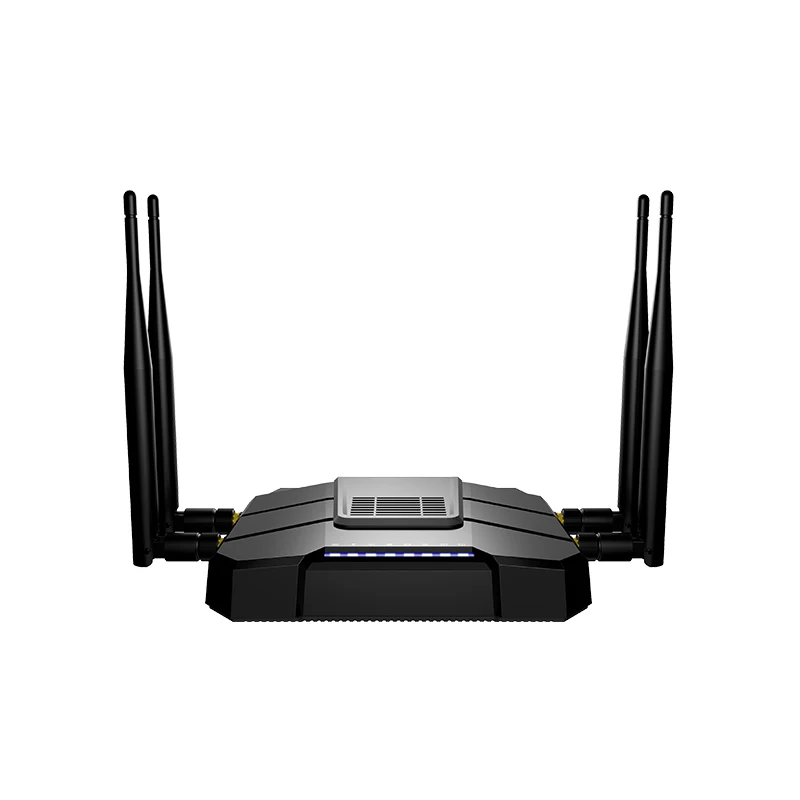

Мини беспроводной Wi-Fi ретранслятор расширитель диапазона с длинной батареей встроенной Sim-картой сети Reng Jio 100 шт. 4g 5g Универсальный 1 км

Hardware

Product Mode

ZBT-WE1326

2.4GHz chipset

MT7621/Dual core/880MHz

5G chipset

MT7612E

RAM

DDR3 256MB (Maximum DDR3 512MB)

FLASH

SPI 16MB  (Maximum 32MB)

Protocol

IEEE802.11ac/a/b/g/n

IEEE802.3, IEEE802.3u

Wireless rate

2.4G: 300Mbps

5G: 867Mbps

Work frequency

2.4GHZ, 5.8GHZ

Antenna

2*5dbi 2.4Ghz antennas

2*5dbi 5.8GHz antennas

Interface

1* 10/100/1000Mbps Auto-MDI/MDIX WAN port,
4* 10/100/1000Mbps Auto-MDI/MDIX LAN port,

1* USB 2.0 port, 1* SD Card Slot, 1*Mini-PCIE slot, 1*SIM card slot

LED

Power/2.4G/5G/WAN/LAN4/LAN3/LAN2/LAN1

Button

Reset

Powered by POE

NO

Maximum power consumption

12W

Power Adapter

DC 12V 2A

Housing size (L*W*H) and color

Size: 235*135*25.5mm

Color: Black silver (accept custom)

Software

Factory setting

IP address: 192.168.1.1

User name/ pass word: admin/admin

WAN access way

PPPoE, Dynamic IP, Static IP, 3G/4G

Work mode

AP; ROUTER;

DHCP server

DHCP server
Client list;
Static Address distribution

System supported

Original SDK, openwrt, eCos

Virtual server

Port Forwarding
DMZ main machine

Safety setting

Client filter

MAC Address Filter

URL Filter

Long-distance WEB management

DDNS

Support

WEB theme switch

Support

Bandwidth control

Support

Static routing

Support

System log

Support

Others

Mac clone

NTP Synchronize

Web firmware upgrade

Others

Work environment

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃~ 70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
