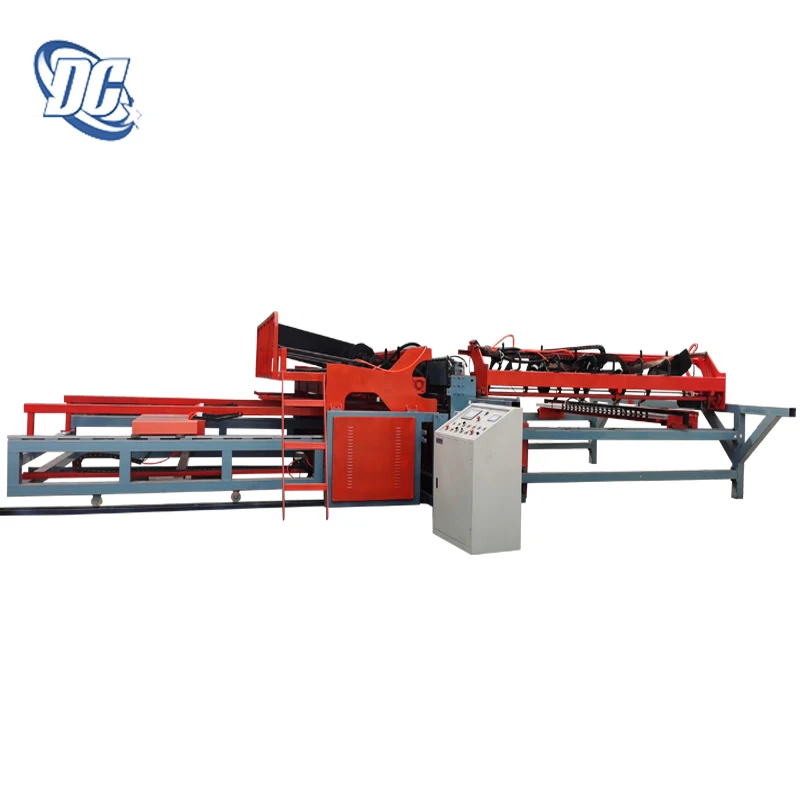

3-6 мм автоматическая машина для сварки проволочной

 Specifications

1.Wire diameter: 3-6mm

2.Line wire from: pre-straightening and  pre-cutting wire

   Cross wire from: pre-straightening and pre-cutting wire

3.Control system :synchronous with PLC control ,touch screen board

4.Cross feeding system :automatic falling controlled by step motor

5.Advantage:  welding different size mesh on the same wire mesh panel.

6. Firm welding, Little noise, High speed

Detailed Parameters

♥ Special type can be customized accroding to your demands!

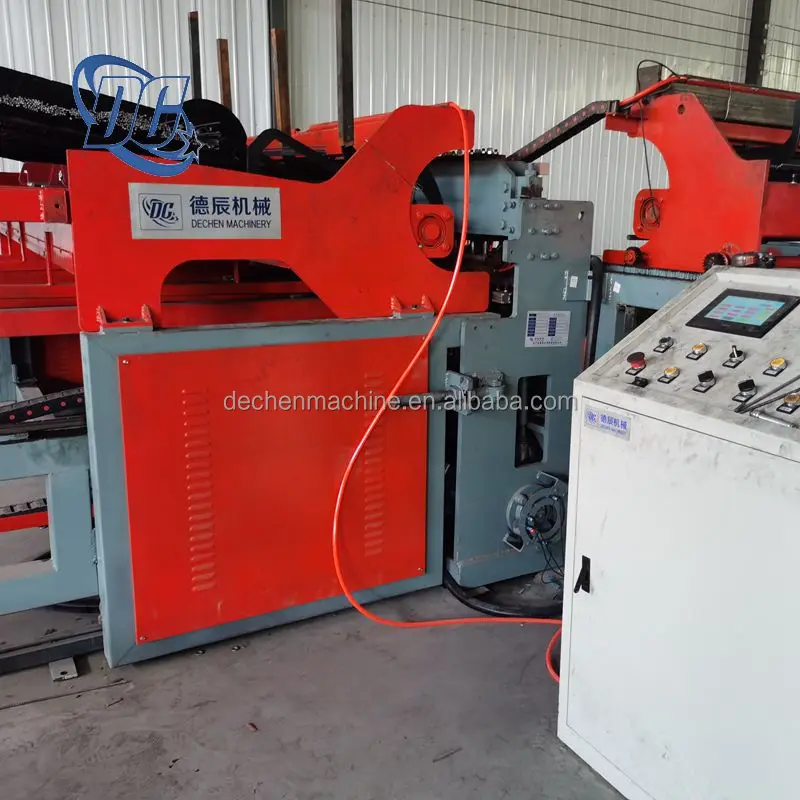

Controlling system

The machine uses synchronous control technique, welding time and separate welding adopt Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, and it can weld different size mesh on the same wire mesh panel.

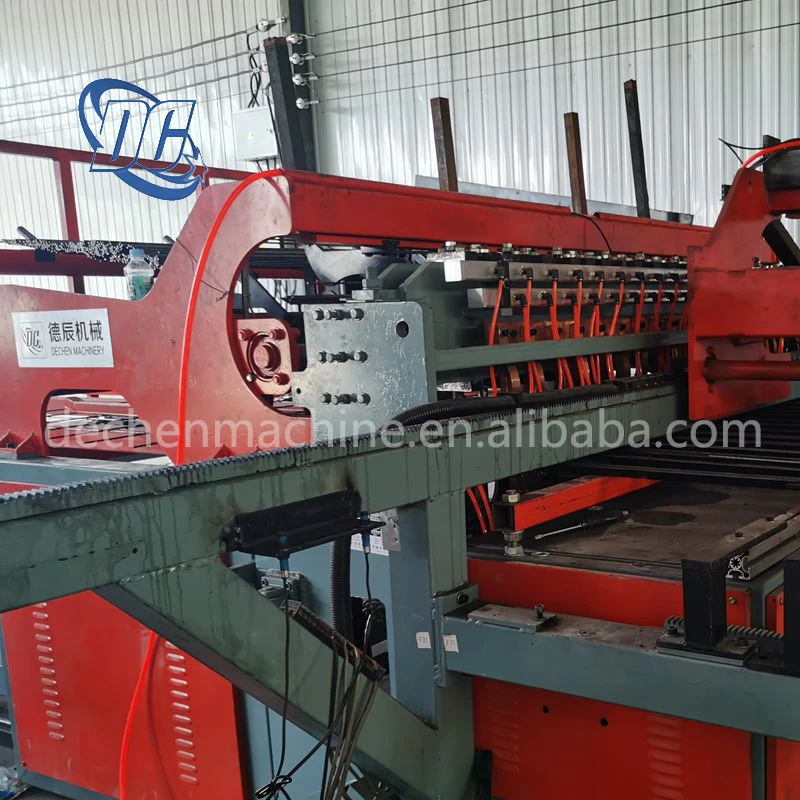

Wire Falling system

Cross wire feeding: Firstly, the coil wires are straighten and cut into fixed length by automatic straightening and cutting machine, which become cross wire. Then worker put the cross wires into wire hopper. The cross wire feeding is automatic and driven by step motor, which makes the cross wire falling and mesh aperture size more accurate.

Line wire feeding1: line wires are the same to cross wires, firstly use straightening cutting machine to straighten and cut coil wire into fixed length. Then workers let the warp wires through the hole, the welding begin.

Line wire feeding2:The line wire is  inserted with one side of the coil wire into through-hole solder wire mesh machine, and then it  continues working automatically.

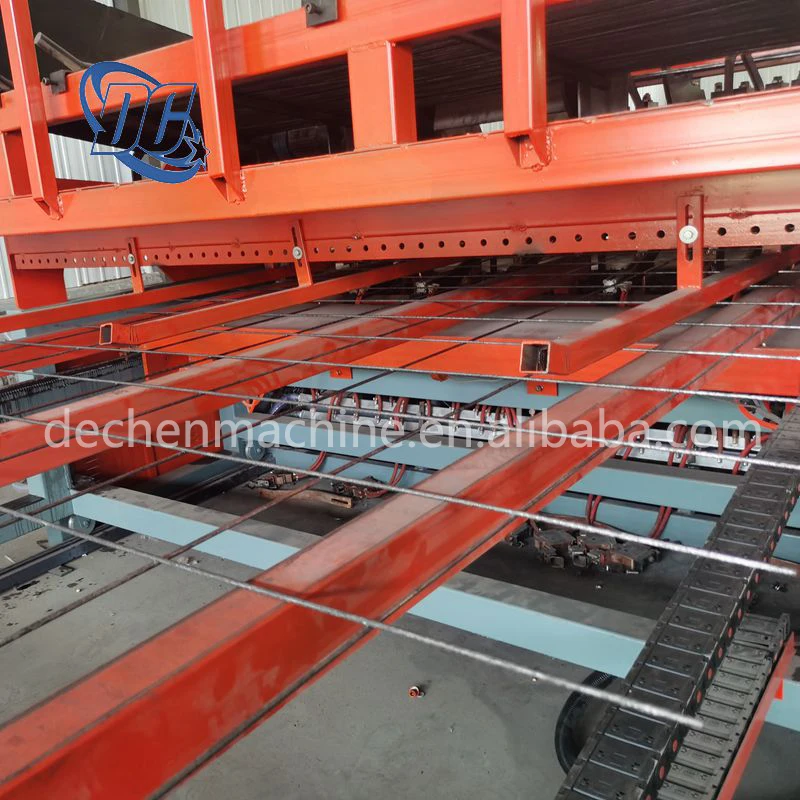

Pulling system

The mesh pulling system is controlled by step motor, which makes the pulling mesh aperture more standard and accurate.

Welding power

The welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper.

Standard Accessory

(1) AutomaticStraightening and Cutting Machine : 2 sets

(2) Wire Tray :2 pieces

 Application

Materials: iron wire ,stainless steel wire,galvanized iron wire,rebar

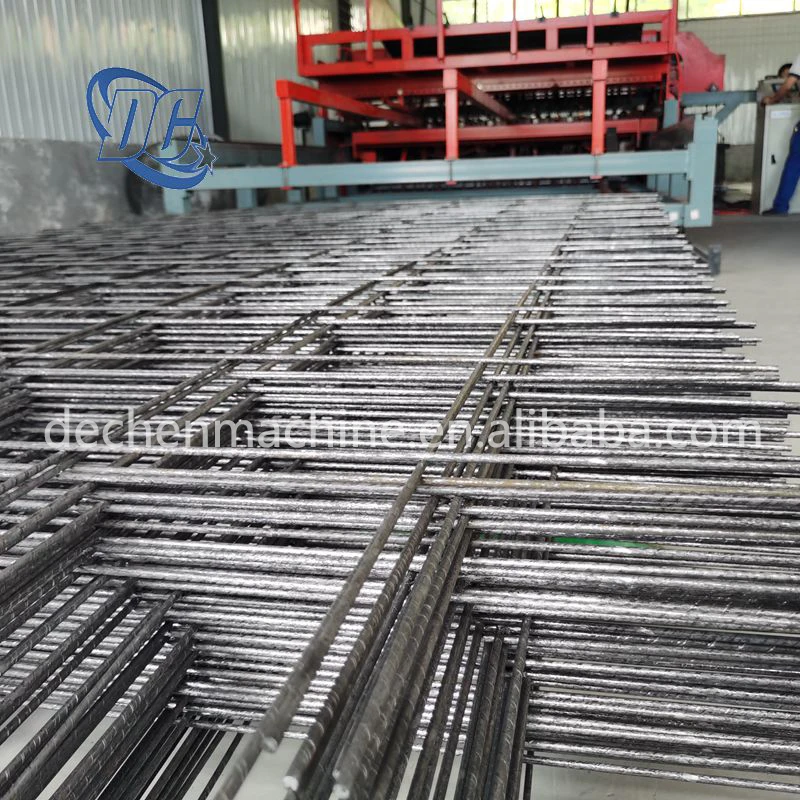

Finished product: sheet mesh panel

Usage: fencing mesh(highway, railway), construction mesh

1.   The spare parts and control cabinet will be loaded in wooden box.

2.   The main machine is nude packing or plastic packing.

    Clients First, Honest Frist.
Your satisfaction is our ultimate goal forever.

1. If the buyers need, we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination port.

2. Maintenance period :one year for whole machine except vulnerable parts.

3. The numbers of technical persons: one technical per machine.

4. The fees: the buyer have to pay the technical salary 80 USD per day, and the round-trip ticket, accommodation and other related fees.

During the maintenance period , if the parts are broken caused by the product problem, seller will offer the parts for free, if you need we assign the technicians to your factory, then you will pay some related fees.

     Anping Dechen Wire Mesh Machinery Co., Ltd. is located in Anping City, which is fanous for being Hometown of wire mesh in China.

     Its main products include reinforcing mesh row welding machines, CNC guardrail mesh row welding machines, three-wire guardrail mesh row welding machines, construction steel wire mesh row welding machines, cultivation mesh row welding machines, automatic welded wire mesh machines, guarding mesh welding machines, grassland fence netting machines, barbed rope machines, pneumatic long-arm spot welding machines and automatic straight wire breaking machines.

 If need more information, please feel free to visit our website or contact us.We are looking forward to establishing long-lasting business relationships with you in the near future.

♥ http://dechenmachine.en.alibaba.com/

Q: Can your machine be customized ?

A: Yes, we are a professional manufacturer specialized in automatic welding
equipment for many years, we have an advanced design & technical team, we can design and manufacture as per your requirements.

Q: How to get an accurate quotation ?

A: 1.Mesh panel wire diameter : from ___mm to ___mm
    2.Mesh opening size : from ___mm to ____mm
    3.Would you like mesh panel or mesh rolls?
    4.Max. Wire mesh width ?
