Цена по прейскуранту завода-изготовителя SD карты светодиодный контроллер 8-ходовой переключатель портов x 1024 пикселей управления K8000-C светодиодной

1.Product description

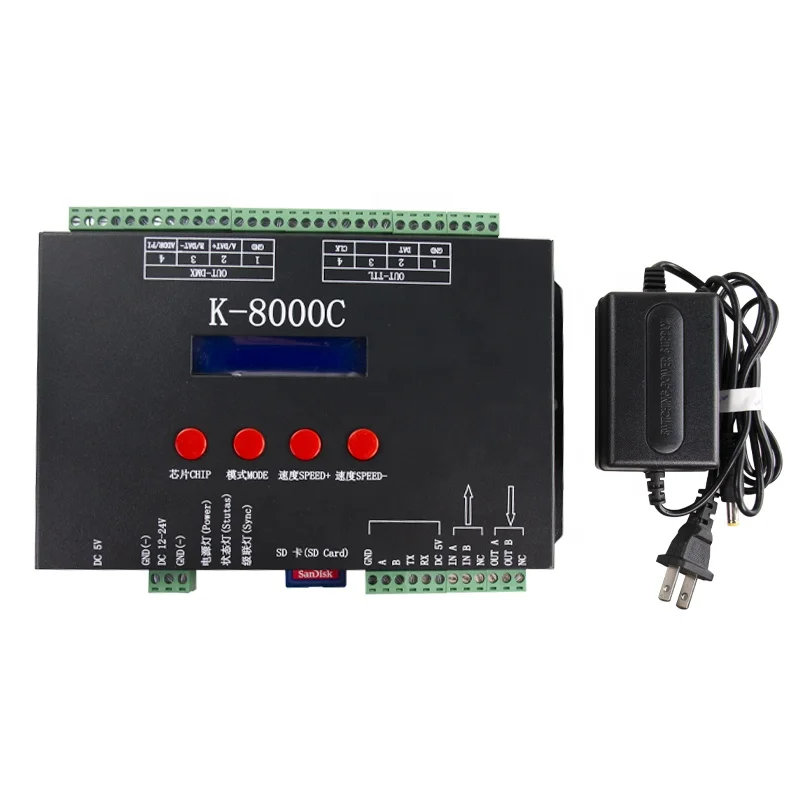

K-8000C LED Controller is a SD Card offline control programmable led controller.

Working temperature: -20℃—85℃

Working voltage: DC 5V or DC 12-24V input

Power consumption: 5W

Weight: 0.8Kg

2.Features

1. 32 to 65536 degree Gray control, Gamma correction procession handle.

2. Support various point, line light source, and all kinds of rules and specific shaped handle.

3. The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).

4. The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.

5. The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.

6. The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.

7. For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.

8. Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.

9. Enhanced 485 TTL and 485 differential (DMX) signal output.

10.The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

Packaging:

Package dimensions:115*80*27mm.
Net Weight:0.35kg
Packing sise:410*310*150mm/60PCS

Shipment:

1.Ship Way:Door to Door express or by Air and Sea

2.Shipping port: Shenzhen, Mainland China

3.Leadtime:Sample can be delivered in 3-5days

4. Production lead time for 10000M:7-10days

1.Reply you in 24 hours

2.Customized design,ODM/OEM Customized Service are available
3.Professional engineer team provide full support in the whole control system solutions.
4.Experienced sales consultant to cooperate with your work

Warranty:

1.All products we sell are in good quality and have been tested before they are shipped out.

2.We offer 3 years Warranty.
