Высокоинтенсивная 2020 3040 автоматическая колонка и манипулятор для сварки
- Категория: Other Welding Equipment >>>
- Поставщик: Wuxi,Zhouxiang,Complete,Set,Of,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 10234.48 $* | 10746.72 $* |
| Aug-18-2025 | 10148.6 $* | 10655.24 $* |
| Jul-18-2025 | 8514.78 $* | 8940.95 $* |
| Jun-18-2025 | 9976.82 $* | 10475.22 $* |
| May-18-2025 | 8686.44 $* | 9120.98 $* |
| Apr-18-2025 | 9804.63 $* | 10294.88 $* |
| Mar-18-2025 | 9718.10 $* | 10204.29 $* |
| Feb-18-2025 | 9632.54 $* | 10114.66 $* |
| Jan-18-2025 | 9546.88 $* | 10023.44 $* |
Характеристики
Product Description

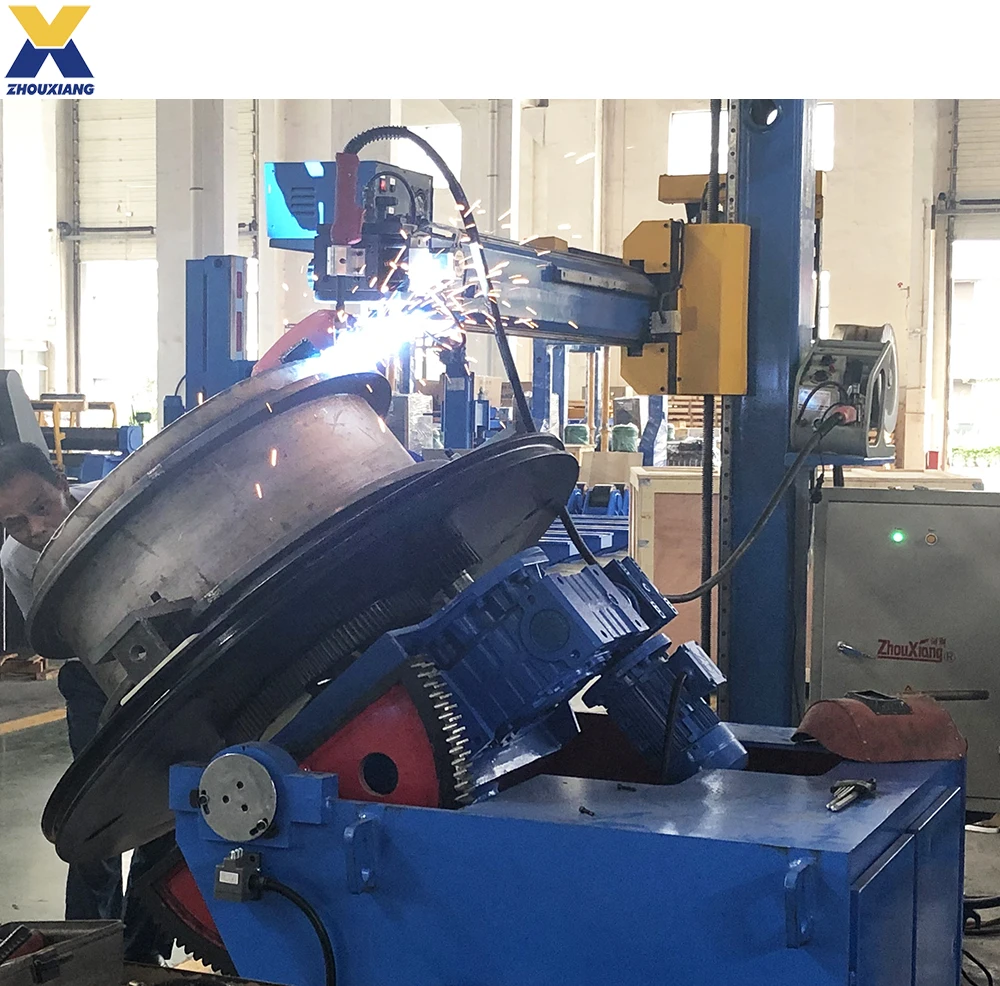

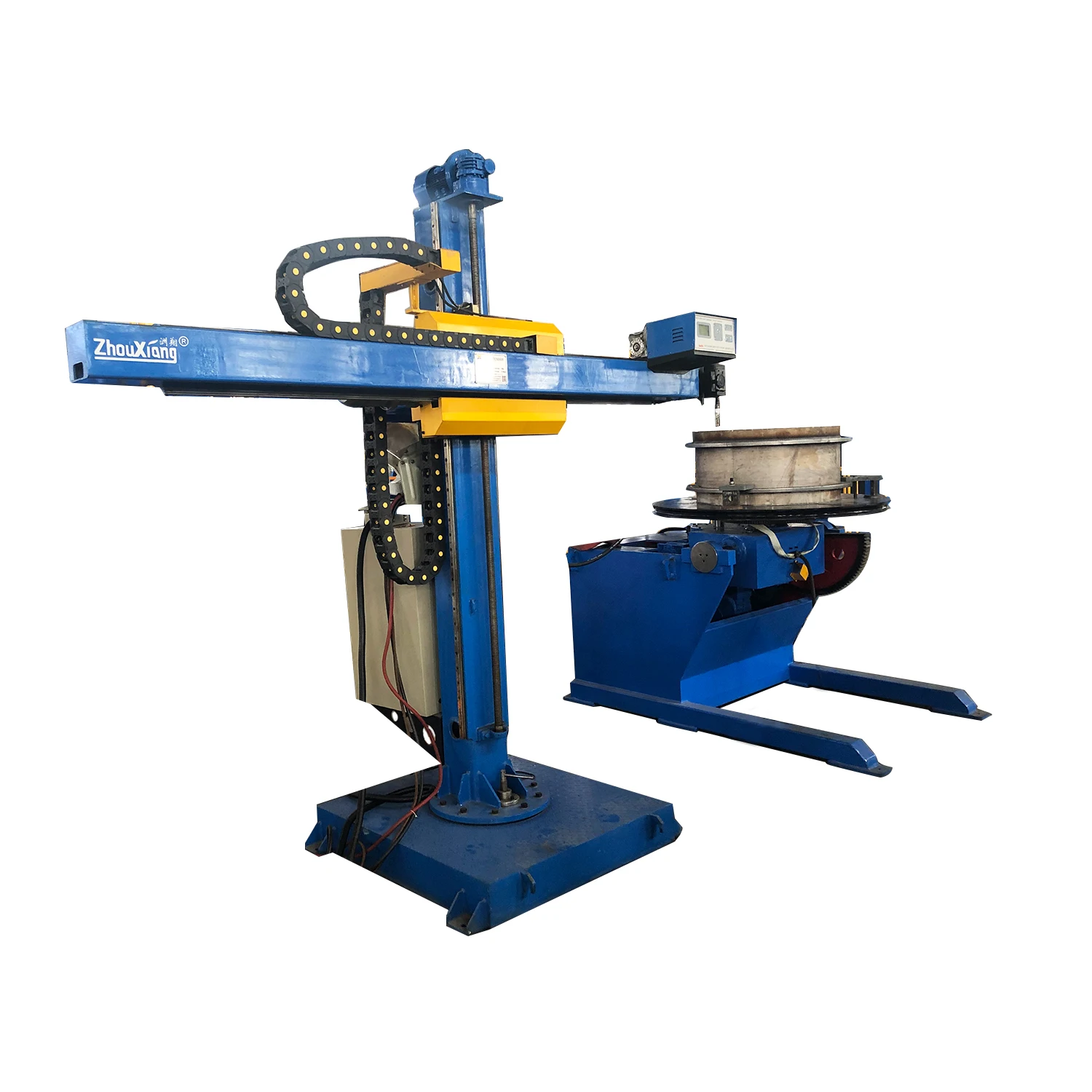

Automatic welding manipulator
Welding manipulator also called as welding column and boom which combine with welding rotator and welding positioner to become the dedicated automatic welding device for welding structure parts’ internal and external circular seam, fillet weld, inside andoutside longitudinal seam and has different structure forms such as fixed type, rotary type, versatile position type, etc.
Different types of welding manipulator is available: fixed type with manual/electric rotation, electric moving type with manual/electric rotation, which can adapt to different welding positions of the workpiece.
Welding manipulator also called as welding column and boom which combine with welding rotator and welding positioner to become the dedicated automatic welding device for welding structure parts’ internal and external circular seam, fillet weld, inside andoutside longitudinal seam and has different structure forms such as fixed type, rotary type, versatile position type, etc.
Different types of welding manipulator is available: fixed type with manual/electric rotation, electric moving type with manual/electric rotation, which can adapt to different welding positions of the workpiece.
Model | Boom In-out Speed | Boom Up-Down Speed | Trolley Speed | Column Rotate Angle | Machine Height | Boom Expansion | Rail & Wheels Distance | Trolley Size | ||||
Mh | Horizontal Emin--Emax | Vertical Lmin--Lmax | Rc&Wd | Tl*Tw*Th | ||||||||
m/min | ±180° | mm | mm | M | mm | |||||||
LCH2020 | 0.12-1.2 | 0.3 | 1.5 | Manual | 3474 | 625-2625 | 775-2775 | 0.8 & 1.3 | 1454*1100*174 | |||
LCH3040 | 0.12-1.2 | 1 | 1.5 | Motor | 5908 | 1500-5500 | 950-3950 | 1.7 & 1.9 | 2144*2000*225 | |||
LCH3550 | 0.12-1.2 | 1 | 1.5 | 6408 | 1500-6500 | 950-4450 | 1.7 & 1.9 | 2144*2000*225 | ||||
LCH4050 | 0.12-1.2 | 1 | 1.5 | 6908 | 1500-6500 | 950-4950 | 1.7 & 1.9 | 2144*2000*225 | ||||
LCH5060 | 0.12-1.2 | 1 | 1.5 | 7908 | 1500-7500 | 950-5950 | 1.7 & 1.9 | 2144*2000*225 | ||||
LCH8060 | 0.12-1.2 | 0.9 | 1.5 | 11090 | 1500-7500 | 1330-9330 | 3.0 & 2.7 | 3034*3270*305 | ||||
Product Details
1.High precision
The column and boom are welded by profiles, and tempered after welding, then finishing processed to ensure high precision requirements.
2.High safety performance
The boom is equipped with safety anti-falling device, which can effectively prevent the boom from
falling.
falling.

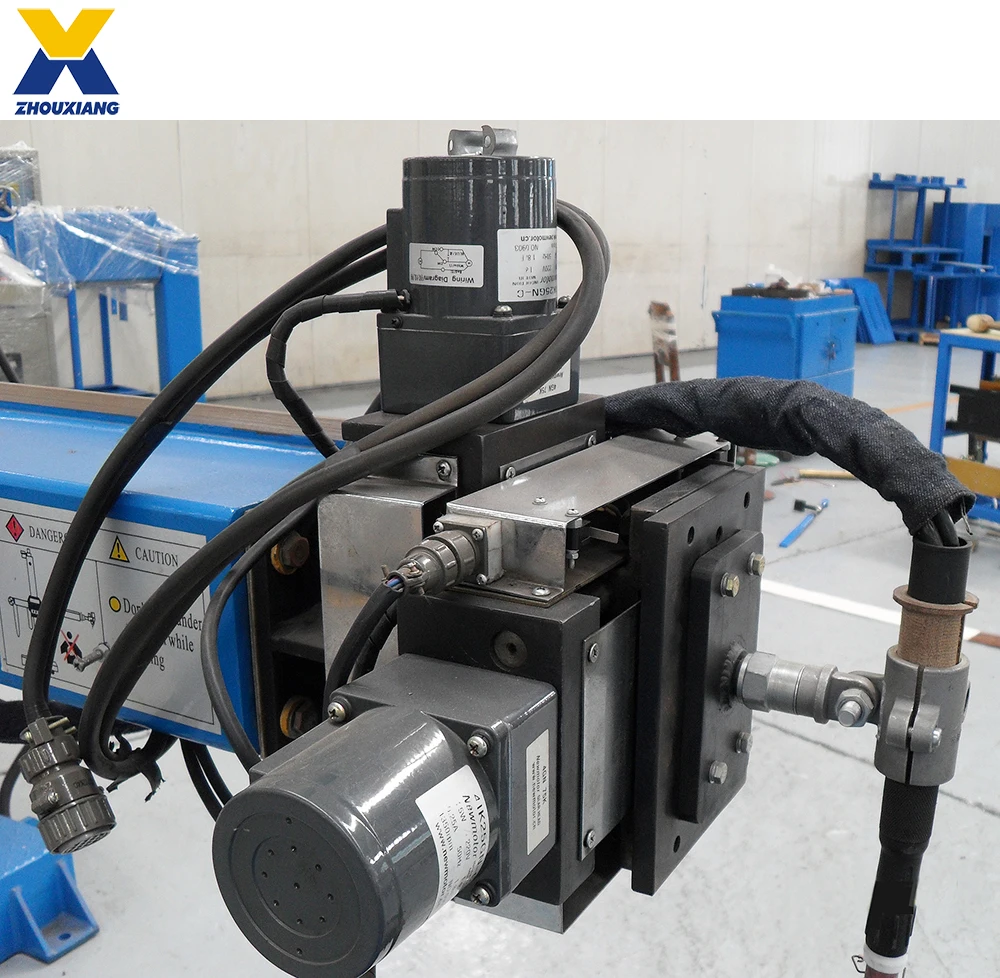

3.Welding torch fine-tuning device
The welding torch is equipped with cross slider device to realize the cross adjustment of the welding torch up, down, left and right.

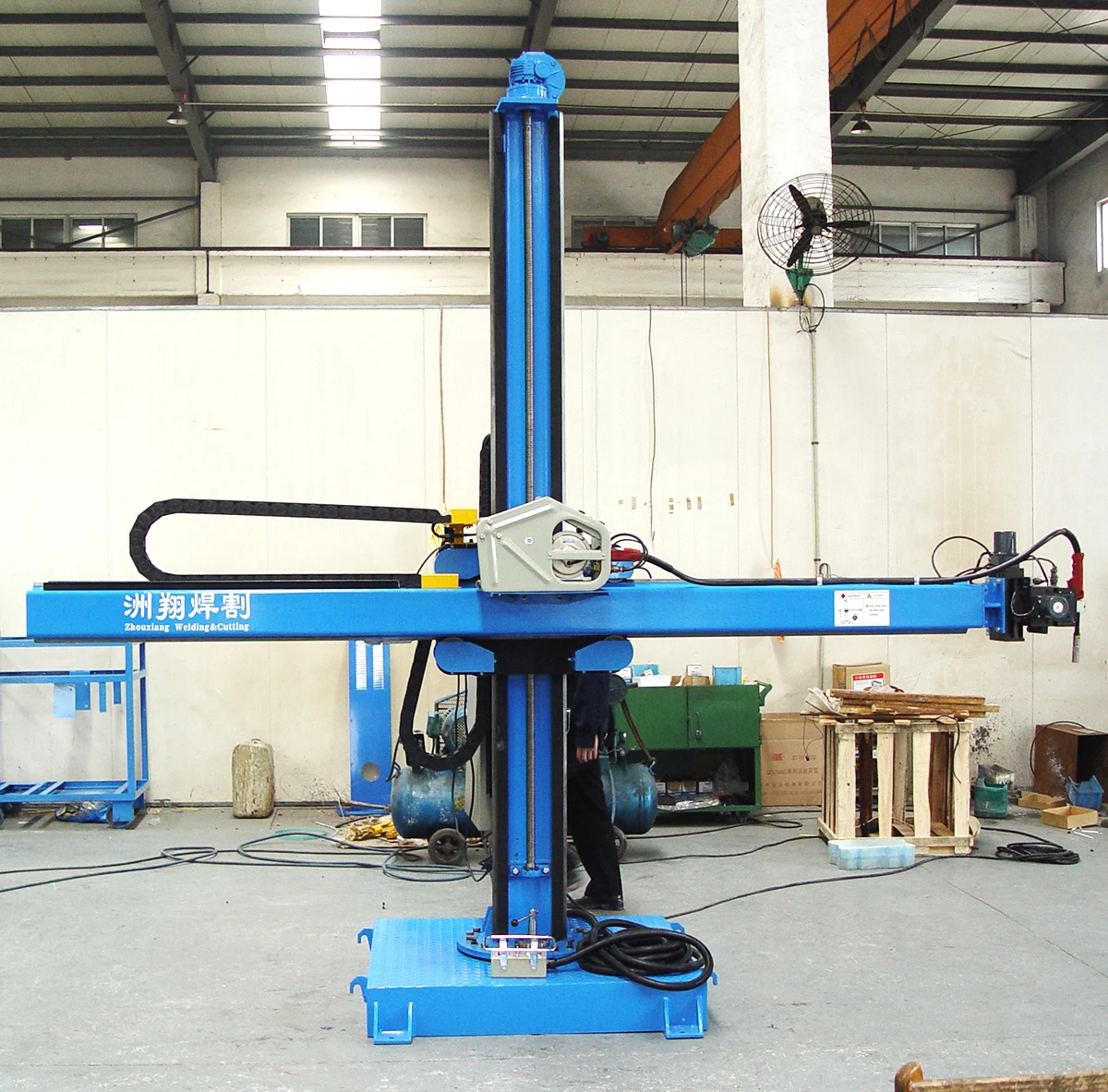

4.There is a climbing ladder on the column for easy maintenance
