I Beam Processing Steel Structure Hydraulic H-Beam 3 Head CNC Drilling
- Категория: Drilling Machines >>>
- Поставщик: Shandong,Fin,Cnc,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.76 $* | 0.23 $* |
| Aug-16-2025 | 0.20 $* | 0.42 $* |
| Jul-16-2025 | 0.15 $* | 0.49 $* |
| Jun-16-2025 | 0.93 $* | 0.68 $* |
| May-16-2025 | 0.95 $* | 0.44 $* |
| Apr-16-2025 | 0.10 $* | 0.55 $* |
| Mar-16-2025 | 0.2 $* | 0.19 $* |
| Feb-16-2025 | 0.37 $* | 0.61 $* |
| Jan-16-2025 | 0.62 $* | 0.73 $* |
Характеристики
Products Description
Workpiece size | Web Hight | 150～1000mm |
Flange width | 75～500mm | |
Max. length | 12000(option) | |
Drillig power head | Spindle rotation speed(r/min) | 0-2000 |
Axial feeding speed(m/min) | 0-5 | |
Number | 3 | |
Max. drilling diameter | Carbide drill:30 Dwist drilling head:40 | |
Upper spindle in horizontal direction | 30-370 | |
Fixed/ moveable side in vertical direction | 40-760mm | |
spindle taper hole | BT40 | |
CNC axis | Number | 7 |
Motor power | power of spindle servo motorS1/S6(Kw) | Power of inverter Motor 11kW |
Servo motor for spindle feeding | 3*2kW | |
Servo motor for positioning | 3*1.5kW | |
Servo motor for carrage feeding | 5.0kW | |
Electric system | CNC system | PLC |
Number of axes | 7+3 | |
Hydraulic system | Hydraulic pump pressure(MPa) | 6 |
Motor power(kW) | 4 | |
machine appearance size(L×W×H) | about 5600×1600×3300m | |
machine weight | about 700Kg |

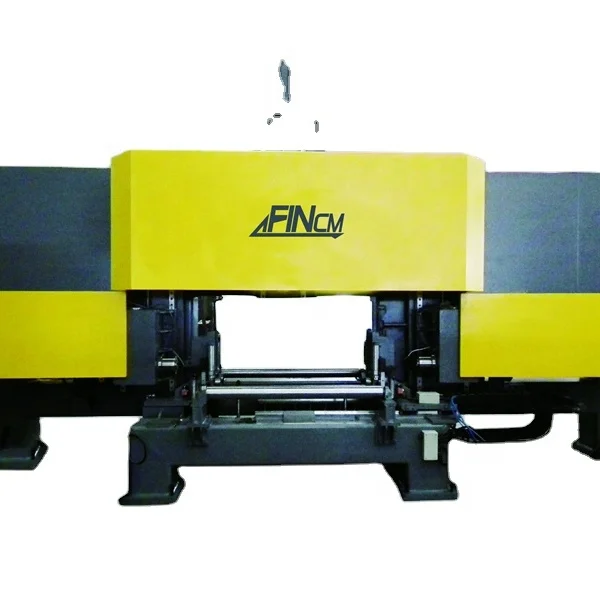

The cnc machines BHD1005/3 is mainly composed of main body, CNC slipway, drilling spindle box, clamping device, measuring device, electric system, hydraulic system, cooling system, chip box, etc..

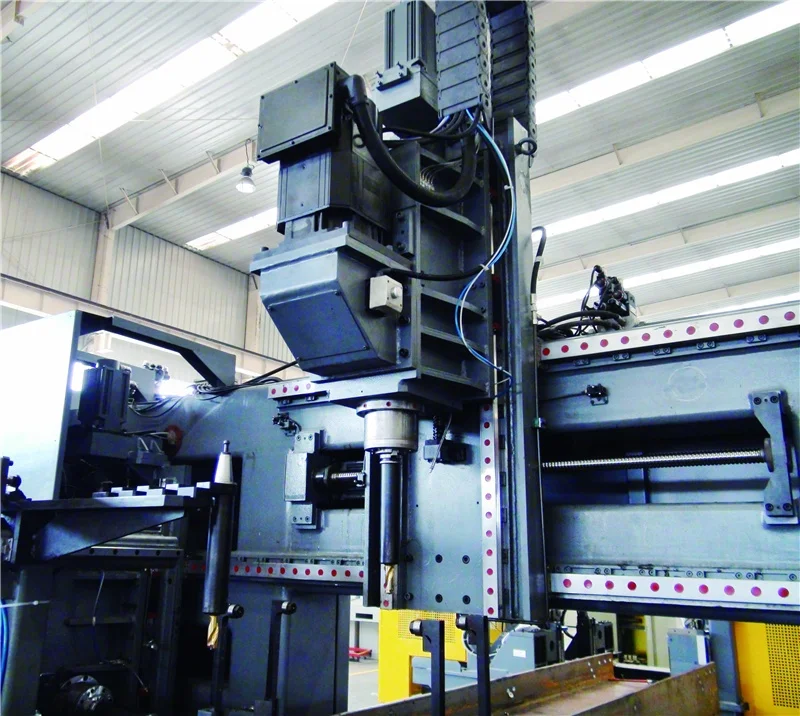

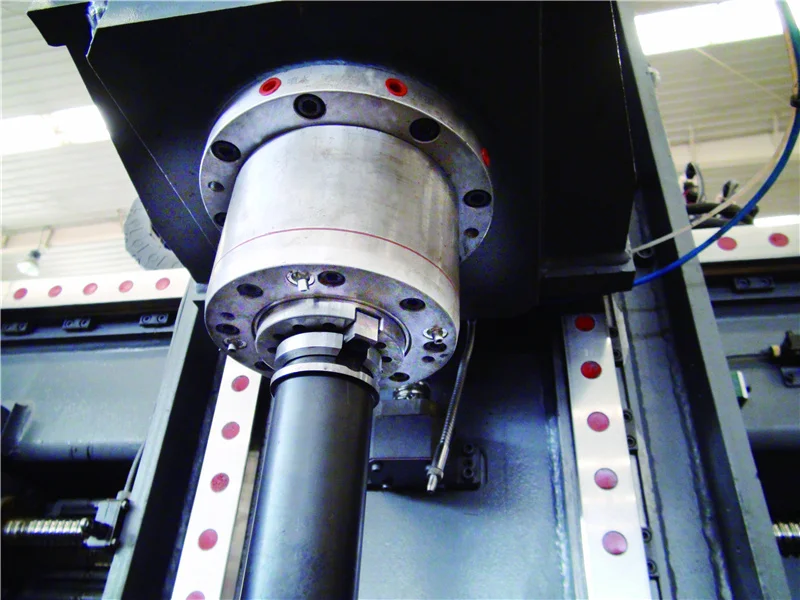

Three slipways are all controlled by servo motor, guided by precision linear roller guide and driven by AC servo motor and ball screw to ensure the positioning accuracy. The spindles are precision spindles with high rotary accuracy and high rigidity, and driven by servo motor, with broad scope of application, rotation speed can be stepless changed in a wide range to meet the needs of a variety of speeds.

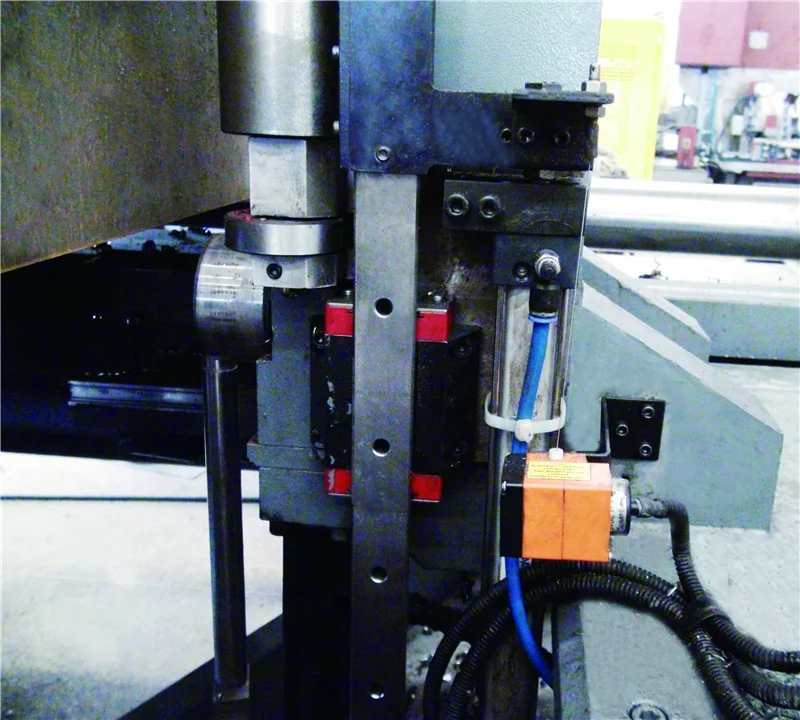

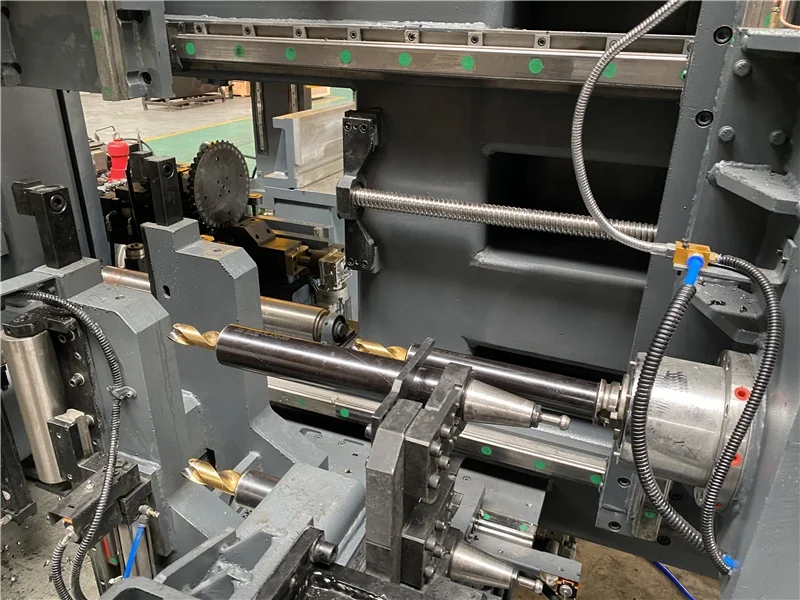

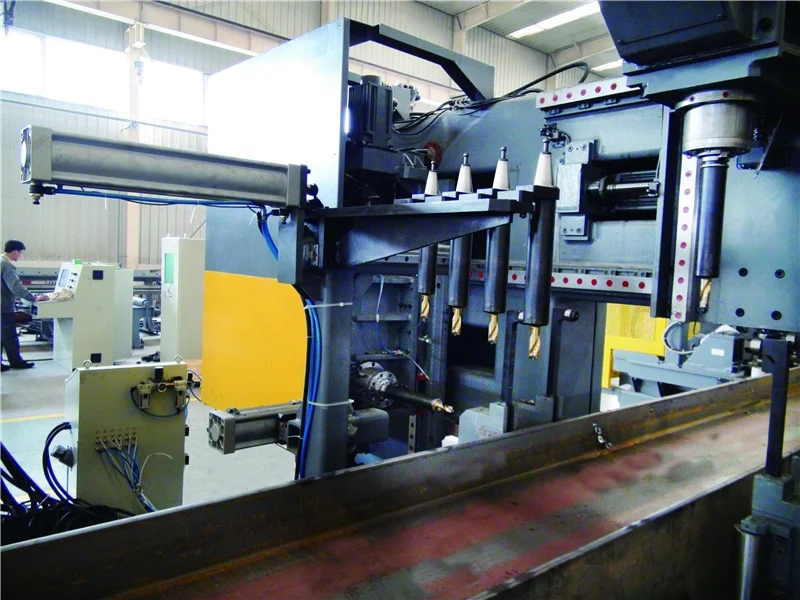

The vertical drilling machine is equipped with three inline type tool changers, and every tool changer can load 4 tools. While drilling, the tools can be changed automatically to meet the needs of different drilling diameters. The machine is equipped with flange width detection and web height detection device, which can effectively compensate for the deformation of the workpiece to ensure the processing accuracy.
Company Profile
Shandong FIN C N C MACHINE CO., LTD is located in Jinan high tech Development Zone, is committed to the development, research, design, manufacture, sales of CNC machine tools, such as processing angle bar, beam channel profiles, steel plates, tubesheet and flanges and other integrated equipment professional company. It is mainly used in iron tower, steel structure, heat exchanger, boiler, bridge, truck and other industries
Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines’ perfect quality and reliable performance.
The company drafted many China national standards for C N C angle line machine and C N C beam drilling sawing machine and C N C plate drilling machine.
Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines’ perfect quality and reliable performance.
The company drafted many China national standards for C N C angle line machine and C N C beam drilling sawing machine and C N C plate drilling machine.
Production Workshop
1. We have a professional research and development team
2. The machine is widely used in the industry.
3. The performance and quality of the machine are reliable.
4. It has been exported to more than 50 countries in the world.
2. The machine is widely used in the industry.
3. The performance and quality of the machine are reliable.
4. It has been exported to more than 50 countries in the world.
Certifications
Exhibition & Customer
Packaging Logistics
Our Service
FAQ
