BTCP-297A A4 копировальная бумага полосная упаковочная машина
US $19000-$43000
Автоматическая упаковочная машина Landpack LP-590 для упаковки бомбочек в
- Категория: >>>
- Поставщик: Foshan,Land,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 9520.86 $* | 9996.87 $* |
| Aug-15-2025 | 9440.9 $* | 9912.39 $* |
| Jul-15-2025 | 7920.89 $* | 8316.4 $* |
| Jun-15-2025 | 9280.21 $* | 9744.96 $* |
| May-15-2025 | 8080.28 $* | 8484.80 $* |
| Apr-15-2025 | 9120.82 $* | 9576.38 $* |
| Mar-15-2025 | 9040.54 $* | 9492.28 $* |
| Feb-15-2025 | 8960.74 $* | 9408.84 $* |
| Jan-15-2025 | 8880.1 $* | 9324.67 $* |
Характеристики

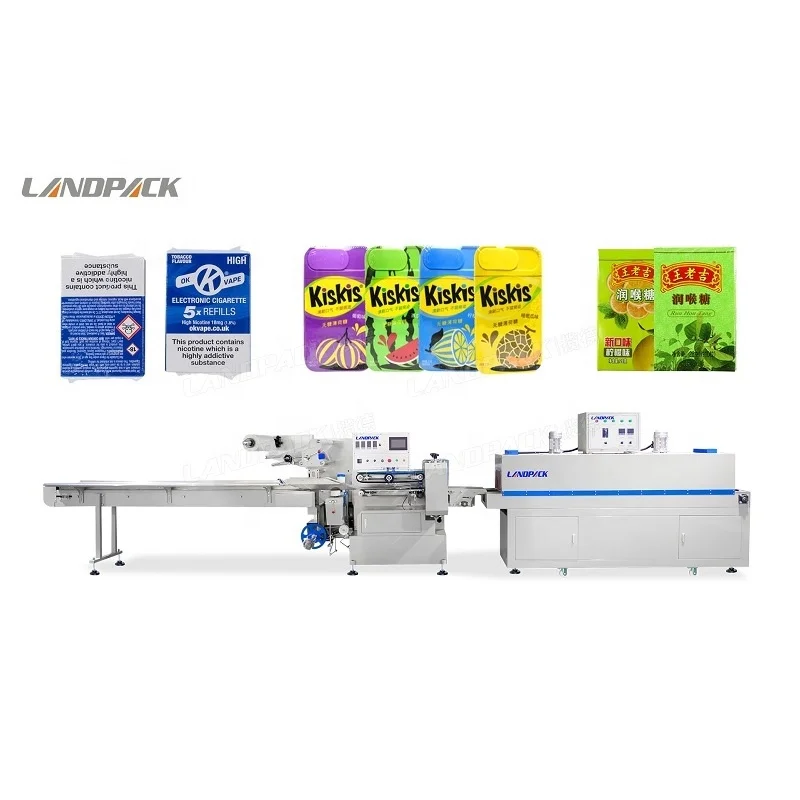

Landpack LP-590 Automatic Bath Bomb Book Shrink Wrapping Packaging Packing Machine
Features
Heat shrinkable film packaging machine adopts Japanese technology, all use imported electrical components, simple operation, reliable quality, stable performance. Variable frequency modulation, stepless variable speed. The control of the whole machine is completed by PLC, which reduces the point of failure. High efficiency double temperature zone of heat shrink furnace, stepless speed regulation, automatic temperature control. High efficiency hot air circulation to ensure shrinkage quality.
The packaging film enters into the bag-making machine through the film feeding driving roller and forms. The packaged material is sent into the formed packaging film by the material feeding conveyor and is sealed by the sealing device to form a tubular shape. The clamping conveyor between vertical and horizontal sealing will send the tubular film behind the wrapping into the transverse sealing and cutting device statically. The sealing and cutting position will be adjusted by the photoelectric tracking automatic
control system, and then the product will be transported across the bridge into the shrinkage furnace for shrinkage. When the shrinkage furnace comes out, a packing process is completed.
This machine only uses three servo control system, programmable control, automatic counting. Bag length speed automatic reality, automatic temperature control, photoelectric tracking automatic control. Overload protection, leakage protection. Fault alarm and other advanced technology and safety devices, complete functions. The equipment has the advantages of compact structure, simple operation, reliable operation, high packaging speed, stable packaging quality and smooth and beautiful packaging appearance.
The packaging film enters into the bag-making machine through the film feeding driving roller and forms. The packaged material is sent into the formed packaging film by the material feeding conveyor and is sealed by the sealing device to form a tubular shape. The clamping conveyor between vertical and horizontal sealing will send the tubular film behind the wrapping into the transverse sealing and cutting device statically. The sealing and cutting position will be adjusted by the photoelectric tracking automatic
control system, and then the product will be transported across the bridge into the shrinkage furnace for shrinkage. When the shrinkage furnace comes out, a packing process is completed.
This machine only uses three servo control system, programmable control, automatic counting. Bag length speed automatic reality, automatic temperature control, photoelectric tracking automatic control. Overload protection, leakage protection. Fault alarm and other advanced technology and safety devices, complete functions. The equipment has the advantages of compact structure, simple operation, reliable operation, high packaging speed, stable packaging quality and smooth and beautiful packaging appearance.
Product Paramenters
Main technical parameters of LP-590 | ||
Production capacity | 30-150 bags/min | |
Diameter of film roll | maximum 320mm | |
Packaging film width | the widest 590mm | |
Outer bag size | the longest 450mm widest 190mm product packaging thickness Max.75mm | |
Air pressure | 0.5-0.7Mpa | |
Machine noise | less than 80db(A) decibel | |
Rated frequency | 50Hz | |
Rated voltage | AC220V | |
Transmission power | 3.6Kw | |
Heating power | 16.5Kw | |
Total weight of the machine | 1600Kg | |
Machine size | total length 7330mm* total width 1130mm* total height 1500mm | |
Application
Suitable for shrink film packaging items.
Such as: bowl noodles, milk tea, cup products, frozen foods, hanging noodles, fruit, milk, mosquito incense, food boxes, cosmetics, clinker bottles, plate scents and other monomer shrink packaging, batteries and other need to combine the automatic shrink packaging items.
FAQ
1.Q:Which one packing machine is suitable for us? |
Dear,before quoting,please kindly consult us and providing: a.your product name, product picture. b.your bag size,such as bag width and bag height c.ideal bag shape.For there is over 100 kinds of packing machine,different on bag size. In order to recommend u the best,we need know that information. If u just start this business,no bag size,we can help u to find similar weight bag for your reference |
2.Q: Is that packing machine ok for our product?How to operate it ? |
A : If you donnot mind,you can send u sample.we will use existing packing machine to test for u. During that time,we will take video and clearer picture for you.If chance,we can take video online and show u. |
3.Q:Is that pack many bag size in the same packing machine? |
A:That is the common question from our customer.Every packing machine has its range for bag length and bag width.can u send us full details,i will calculate for u and give u exact reply. |
Need more machines details or videos? Please contact us directly ! |
Pre-sales Services: Free packing solution from our chief engineer. Medium-sales Services: LANDPACK have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality. After-sale Services: 1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you. 2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours. 3. LANDPACK engineers & technician are available send to your countries for services if you agree pay the expenditure. 4. The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L. 5. LANDPACK has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager. |
