Jinko solae cells 100w 150w 180w 330w 360w 370w 500W full-black mono perc shingled solar panels system on


Поделиться:


Цена:0,24 $ - 0,26 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.36 $* 0.88 $*
Aug-15-2025 0.48 $* 0.82 $*
Jul-15-2025 0.65 $* 0.2 $*
Jun-15-2025 0.85 $* 0.81 $*
May-15-2025 0.51 $* 0.53 $*
Apr-15-2025 0.43 $* 0.2 $*
Mar-15-2025 0.22 $* 0.20 $*
Feb-15-2025 0.13 $* 0.49 $*
Jan-15-2025 0.12 $* 0.86 $*

Характеристики



Specification

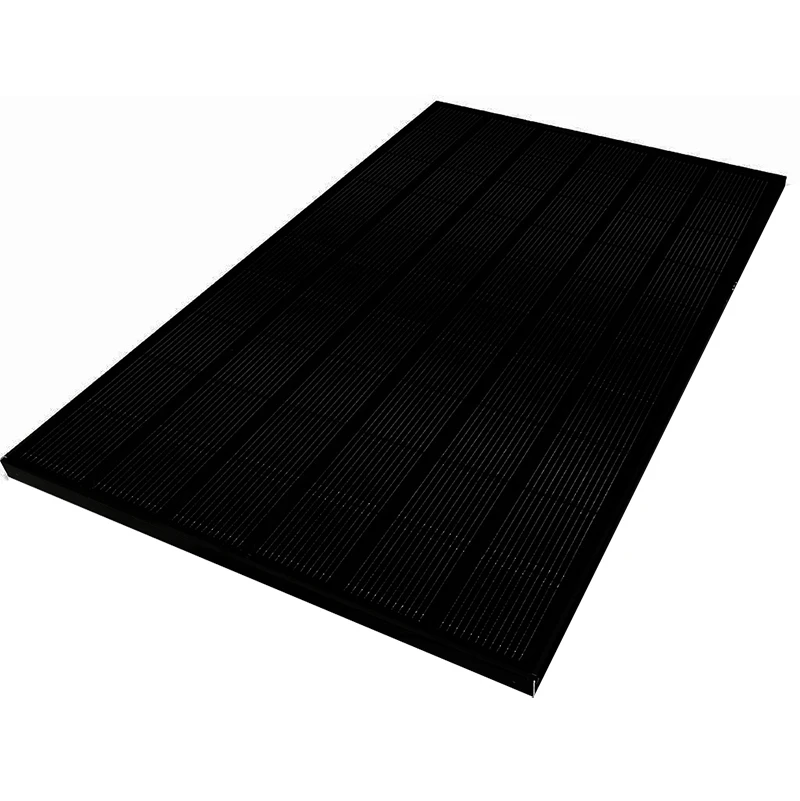

FULL-BLACK MONO PERC SHINGLED MODULE
Within the mini shingled module, standard solar cells are cut into narrower slices and combined into strings of cells; then, these strings are combined in parallel. By cutting cells , the smaller currents will help reduce “Cell to Module” loss, which
means higher output. The innovative shingled solar module technology eliminates the need for the internal ribbon soldering and smaller branch current, therefore the internal resistance is lower, causing the efficiency of the modules increased. The unique parallel design reduces the hot-spot effect significantly, and the gorgeous aesthetic design will bring to you perfect visual enjoyment.




FULL-BLACK MONO PERC SHINGLED MODULE
Model
SJP50M-12D
Max Power(Wp)
50.00
Voc(V)
22.81
Isc(A)
2.70
Vm(V)
19.56
Im(A)
2.56
Weight
2.4kgs
Dimensions

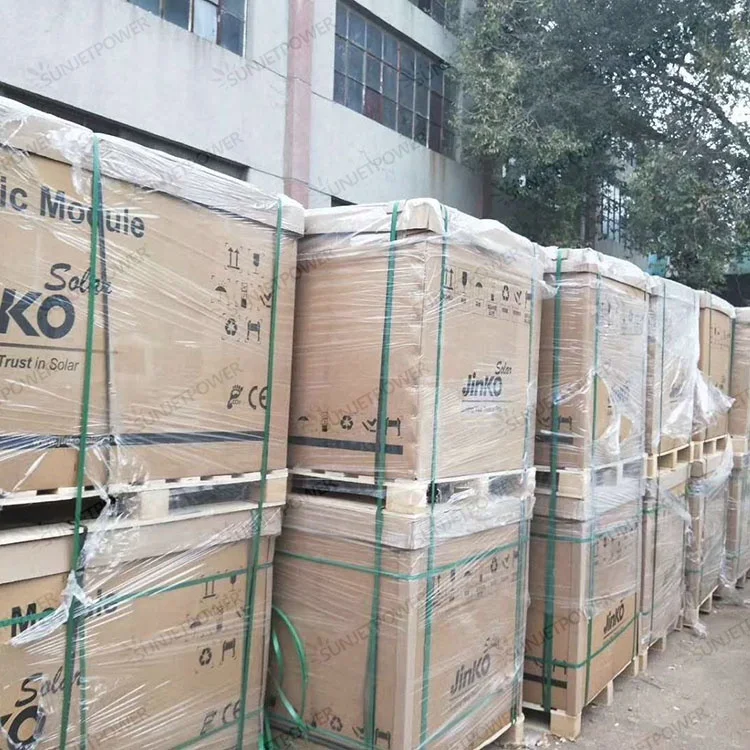

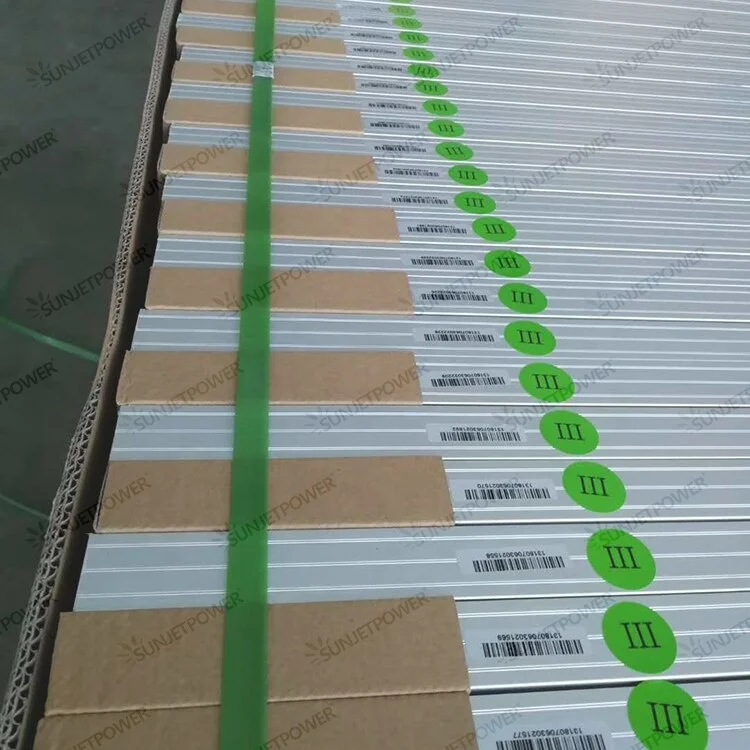

Packing
455*570*30mm
Carton @ ply-wooden pallet


Product Description






Cells-Shingled welding Technology

Advantages
---Output is 8% higher than traditional solar panel, can reduce 10% BOS cost.
---It has high load resisting capacity, which can reduce the micro-crack during transportation and power station installation.
---As the parallel structures, it can be the best output under shadow and quick snow-melted function.




210 PERC Shingled solar cells

--The average efficiency is above 22.10%.
---Higher FF, lower Rs, and higher efficiency.
---Increasing the absorbing ability under low- intensity irradiation by PERC process.
---CIR process decreases the LID/LeTID,makes sure the stable power output
---Hot-spot inspection strictly, avoids loss of efficiency and reliability.



Black backsheet


---Excellent appearance
---Low moisture permeability against snail trail defect
---Excellent electric insulation for high system voltage up to 1500v
---Outstanding weatherproof performance



Black AL frame


---23mm/35mm/40mm Anodized Aluminium Alloy

---Black/Silver Color Optional

---Good performance on the resistance of wind and snow



Junction Box

---Conventional standalone edition and
---Engineering custom edition
---Quality diode ensures module running safety
---IP67 protection level
---Heat dissipation
---Long service life
---MC4 connector

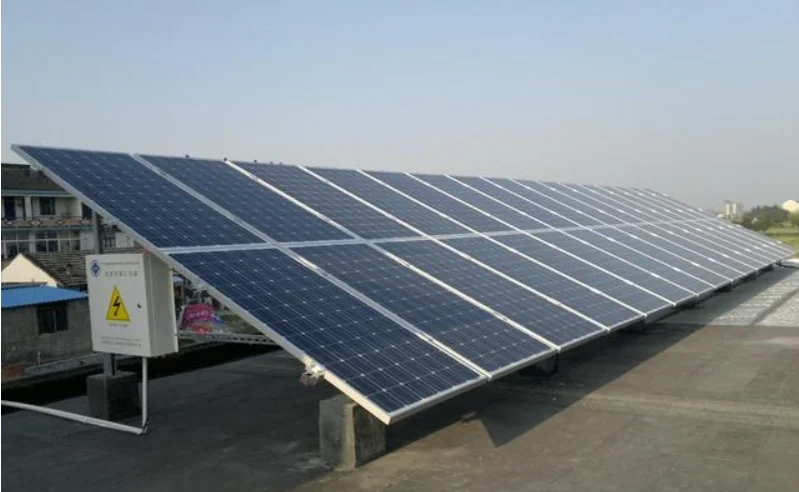

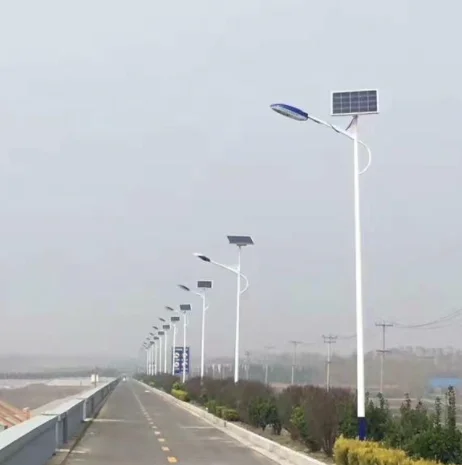

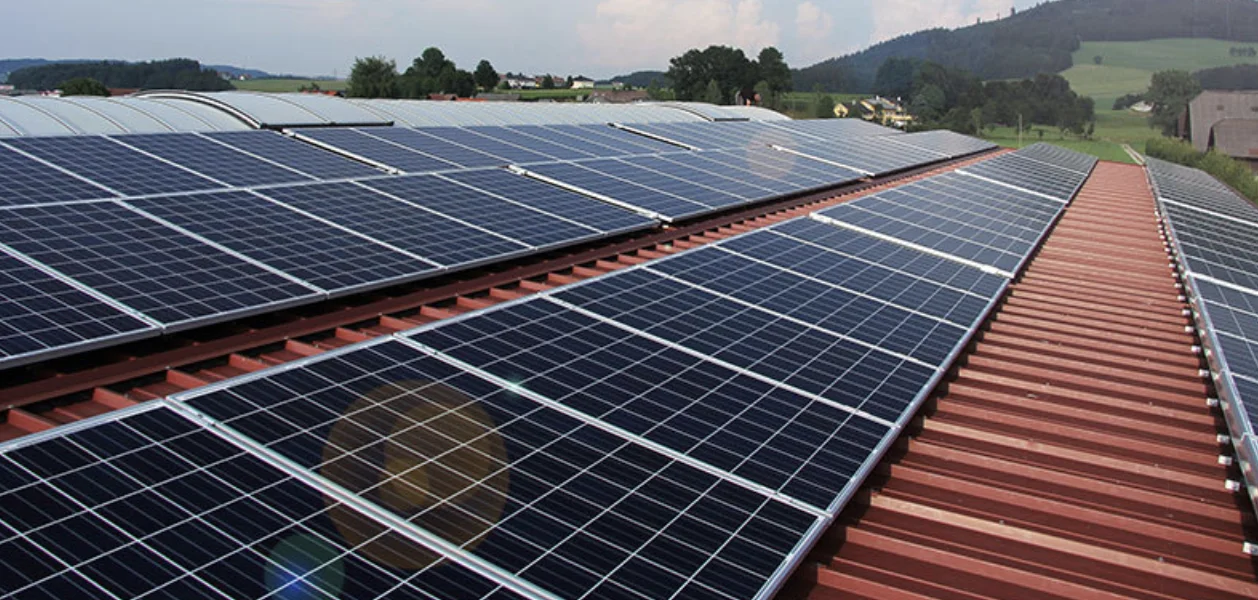

Applications
