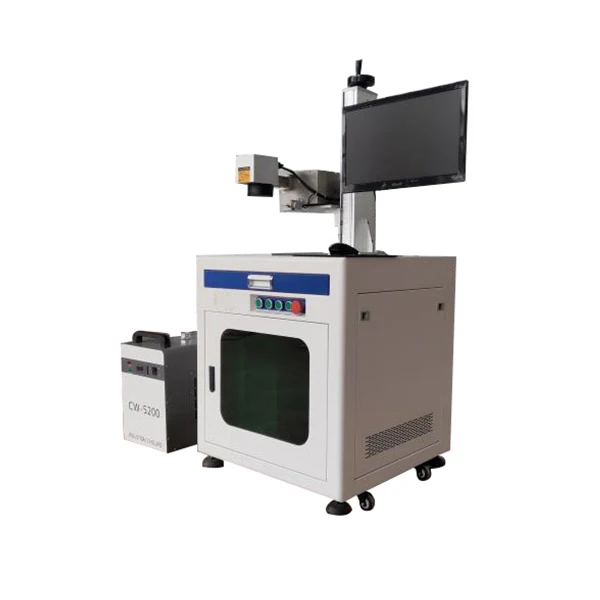

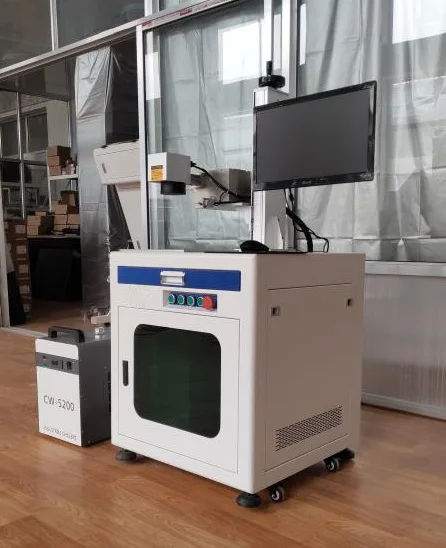

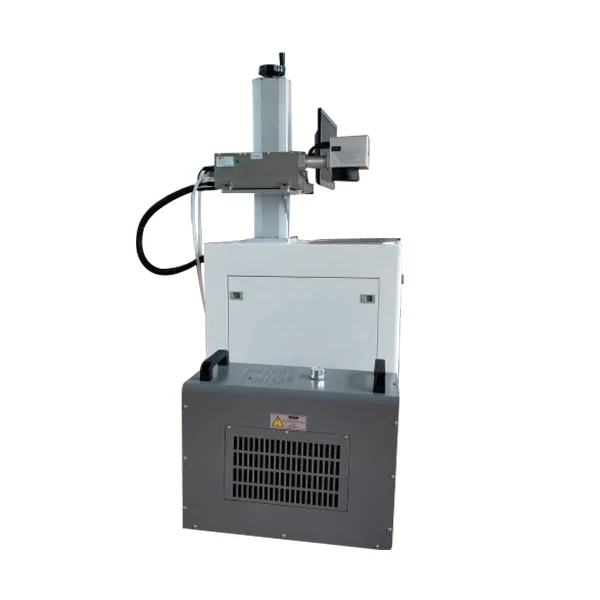

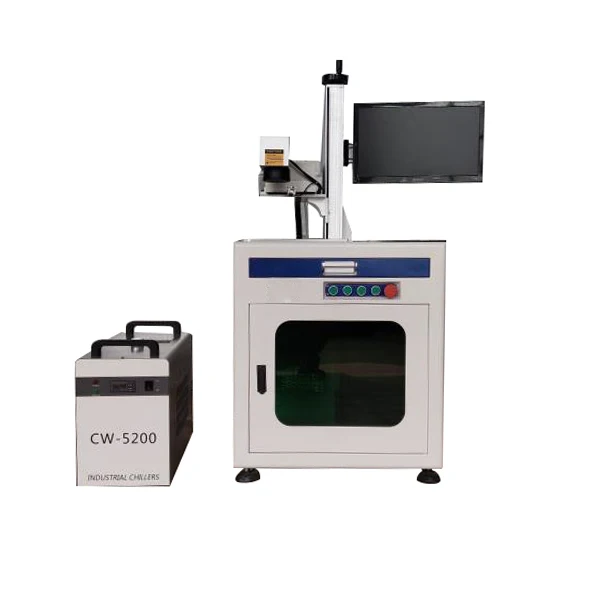

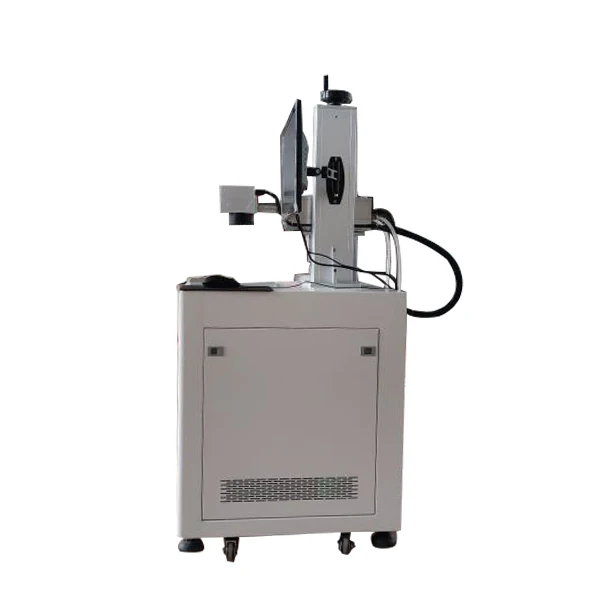

Desktop UV 3W Laser marking machine with CW5200 Industrial chiller
Introduction
UV laser marking machine user semiconductor end-pumped laser, after the third harmonic generationproduce 355nm UV laser. High photoelectric conversion rate, the use of Humanizationoperate interface, easy to use, excellent equipment stability, galvanometer-type high precision marking headwith afine effect, lasting 355nm output wavelength, reducing the thermal impact of the workpiece.
Specification
Machine Power
3W
5W
10W
Average power
>3W@30kHz
>5W@40kHz
>10W@60kHz
Pulse Width
<15ns@30kHz
<15ns@40kHz
18ns@60kHz
Frequency Range
20kHz-150kHz
40kHz-300kHz
Spatial model
TEM00
Laser wavelength
1064nm
Beam quality
M² ≤ 1.2
Marking speed
7000mm/s
Marking area
70x70--300x300mm(Optional)
Machine control
EZCAD control
Repeat Precision
±0.001mm
Cooling Style
Water Cooling
Operating Temperature
10℃-35℃
Main machine configuration
JPT Laser source
--China's very good laser brand can provide you with high-quality beam quality.
355nm UV Laser head
--Professional UV galvanometer, it has the advantages of fast marking speed and high marking accuracy.
EZCAD UV control card
--It supports the use of the rotary axis function and the Z-axis drive function.
CW5200 Industrial chiller
--It can effectively reduce the temperature of the machine and maintain the machine to work stably for a long time.
Machine application
Main Features For materials:
The machine employs the JPT UV laser and imported high-speed galvanometer as its centraldevices. It is widely used for metal or nonmetal's surface marking to make up for the lack of IR Laser's processing ability. The main applicable materials are electronic products shell marking, battery charger, data line, mobile phone, computer fitting marking, electronic components, jewellery, horologe marking, PCB, FPC marking and cutting, Glass product marking, metal, alloys marking and plastics material's marking, etc.
For industries:
This series UV Laser Markers Machine is widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries, can be combined with streamline for online marking.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1.Q：What are the primary products of your company?
2.Q: How can you guarantee that I have a good sale on this product?
A: We offer professional technology and after-sale service.
3.Q: How can I get the best machine for me?
A: You can tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience. At the same time, you can send us the sample for testing.
4.Q:Which countries are your laser machinery sold to?
A: Our laser machine sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.
5.Q:What certificate has your company got?
A: All of our laser marking machine with CE, ISO, SGS
6.Q: How long is the delivery time?
A: The laser marking machine will be delivered to you within 1-2 weeks after the order is confirmed.
7.Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
8.Q: What’s the package?
A: We have 3 layers package. For the outside,we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
9.Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 200 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
