Термоформовочная Машина для прозрачных коробок тортов с
- Категория: Plastic Product Making Machinery >>>
- Поставщик: Wenzhou,Hongao,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 57120.35 $* | 59976.18 $* |
| Aug-15-2025 | 56640.74 $* | 59472.32 $* |
| Jul-15-2025 | 47520.25 $* | 49896.10 $* |
| Jun-15-2025 | 55680.45 $* | 58464.75 $* |
| May-15-2025 | 48480.71 $* | 50904.78 $* |
| Apr-15-2025 | 54720.60 $* | 57456.79 $* |
| Mar-15-2025 | 54240.14 $* | 56952.16 $* |
| Feb-15-2025 | 53760.95 $* | 56448.5 $* |
| Jan-15-2025 | 53280.34 $* | 55944.80 $* |
Характеристики
PRODUCT OVERVIEW
Automatic disposable plastic milk tea cup lid thermoforming machine
JCPP-520
The machine has reasonable in design , novel in structure ,adopts infrared radiation heating and servo traction ,and has the advantages of plate mold , punching ,cutting and collecting waste ,synchronous assembly line working , and the excellent performance of machine guide rail stroke adjustment . The production process is intuitive ,easy to operation and maintenance , and complete functions , with obvious characteristics as follow:
1) Adopt gears ,screws and other transmission device , swing the handle to make various molds move left and right on the round guider. Suit for different packing size , expanded scope of application of machine , improve the performance of the machine , makes debugging easier.
2) With the chain servo traction device , the traction stroke can be steplessly adjustable between 20-350 mm.
3) Adopt infrared radiation heating , the heating area is corresponds to the forming area , to ensure the heating temperature of materials can be meet the requirements of positive pressure forming , keep the material's shrinkage rate in the most stable quantity ,ensure the molding quality of products . This new heating system and materials are no touch , to keep the material's surface intact after the pressured , ensure the products are more transparent, surface intact, greatly improves the appearance of the products .
4) According to the needs of the products ,depand on the products , choose concave die or terrace die to achieve the best forming effect.
5) Programmable logic design using PLC programmable controller , host frequency control , man-machine interface display operating. The values of each part can be directly set in the man-machine interface to make the operation more intuitive and simple .
6) Press-cut by laser cutter, equipped with servo control system , to smart adjust the pressure of cutter & lift of cutter .
7) Servo smart automatic stacking system , the number of stacks can be set.
1) Adopt gears ,screws and other transmission device , swing the handle to make various molds move left and right on the round guider. Suit for different packing size , expanded scope of application of machine , improve the performance of the machine , makes debugging easier.
2) With the chain servo traction device , the traction stroke can be steplessly adjustable between 20-350 mm.
3) Adopt infrared radiation heating , the heating area is corresponds to the forming area , to ensure the heating temperature of materials can be meet the requirements of positive pressure forming , keep the material's shrinkage rate in the most stable quantity ,ensure the molding quality of products . This new heating system and materials are no touch , to keep the material's surface intact after the pressured , ensure the products are more transparent, surface intact, greatly improves the appearance of the products .
4) According to the needs of the products ,depand on the products , choose concave die or terrace die to achieve the best forming effect.
5) Programmable logic design using PLC programmable controller , host frequency control , man-machine interface display operating. The values of each part can be directly set in the man-machine interface to make the operation more intuitive and simple .
6) Press-cut by laser cutter, equipped with servo control system , to smart adjust the pressure of cutter & lift of cutter .
7) Servo smart automatic stacking system , the number of stacks can be set.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Machine | JCPP-520 | |
Punch speed | 10-35 times/min ; 6-12 pcs/times | |
Capacity | 13500 pcs/hour | |
Max. forming area | 480*350 mm | |
Max. forming depth | 62 mm | |
Roll | 75 mm | |
Raw material | PP/PET/PVC | |
Compressed air | 0.4-0.8 Mpa | |
Heating power | Up heating : 26 Kw ; Down heating: 16 KW | |
Total power | 48 Kw | |
Mold cooling | 20 ℃ tap/recycle water | |
Dimension | 6430*2300*1900 mm | |
Weight | 3300 Kg |

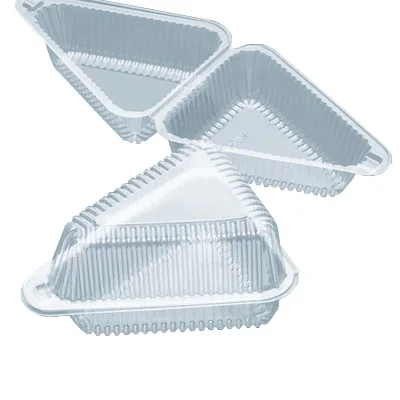

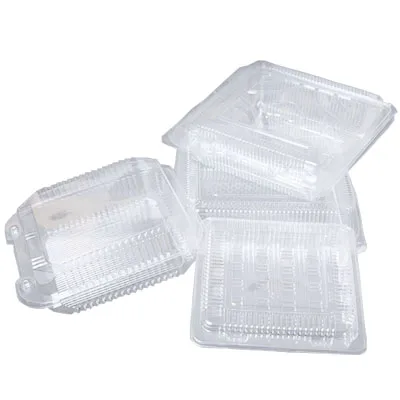

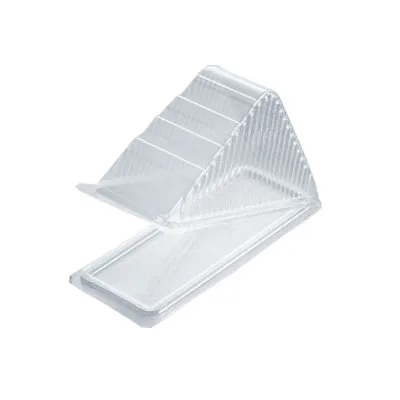

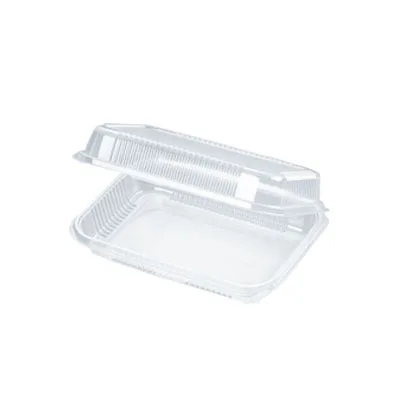

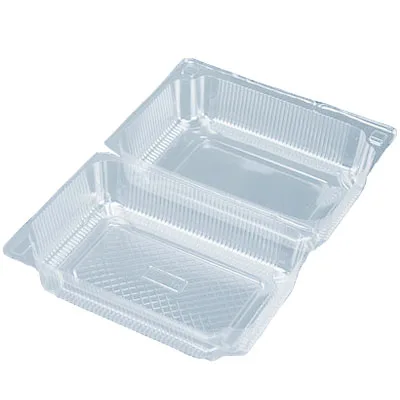

PRODUCT DISPLAY
COMPANY INFORMATION
Wenzhou Jiacheng machinery Co.,Ltd
This is a professional company engaded in various packaging machinery pharmaceuticals, mechanical design, development, production and marketing of integrates joint-stock enterprises. We have certain technical force and advanced production techinque; with a
modern system, also a craxk team with youtheful vigor. And the heritage of 20 years packaging professional knowledge.
Since its establishment, the company all along adhere "good faith-based, developent study, innovation" spirit of enterprise. Based on "human technology, and customer-oriented service, develop the market with integrity and high quality and establish the cooporate culture system with the unique features." Company has passed the 9001 quality system certification and CE certification in 2010 year.
modern system, also a craxk team with youtheful vigor. And the heritage of 20 years packaging professional knowledge.
Since its establishment, the company all along adhere "good faith-based, developent study, innovation" spirit of enterprise. Based on "human technology, and customer-oriented service, develop the market with integrity and high quality and establish the cooporate culture system with the unique features." Company has passed the 9001 quality system certification and CE certification in 2010 year.
OUR SERVICES
Note: If you need us send English engineer for install or adjusting, the buyer should take on
all costs required during our technician’s stay in the buyer’s county, like VISA FEE, round
airplane tickets, accommodation, foods and others. The engineer’s salary is 80 USD/day.
Remarks:
Delivery time: 45 working days after payment and drawing confirmed
Term of payment: 30% ($) T/T in advance, and the balance 70% ($) T/T payment before
Remarks:
Delivery time: 45 working days after payment and drawing confirmed
Term of payment: 30% ($) T/T in advance, and the balance 70% ($) T/T payment before
shipment
Price terms: FOB Ningbo
Price terms: FOB Ningbo
