2 in 1 unit 3.3kW obc and 0.8kW DC-DC converter for 96V

2 in 1 unit 3.3kW obc and 0.8kW DC-DC converter for 96V

Категория: On Board Chargers >>>
Поставщик: Dilong,New,Energy,Technology,Hebei,Co.,Ltd.

Цена:550,00 $ - 850,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	655.45 $*	688.39 $*
Aug-19-2025	649.86 $*	681.67 $*
Jul-19-2025	545.50 $*	572.46 $*
Jun-19-2025	638.42 $*	670.39 $*
May-19-2025	556.56 $*	584.13 $*
Apr-19-2025	627.55 $*	658.66 $*
Mar-19-2025	622.43 $*	653.73 $*
Feb-19-2025	616.87 $*	647.79 $*
Jan-19-2025	611.61 $*	642.47 $*

Характеристики

Product Overview

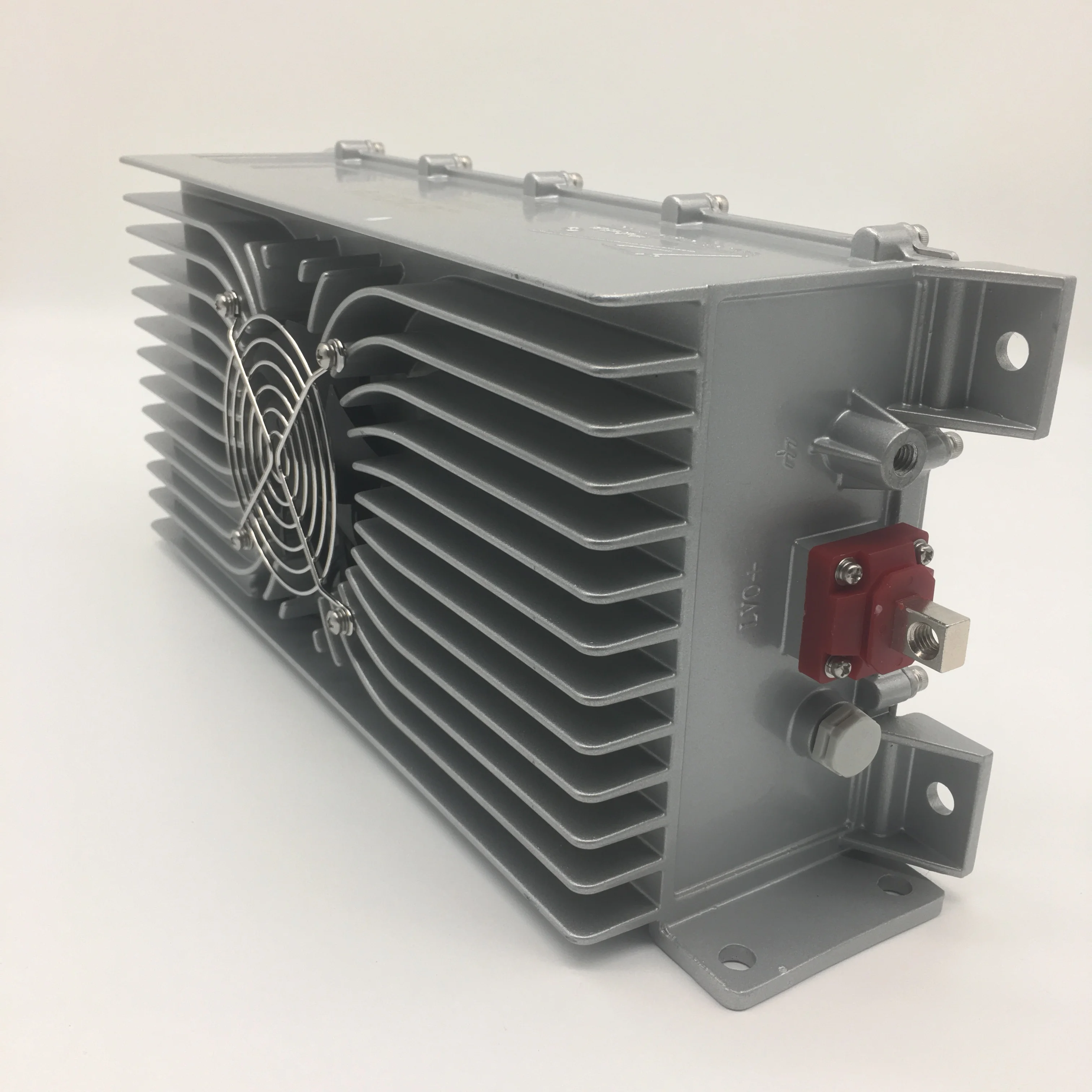

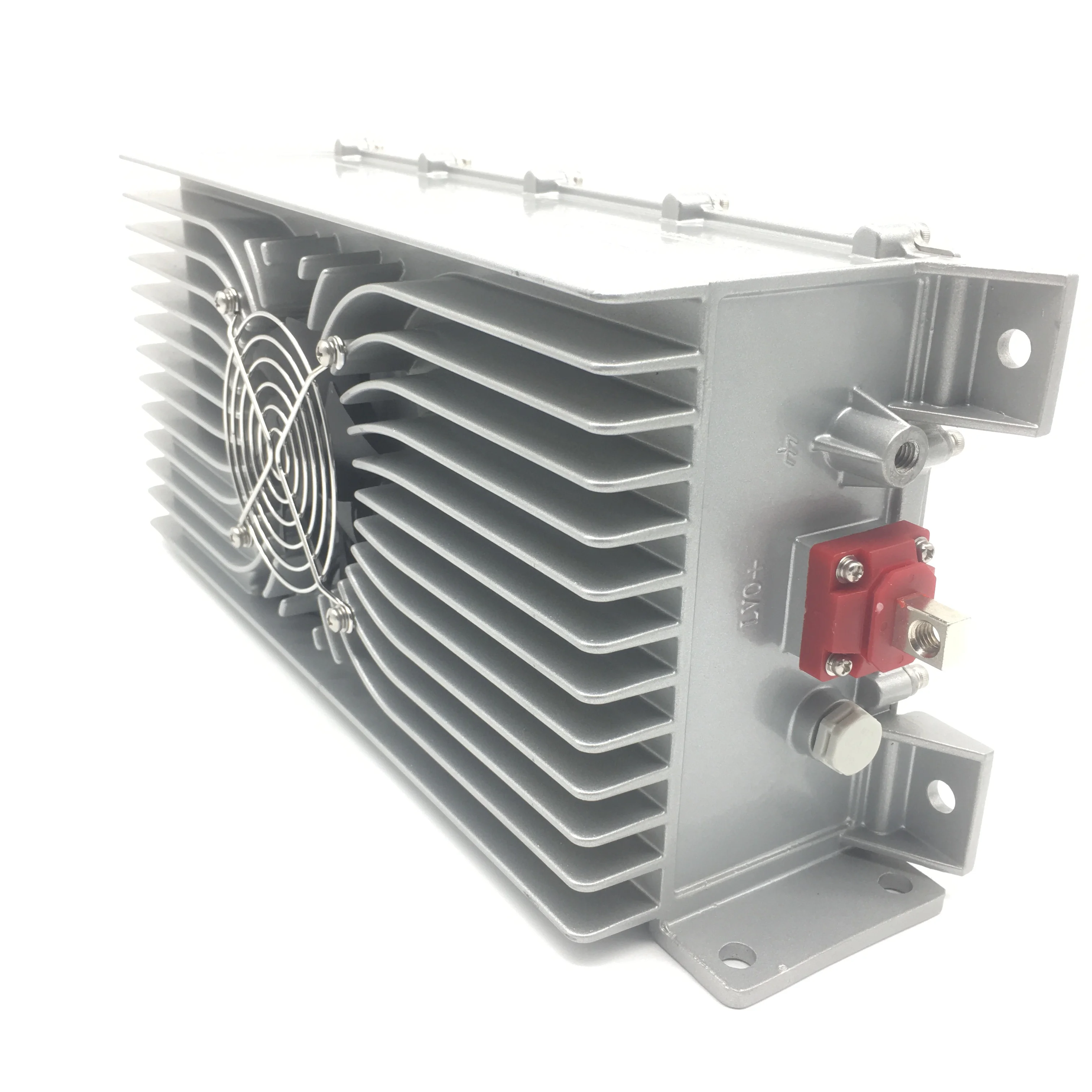

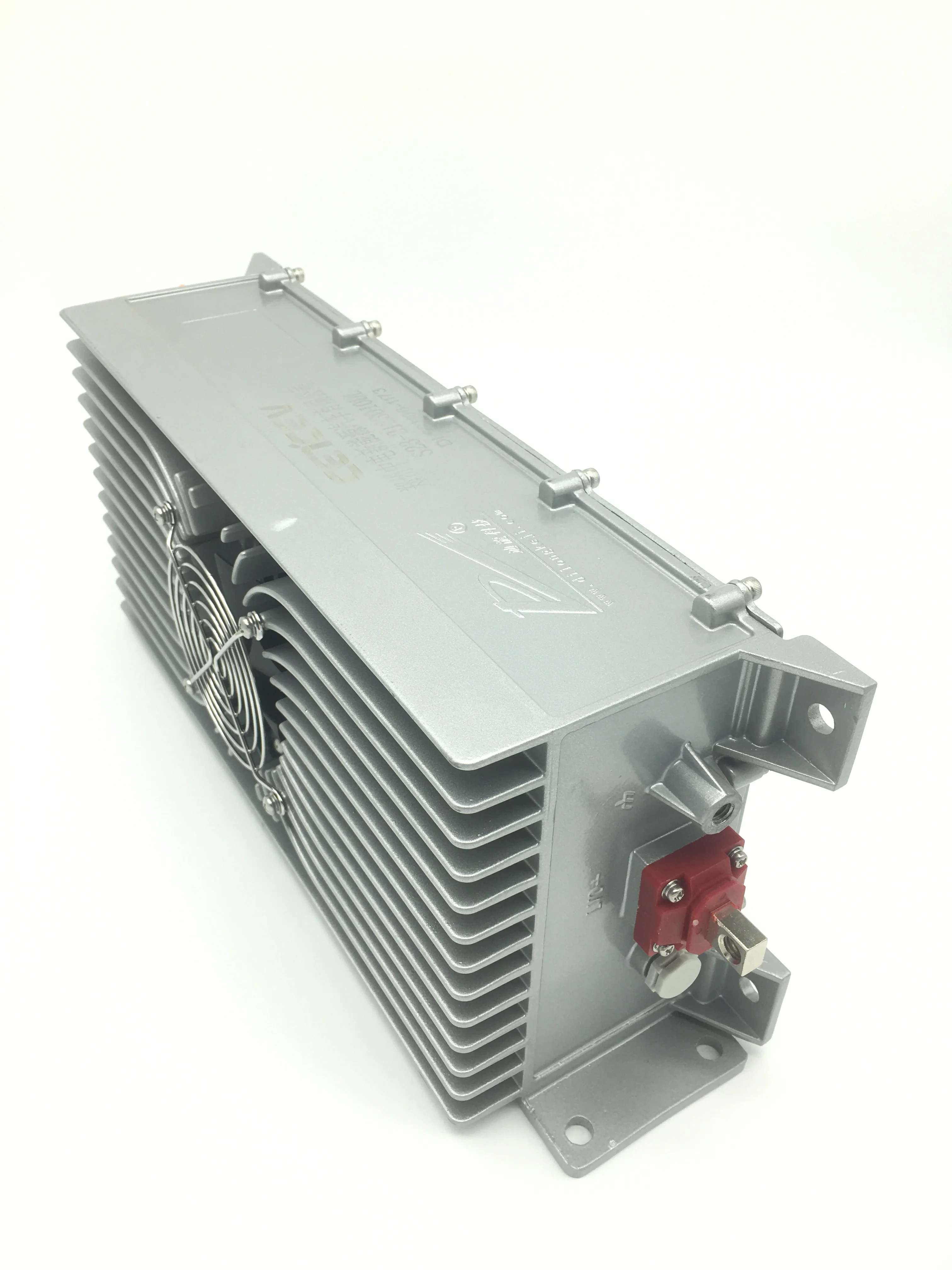

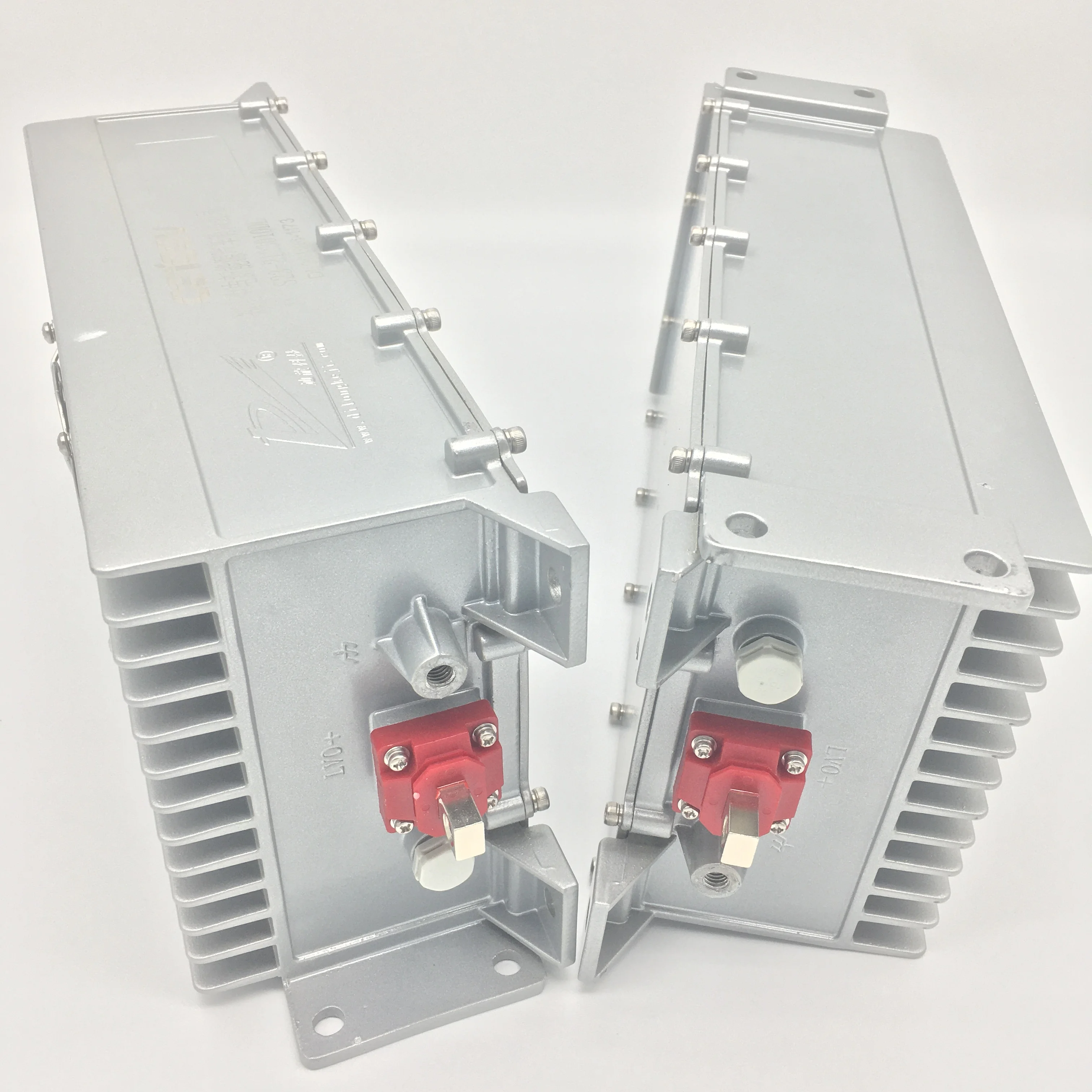

DA5KM37E-90C-14RC Charger + DC-DC Converter

DA5KM37-90C-14RC is a forced air-cooled, specifically designed for pure electric vehicles, chargers and DC / DC converters integrated in one digital power supply. Charger adopts advanced resonance technology, high efficiency, high power, small size, reliable work, charging mode using constant power and constant voltage automatic state transition, effectively saving the charging time. Wide input and output voltage range with active power factor correction, zero pollution to the grid. Using CAN2.0B communication protocol, with intelligent charging function, intelligent monitoring fault alarm, protection, with remote detection, programming, fault inquiry and other functions. Built-in 14V battery management system wake-up signal power. DC / DC high and low voltage converter using advanced substrate technology, modular design, high power density, small size, reliable, with constant current and constant pressure automatic state conversion. Using CAN2.0B communication protocol (CAN communication function optional), with intelligent charging function, with intelligent monitoring fault alarm, protection (with CAN communication function).
The power supply is specially designed for high voltage battery charging and buck conversion of new energy vehicles. Reduce the number of vehicle wiring harness connector and split the power supply installation of the trouble, the power supply using air-cooled design, and world-class automotive power supply manufacturers fully synchronized, is the world's highest power density products, the performance indicators have reached or exceeded the international counterparts Horizontal, trouble-free operation longer.

FEATURES AT A GLANCE

OBC part
Constant power and constant voltage state

Active power factor correction≥0.99

Input over/under-voltage protection

Output over/under-voltage protection

Output over-current protection

Output short circuit protection

Output reverse connection protection

Over temperature protection

CAN communication intelligent fault alarm and protection function

Small volume, large power density

DC-DC part

Constant current and constant voltage automatic conversion, effectively save charging time

Input over/under-voltage protection
Output over-voltage protection
Output over-current protection
Output short circuit protection
Over temperature protection
CAN communication intelligent fault alarm and protection function
Small volume, large power density
Intelligent charge control function

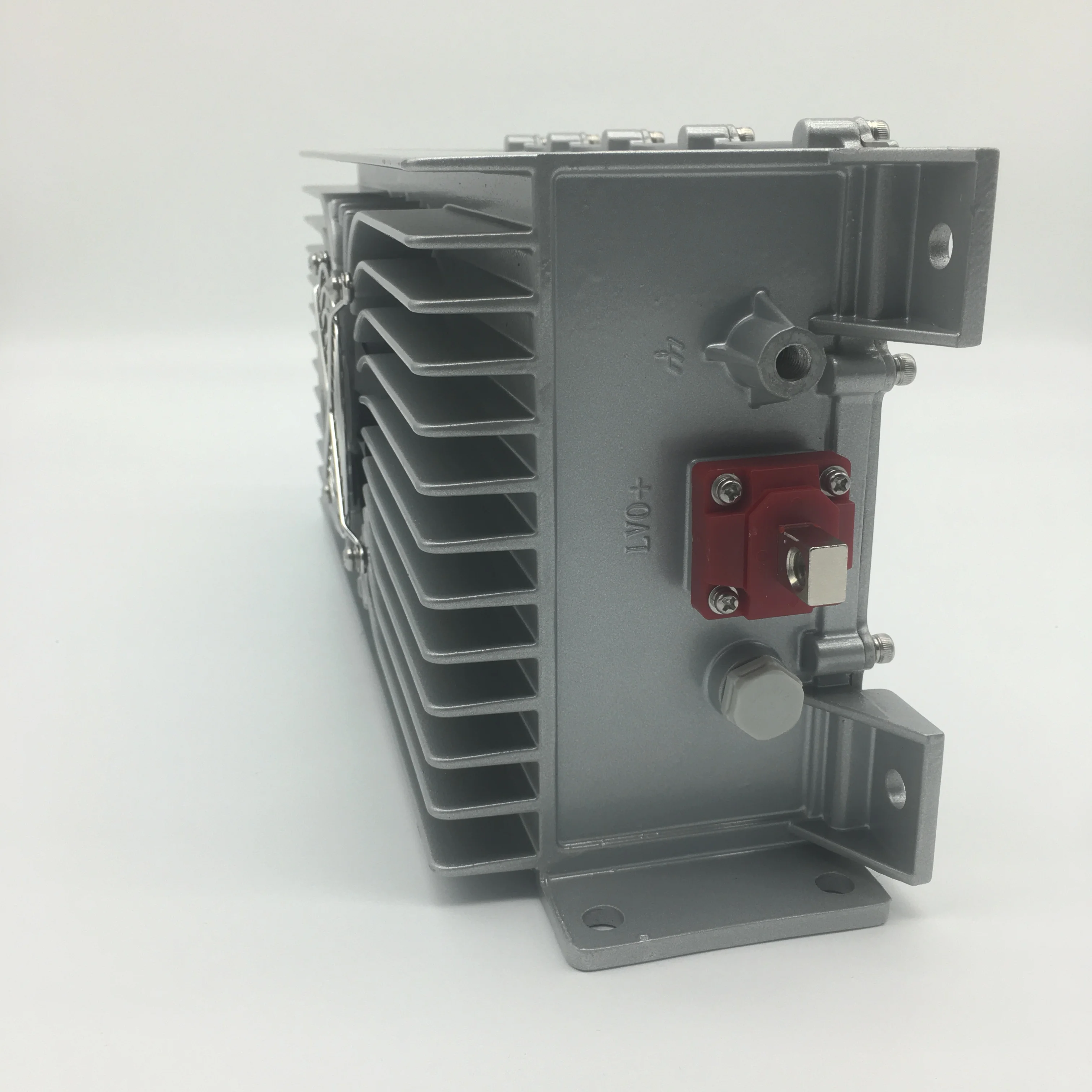

Side elevation

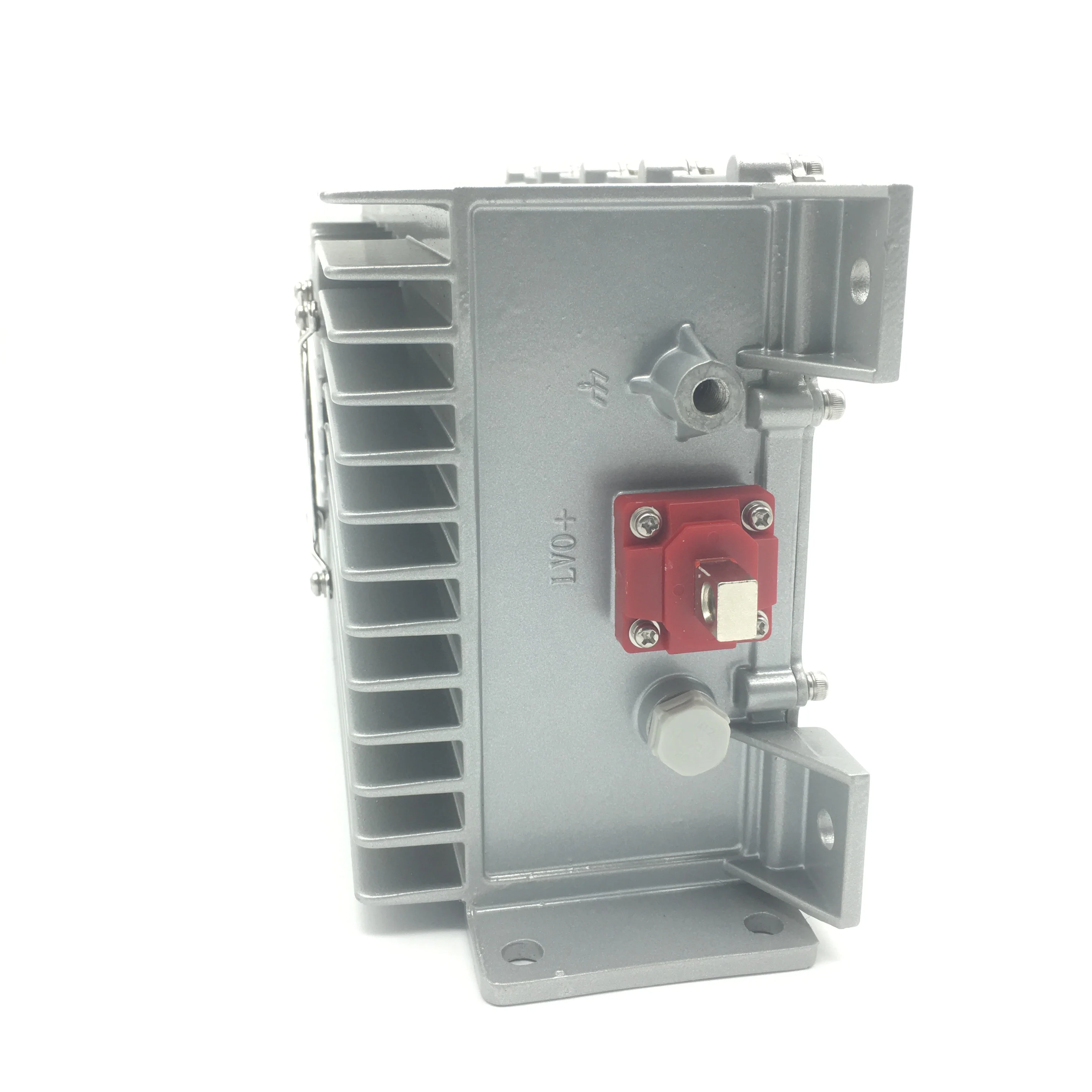

Front elevation

Back elevation

PRODUCT SPECIFICATIONS

No	OBC part	Data	DC-DC part	Data
1	Power	3300W	Power	1200W
2	Input	220Vac 47~63Hz	Input	90Vdc to 132Vdc
3	HV Output	96Vdc	LV Output	14Vdc
4	Output Voltage Range	70V to 132V	Output Current	57A
5	Max Output Current	20A	Efficiency	≥90%
6	Efficiency	≥92%	Control	CAN or Enable
7	Control	CAN	Cooling	Air-cooled
8	CAN Communication	125kbps/250kbps/500kbps	Auxiliary power	12V 2w
