Инвертор постоянного тока тепловые насосы для бассейна пропан внутренних бассейнов и
- Категория: Heat Pump Water Heaters >>>
- Поставщик: Zhejiang,Zhongguang,Electrical,Co.,Ltd.,Ningbo,Branch
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 595.39 $* | 625.1 $* |
| Aug-17-2025 | 590.22 $* | 620.96 $* |
| Jul-17-2025 | 495.71 $* | 520.70 $* |
| Jun-17-2025 | 580.4 $* | 609.17 $* |
| May-17-2025 | 505.88 $* | 530.5 $* |
| Apr-17-2025 | 570.14 $* | 599.42 $* |
| Mar-17-2025 | 565.0 $* | 593.87 $* |
| Feb-17-2025 | 560.55 $* | 588.91 $* |
| Jan-17-2025 | 555.51 $* | 583.21 $* |
Характеристики

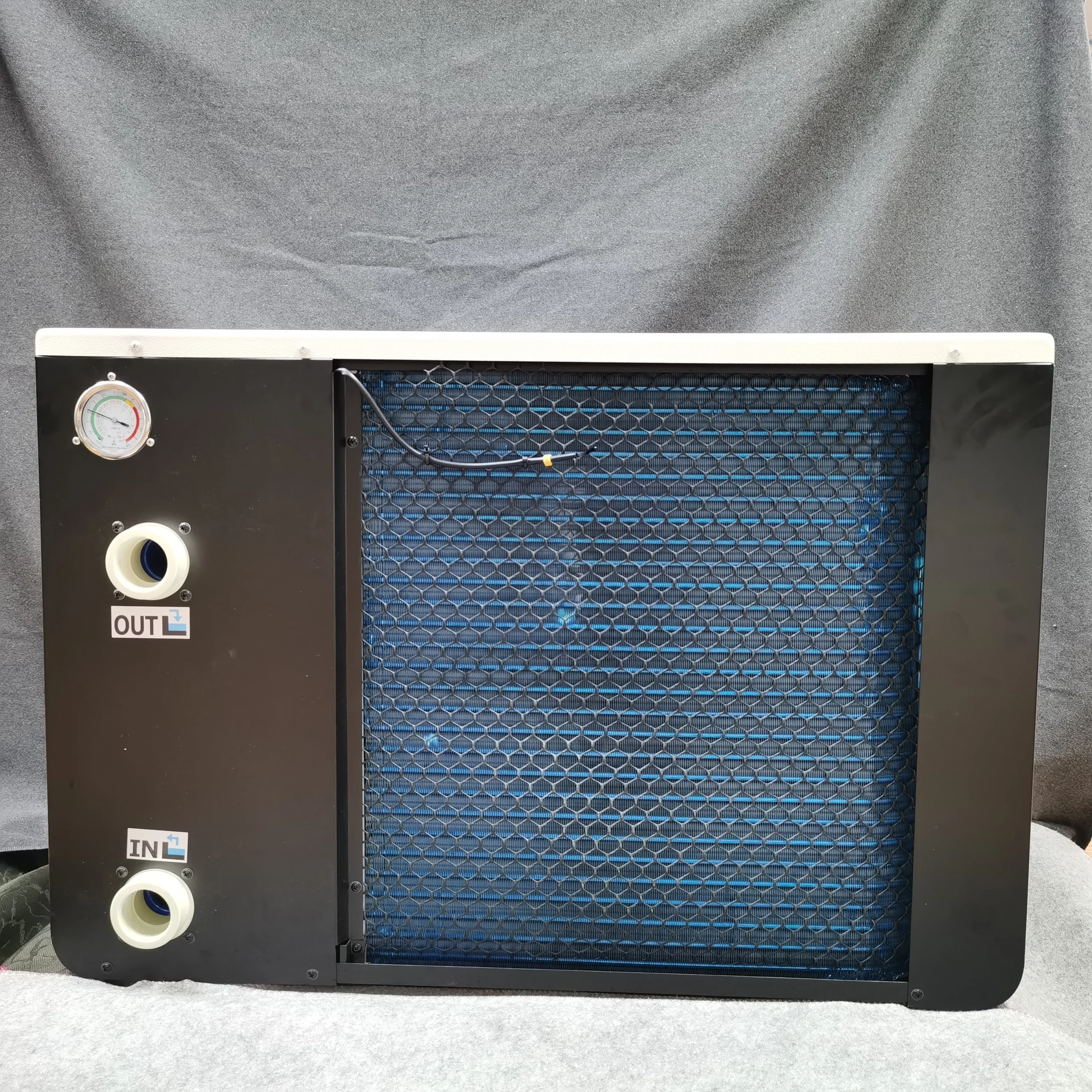

PRODUCT OVERVIEW
Factory Directly Supplied Swimming Pool Heat Pump Inverter 150 / 200 /260
* Have heating and cooling both function. Water Output temperaure from 8℃- 45℃
* Suitable for swimming pool, SPA pool, hot spring, or fish cultivation.
* Can be used for household & commercial.
* Titanium heat exchanger inside, good effect in anti-corrosion.
* Titanium heat exchanger inside, good effect in anti-corrosion.
* World famous brand compressor. ( Copeland, Emerson, Panasonic, etc.)
* OEM design is acceptable.
* With automatic defrost function with 4-way valve .
Product Specification
Model Number | Inverter 150 | Inverter 200 | Inverter 260 | ||||||
Advised pool volume | m³ | 50-70 | 60-80 | 80-110 | |||||
Heating temperatuer range | °C | 15~40 | 15~40 | 15~40 | |||||
Cooling temperatuer range | °C | 8~28 | 8~28 | 8~28 | |||||
Operating range | °C | -10~43 | -10~43 | -10~43 | |||||
Air 26°C Water 26°C | Capacity(KW) | 15.6~3.61 | 20.8~4.86 | 26.10~6.51 | |||||
Power input(KW) | 2.25~0.27 | 3.04~0.366 | 4.31~0.58 | ||||||
Input current(A) | 9.88~1.21 | 13.35~1.64 | 18.93~2.6 | ||||||
COP | 13.37~6.93 | 13.28~6.84 | 11.22~6.06 | ||||||
Air 15°C Water 26°C | Capacity(KW) | 12.48~2.88 | 15.6~3.59 | 20.02~4.93 | |||||
Power input(KW) | 2.53~0.40 | 3.17~0.503 | 4.40~0.70 | ||||||
Input current(A) | 11.11~1.79 | 13.92~2.25 | 19.32~3.14 | ||||||
COP | 7.24~4.93 | 7.14~4.92 | 7.01~4.55 | ||||||
Air 35°C Water 27°C | Capacity(KW) | 6.8~4.2 | 8.2~5.1 | 10.80~6.64 | |||||
Power input(KW) | 1.94~0.887 | 2.35~1.091 | 3.51~1.37 | ||||||
Input current(A) | 8.52~3.98 | 10.32~4.89 | 15.42~6.14 | ||||||
EER | 4.74~3.51 | 4.67~3.49 | 4.84~3.08 | ||||||
Power supply | 220-240V~ /50Hz | ||||||||
Max power input | KW | 4.0 | 5.0 | 5.3 | |||||
Rated current(A26℃/W26℃) | A | 9.88~1.21 | 13.35~1.64 | 18.93~2.6 | |||||
Max Current | A | 17.7 | 22.2 | 23.5 | |||||
Water flow | m³/h | 5.3 | 6.7 | 8.7 | |||||
Refrigerant volume | R32/750g | R32/900g | R32/1200g | ||||||
Min pressure/max pressure | 1.5/4.15MPa | 1.5/4.15MPa | 1.5/4.15MPa | ||||||
Unit net dimensions | mm | 930*340*650 | 930*340*650 | 1130*410*710 | |||||
Package dimensions | mm | 980*400*785 | 980*400*785 | 1170*485*840 | |||||
Net weight | kg | 45 | 50 | 70 | |||||
Gross weight | kg | 55 | 60 | 81 | |||||
Noise at 10m | dB(A) | 23~31 | 24~32 | 24~33 | |||||
Compressor brand | GMCC | GMCC | GMCC | ||||||
Condenser type | Titanium Tube | Titanium Tube | Titanium Tube | ||||||
Water proof level | IPX4 | IPX4 | IPX4 | ||||||
Loading QTY 20'/40'GP/40HQ | 93/201/201 | 93/201/201 | 46/96/144 | ||||||
PRODUCT FEATURE
ABOUT OUTES
Testing Center
FAQ
Q1: How about your delivery time ?
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump
in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts
free of charge for maintenance according to order cost during the warranty period.
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump
in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts
free of charge for maintenance according to order cost during the warranty period.
