Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Оптовая продажа с завода полуавтоматическая формовочная машина для выдувания бутылок из ПЭТ объемом 5 галлонов 20
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Zhangjiagang,Longsn,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.92 $* | 0.93 $* |
| Aug-19-2025 | 0.6 $* | 0.64 $* |
| Jul-19-2025 | 0.13 $* | 0.49 $* |
| Jun-19-2025 | 0.94 $* | 0.40 $* |
| May-19-2025 | 0.31 $* | 0.21 $* |
| Apr-19-2025 | 0.55 $* | 0.44 $* |
| Mar-19-2025 | 0.42 $* | 0.93 $* |
| Feb-19-2025 | 0.39 $* | 0.25 $* |
| Jan-19-2025 | 0.20 $* | 0.68 $* |
Характеристики
Product Description

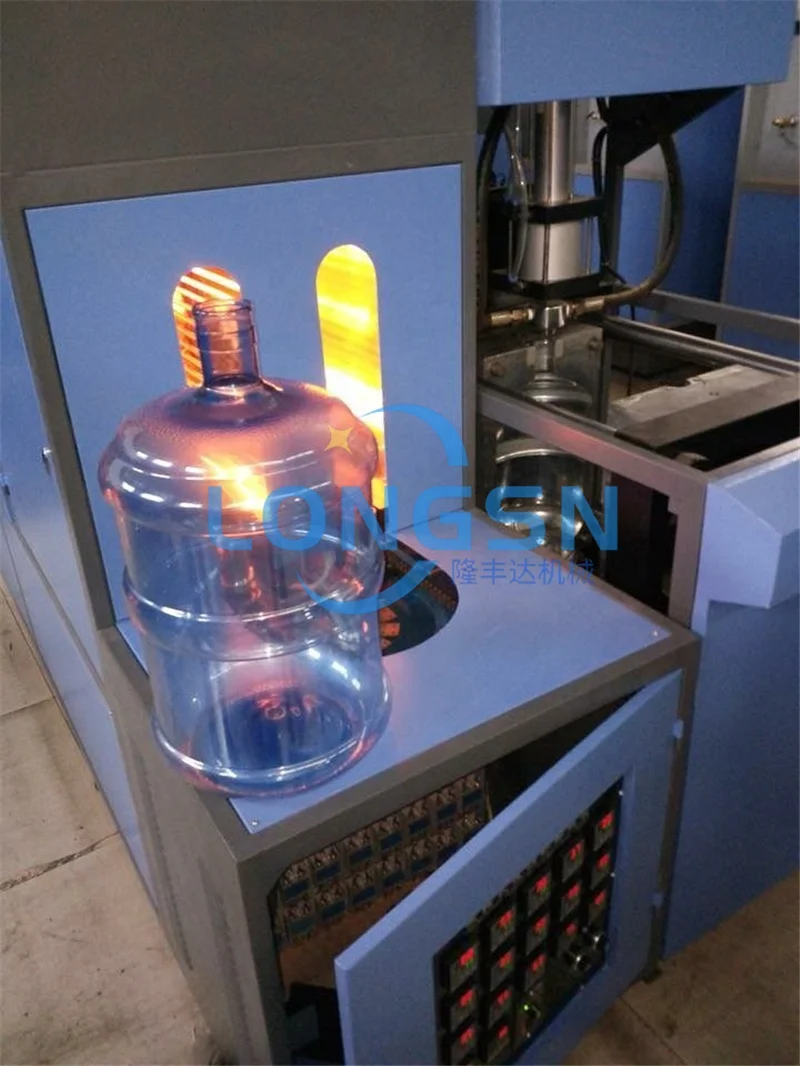

Semi automatic pet 3-5 gallon barrel bottle blow molding machine

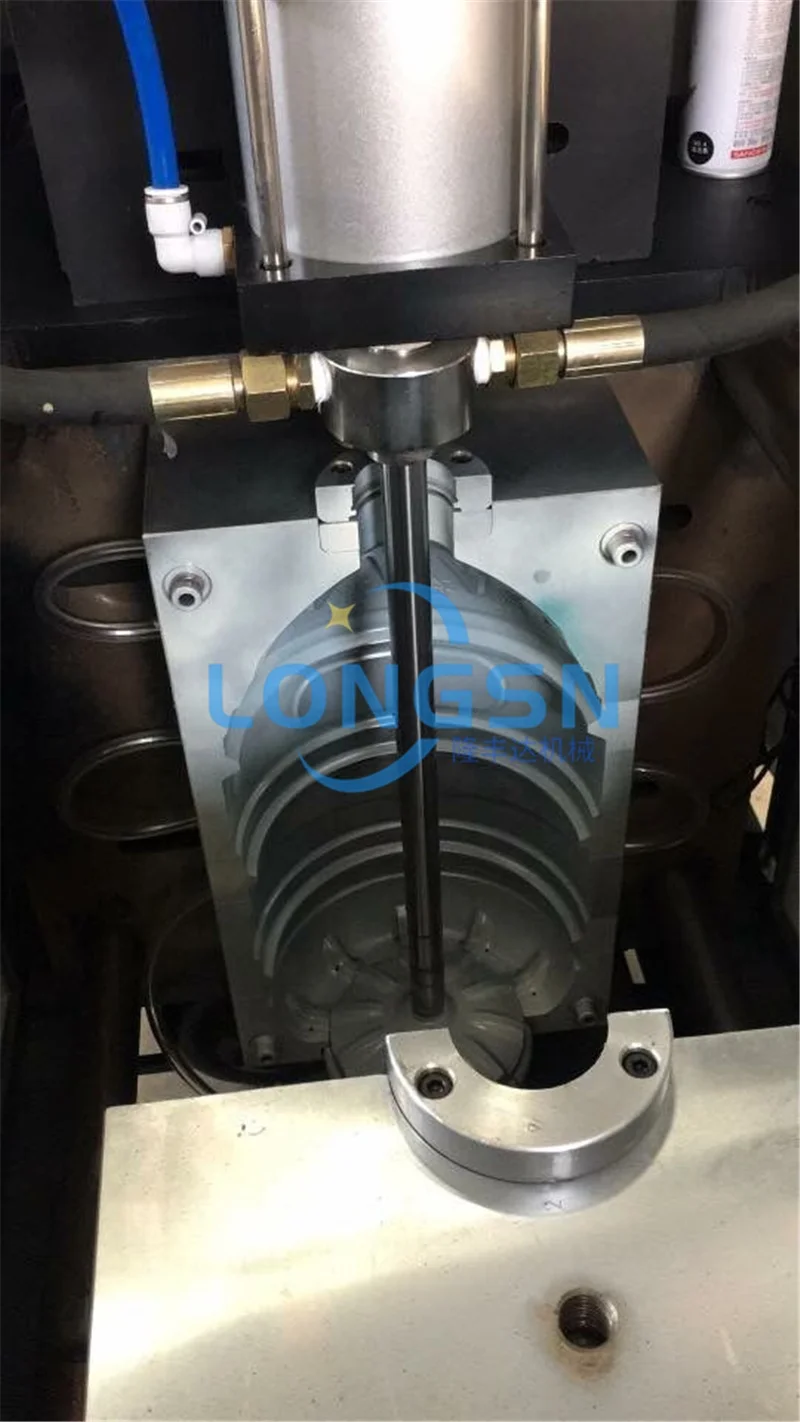

1. Using the new clamping system with double crank four tie-bars,the cross balanced fixed glide.
2. The seal,the stretch use the parallel bars union and combined design,which is advantageous to the product formation.
3. The advanced air course design,the single-channel or single-channel air admission;low pressure for clamping,sealing and stretching;the high pressre for blowing the bottle.
4. PLC control system,the operaton is easy.
5. With infrared heating,controllable constant pressure control,frequency conversion,thus achieves blows the perfect bottle.
Technical Parameter:
Type | LSN-100 | |
Output | According to bottle type | 100-120PCS/H |
Product species | Bottle diameter | 150mm-300mm |
bottle height | 250mm-550mm | |
Bottle mouth diameter | 15mm-100mm | |

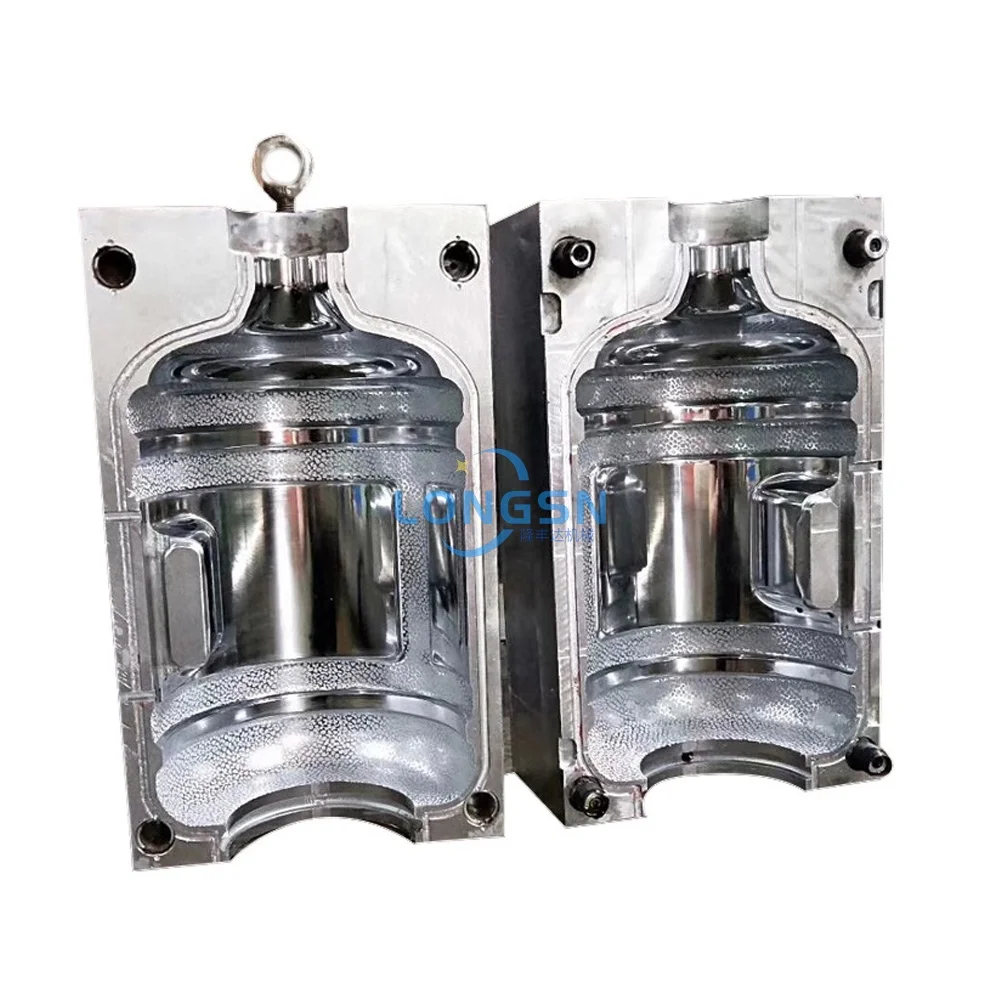

Mold | cavity | 1 cavity |
mould thickness | 200~450mm | |
Effective area of mold | 600*600mm | |
Main power | Power | 127v monophase 50/60HZ |
install power/actual power | 30kw/10kw | |
Air source |
|
|
High pressure air compressor | 1.2m3/min 3.0MPa | |
Cold dry machine | 2.0m3/min 3.0MPa 1set | |
cooling water | Cooling water quantity | 15L/min |
Main machine size | Length width height/weight | 2150*730*1700mm/950kg |
Oven size | Length width height /weight | 2650*680*1580mm/750kg |
Detailed Images:
Related products
Certificate
Packaging & Shipping
Our Services
Before the order:
We will make detailed solution for you based on your requirments.
We will send you videos of our products to know more about our machines.
If you are willing to visit our factory,we will pick you up at a nearby airport/station.
After the order:
We will start to produce machines and update the progress.
Our engineer will draw the layout for you.
After-sales service:
Arrange our engineer to your factory to install machines if you need,train your employee until they can operate machines well.
Provide you 2 years warranty with spare parts 2 year free.
24 hours for engineer response (all services part 5days in customer hand by Intl' courier)
Company Information
Zhangjiagang Longsn Machine Co., Ltd. is a professional manufacturer which integrating development, research, design, manufacturing, technical service and marketing to manufacture complete sets of Packaging machines .
Zhangjiagang Longsn Machine Co., Ltd. factory covers an area of 8,000 square meters, has more than 10 professional design and development teams, and more than 30 professional production and installation commissioning engineers. We adhere to the policy of "market-oriented, quality-oriented, service-guaranteed and reputation-based". Longsn Machines follows the ISO 9001:2000 international quality management system, establishes and improves the quality assurance system to ensure the quality and performance of the company's products.
FAQ
Q1:Are you a trading company or a manufacturer ?
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.
Q2:What is your advantage?
A2:Competitive price , Excellent technical support ,24h online service
Q3:When can I get my machines after I paid?
A3:We will arrange delivery on time,act according to the contract.
Q4:What's your guarantee or the warranty of the quality if we buy your machines?
A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q5:How can I install my machine when it arrives?
A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
