Характеристики

Products Description

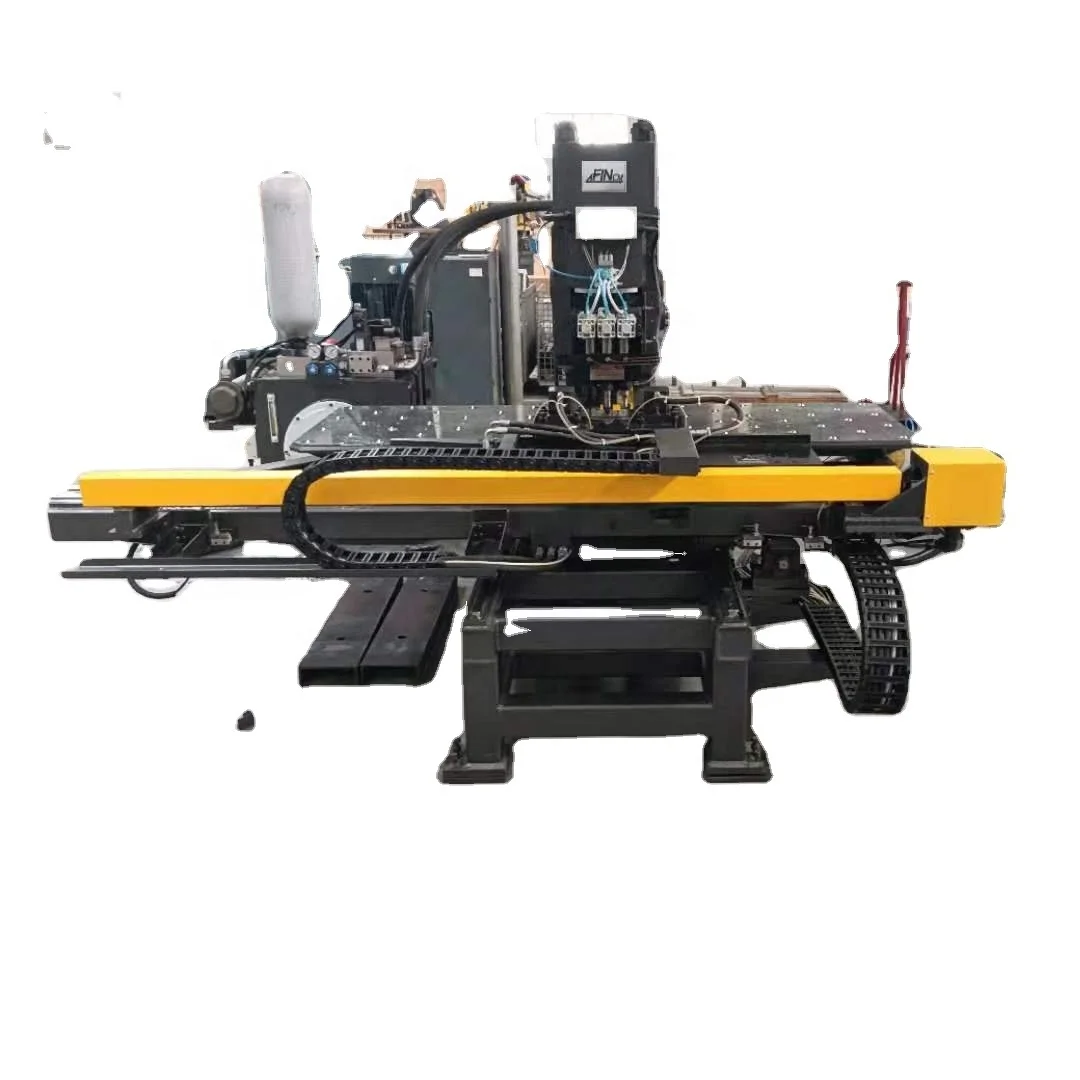

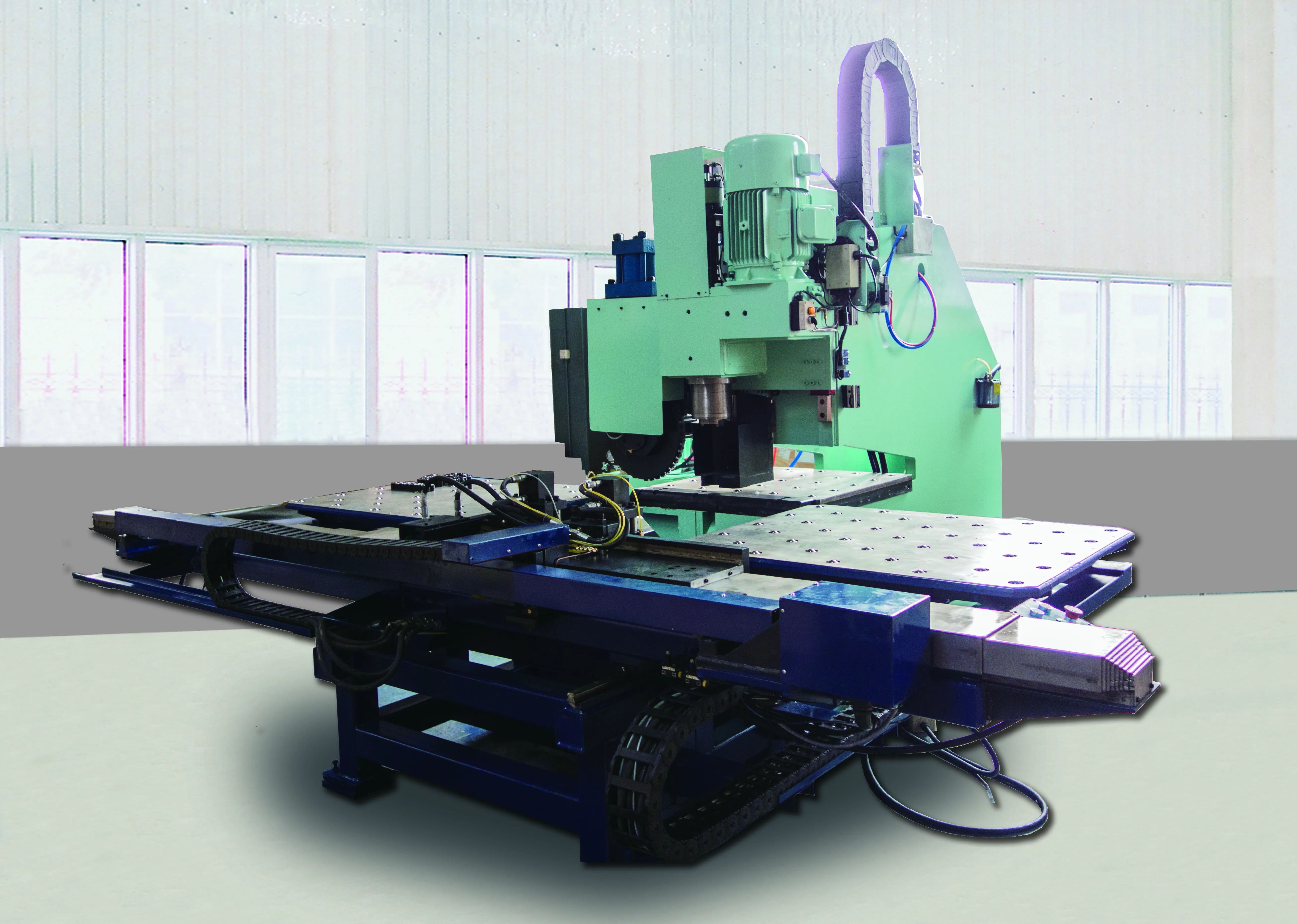

Machine Name：CNC Hydraulic Punching and Marking Machine
Machine Model: PP153
i. Punch force： 1200kN
ii. Max. size of workpiece： 775×1500mm
iii. Workpiece Thickness size： 5～25mm
iv. Max size diameter ： φ30mm
Punching diameter × thickness:
For Q235 steel σ≤420MPa: Φ30×25mm
For Q420 steel σ≤680MPa: Φ25.5×20mm

v. Module number： 3（One of them can be used for stamping die)
vi. minimum distance from hole to plate edge 25mm
vii. Marking force： 1000kN
viii. Quantity of characters per unit： 16
ix. hydraulic pump motor power： 22kW
x. AC servo motor power of X axis: 2KW
AC servo motor power of Y axis: 2KW
xi. Required compressed air pressure × displacement： 0.5MPa×0.1m3/min
xii. Cooling type water cooling
xiii. Total power: 26KW
xiv. Overall dimensions (L×W×H): 3600×2800×1870mm
xv. Net weight of the machine: About 7500kg

Company Profile

Shandong FIN C N C MACHINE CO., LTD is located in Jinan high tech Development Zone, is committed to the development, research, design, manufacture, sales of CNC machine tools, such as processing angle bar, beam channel profiles, steel plates, tubesheet and flanges and other integrated equipment professional company. It is mainly used in iron tower, steel structure, heat exchanger, boiler, bridge, truck and other industries
Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines’ perfect quality and reliable performance.
The company drafted many China national standards for C N C angle line machine and C N C beam drilling sawing machine and C N C plate drilling machine.

Production Workshop

1. We have a professional research and development team
2. The machine is widely used in the industry.
3. The performance and quality of the machine are reliable.
4. It has been exported to more than 50 countries in the world.
